- Suggested Match: 3A004
- Colour: Red
- Material: Metal+PCB Board
Description:

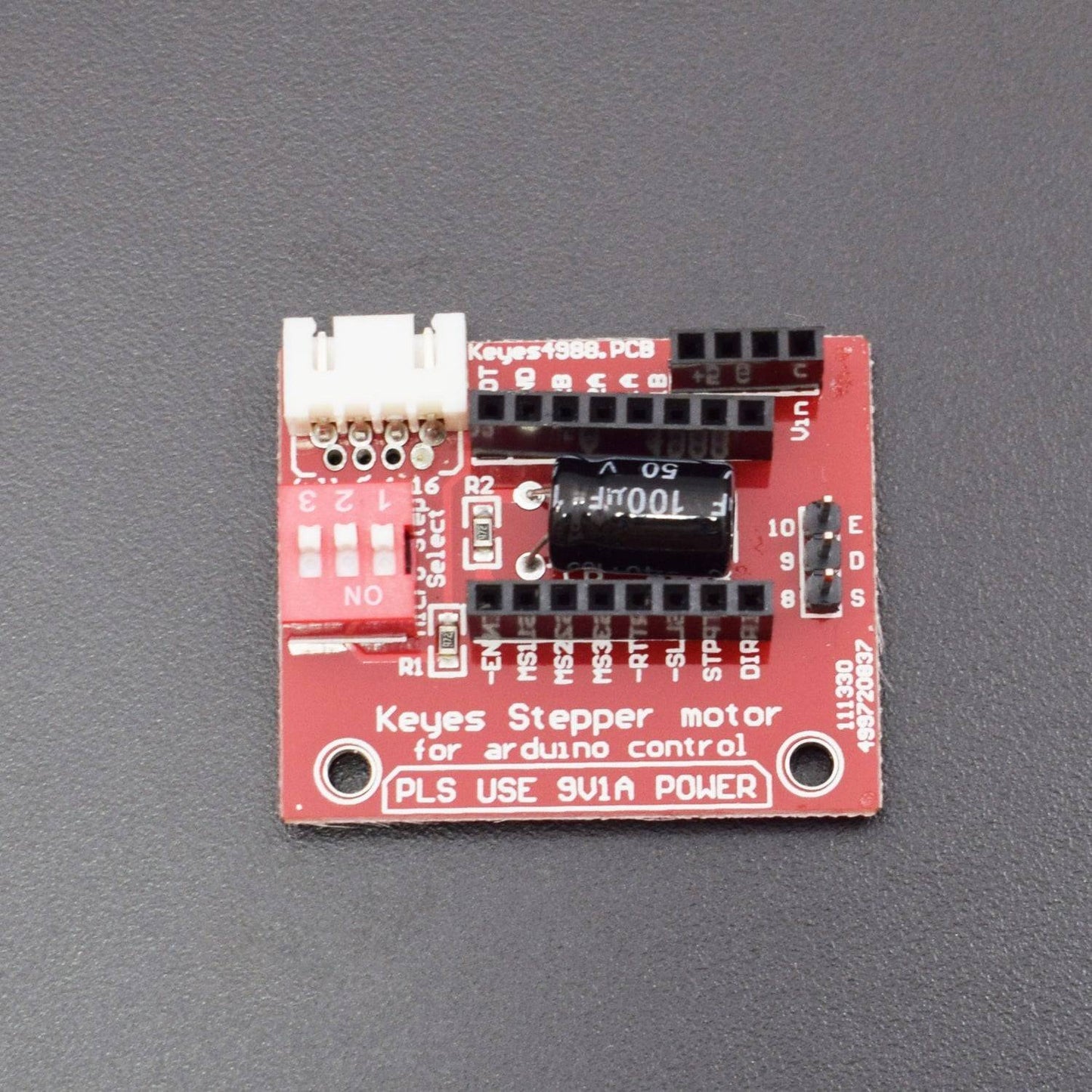

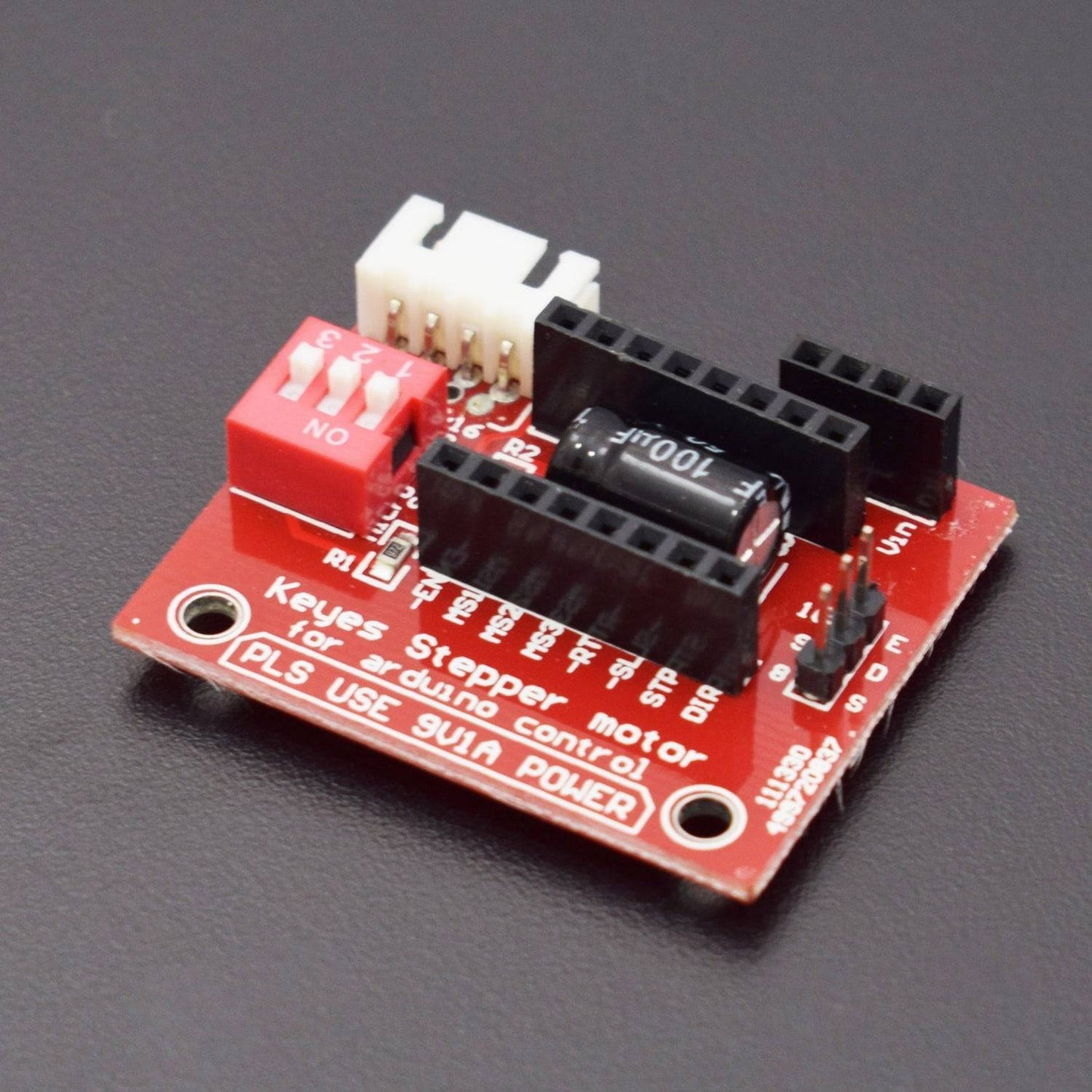

This is Red A4988 Stepper Motor Driver Controller Board. It is made of superior material, safe and stable, great for 3D printers. A4988/DRV8825 can also be used, but pay attention to direction when inserting, otherwise, the driver may be burned down. A4988 / DRV8825 Stepper Motor Driver Expansion Board for 3D Printer Parts is used to extend the A4988 or DRV8825 stepper motor driver module.
Specification:
- Suggested Match: 3A004
- Colour: Red
- Material: Metal+PCB Board
Features:
- Compact size, easy to install and use.
- All jumpers hit the ON position to indicate 16 subdivisions (4988) or 32 subdivisions (8825).
- Jm connection motor; Jv Connects 5V and 12V-24V Power Supply.
- E /S /D /G of Jc corresponds to Enable /Step /Dir /Gnd driving signal output on the connection respective
User Instructions:
- If the jumper is hit the position of ON DP,that means 16 segment (4988) or 32 segment (8825)
- Jm connected motor
- Jv connect 5v and 12v-24v power supply
- Jc E, S, D, G, respectively corresponding to the connection of the Enable/Step/Dir/Gnd drive signal output
Notice:
Pay attention to when installation direction, otherwise it may burn to drive even the mainboard
Package Included:
1 x 3D Printer Stepper Motor Driver Control Extension Shield Board For A4988 DRV8825
