3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module- RS2952

3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module- RS2952

SKU:RS2952

21 in stock

Regular price Rs. 439.00
Regular price Sale price Rs. 439.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

    Description:

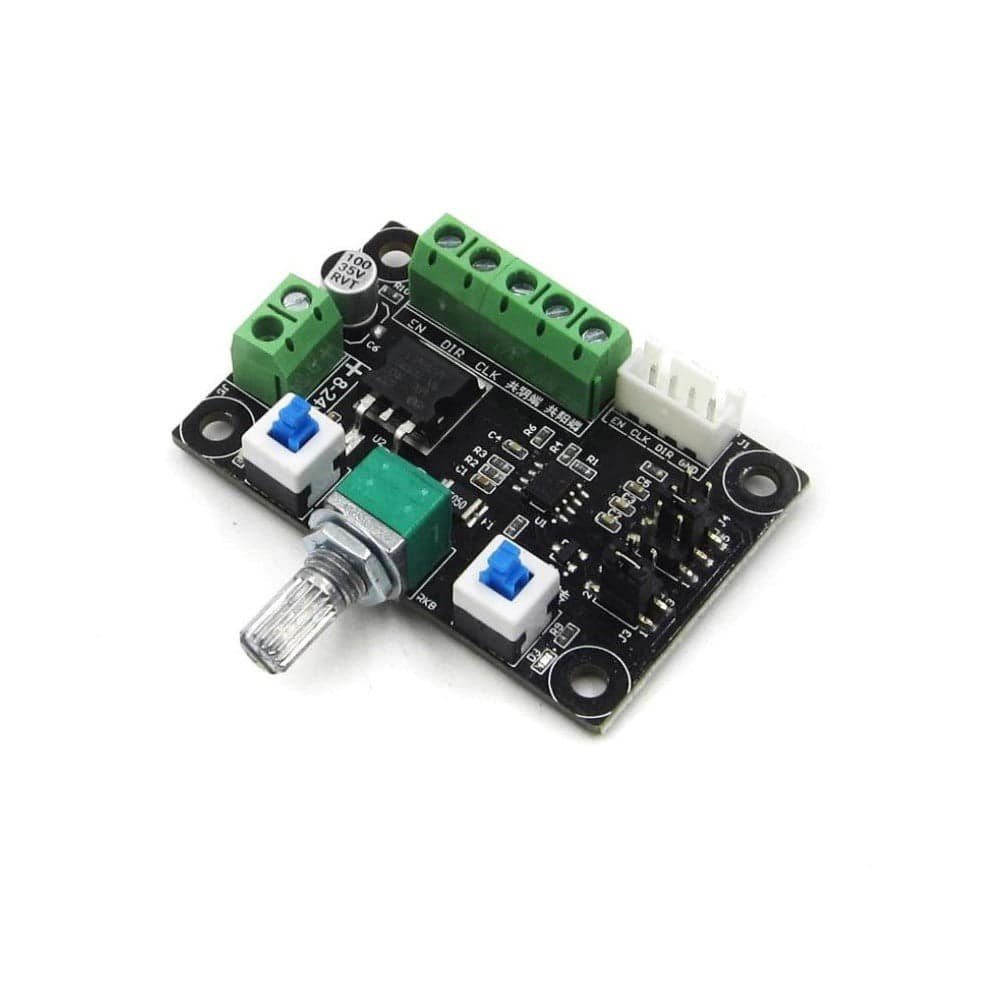

    This 3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module is a pulse generating module, which is used as a signal for stepper drivers. To control the stepper motor, it must be equipped with a driver. The module can be used as an Easy controller + stepper driver + stepper motor + DC power composed of a simple control platform. It consists of 3 kinds of frequency signals, including 5.4k-160khz, 540-16.6khz, 80-2.4khz, which can be chosen. Support generating a pulse and PWM signal, support skipping stitch choice. For frequency measurement there are two ports of PUL and common-cathode (or common anode) can be measured.

    Specification:

    • Power Input: 8-24V
    • Frequency Signals: 5.4k-160khz,540-16.6khz,80-2.4khz

    Features:

    • This module is a pulse generation module and supplies a stepper driver as a signal. To control the stepper motor, it must be equipped with a driver.
    • This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform. (Only the controller is included.)
    • The controller has a total of 3 kinds of frequency signals: high 5.4k-160khz, medium 540-16.6khz, and low 80-2.4khz, which can be selected with a jumper.
    • It can generate pulse signal and PWM signal, and it can be selected by jumper.
    • Frequency measurement: You can measure PUL and common cathode (or common anode) two ports.

    Different stepping motor driver different port sign, but same function-

    • EN=ENA=FREE Enable
    • PUL=PULS=CLK Pulse
    • DIR=CW=CWW Direction

    Common anode connection (connect with B)-

    • EN+ PUL+ DIR+ all link together to a common anode port
    • EN- connect to EN
    • PUL- connect to CLK
    • DIR- connect to DIR

    Common cathode connection (connect with B)-

    • EN- PUL- DIR- all link together to a common cathode port
    • EN+ connect to EN
    • PUL+ connect to CLK
    • DIR+ connect to DIR

    Package Included:

    1 x 3D Printer MKS OSC Stepper Motor Controller
