Description:

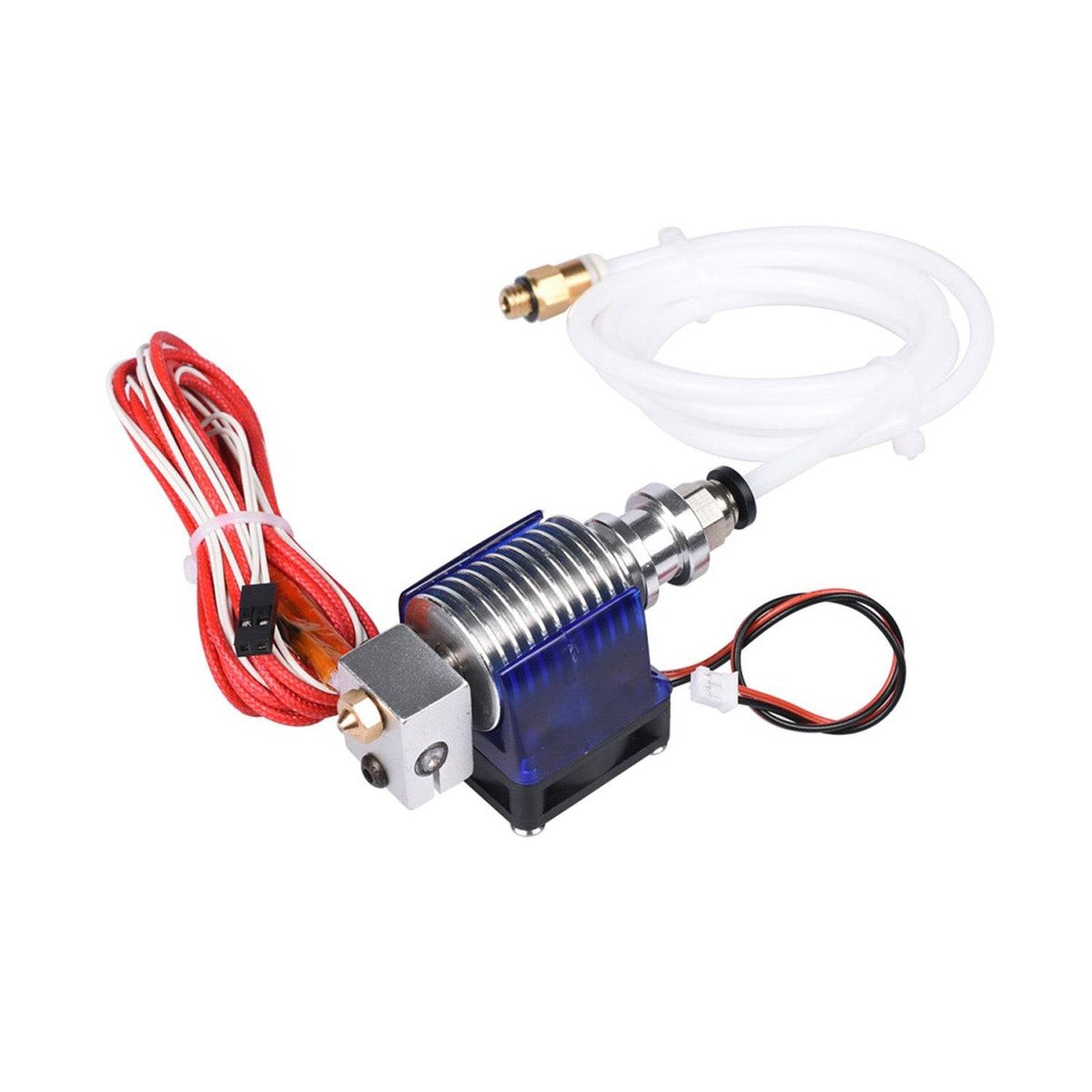

3D Printer Hotend Extruder Kit is compatible with all 1.75mm E3D V6 Makerbot 3D printer NTC connectors with terminal, 3D Printer Hotend Extruder Kit is easy-to-install extruded nozzle connects with the tube seamlessly, preventing print material from leaking or blocking the 12V/40W NTC heater, avoiding NTC burn and break frequently, 304 stainless steel material nozzle throat and high-quality resistor whose temperature can up to 280°C, 12V high-speed fan, radiating quickly.
Specifications:
-
Outer Thread: M6 M7
-
Nozzle Throat Outer Diameter: 6mm
-
Nozzle Throat Inner Diameter: 4mm
-
Teflon Pipe Inner Diameter: 2mm
-
Length of Nozzle Throat: 22.5mm
- Filament Diameter: 1.75mm
- Extruder Brass Nozzle Input Diameter: 1.75mm
-
Extruder Brass Nozzle Output Diameter: 0.3mm 0.4mm 0.5mm
- Volcano Extruder Nozzle Output Diameter: 0.6mm 0.8mm 1.0mm 1.2mm
Features:
- 3D Printer Hotend Extruder Kit with shroud, radiating quickly.
- 3D Printer Hotend Extruder Kit has one meter long PTFE/teflon tubing 4mm OD 2mm ID.
- 3D Printer Hotend Extruder Kit with PC4-01 tube fitting and volcano heating block.

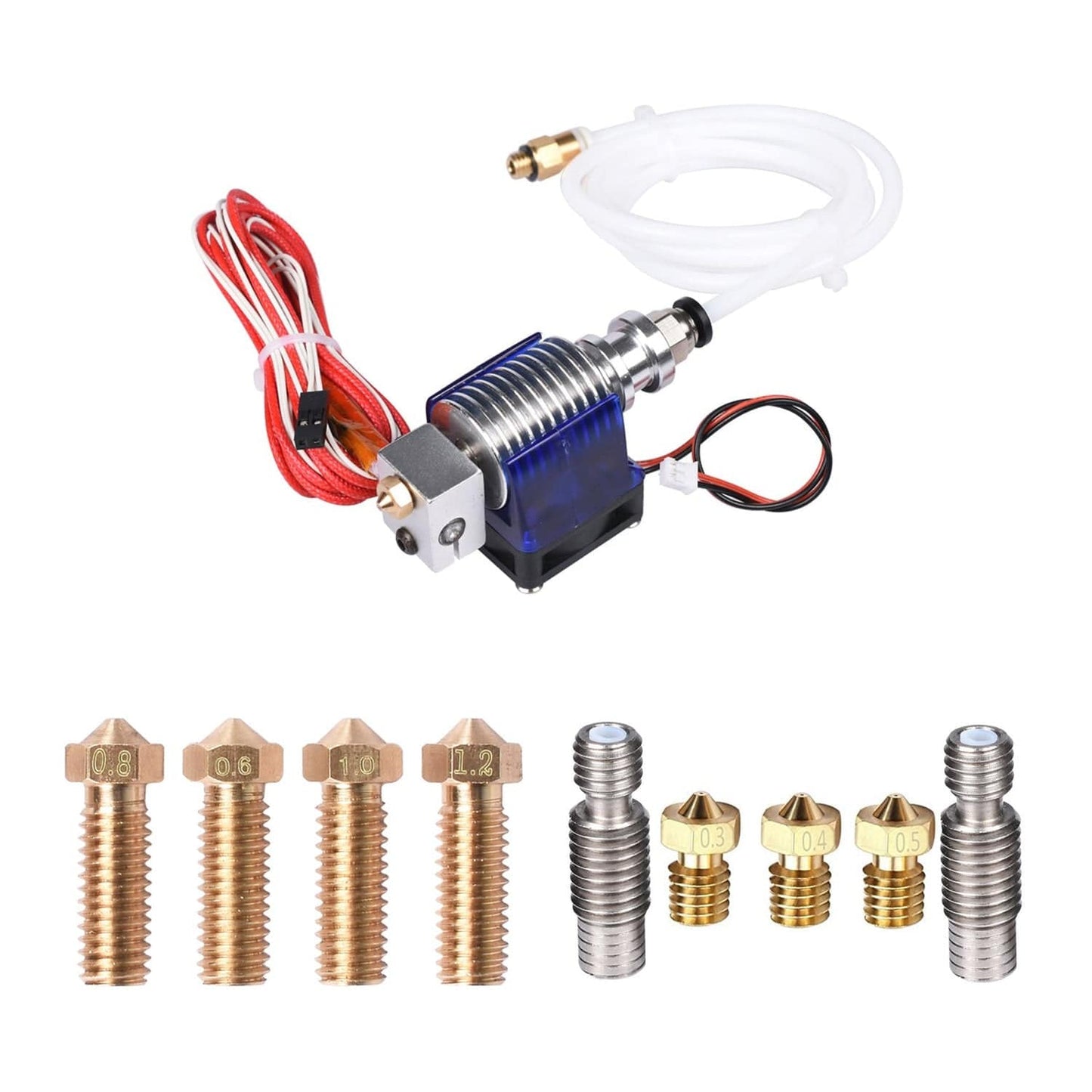

Package Included:
- 1 x V6 Hotend 12V/40W/1.75mm/0.4mm Nozzle / Extruder
- 1 x 12V High-speed Fan with Shroud

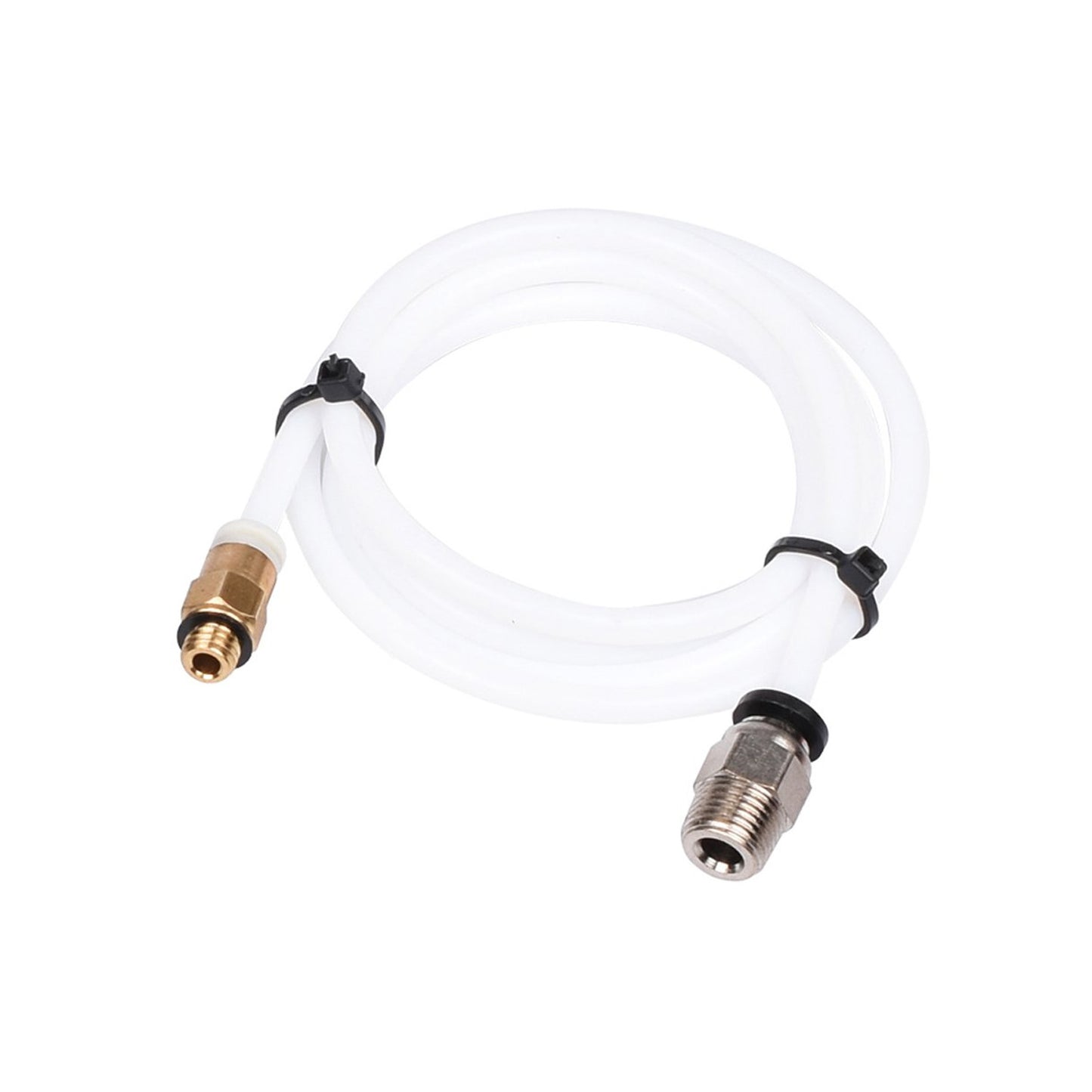

- 1 x One Meter Long PTFE/Teflon Tubing 4mm OD 2mm ID
- 1 x PC4-01 Tube Fitting

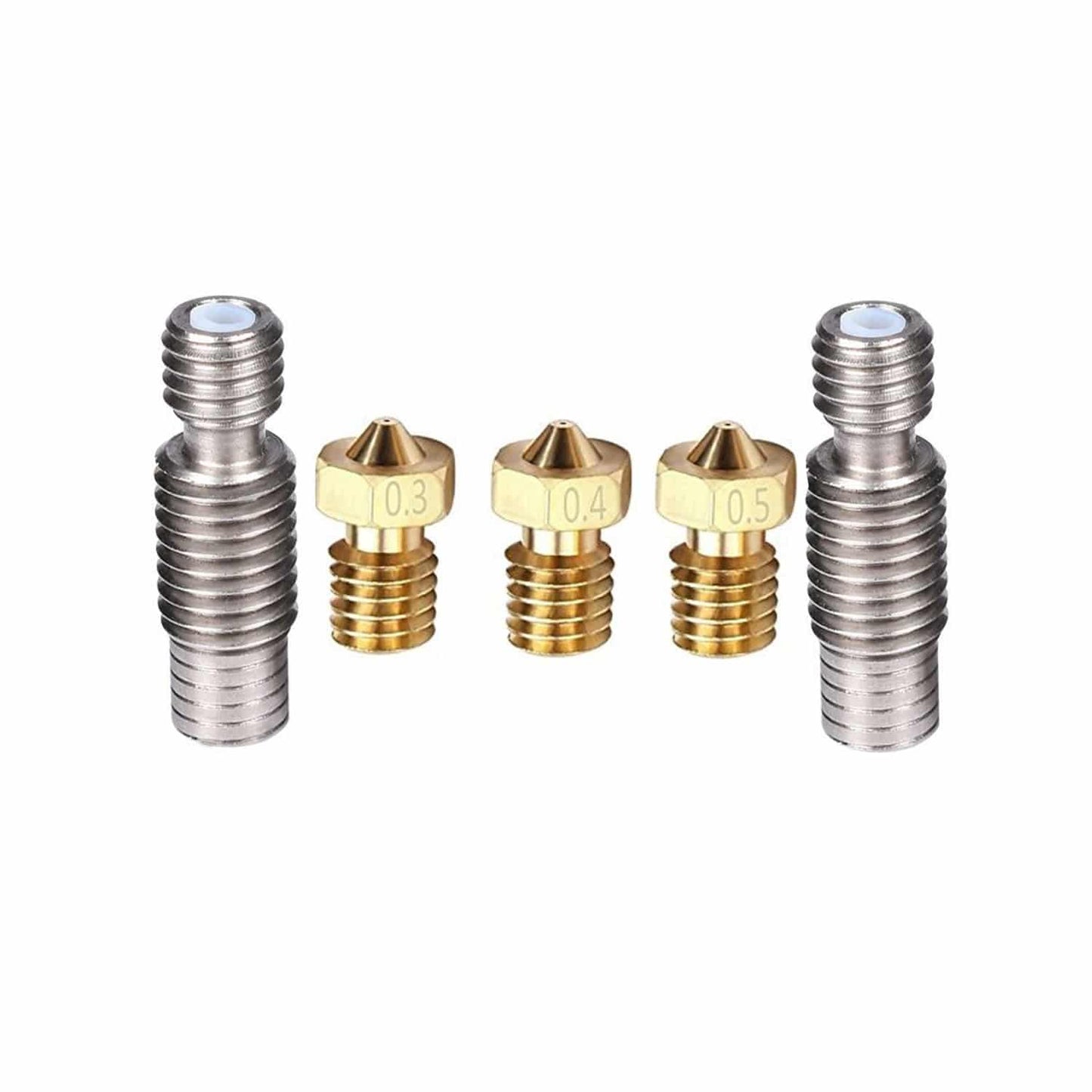

- 1 x 0.3mm Nozzle Print Head
- 1 x 0.4mm Nozzle Print Head
- 1 x 0.5mm Nozzle Print Head
- 1 x 0.6mm Volcano Nozzle Print Head
- 1 x 0.8mm Volcano Nozzle Print Head
- 1 x 1.0mm Volcano Nozzle Print Head
- 1 x 1.2mm Volcano Nozzle Print Head
- 1 x Volcano Heating Block
- 2 x Teflon Tube within 1.75mm Stainless Steel Nozzle Throat
