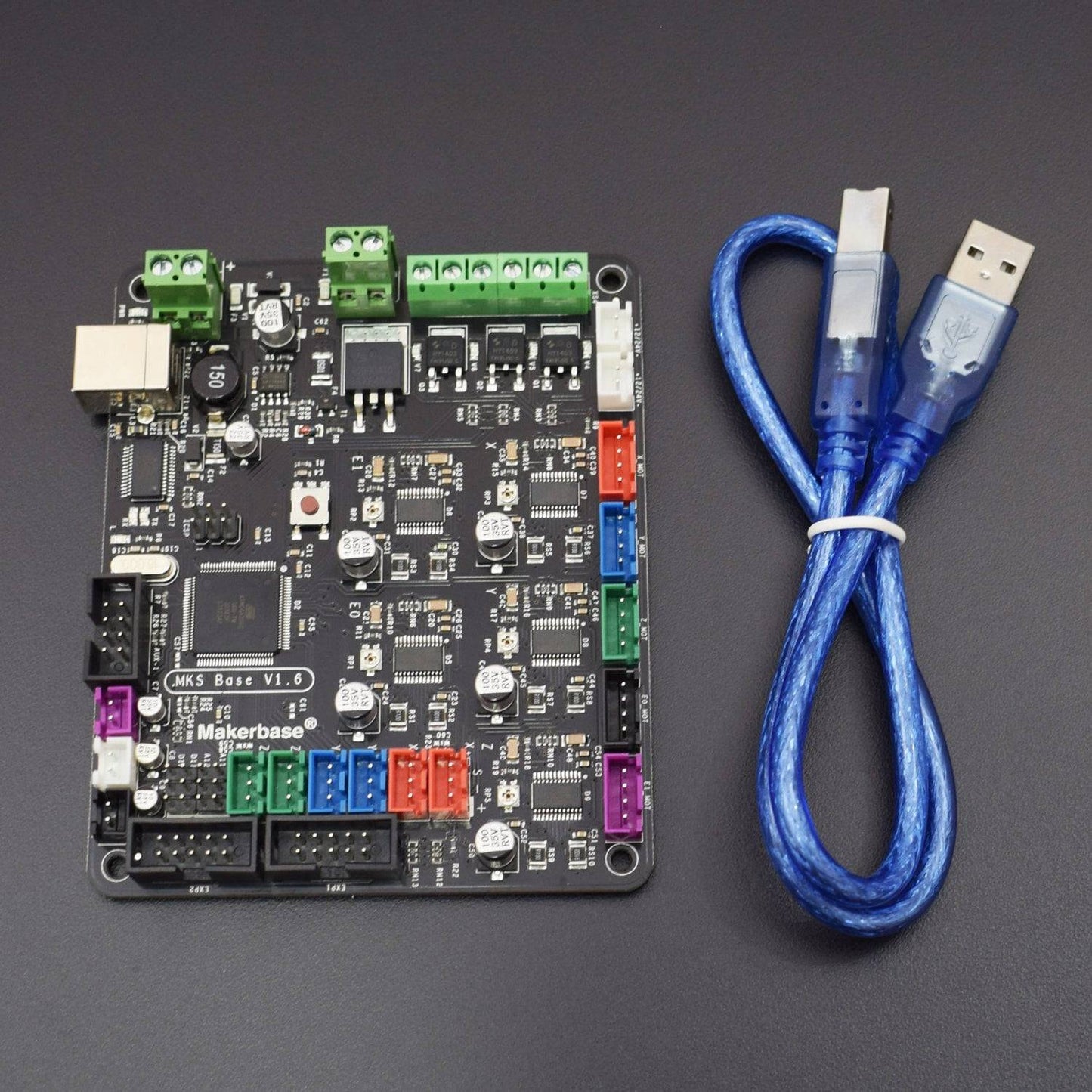

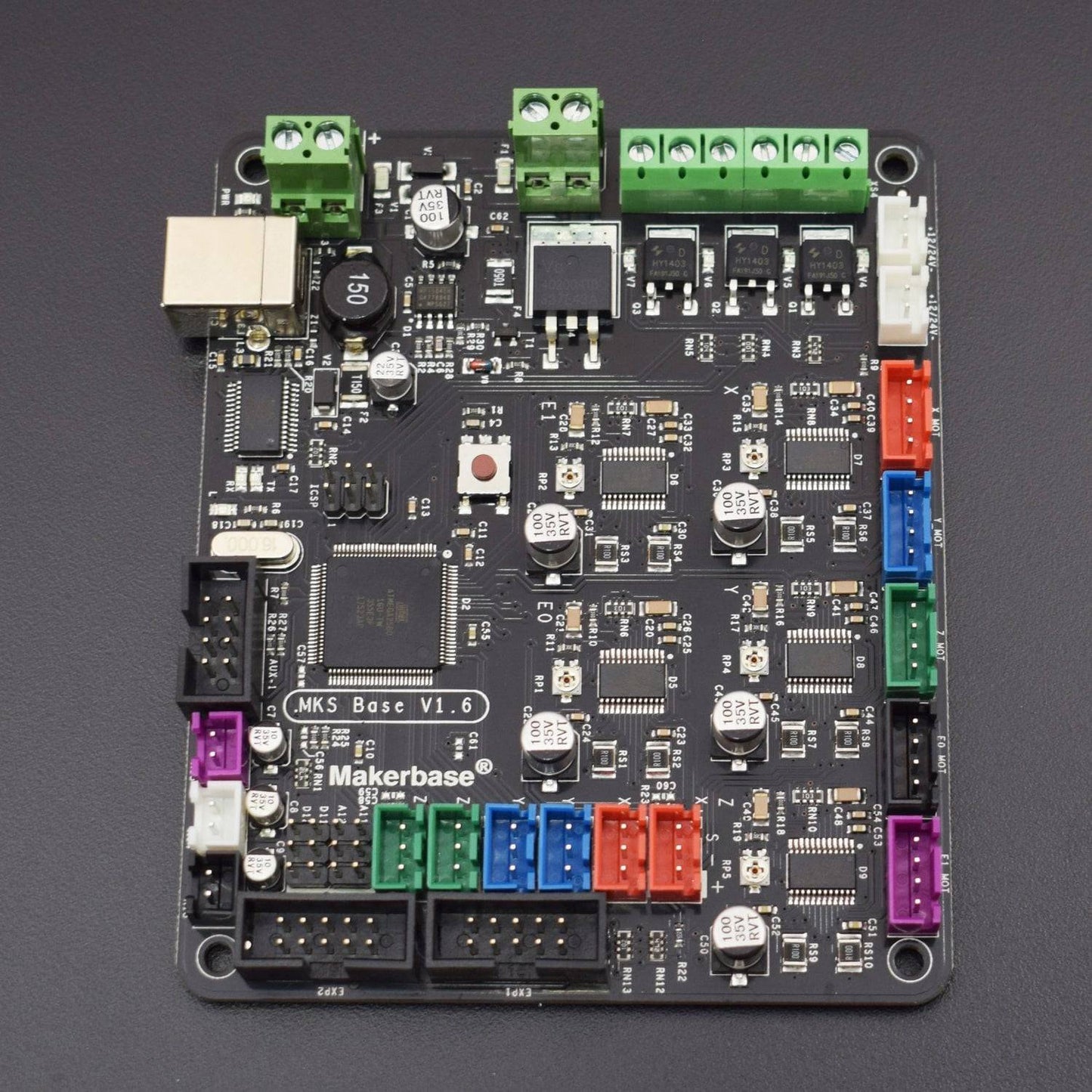

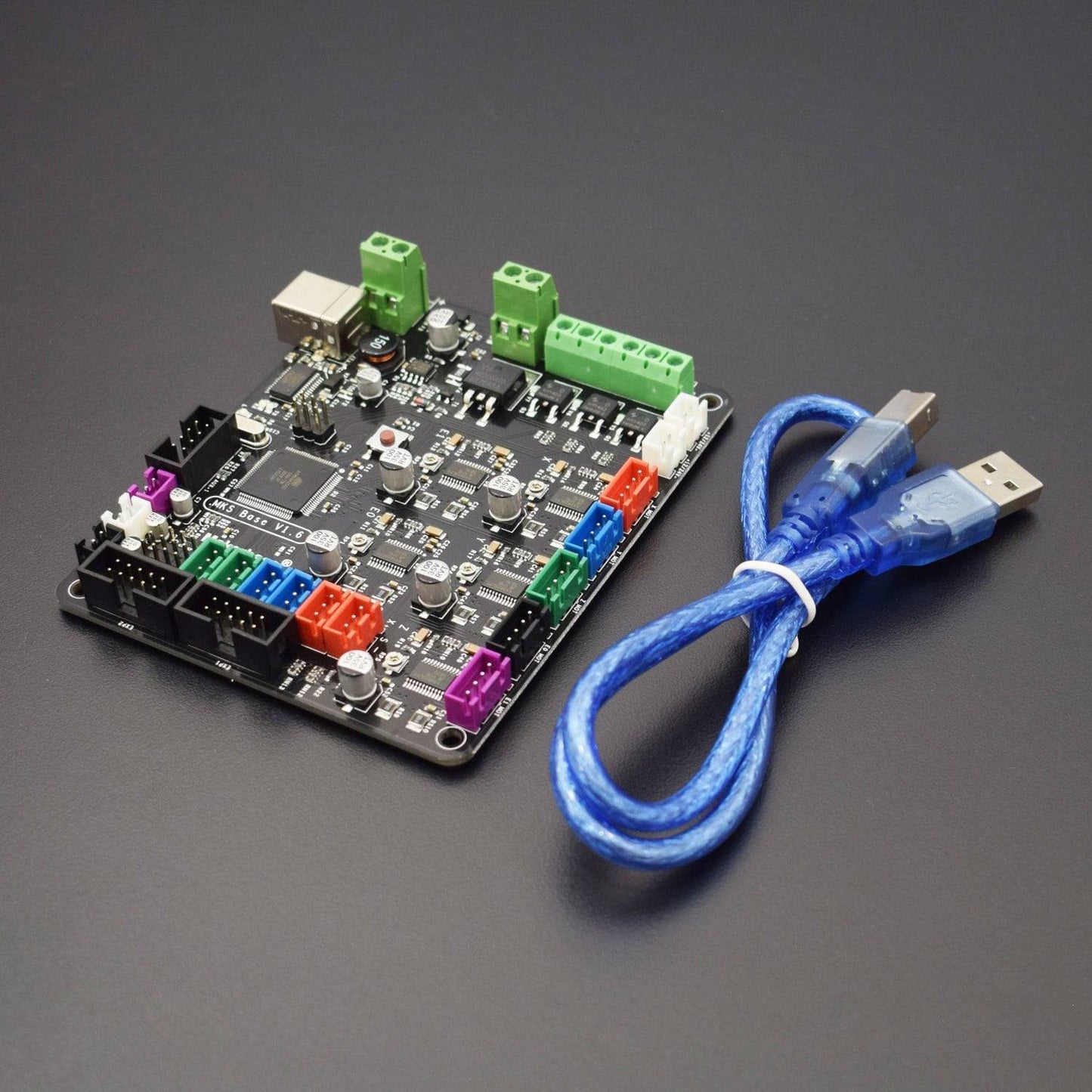

3D Printer Control Board MKS BASE V1.6 Board RepRap Ramps1.4 Compatible Development Board - RS1065

3D Printer Control Board MKS BASE V1.6 Board RepRap Ramps1.4 Compatible Development Board - RS1065

SKU:RS1065

In stock

Regular price Rs. 4,999.00
Regular price Sale price Rs. 4,999.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • This is the combination of MEGA2560 + RAMPS1.4 + 5 x A4982 drivers (remix board)
  • Using ATMEGA2560-16AU, and improve its performance highly.
  • Support network function, then proceed remote control via IE Explorer.
  • Up to 5 motor drivers with A4982
  • Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on board

Description :

  • This is the combination of MEGA2560 + RAMPS1.4 + 5 x A4982 drivers (remix board)
  • Firmware can use the same configuration as RAMPS1.4
  • It is suitable for dual-Extrude printer
  • Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on board
  • 3x temperature ADC connectors for thermistors
  • Up to 5 motor drivers with A4982
  • 4x PWM capable power MOSFET outputs with voltage selector for MainPower.(Bed, Extruder0, Extruder1, Fans)
  • 4 layers PCB, optimize heat dissipation.
  • 6x end stop connectors with power supply Xmin/Xmax/Ymin/Ymax/Zmin/Zmax
  • Recoverable fuse for short-circuit protection.
  • USB Driver Chip FT232RL, you can get files from ftdi chip to setup driver: Ftdi-x86.zip
  • Using professional power chip, support 12V-24V DC input.
  • Good to work with 12864LCD and MKS TFT touch screen.
  • Using A4982 stepper driver which supports 32-microstep and with excellent cooling.
  • Currents of the stepper motor can be set directly, which can avoid the damage.
  • Support highly modular open source firmware Smoothieware, easy for secondary development.

Package Included :

1 x 3D Printer Control Board MKS BASE V1.6 Board RepRap Ramps1.4 Compatible Development Board
