Description:

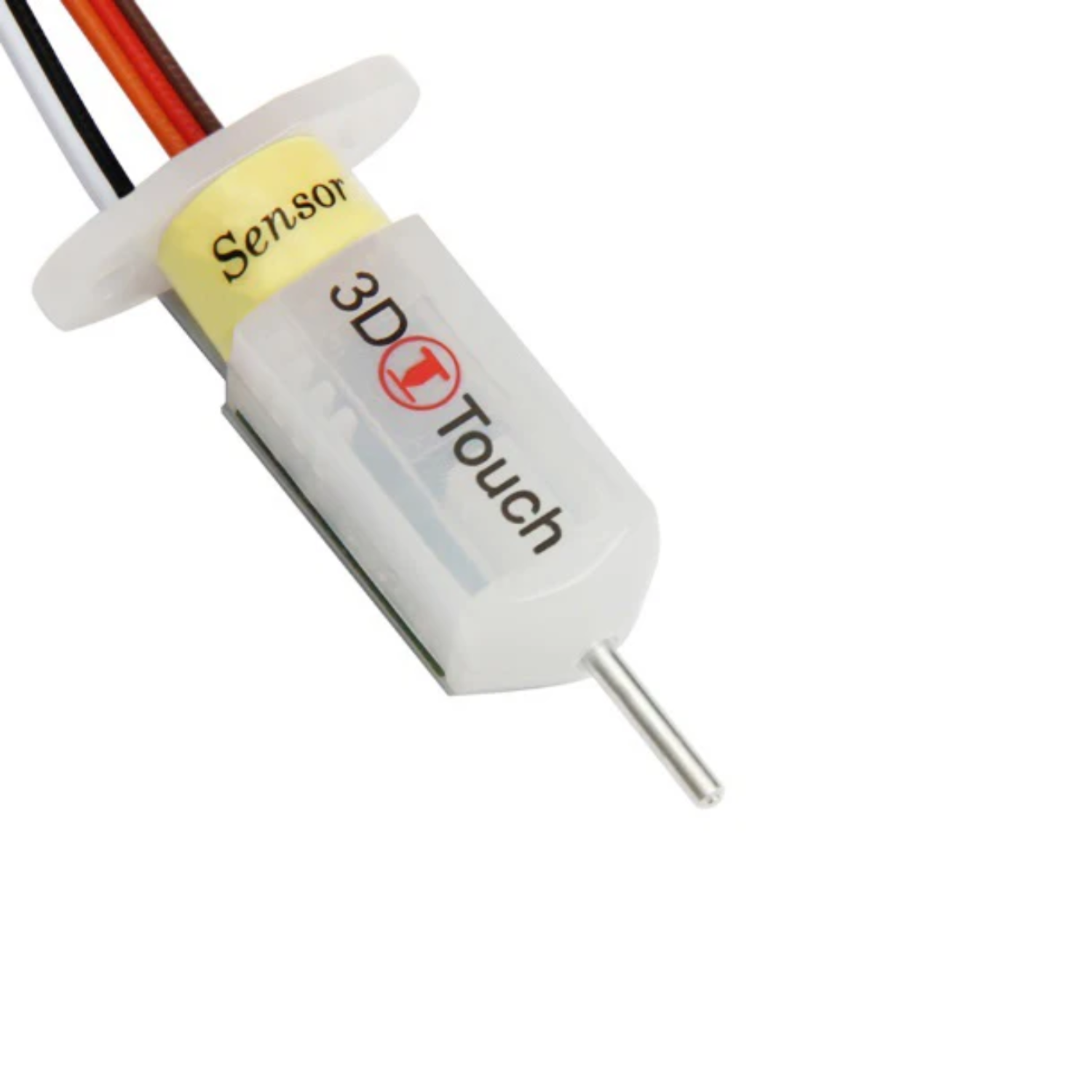

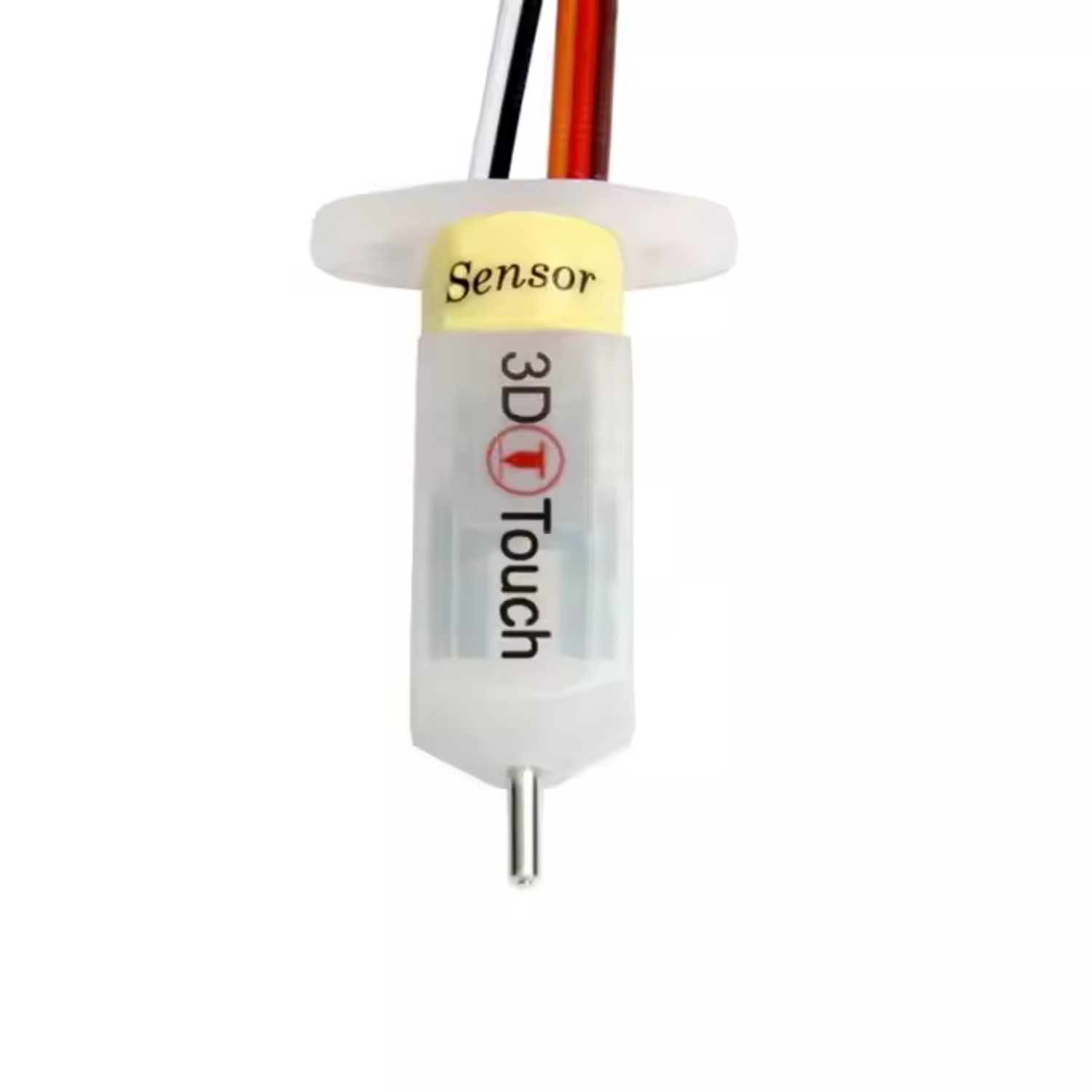

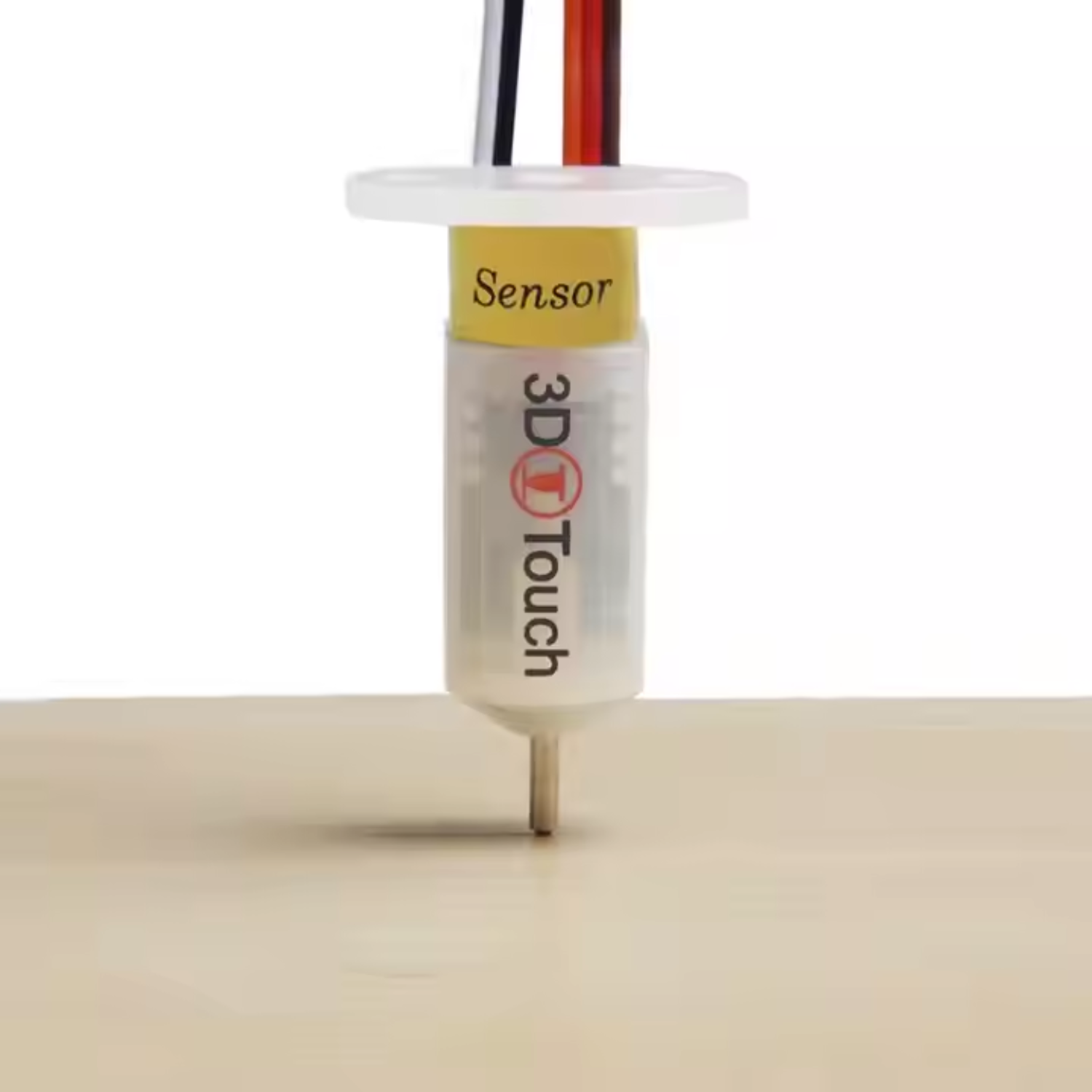

The 3D Printer Touch is an advanced auto-leveling sensor engineered to provide precise and reliable bed leveling for your 3D printer. Utilizing a refined solenoid and Hall sensor system, it achieves exceptional accuracy in measuring the print surface's tilt. This sensor functions similarly to conventional auto bed leveling sensors, employing an RC servo and micro switch, ensuring broad compatibility with a wide range of 3D printer control boards. By automating the bed leveling process, the 3D Printer TOUCH minimizes print errors and maximizes print quality, delivering a streamlined and efficient 3D printing workflow.
Specifications:
- Type: Module
- Voltage: 5V
- Material: Polycarbonate
- Rated Current: 15mA
- Max. Current Capacity: 300mA
- Shell Color: White translucent
- Cable Length: 15cm
Features:
- Effortless Auto-Leveling: Simple, smart design for quick and reliable bed leveling.
- Pinpoint Accuracy: High-precision sensor utilizing advanced solenoid and Hall effect technology.
- Efficient Power Use: Innovative solenoid design ensures ultra-low power consumption.
- Universal Bed Compatibility: Works flawlessly with glass, wood, metal, and other print surfaces.
- Wide Control Board Support: Compatible with nearly all 3D printer control boards.

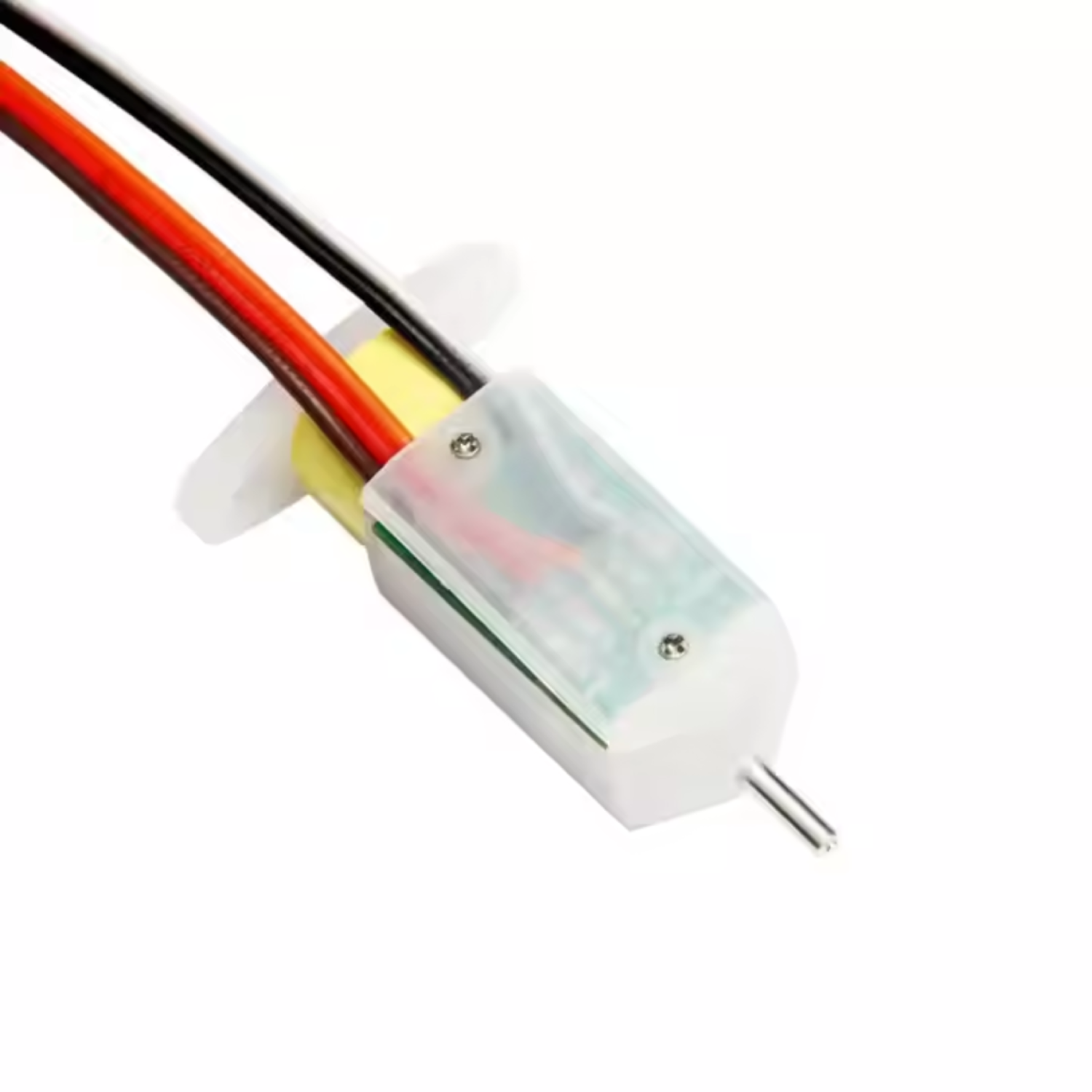

- Compact & Integrated: Atmel ATtiny13A, solenoid, and push pin combined for streamlined function.
Operate Condition:
- 3D Touch can be operated in the following conditions.
- One I/O for control (PWM or Software PWM)
- One I/O for Z min (Z Probe)
- GND and +5V power

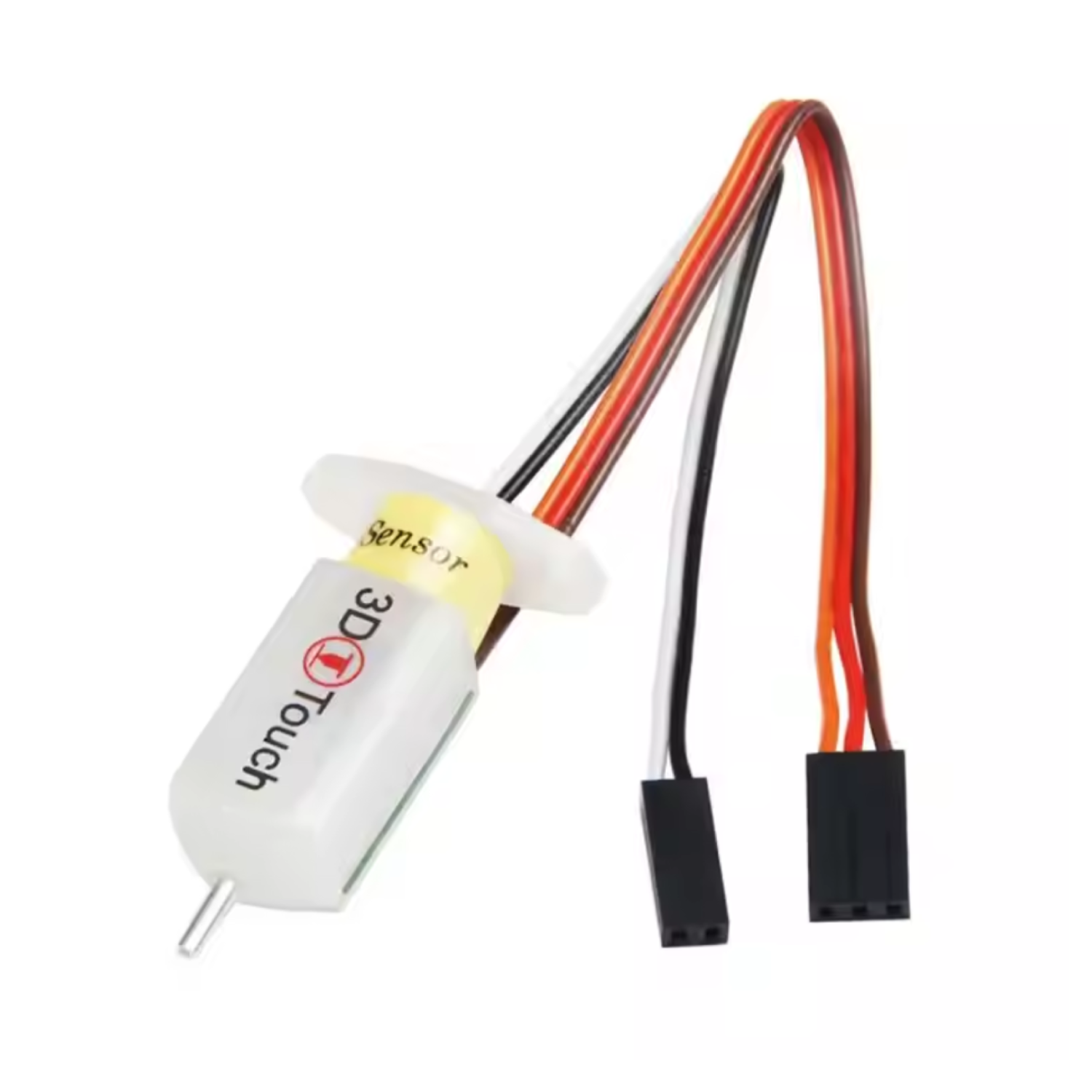

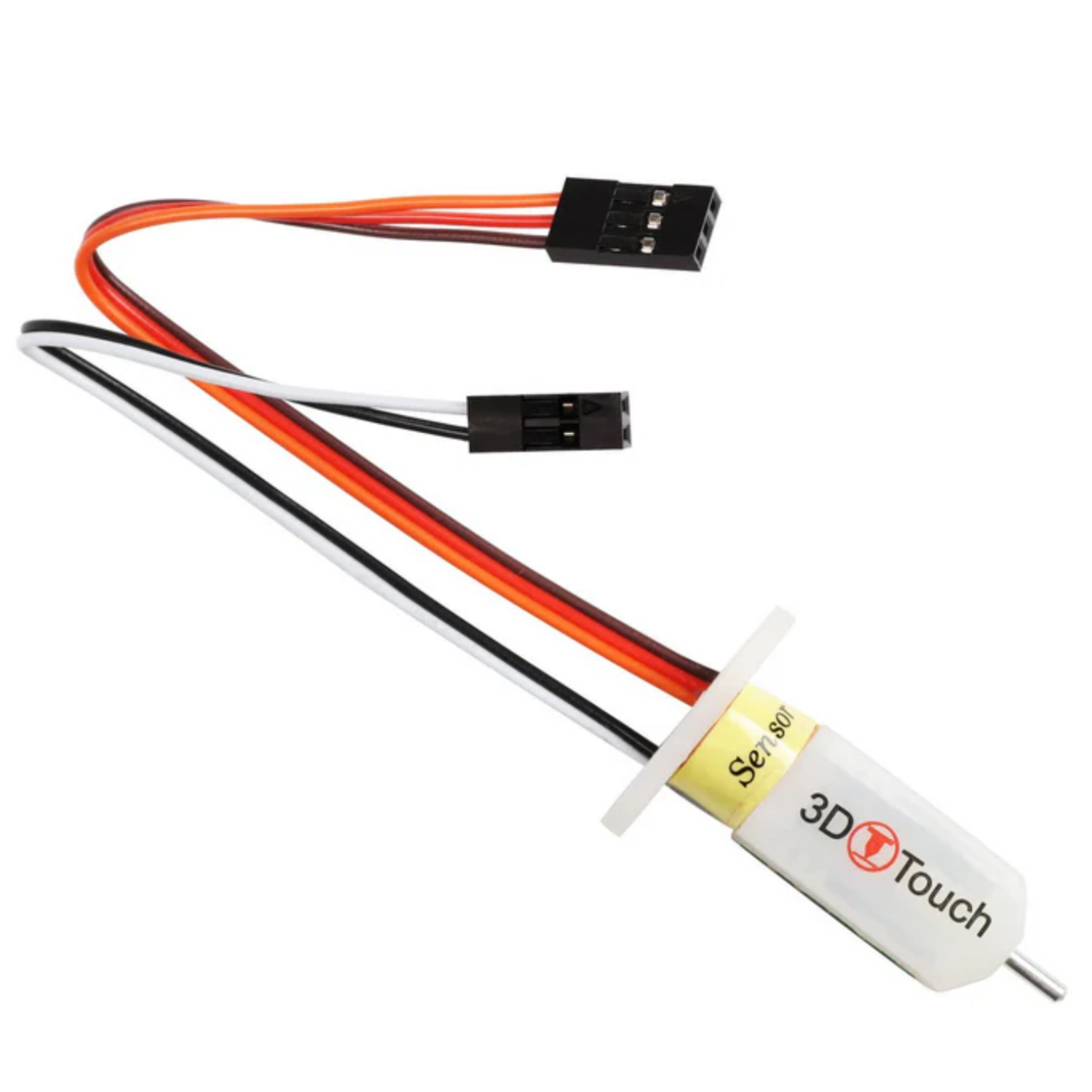

Wiring:
- 3-Pin: Brown (-, GND), Red (+5V), Orange (control signal)
- 2-Pin: Black (-, GND), White (Z min)

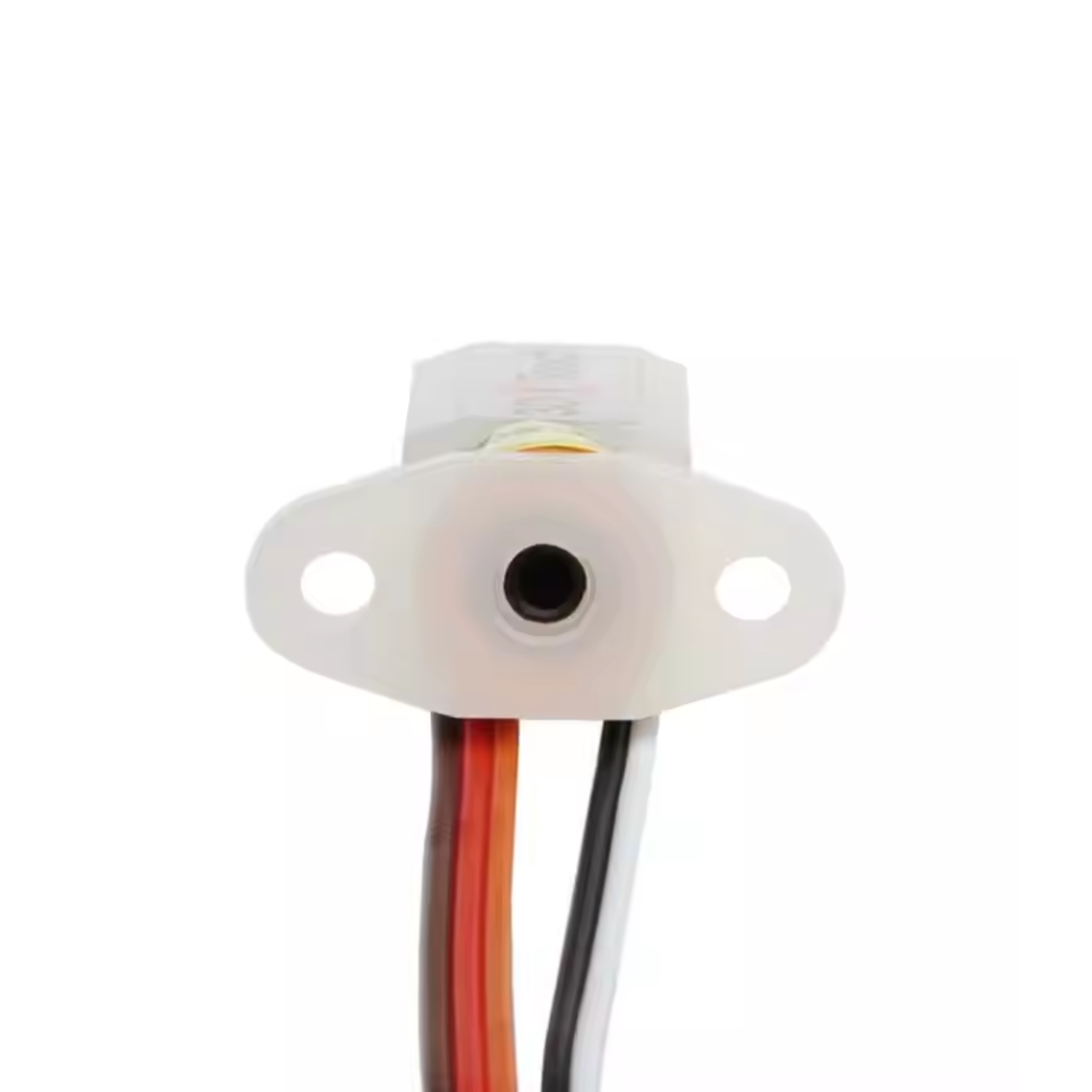

NOTE: It is not perfectly compatible with all 3D printers. You can design your own mounting bracket according to different models. It is a DIY modification, not a standard 3D printer accessory. You should also use a suitable bracket!
Package Included:
1 x 3D Auto Bed Leveling Sensor
