3A Driver Board CNC RouterSingle Axis Controller StepperMotor Drivers TB6560 - NA233
3A Driver Board CNC RouterSingle Axis Controller StepperMotor Drivers TB6560 - NA233
SKU:NA233
42 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
Working voltage DC 10V-35V. Recommended using a switching power supply DC24V power supply 6N137 high-speed optical coupling, guarantee high speed without losing a step. Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance. Rated maximum output: ± 3A, peak 3.5A. For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function. Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.
Specifications:
- Working Voltage: DC 10-35V
- Rated Maximum Output: ± 3A, peak 3.5A.
- Main Colour: Green
Package Included:

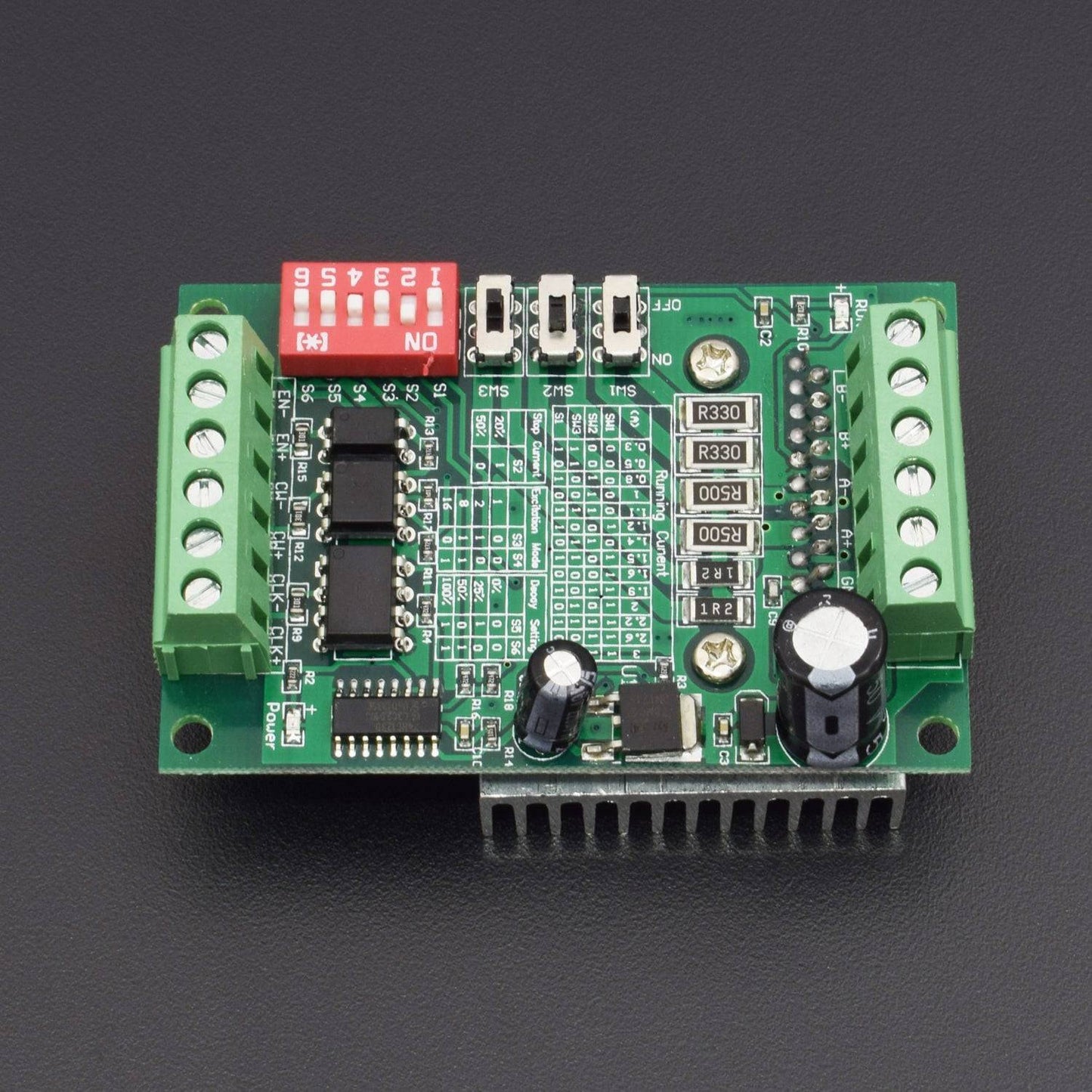

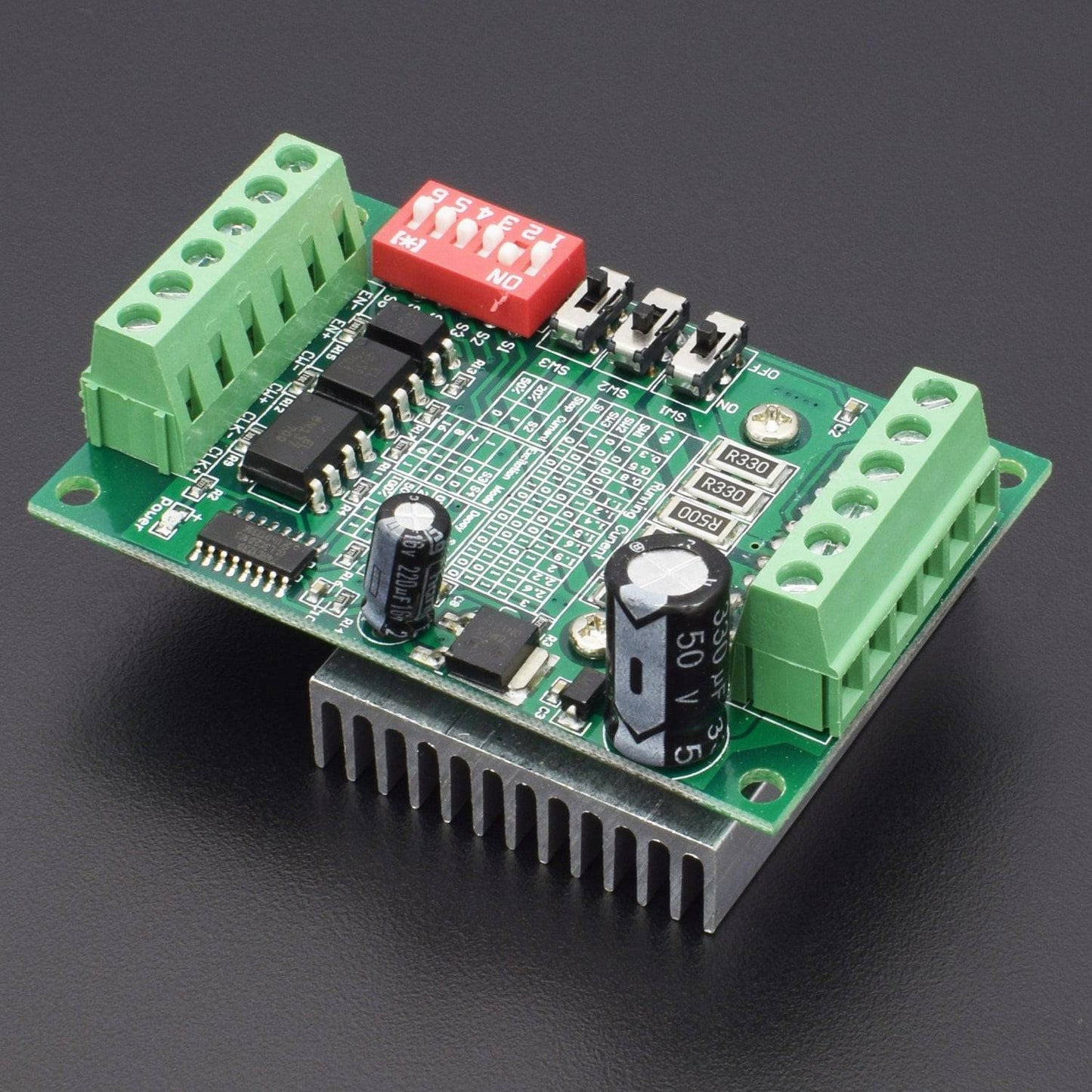

1x TB6560 3A driver board
