- Perfect for protecting sensitive printed circuit board (PCB) components such as gold fingers when wave soldering
- Extensive use as heat tape for transformer, motor, coil, capacitor and frequency conversion power supply in electronic industry.
- Transfer tape for vinyl.This heat transfer tape keep your design in place when you making shirts and hats,help to do heat transfer vinyl on a heat press.
Description:
Used in various electrical/electronic product manufacturing processes due to its' excellent heat resistance and electrical insulation.Heat resistant tape is a polyester film tape with a high temperature resistant adhesive.high temperature tapes are made from polyimide film with silicone adhesive. They are compatible with a wide temperature range as low as -73°C (-99°F) and as high as 260°C (500°F).For applications where extremes of heat and vibration are the norm, designers rely on it because of its ability to maintain its unique combination of mechanical properties under the harshest of conditions.
Specification:
- Substrate material: Polyimide polymers film
- Glue Type: Silicone
- Substrate material thickness: 0.025mm
- Thickness with adhesive: 0.05mm
- Size:0.4*1181inch (36mm*33m)
- Elongation: 35 %
- Temperature Range:-73°C – 260°C (-99°F - 500°F)
Application:
- Automotive sensor and manifolds
- Insulating circuit boards
- Etching
- Fiber Optics Cable
- High temperature powder coating
- Semiconductor manufacturing
Package Included:

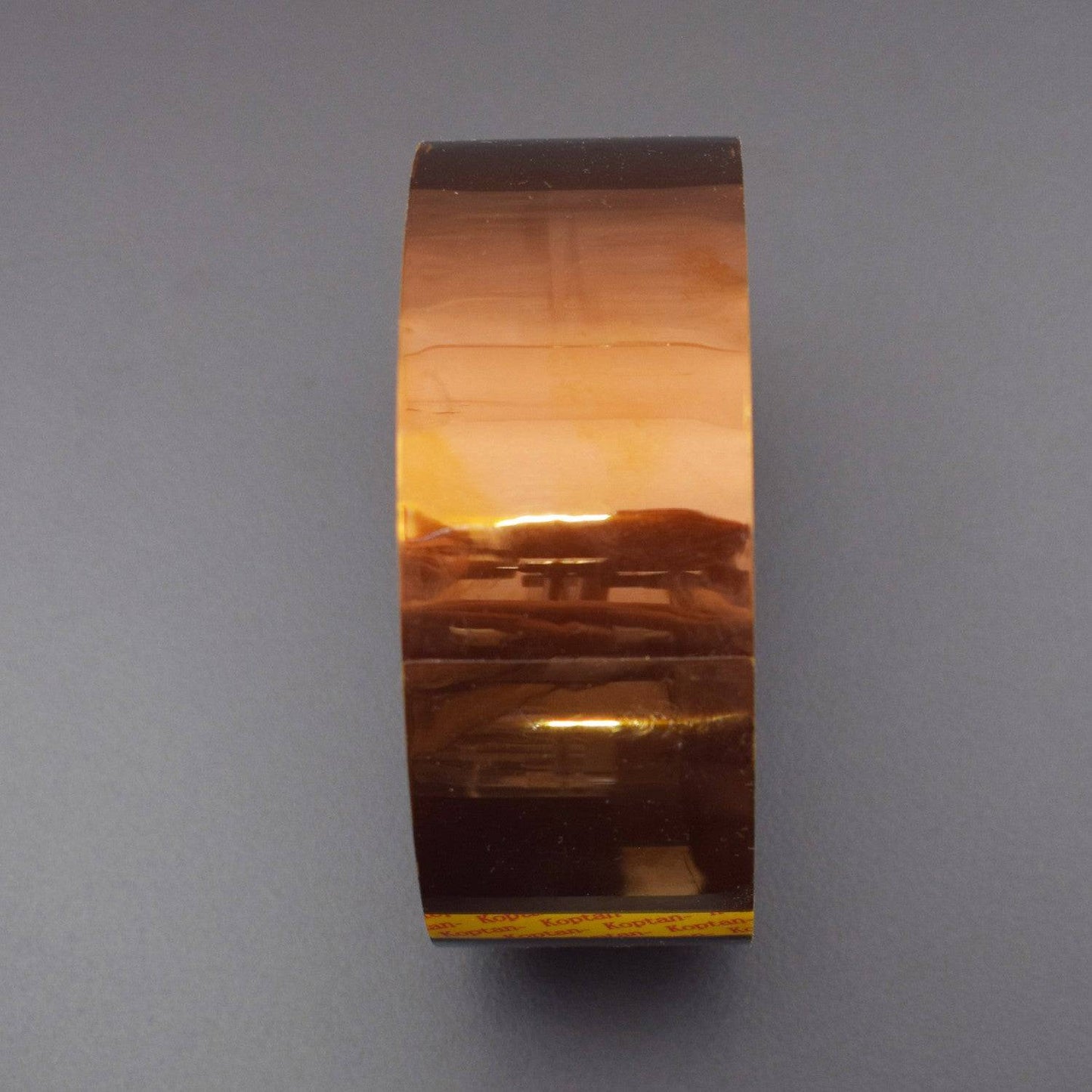

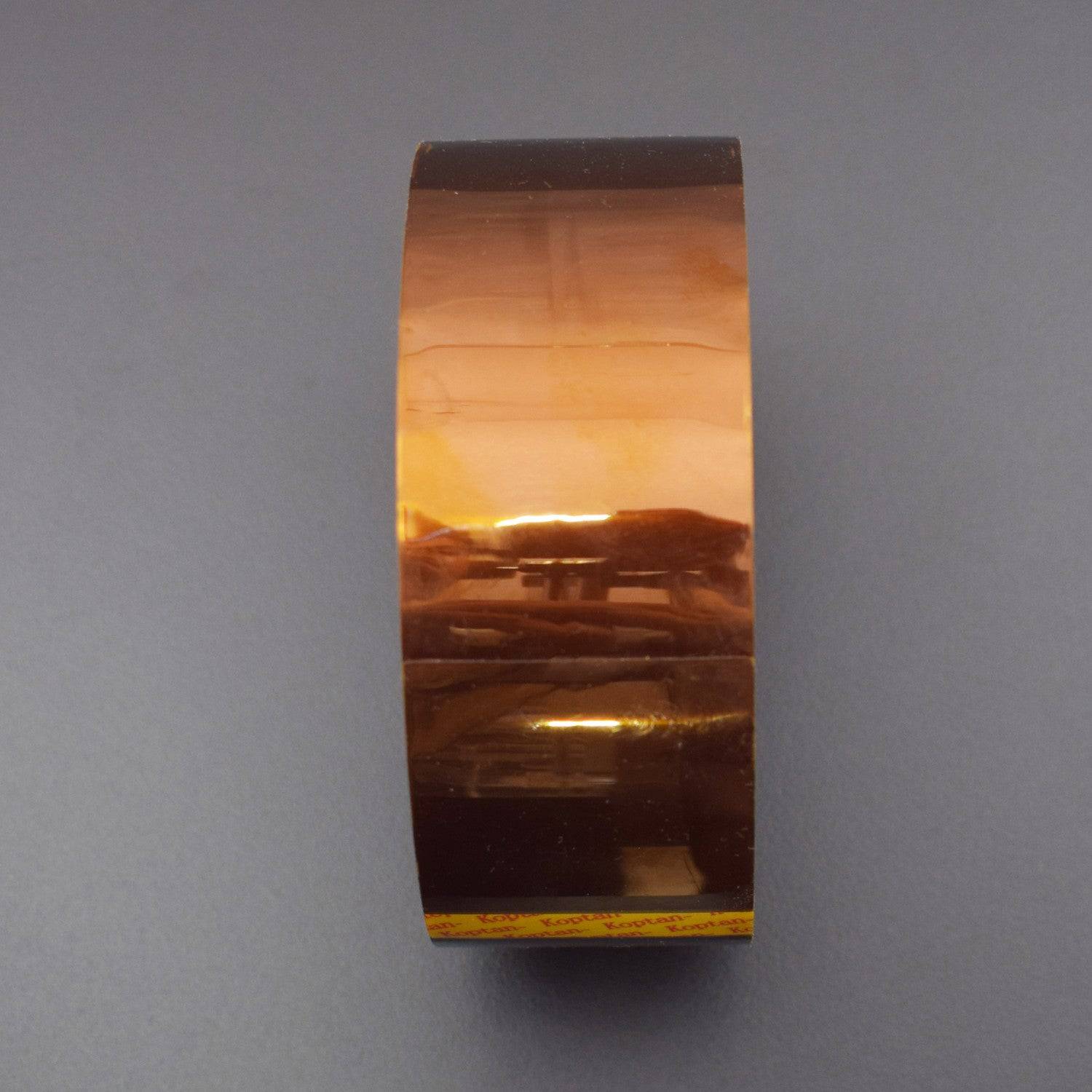

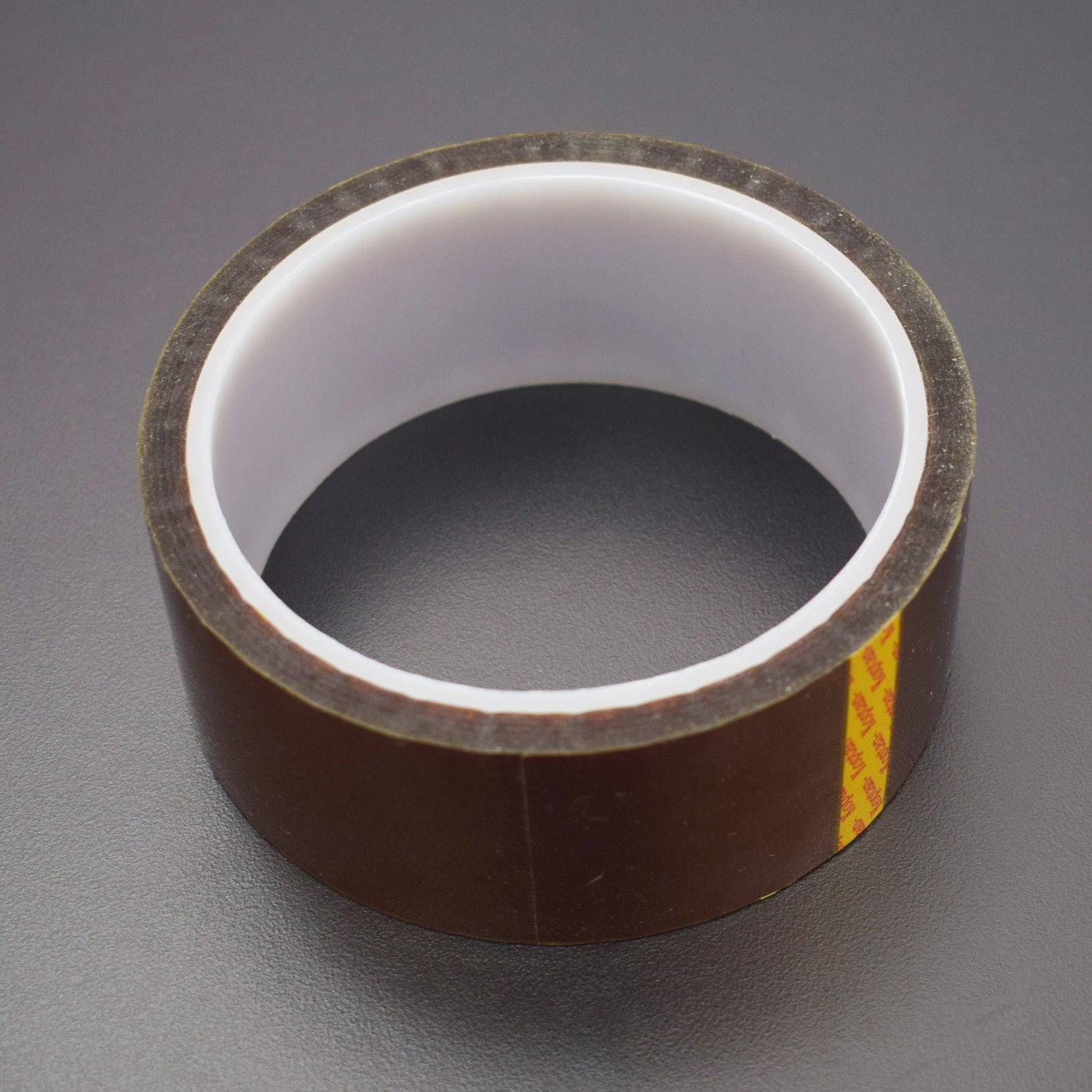

1 x Heat Resistant Tape 36mm*33m roll
