Description:

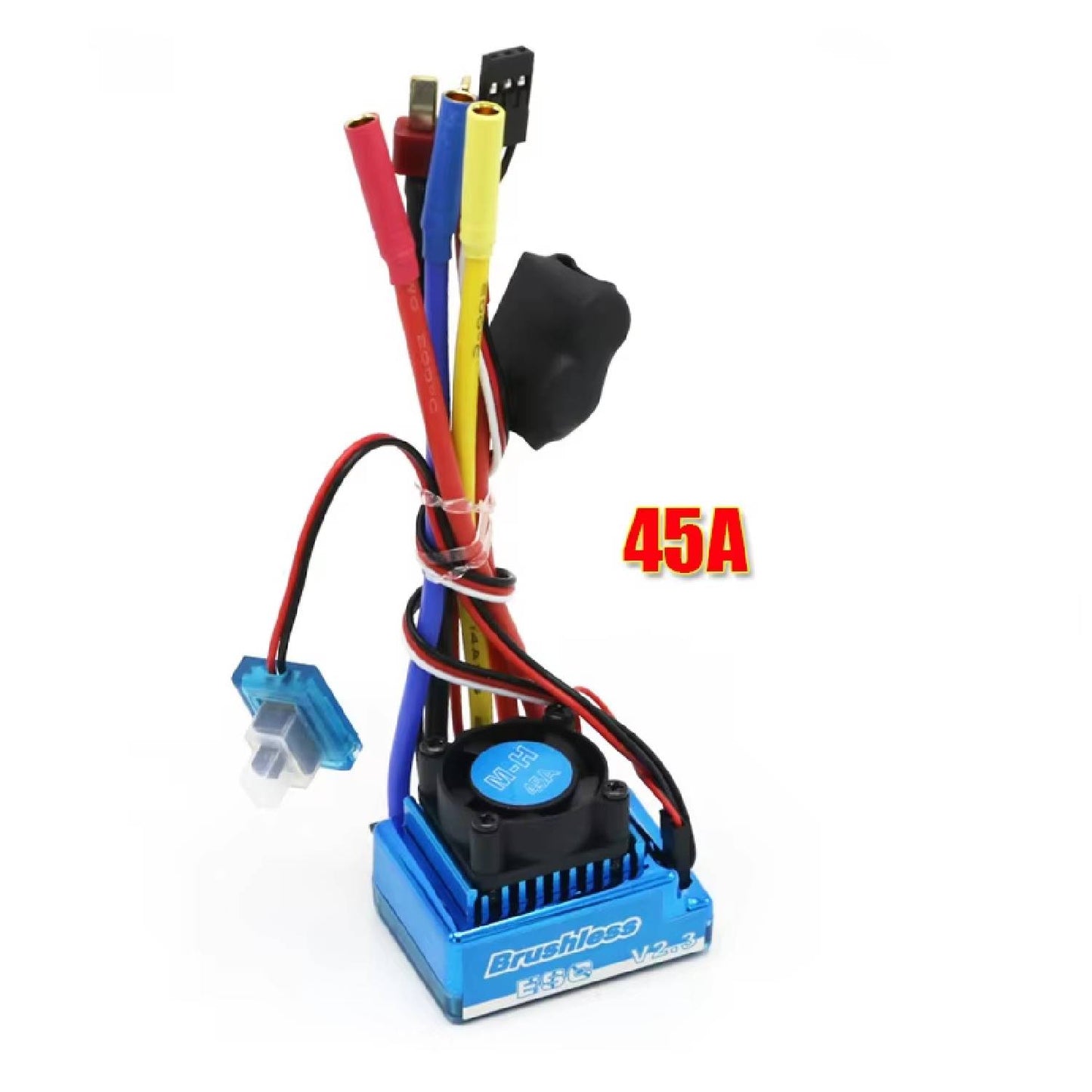

45A Electronic Speed Controller (ESC):
This high-performance ESC is designed for demanding 1/10 car applications. It boasts a continuous current rating of 45A with a powerful burst capability of 180A, allowing it to handle high-powered motors with ease. The ESC is compatible with brushless motors of 9T or larger and supports 2-3 cell LiPo batteries. Its low internal resistance of 0.0014ohm minimizes power losses, ensuring efficient energy delivery to the motor.

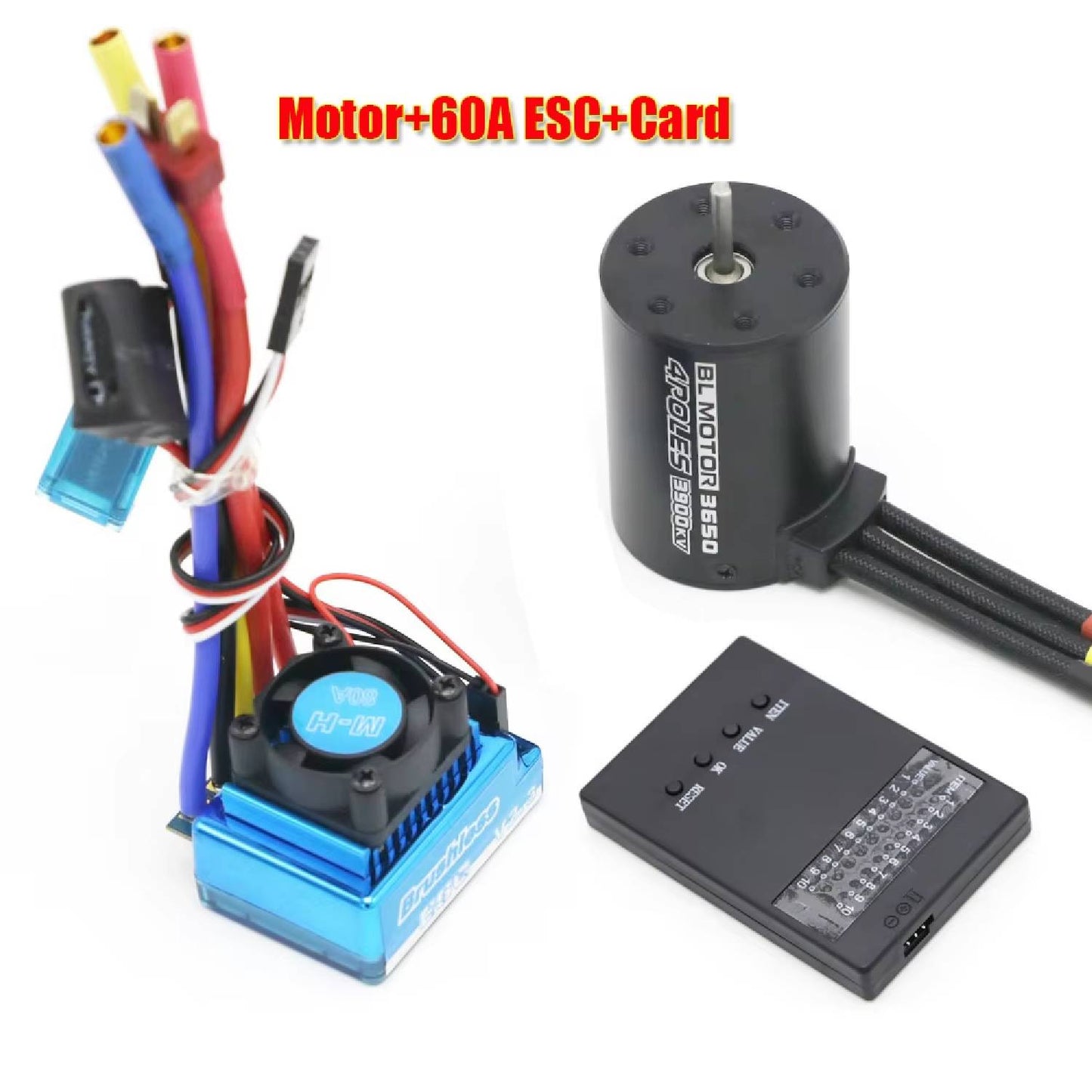

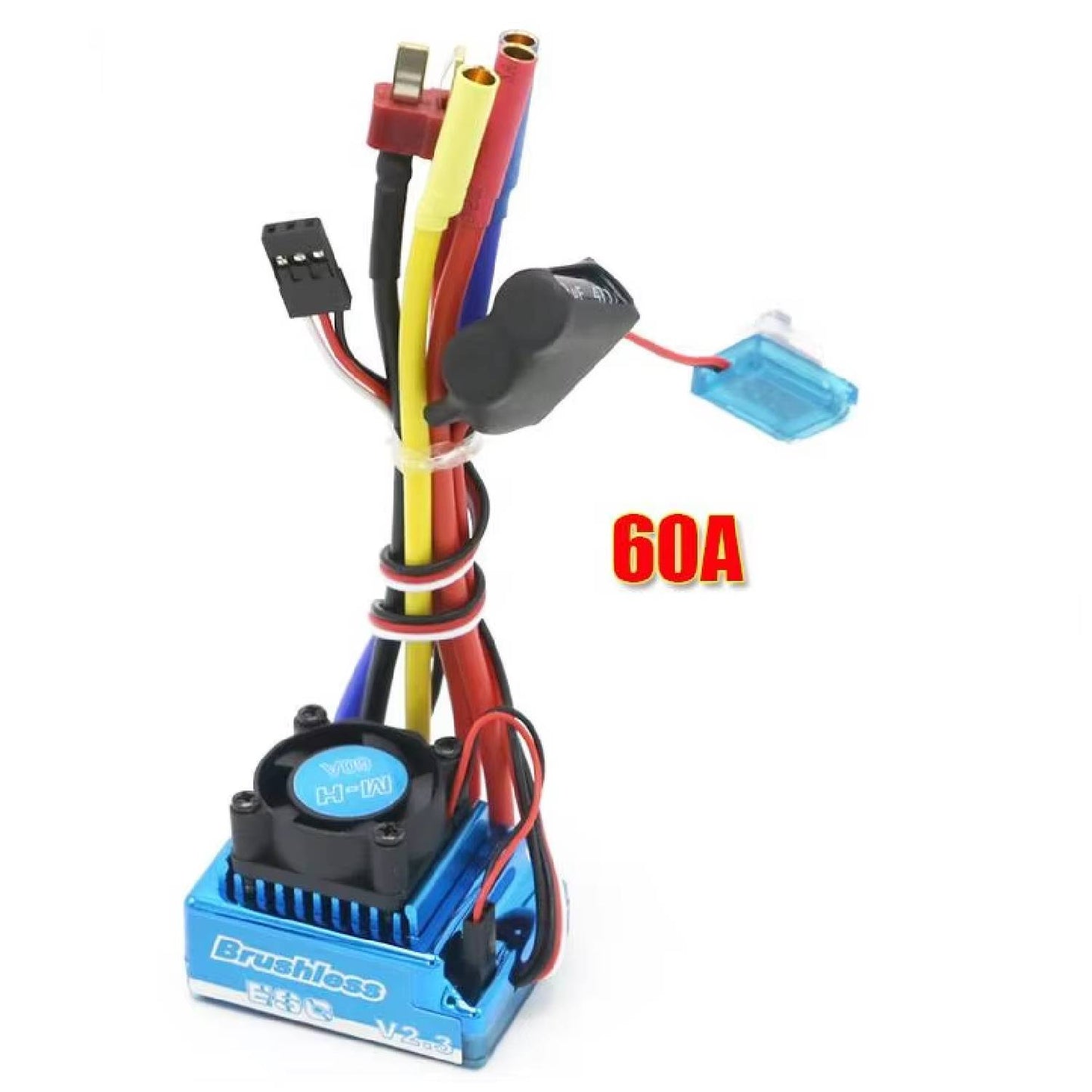

60A Electronic Speed Controller (ESC):
This high-performance ESC is designed for demanding 1/10 car applications. It boasts a continuous current rating of 60A with a powerful burst capability of 320A, allowing it to handle high-powered motors with ease. The ESC is compatible with brushless motors of 9T or larger and supports 2-3 cell LiPo batteries. Its low internal resistance of 0.0007ohm minimizes power losses, ensuring efficient energy delivery to the motor. The integrated 5.8V/3A switch-mode BEC provides ample power for receivers and servos.

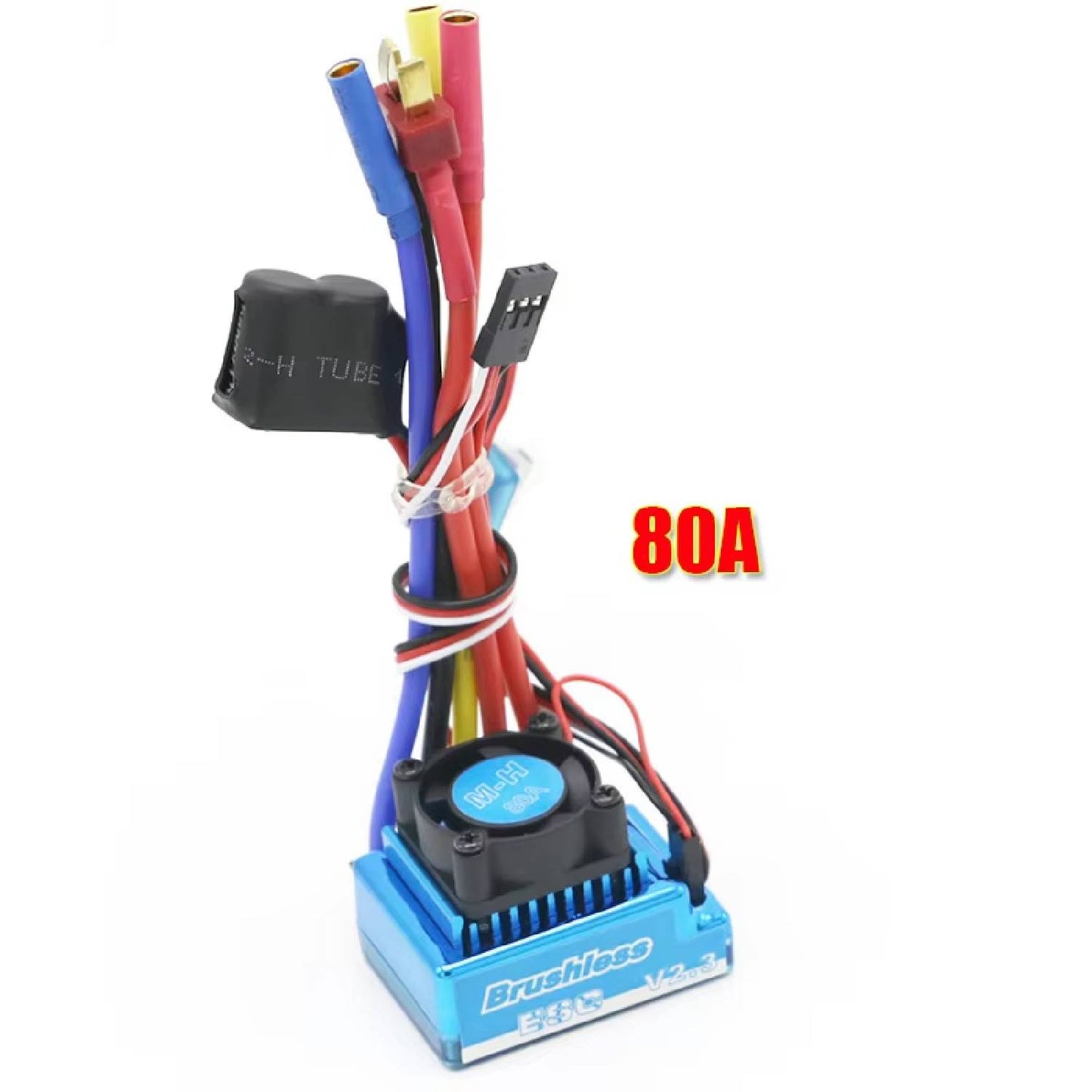

80A Electronic Speed Controller (ESC):
This high-performance ESC is designed for demanding 1/8 car applications. It boasts a continuous current rating of 80A with a powerful burst capability of 480A, allowing it to handle high-powered motors with ease. The ESC is compatible with brushless motors of 5.5T or larger and supports 2-4 cell LiPo batteries. Its low internal resistance of 0.0005ohm minimizes power losses, ensuring efficient energy delivery to the motor. The integrated 5.8V/3A switch-mode BEC provides ample power for receivers and servos.

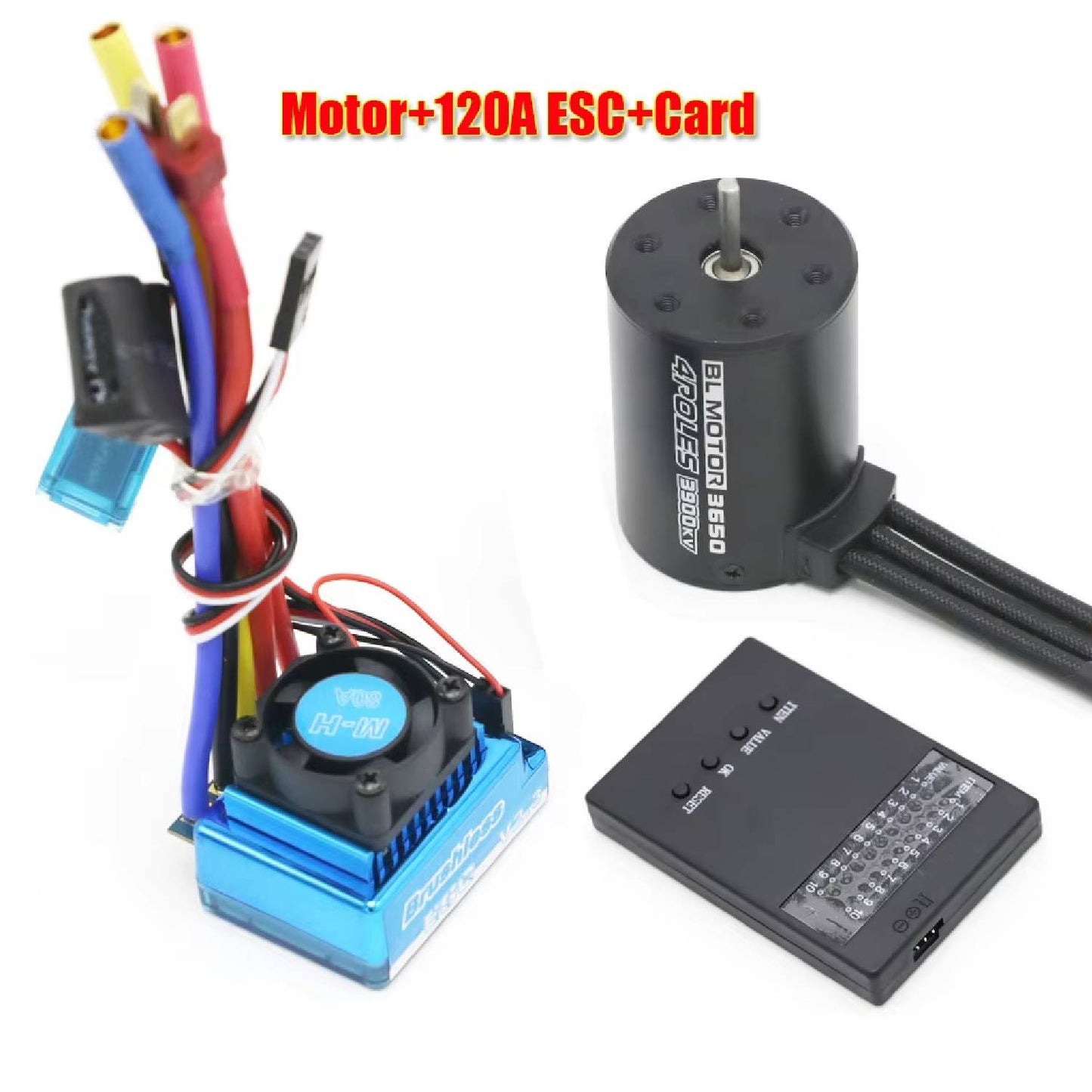

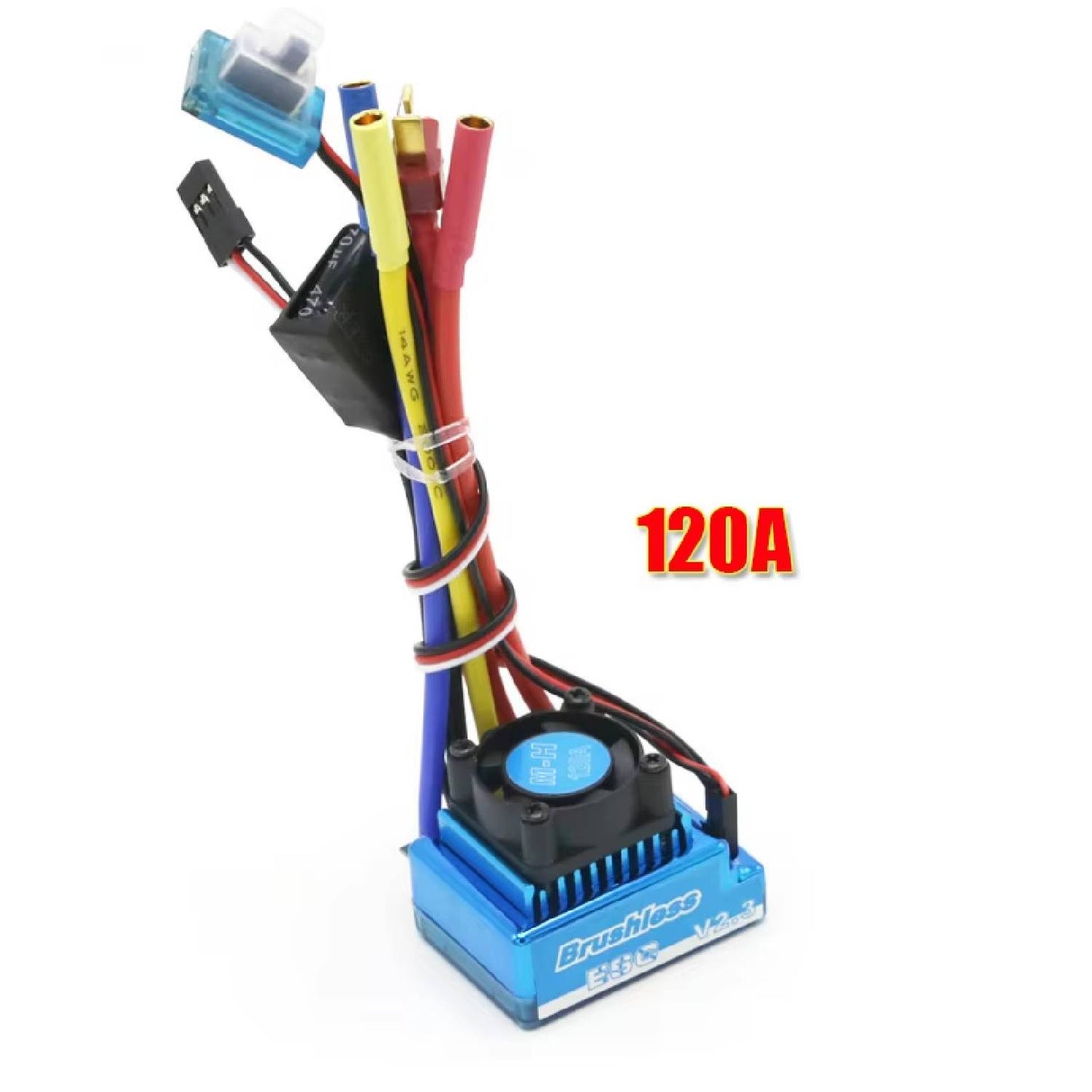

120A Electronic Speed Controller (ESC):
This high-performance ESC is designed for demanding 1/8 car applications. It boasts a continuous current rating of 120A with an impressive burst capability of 600A, allowing it to handle extremely powerful motors with ease. The ESC is compatible with brushless motors of 3.5T or larger and supports 2-4 cell LiPo batteries. Its exceptionally low internal resistance of 0.00035ohm minimizes power losses, ensuring efficient energy delivery to the motor. The integrated 5.8V/3A switch-mode BEC provides ample power for receivers and servos.

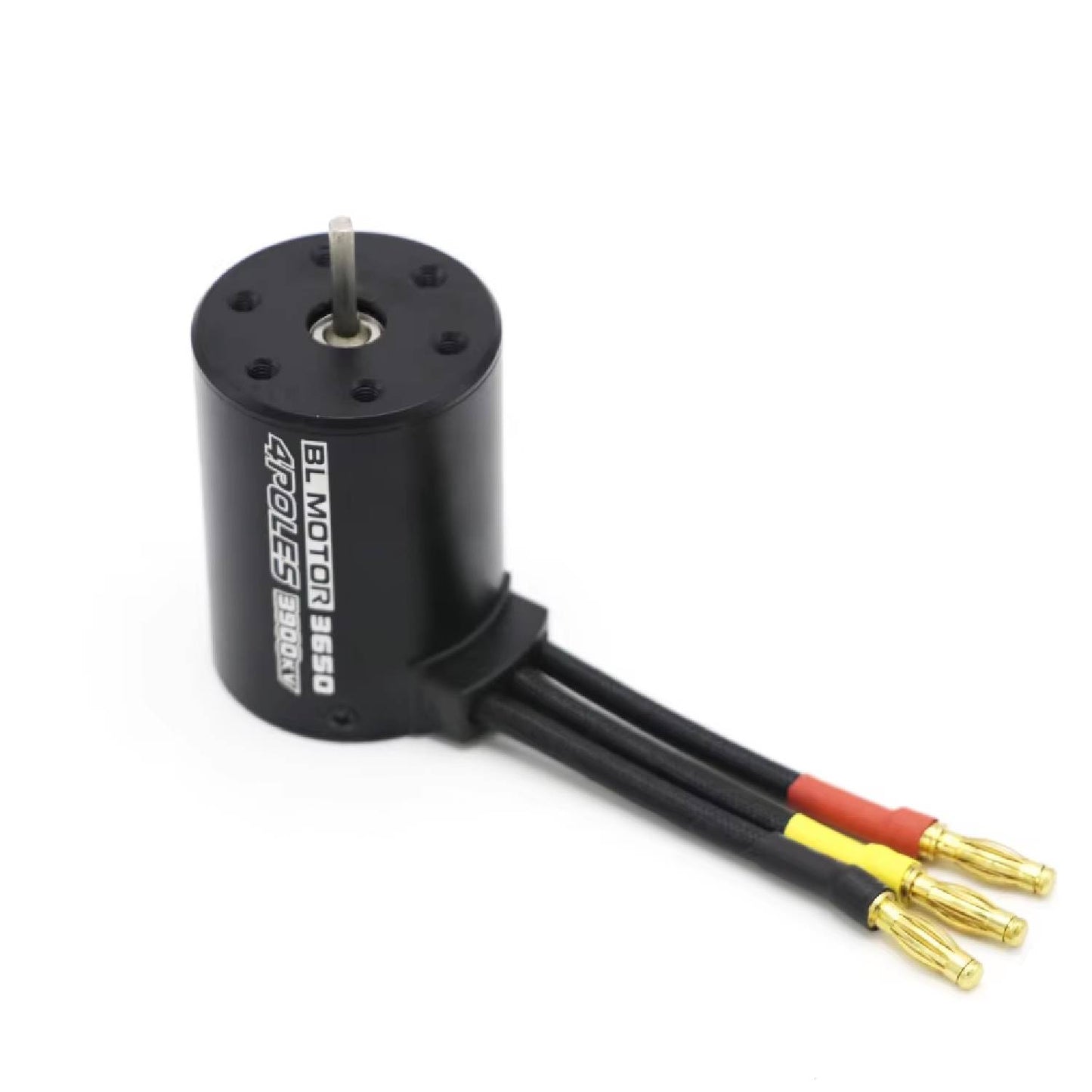

3650 3900KV Brushless Motor:
This high-performance 3650 size brushless motor boasts a 3900KV/V no-load speed constant, delivering exceptional speed and power. Its compact 3650 size offers a good balance of power and weight, making it suitable for a wide range of applications.

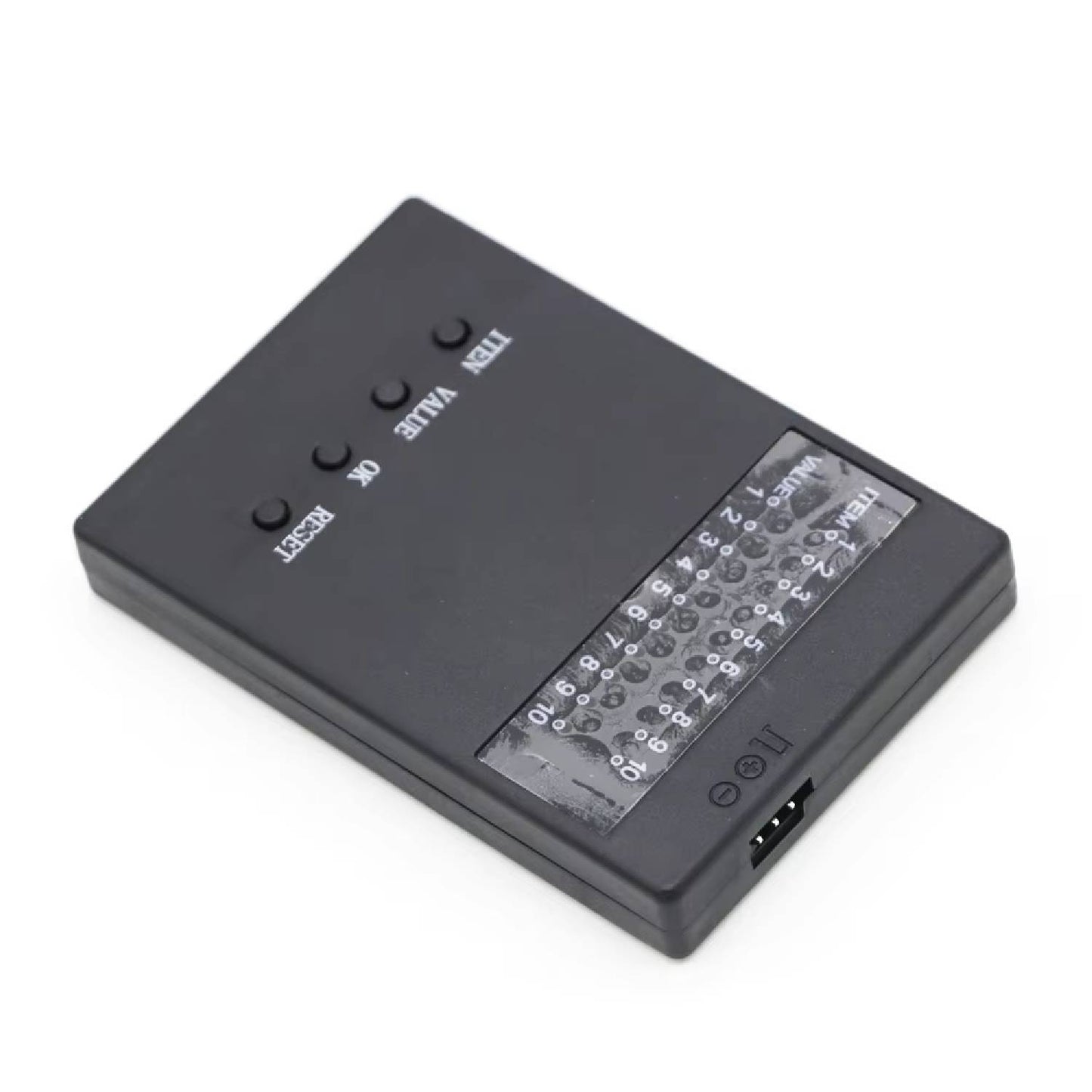

Programming card:
Specifications:
Electronic Speed Controller (ESC):
| Model | 45a | 60a | 80a | 120a |
| Cont. current/Burst Current | 45A/180A | 60A/320A | 80A/480A | 120A/600A |
| Motor Type | Sensorless Brushless Motor | Sensorless Brushless Motor | Sensorless Brushless Motor | Sensorless Brushless Motor |
| Suitable Car | 1/10 car | 1/10 ear | 1/8 car | 1/8 car |
| suitable brushless motor | >=9T | >=9T | >=5.5T | >=3.5 |
| Resistance | 0.0014ohm | 0.0007ohm | 0.0005ohm | 0.00035ohm |
| Battery | 2-3 cells Lipo | 2-3 cells Lipo | 2-4 cells Lipo | 2-4 cells Lipo |
| BEC Output | 5.8V/3A (switch mode) | 5.8V/3A (switch mode) | 5.8V/3A (switch mode) | 5.8V/3A (switch mode) |
Brushless Motor:
| Motor Type |
Brushless Outrunner Motor |
| KV Rating | 3900 RPM/Volt |
| Size | 3650 |
Features:
Electronic Speed Controller (ESC):
- All ESCs have a higher burst current rating than their continuous rating. This allows for short periods of high power output, such as during acceleration.
- Integrated BEC provides power for the receiver and servos. Features like switch-mode BEC for improved efficiency and voltage stability are common.
- Most ESCs offer programmability to adjust parameters like timing, braking, punch, and low voltage cutoff. This allows for fine-tuning performance.
- Cooling features like heatsinks or fans are essential to prevent overheating, especially at higher amperage levels.
3650 3900KV Brushless Motor:
- The 3900KV/V rating indicates that the motor spins very fast for a given voltage. This translates to high top speeds and quick acceleration, making it ideal for applications that require rapid movement.
- While compact, the 3650 size allows for a good balance of power output. These motors can deliver substantial torque and power for their size, making them suitable for demanding applications.
- Brushless motors are inherently efficient, and a well-designed 3650 motor will convert most of the electrical energy into mechanical power, minimizing wasted energy as heat.
Package Included:
- 1 x Programming card
- 1 x Electronic Speed Controller (ESC)
- 1 x Brushless Motor
