Description :

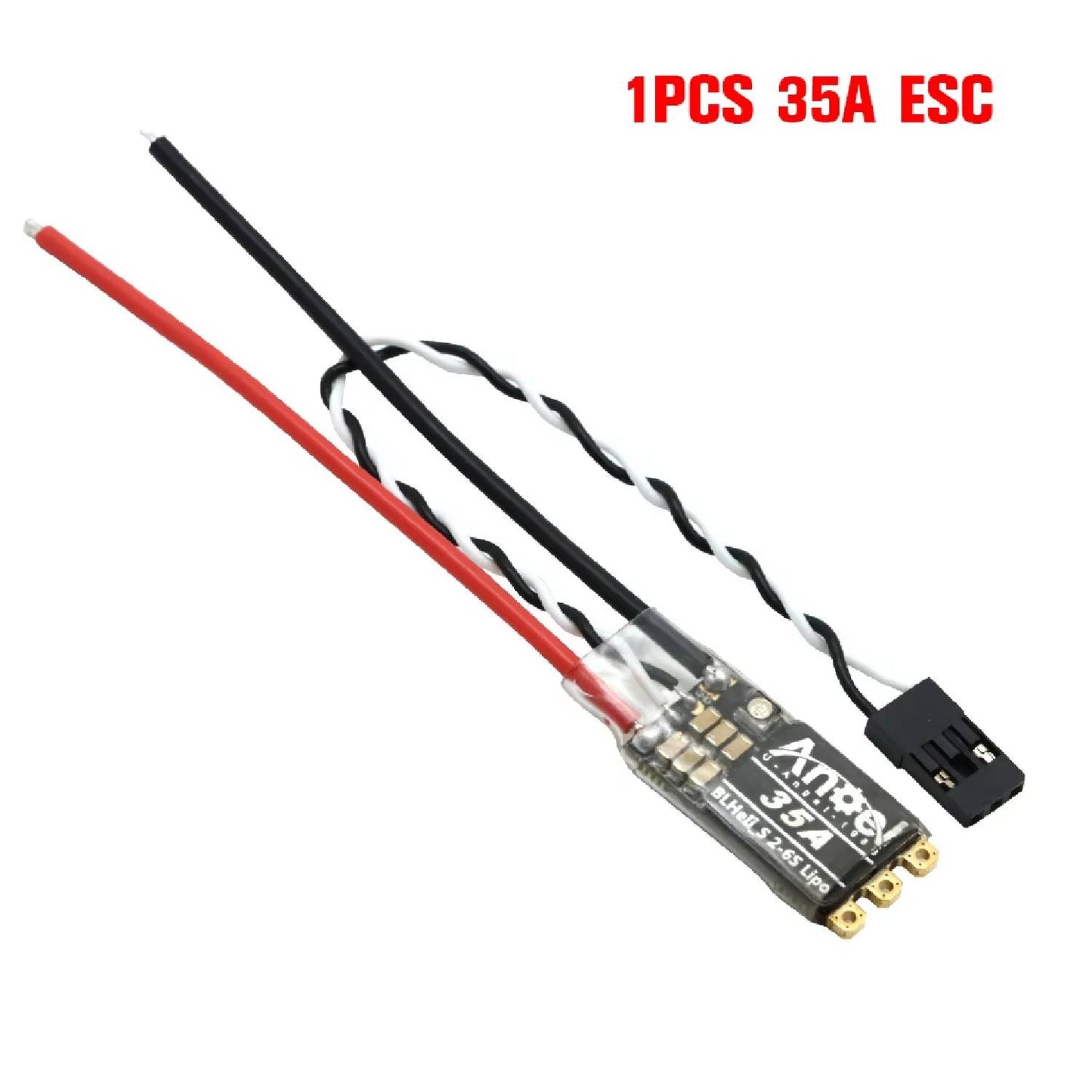

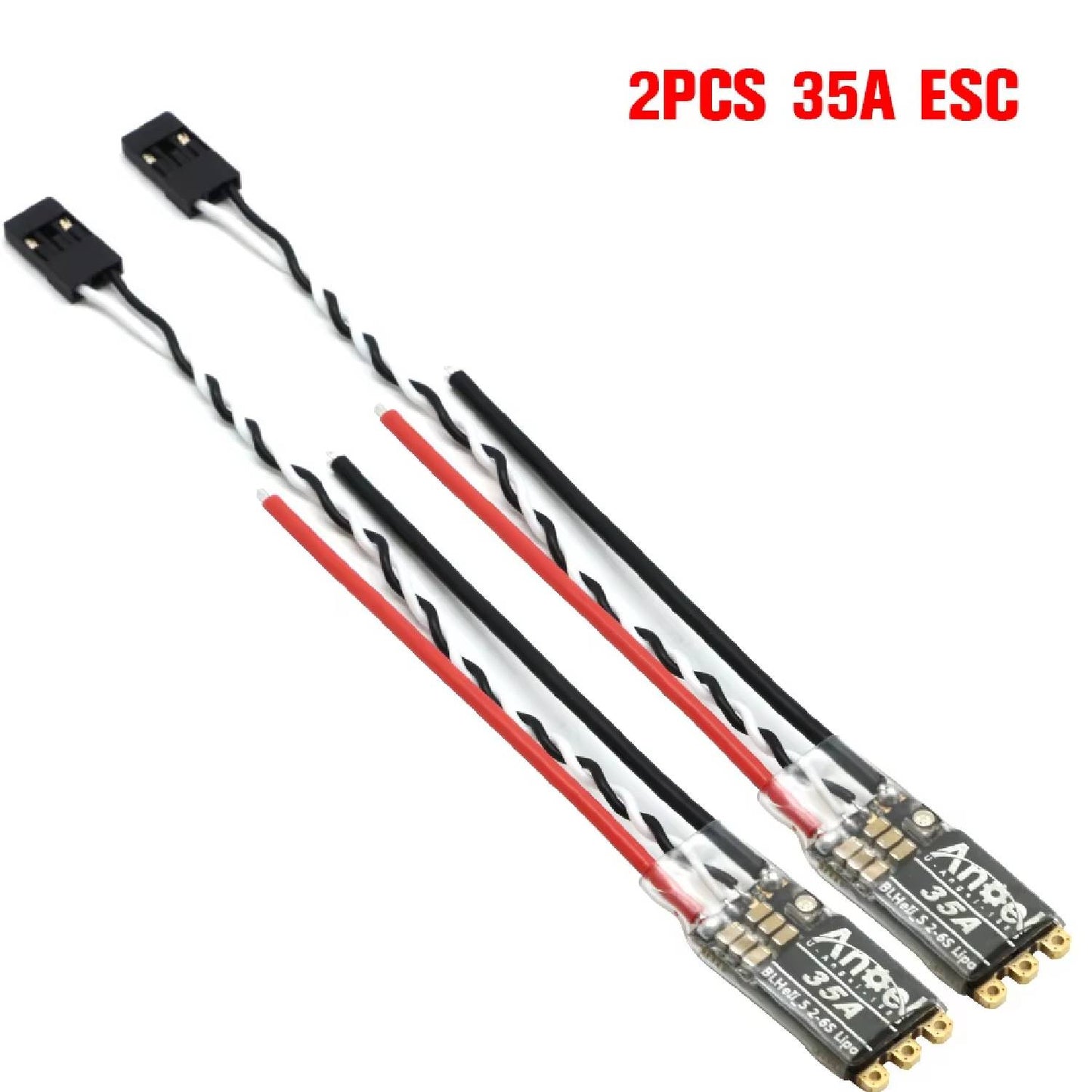

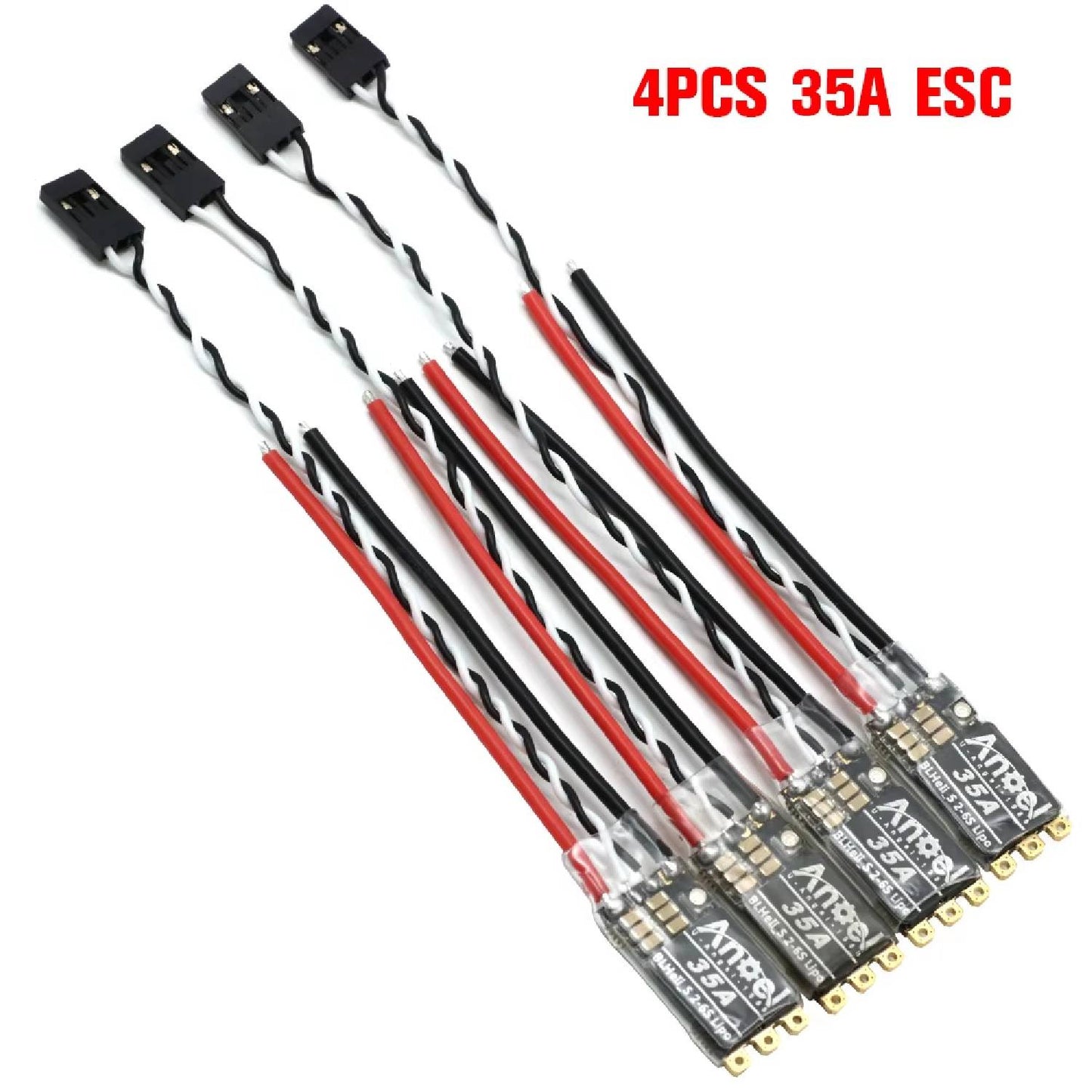

35A Brushless ESC
This 35A Electronic Speed Controller (ESC) is designed for high-performance applications in 2-6S LiPo battery systems. It delivers a continuous current of 35A and a peak current of 45A for 10 seconds, providing ample power for demanding flight conditions.
Supporting Dshot125/300/600 and Oneshot125 protocols, this ESC ensures smooth and responsive motor control.
With a compact size of 13x28.5mm and a lightweight design at only 6g, it minimizes the overall weight of your aircraft.

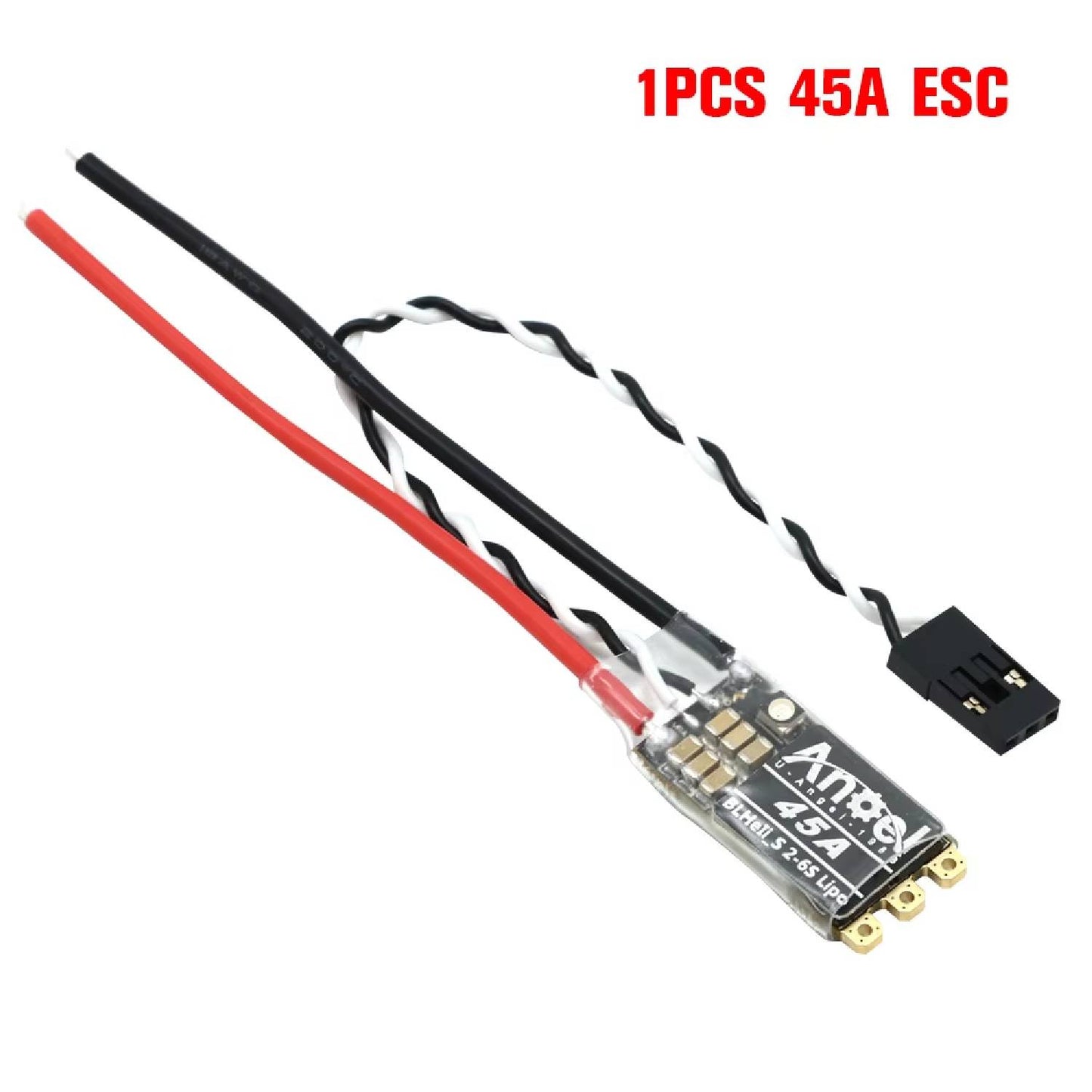

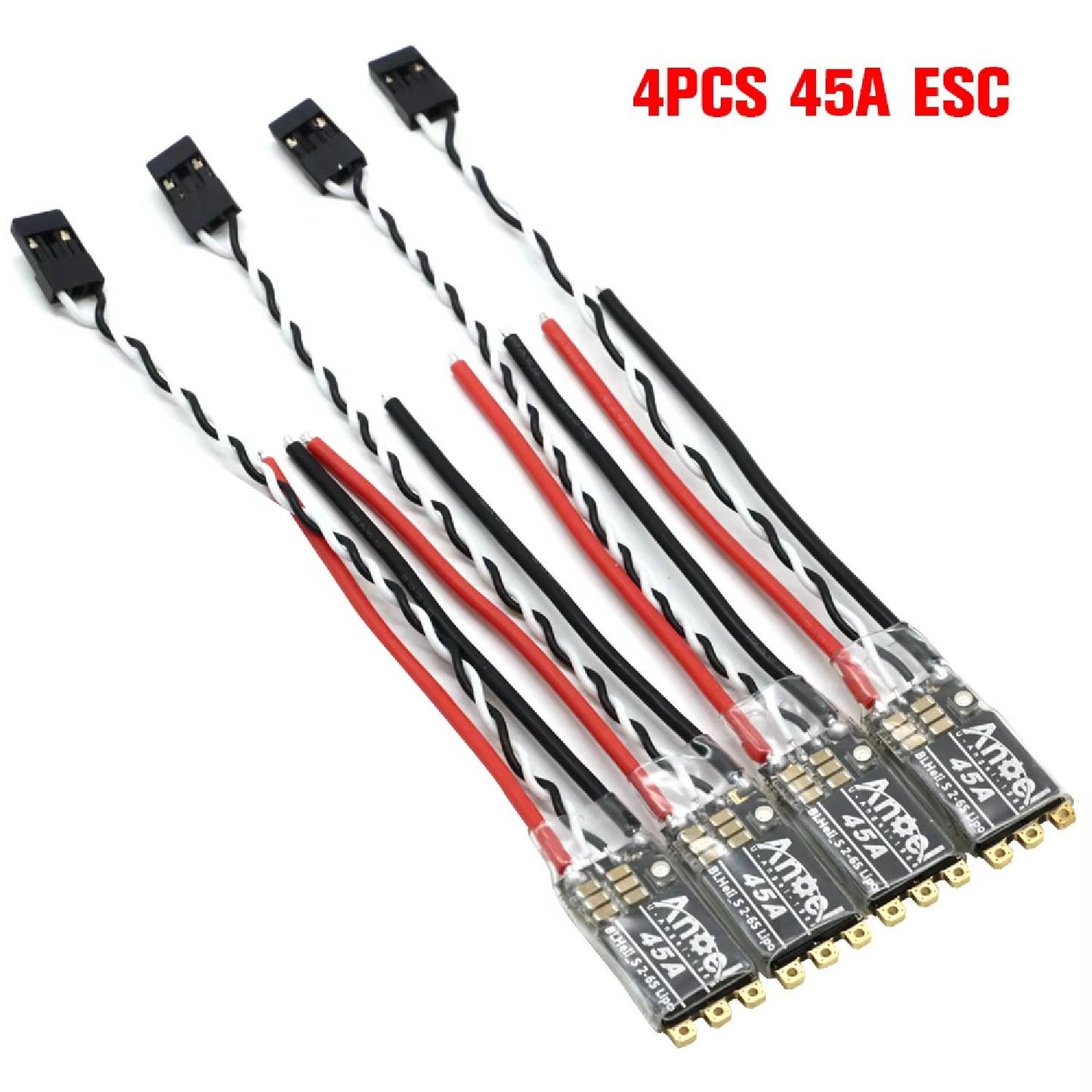

45A Brushless ESC
This high-performance 45A electronic speed controller is designed for demanding applications in small to medium-sized RC aircraft. It supports a wide range of battery configurations from 2S to 6S LiPo batteries, providing excellent flexibility for various flight style.
Specifications:
Voltage: Support 2-6S power supply
Working current:
35A: Continuous current 35A, peak 45A/10s
45A: Continuous current 45A, peak 55A/10s
Support protocols: dshot 125/300/600, oneshot 125
Weight: 6g
Size: 13*28.5
Power cord length: 18AWG 90mm
Signal line length: 150 mm35A / 45A
Features:
35A Brushless ESC
- 35A continuous current and 45A peak current for 10 seconds provide sufficient power for dynamic flight in various RC applications.
- Supports a wide range of battery configurations from 2S to 6S LiPo batteries, offering flexibility for different flight styles and power requirements.
- Compatibility with dshot125/300/600 and oneshot125 protocols ensures smooth and precise throttle response, minimizing jitter and improving flight stability.
45A Brushless ESC
- 45A continuous current and 55A peak current for 10 seconds provide sufficient power for dynamic flight in various RC applications.
- Supports a wide range of battery configurations from 2S to 6S LiPo batteries, offering flexibility for different flight styles and power requirements.
- Compatibility with dshot125/300/600 and oneshot125 protocols ensures smooth and precise throttle response, minimizing jitter and improving flight stability.
Package Included:
- 1 x 35A Brushless ESC
- 1 x 45A Brushless ESC
