Description:

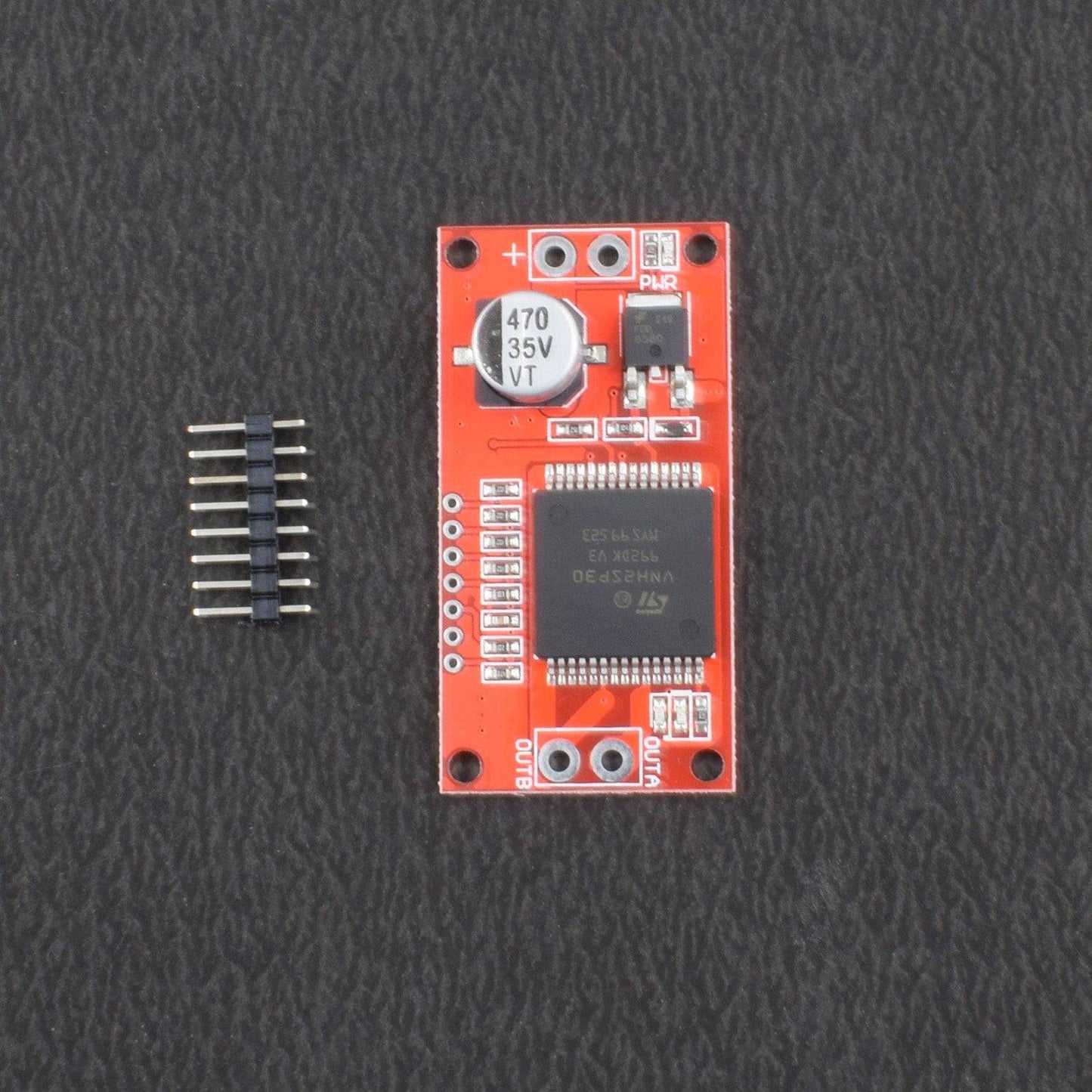

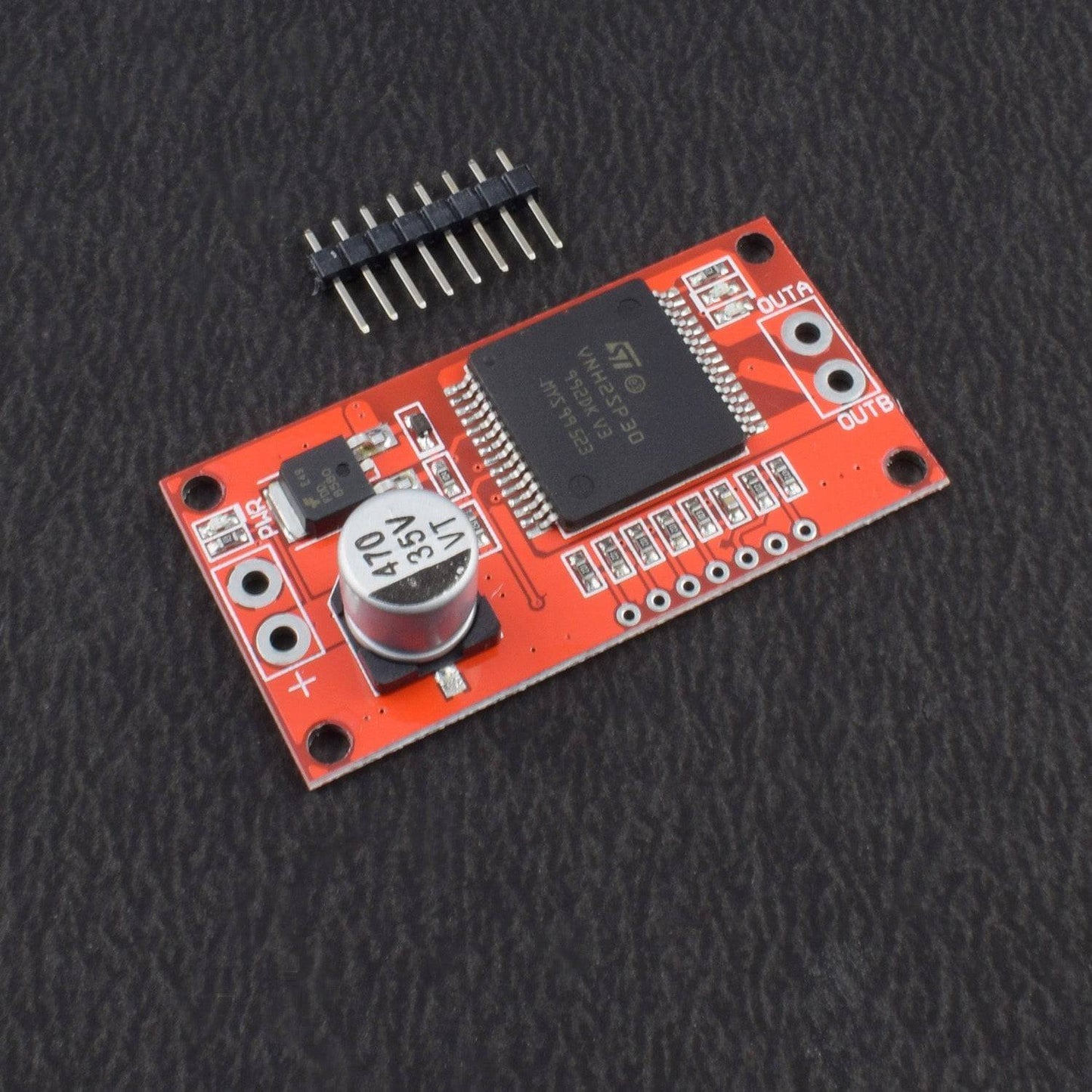

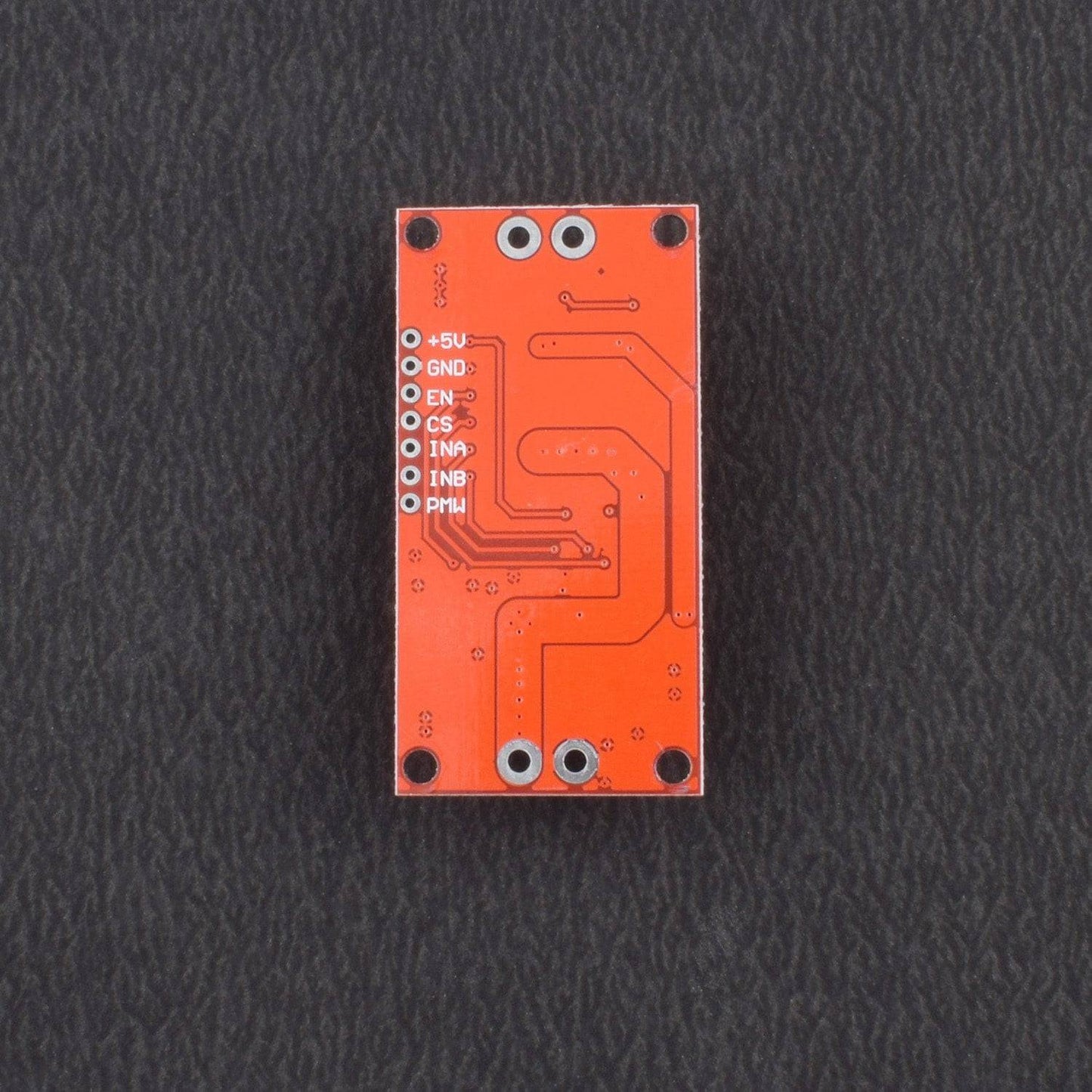

This is essentially a ramped-up version of our Ardumoto motor driver shield. For this monster shield, we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires. (This is a Single Chip)
Specifications:
| Driver Model |
Monster Moto Shield VNH2SP30 |
| Operating Voltage |
12 ~ 16V DC |
| Peak Current |
30A |
| Continuous Current |
14A |
| No. of Channels |
1 |
| Over-Current Protection (A) |
Yes |
| Thermal Protection |
Yes |
| LED Indicator |
Yes |
| Cooling Fan |
No |
| Arduino Sheild |
No- can be used with Wire connection |
Features:
- Current sensing available to Arduino analogue pin
- MOSFET on-resistance: 19 mΩ (per leg)
- Maximum PWM frequency: 20 kHz
- Thermal Shutdown
- Undervoltage and Overvoltage shutdown.
Note:
When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.
Package Included:
1 x 30A Mini VNH2SP30 Stepper Motor Driver
