Description:

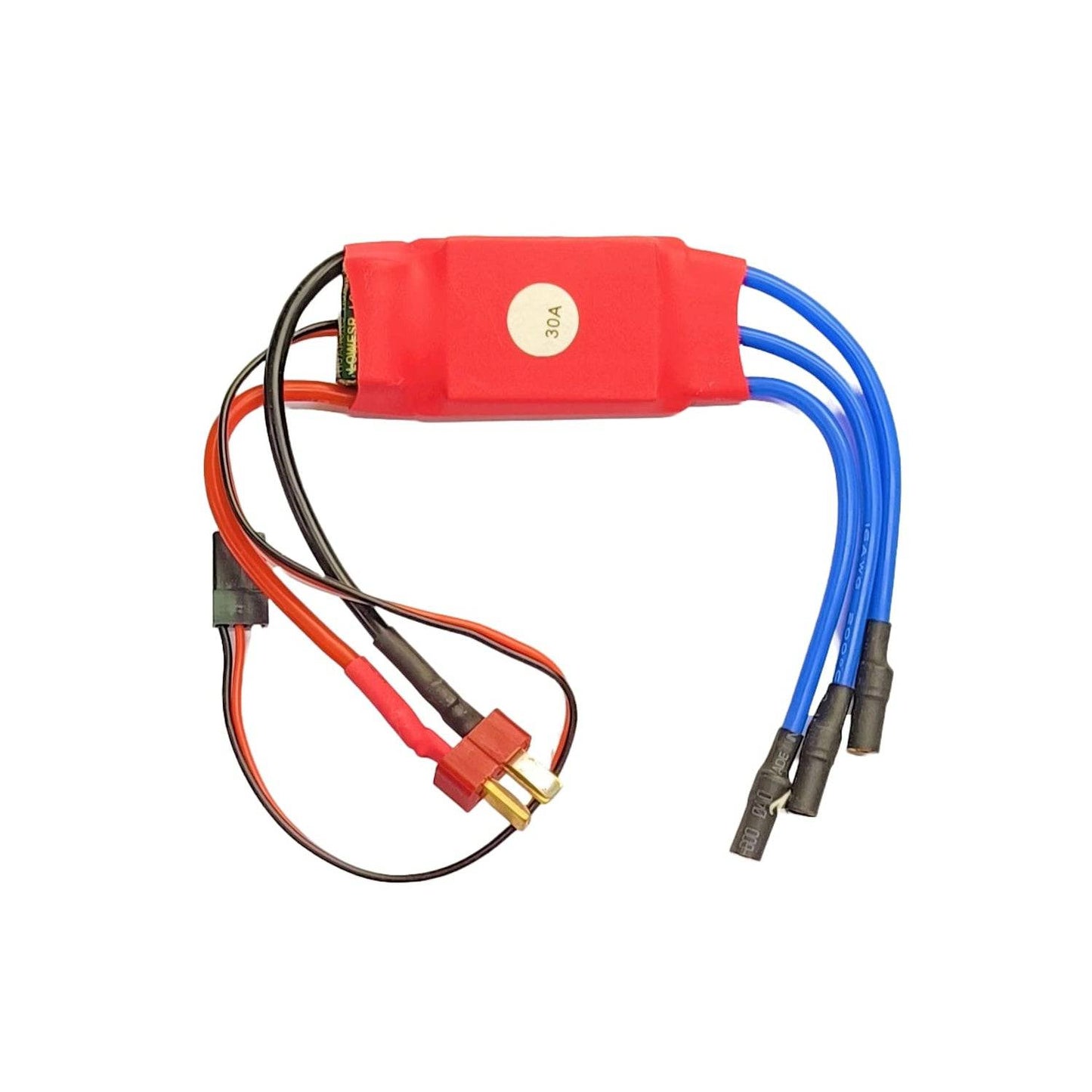

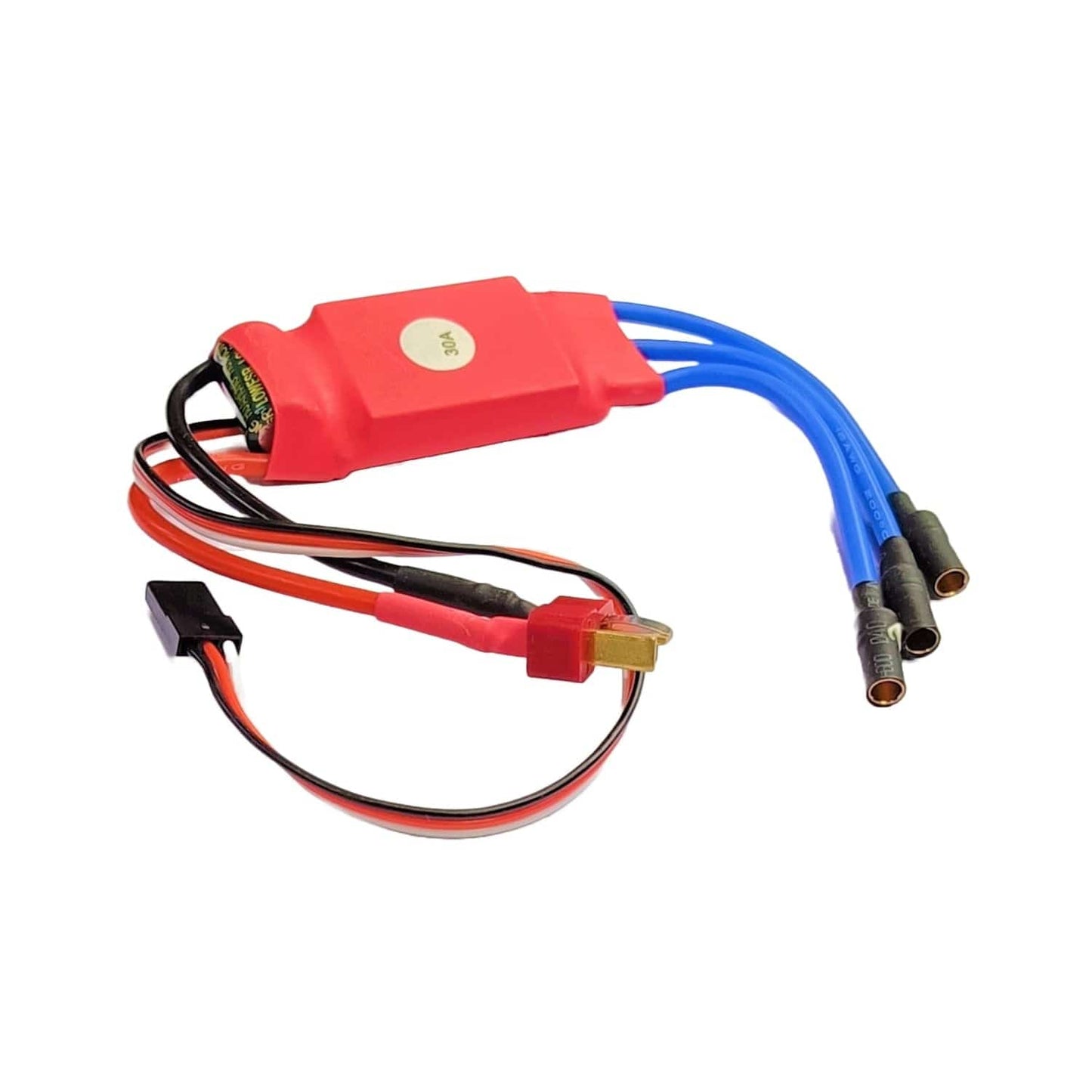

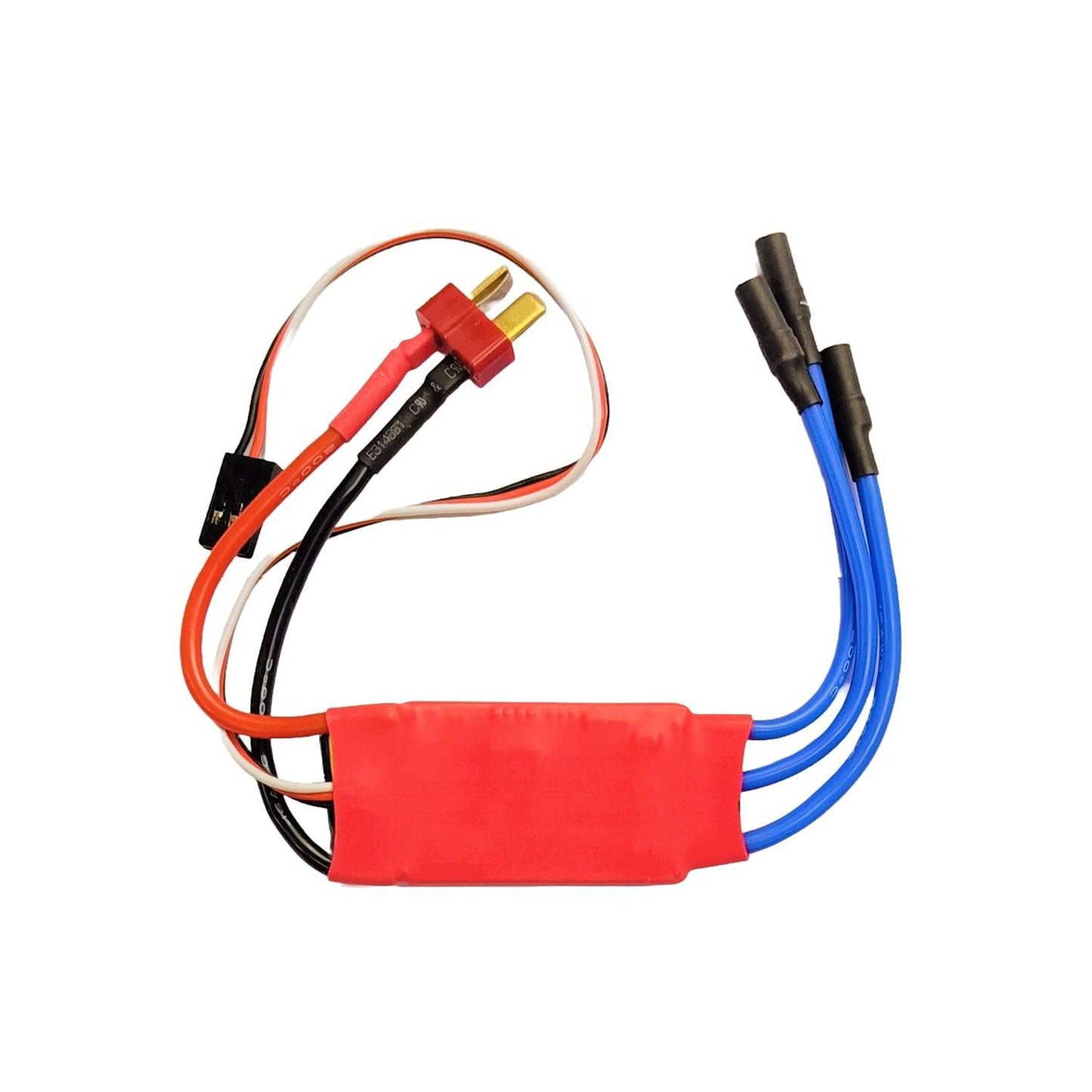

Standard 30A ESC Electronic Speed Controller with Connector is specifically made for quadcopters and multi-rotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs. 30A ESC can drive motors which consume up to 30A current. It works on 2S-3S LiPo batteries. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. 30A ESC can be used to control our brushless motors with a 2S-3S LiPo (make sure the motor doesn’t draw more than 30A).
Specifications:
- Max Cont. Current: 30A
- Peak Current: 40A (10s)
- Voltage: 2-3S lixx
- BEC: 5V/3A
Features:
- Brake: enabled or disabled (disabled default)
- Battery type: Li-Po or Ni-xx (Li-Po default)
- Low Voltage Cut-off type: soft or hard (soft default)
- Startup mode: normal, soft, super soft (normal default)
- Timing: low, med, high (Low 2-4poles, Med 6-10 poles, high 12+ poles) (medium default)
- Compatible with most generic programming cards.
Package Included:
1 x 30A ESC 30A BLDC ESC Electronic Speed Controller with Connectors for RC Quadcopter Plane Helicopter
