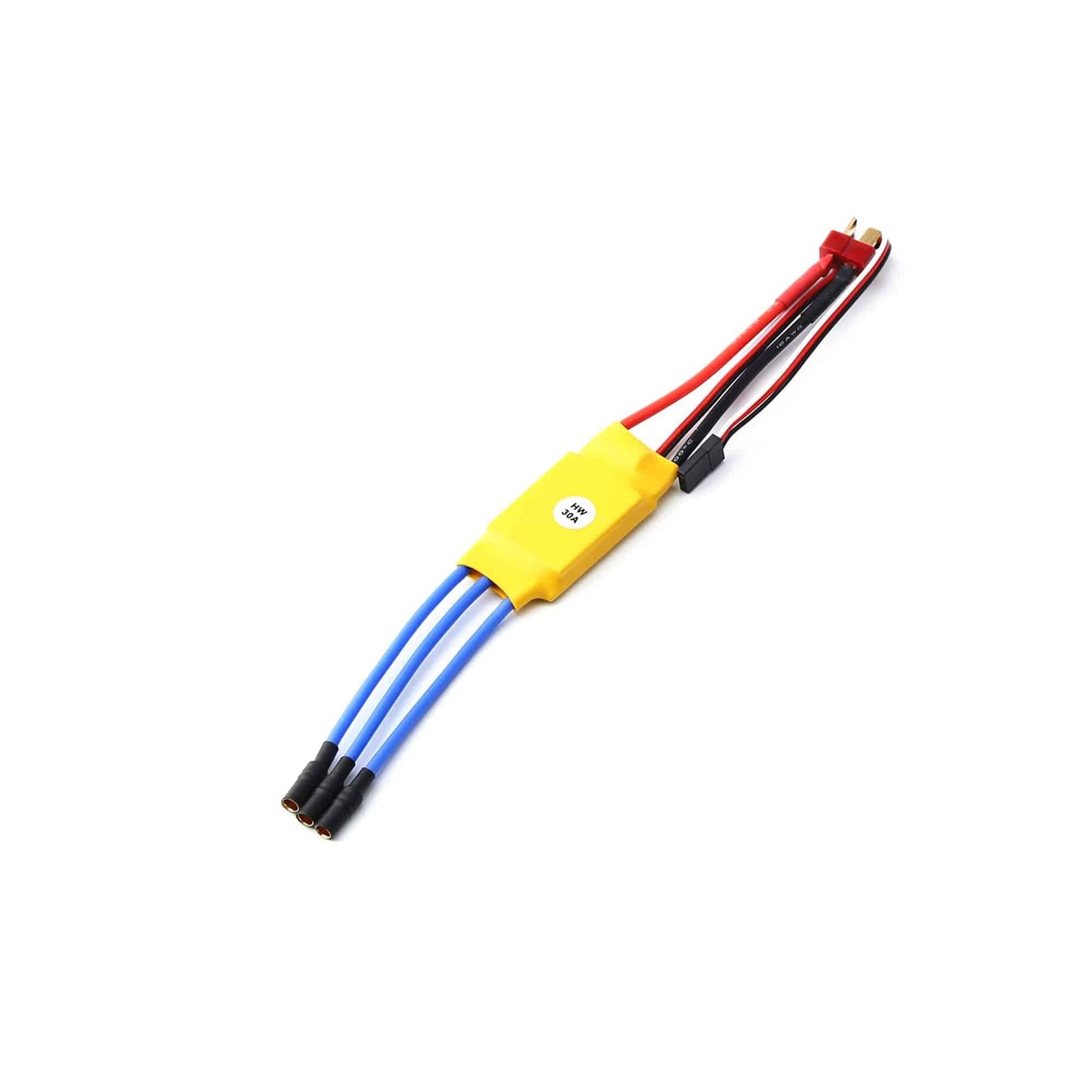

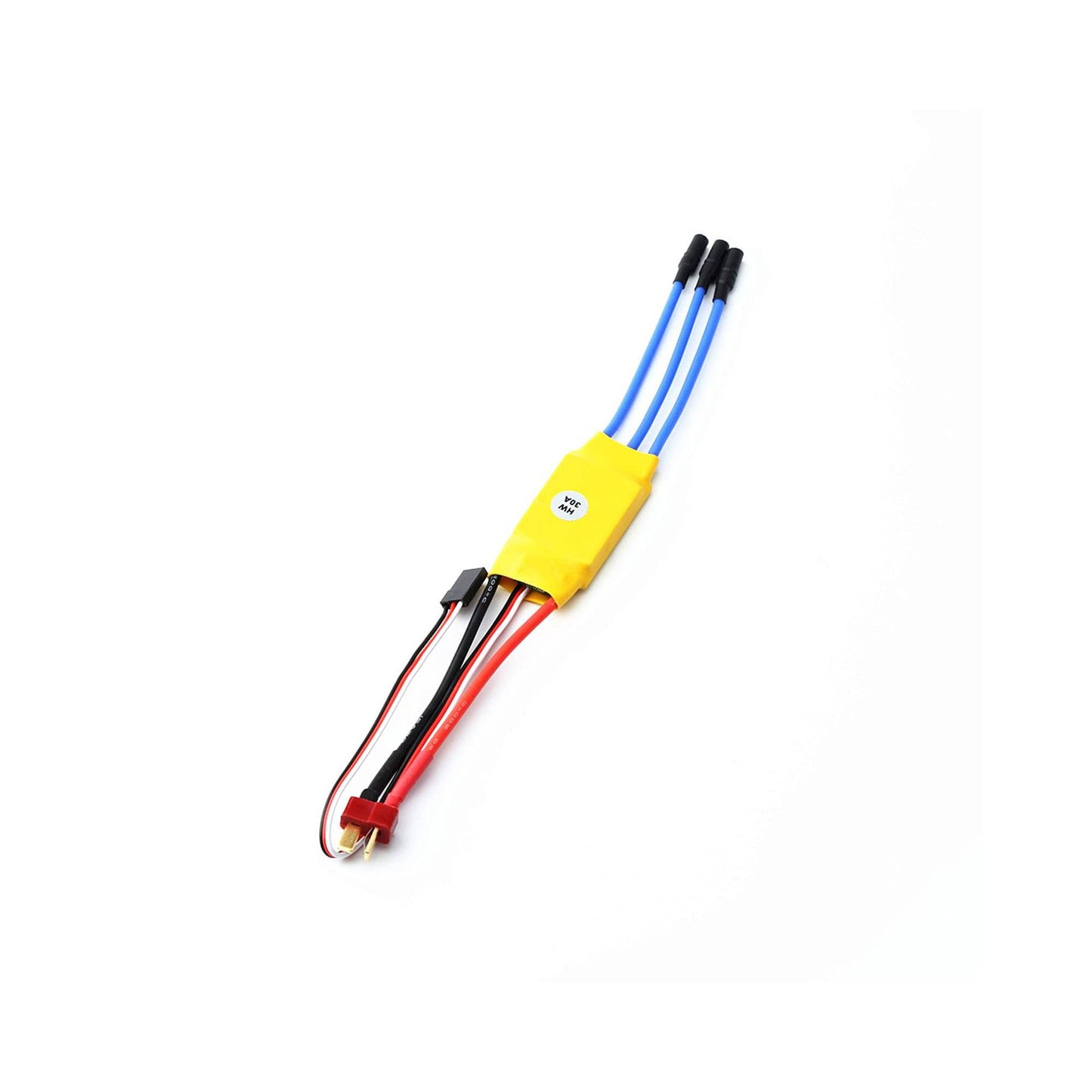

30A ESC 30A BLDC ESC Electronic Speed Controller with Connector - RS197

30A ESC 30A BLDC ESC Electronic Speed Controller with Connector - RS197

SKU:RS197

147 in stock

Regular price Rs. 319.00
Regular price Sale price Rs. 319.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This 30A ESC electronic speed controller is specifically made for quadcopters and multi-rotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs. This 30A ESC can drive motors which consume up to 30A current. It works on 2S-3S LiPo batteries. It has an onboard BEC which provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. 30A ESC can be used to control our brushless motors with a 2S-3S LiPo (make sure the motor doesn't draw more than 30A). This particular 30A ESC is recommended with A2212 brushless motor (1000kv, 1400kv, 2200kv).

Specifications:

  • Colour: As shown in the images
  • Current: 30A
  • BEC: 3A
  • PWM: N/A Li-Poly: 2-3 Ni-Mh/Ni-CD: 4-10 Ni-Mh
  • Li-Poly: 2-3
  • Ni-Mh/Ni-CD: 4-10 Ni-Mh
  • Constant Current: 30A Max 40A<10s
  • Li-Poly 2-3 cells; Ni-MH 4-10 cells

Features:

  • Li-Poly 2-3 CELLS; Ni-MH 4-10 CELLS Auto-Detect
  • Break On/Off
  • Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut off at 2.9V/cell lipo

Application:

  • Multirotors
  • Rc Airplanes etc.

Package Included:

1 x 30A ESC 30A BLDC ESC Electronic Speed Controller with Connector
