Description:
This 30A Eectronic Switch is a nice little relay switch controlled by a spare auxiliary channel on your receiver. Ideal for 3.7-27V Input For RC FPV Drone Models Airplane RC Switch lights, sound, and any other auxiliary electrical items. When PWM duty is more than 1500us, the switch will turn on; when PWM duty is less than 1400us, the switch will turn off.
Specifications:
- Item Type: Electronic Switch
- Allowed Wire Size (AWG): 18
- Plug Type: JST
- Cable Length (cm): 20
Features:
- The electric start control increases the relay and the water pump switch.

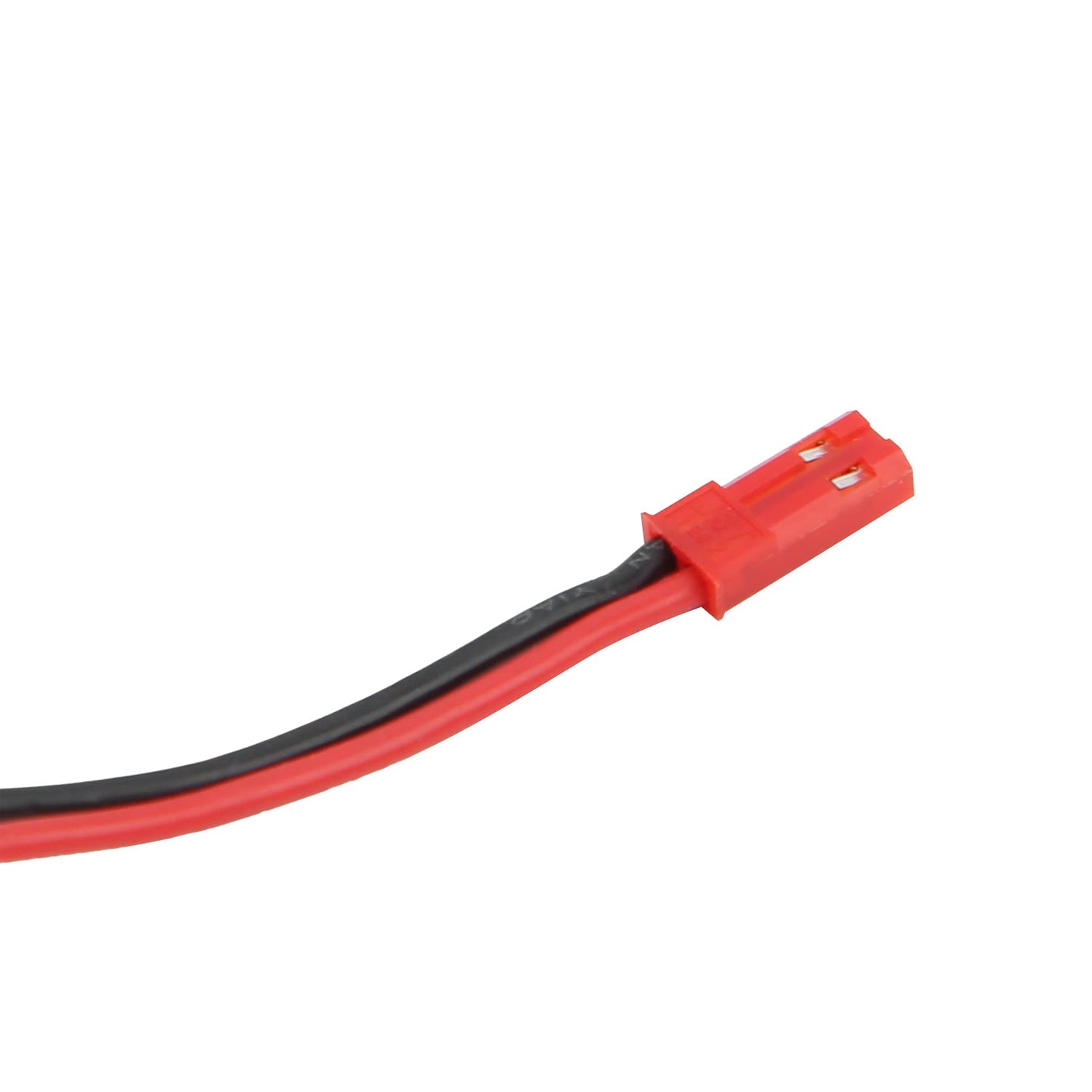

- The wire adopts high current 18AWG silica gel wire, the plug is JST head (input female, output male), the signal wire is also made of super-soft silicone wire material, the total length of the power cord is about 20CM, the switch weight is about 11G.
- Support High Voltage (HV) Receivers
- Suggest 2 section control, ON/OFF stroke takes half of the travel for each.
- Applied to remote control model car aeroplane Lightbar Light on and off Application is simple and convenient – Insert switch channel.
- Power switch for various power supply and controlled equipment (disconnected to the positive pole, common negative).
- Electronic ignition, the output stage can be connected to the resistance heating wire.
Package Included:
1 x 30A Eectronic Switch 1-6s Electronic Switch PWM 3.7-27V Input For RC FPV Drone Models Airplane RC Switch Light RC Drone Switch For Videographer For RC Car/Drone
