3000w thyristor high power electronic voltage regulator dimming thermostate - NA115

3000w thyristor high power electronic voltage regulator dimming thermostate - NA115

SKU:NA115

In stock

Regular price Rs. 399.00
Regular price Sale price Rs. 399.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Use voltage : ac 220v
  • The most high power : 3000w
  • Measurement : specification high temperature resistant fr-4 circuit board 30x45mm
  • Adjustable Voltage: 0-220V AC.
  • AC frequency: 50-60Hz.

Description :

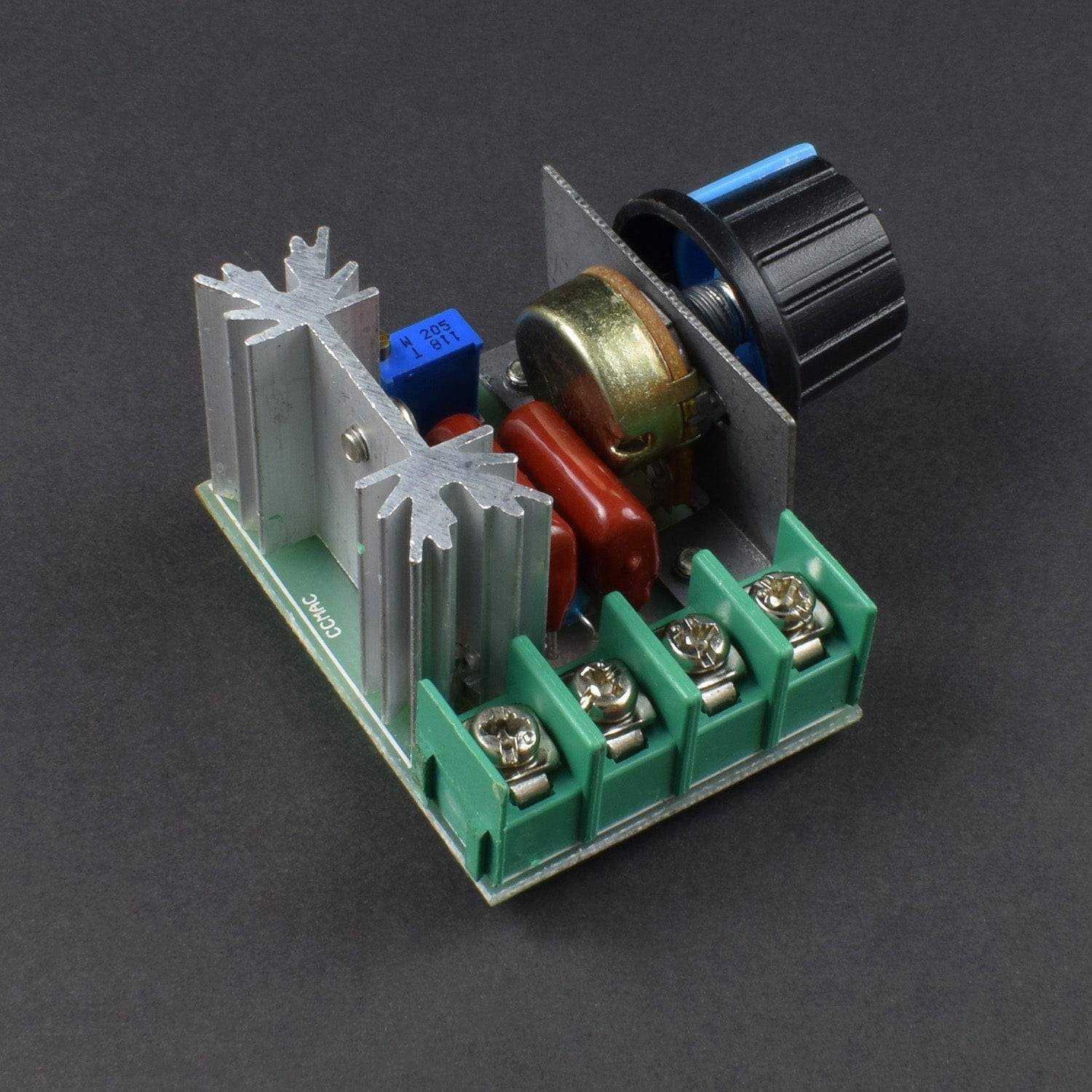

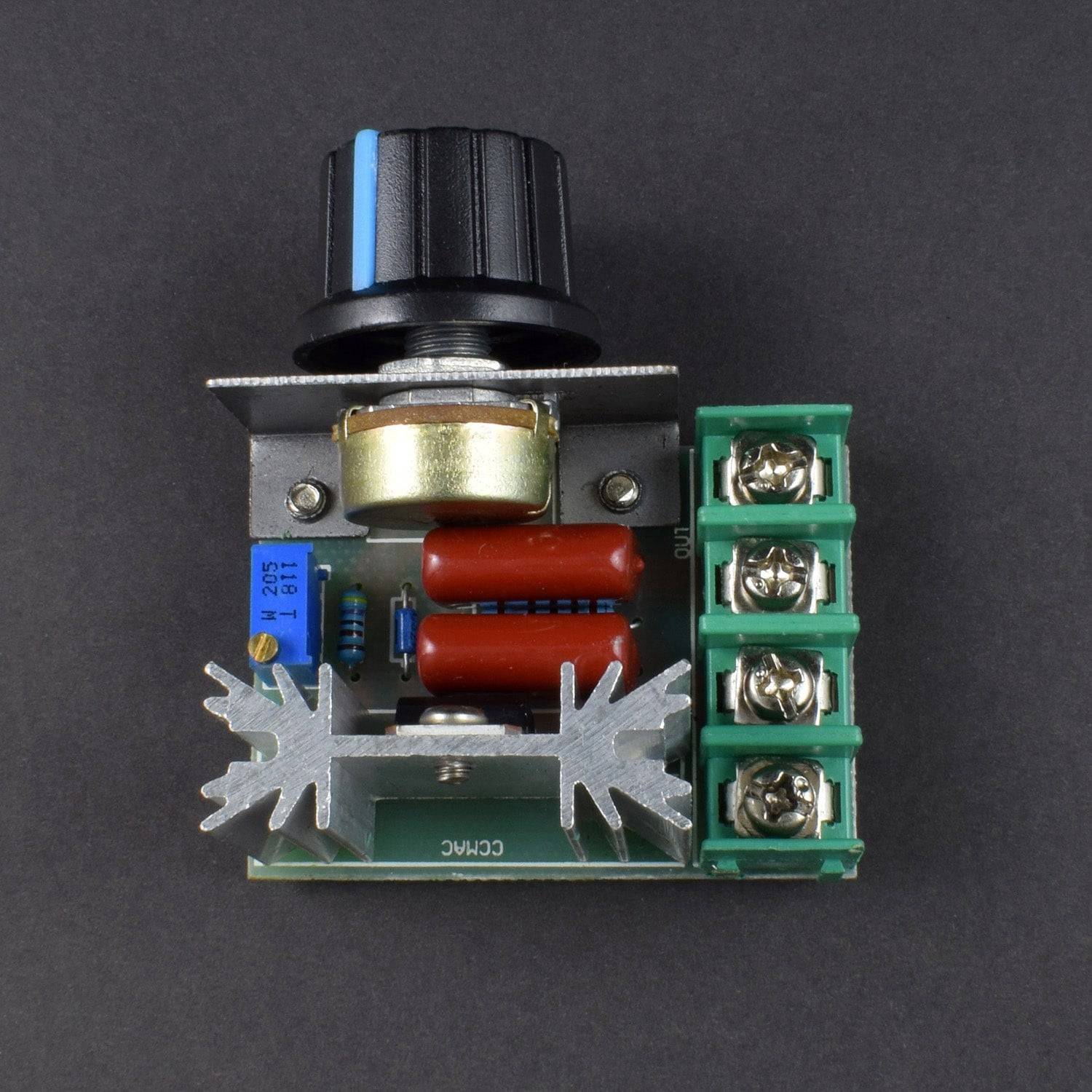

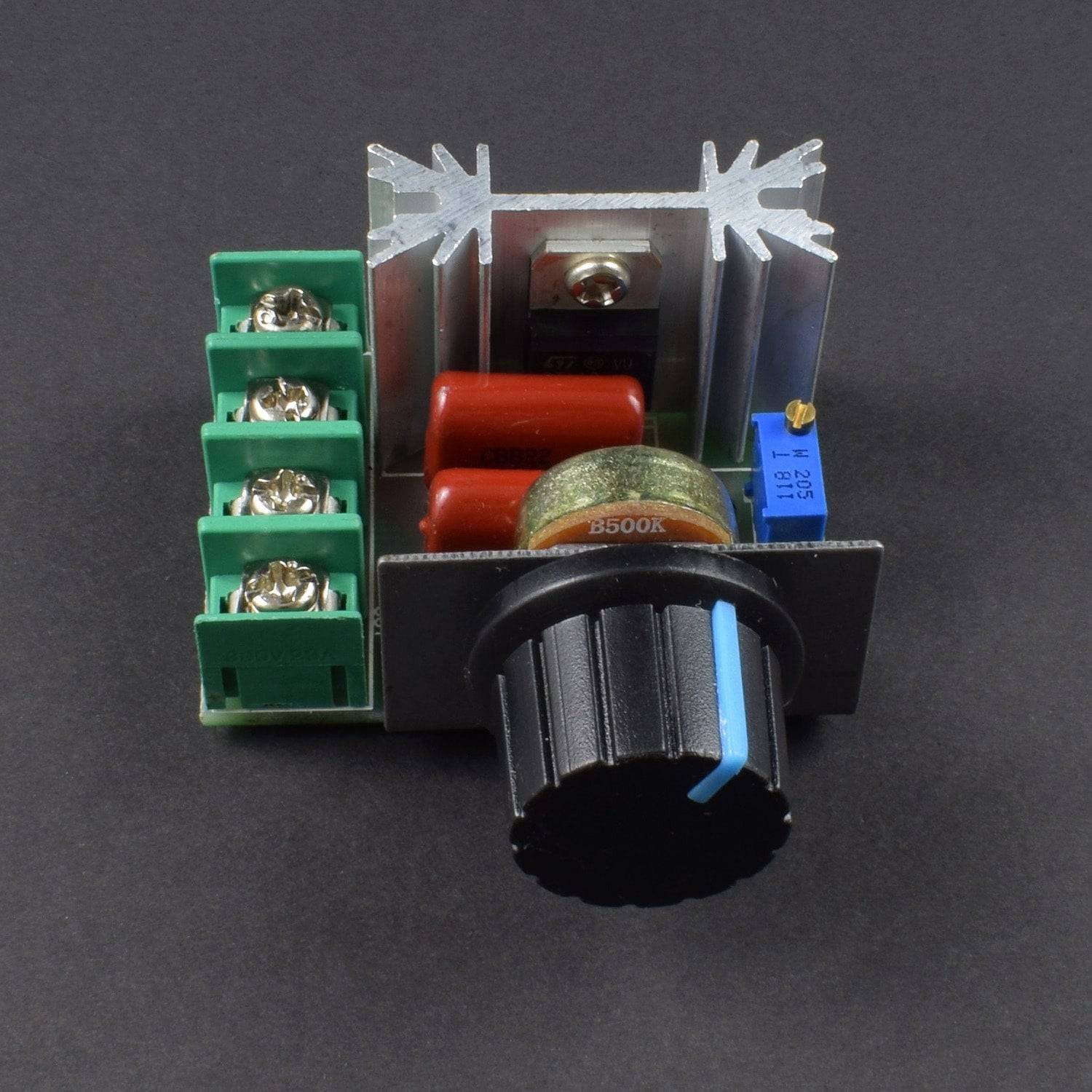

3000W Thyristor SCR Voltage Regulator is SCR Dimmer which can be used to control 220V Appliances. It can be used as a light dimmer, fan speed controller, stove temperature controller. It is easy and simple to use and can control appliances up to 3000W!

Just connect this module in series with your appliance and use the onboard potentiometer knob to adjust and set the required power output from your 220V Device.

Note: This product has onboard connectors; Which are available for Connecting Supply Voltage and the Output terminal; Here is no required for soldering.

Specifications and Features :

  1. Input Voltage: 220V AC.
  2. Maximum Power: 3000W.
  3. Adjustable Voltage: 0-220V AC.
  4. AC frequency: 50-60Hz.
  5. Size(LxWxH): Approx 57 x 49 x 27 mm.
  6. Material: Plastic, metal.

How to Use :

Connect this device to the lamp or home appliance in a series connection, then rotate the knob for dimming, speed, voltage, temperature control.

Appliance :

  1. Electric furnace,water heater,lamps,small motor,electric iron.etc
  2. can apply to the use of new two-way high-power thyristor; As the current up to 40A, a good solution to the heating wire resistance in the case of cooling is too small to cause over-current problems; can easily adjust the electricity.
  3. The output voltage between 0 – 220 volts any adjustment for the use of electrical appliances.
  4. Such as furnace, water heaters, heat transfer, light dimming, small motor speed, electric iron thermostat and so on.

Package Includes :

1 x 3000W Thyristor SCR Voltage Regulator.
