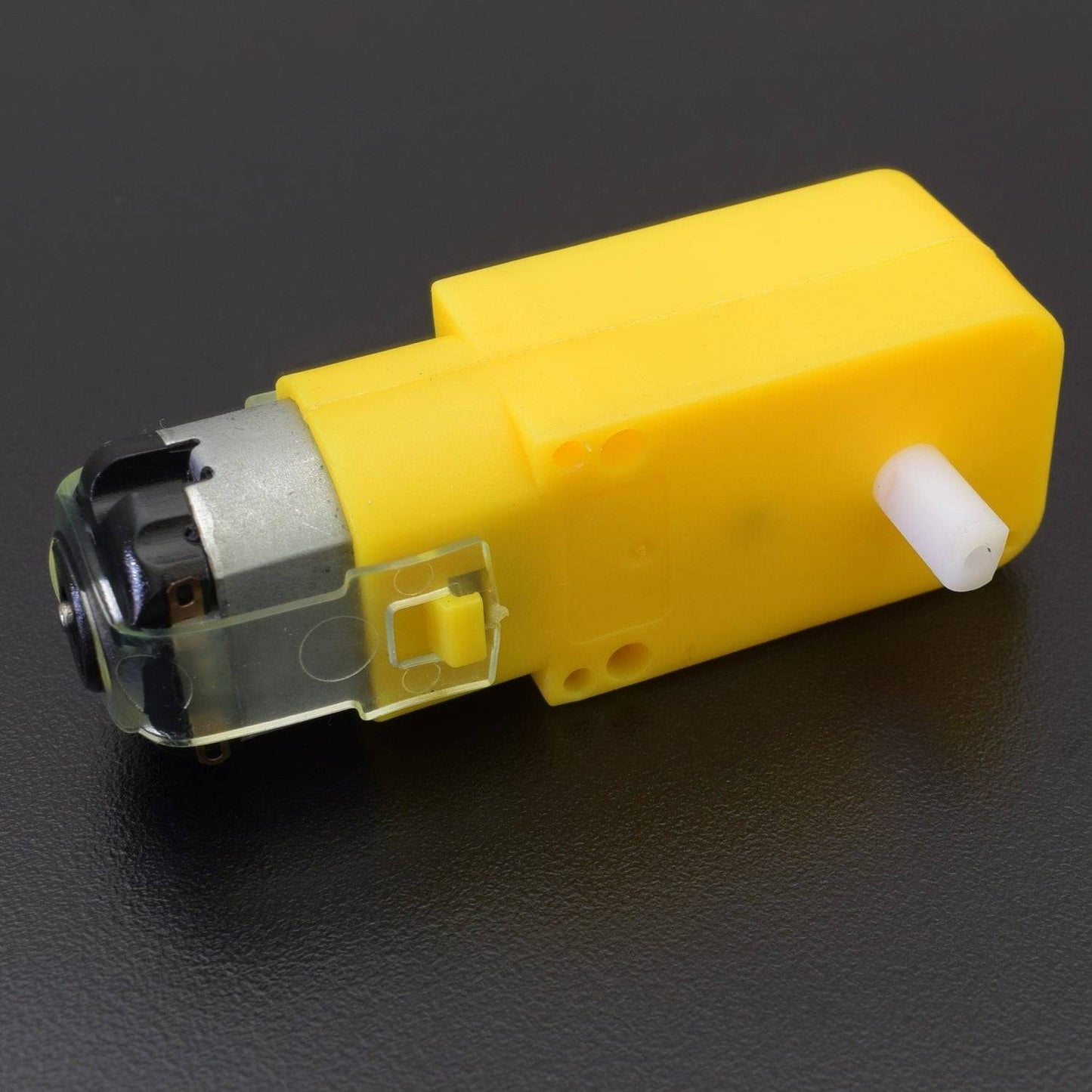

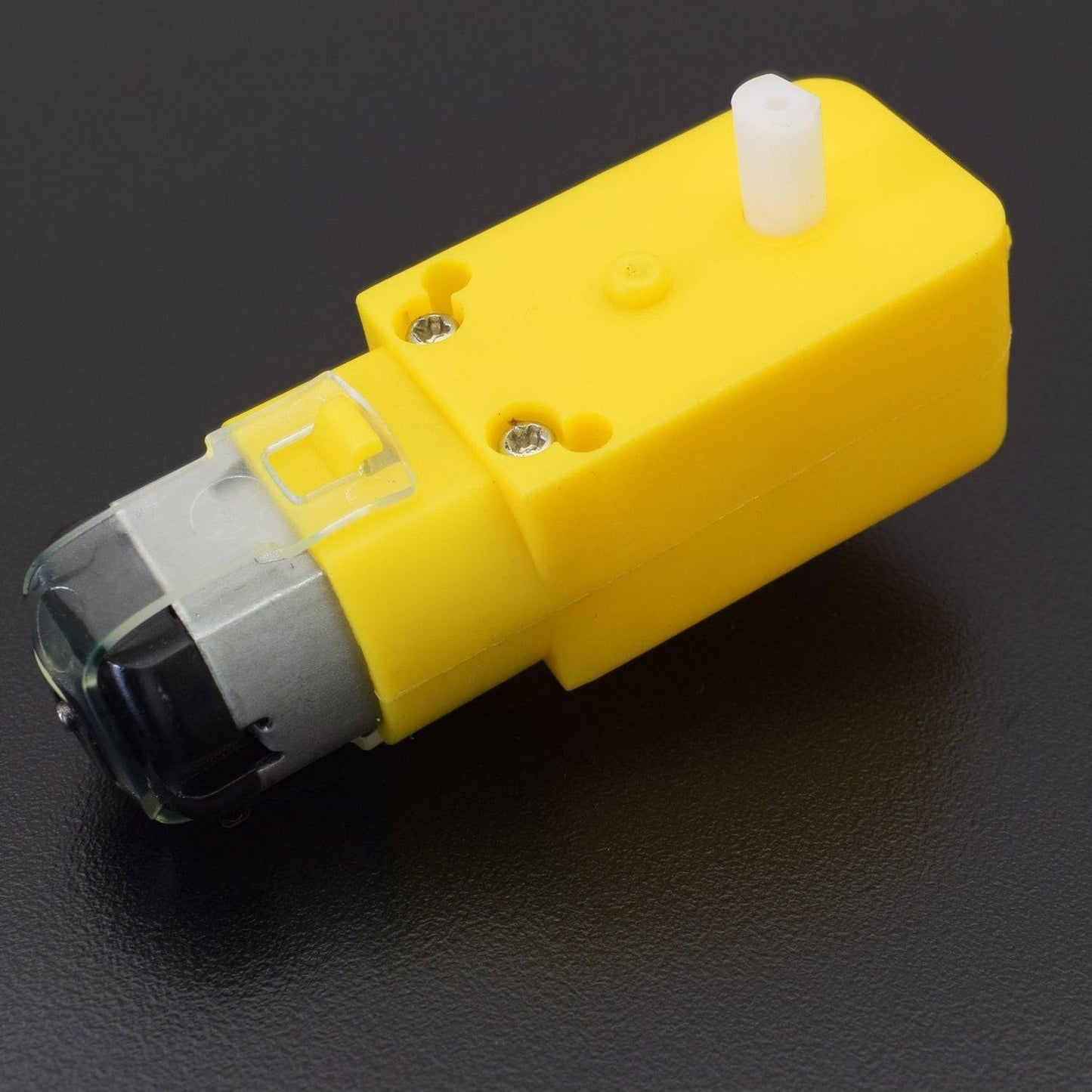

300 RPM Single Shaft BO Rectangle Motor - MR020
300 RPM Single Shaft BO Rectangle Motor - MR020
SKU:MR020
In stock
Regular price
Rs. 55.00
Regular price
Sale price
Rs. 55.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
| Operating Voltage(VDC) | 3~12 |
| Shaft Length (mm) | 8.5 |
| Shaft Diameter (mm) | 5.5 (Double D-type) |
| No Load Current | 40-180mA. |
| Rated Speed(After Reduction) | 300 RPM |
| Rated Torque | 1KgCm |
| Dimensions in mm (LxWxH) | 42 x 23 x 55 |
| Gearbox Shape | L-Shape |
DESCRIPTION
- This is a 300 RPM low-cost single shaft DC geared motor.
- It is most suitable for lightweight robot requiring small power.
- This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors.
- Drive shaft has a clutch for non-continuous protection from overload which protects gears from the sudden overload.
- Motor runs smoothly from 2V to 12V and gives a wide range of RPM, and torque.
- The table below gives a fairly good idea of the motorâs performance in terms of RPM, no load current as a function of voltage and stall torque, stall current as a function of voltage.
Features :
- Cost-effectiveness of the injection-molding process.
- Elimination of machining operations.
- Low density: lightweight, low inertia.
- Uniformity of parts.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Corrosion-resistance, elimination of plating, or protective coatings.
- The quietness of operation.
- Tolerances are often less critical than for metal gears, due in part to their greater resilience.
- Consistency with the trend to greater use of plastic housings and other components.
Specification:
| Operating Voltage(VDC) | 3~12 |
| Shaft Length (mm) | 8.5 |
| Shaft Diameter (mm) | (Double D-type) |
| No Load Current | 40-180mA. |
| Rated Speed(After Reduction) | 300 RPM |
| Rated Torque | 1KgCm |
| Weight (gm) | 30 |
| Dimensions in mm (LxWxH) | 42 x 23 x 55 |
| Gearbox Shape | L-Shape |
Dimensions :
