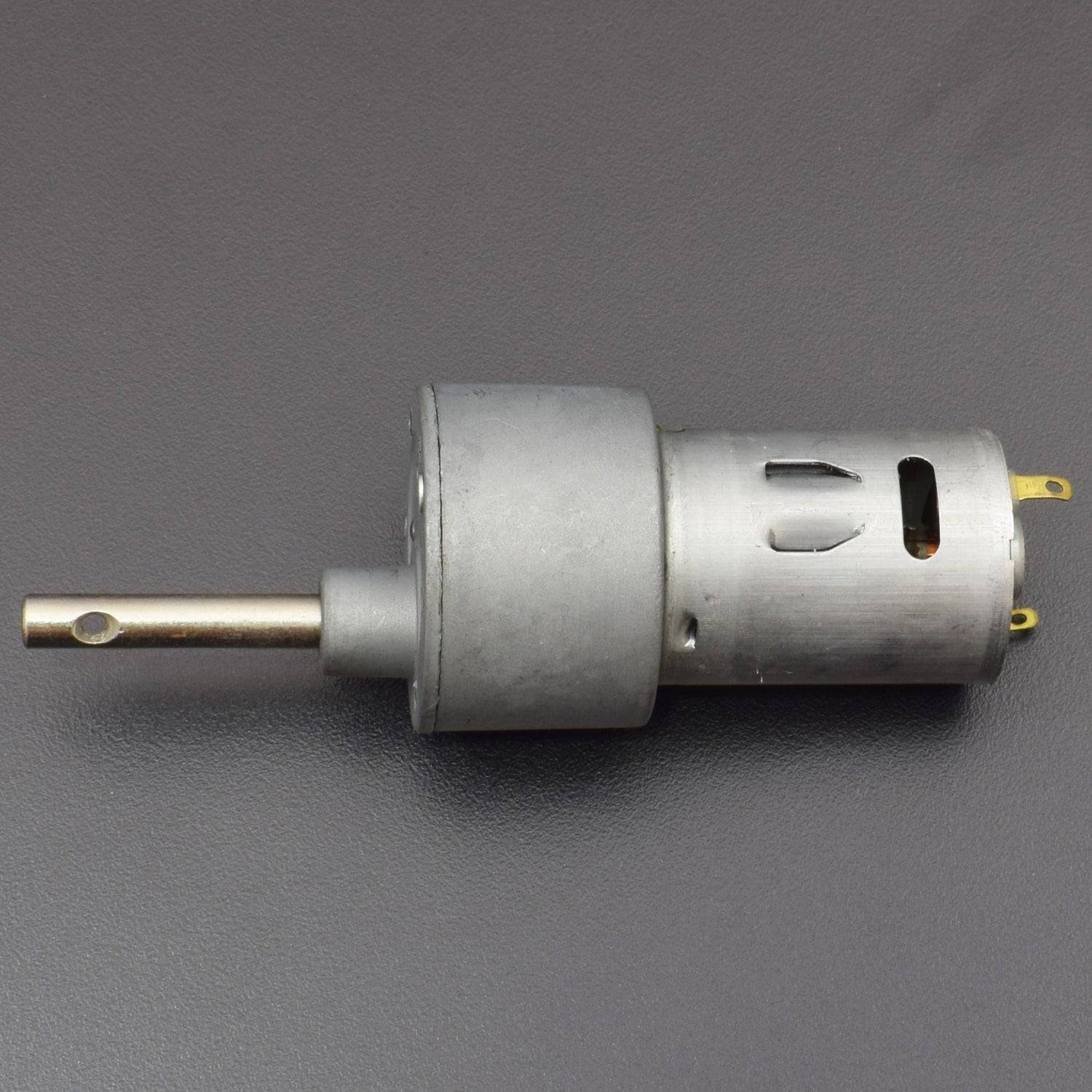

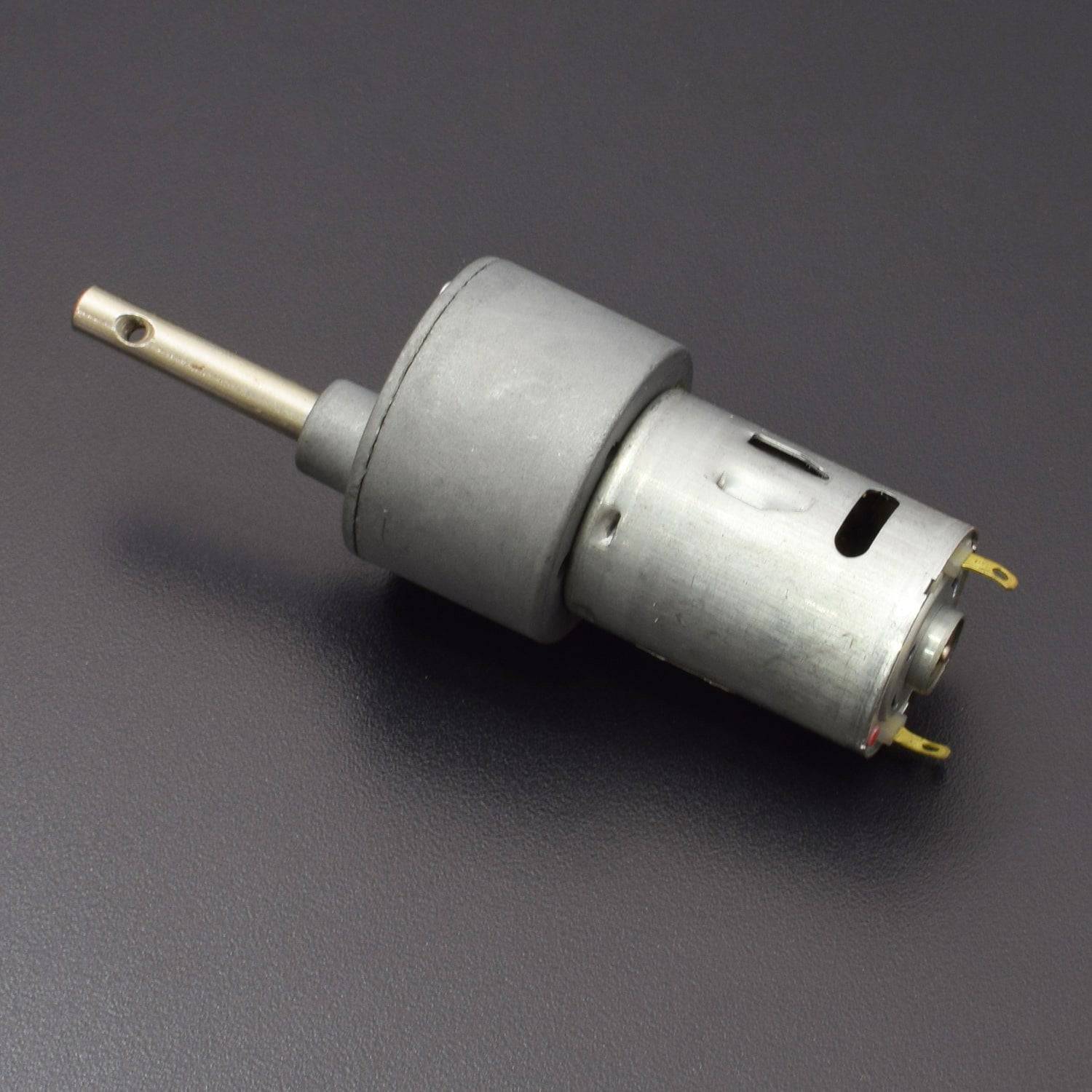

30 RPM Johnson Geared Motor - ER009

30 RPM Johnson Geared Motor - ER009

ER009

In stock

Rs. 320.00
Rs. 320.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • 30RPM 12V DC motors with Metal Gearbox
  • 18000 RPM base motor
  • 6mm shaft diameter
  • Gearbox diameter 37 mm.
  • Motor Diameter 28.5 mm
  • Length 63 mm without shaft
  • Shaft length 15mm
  • 300gm weight
  • 30kgcm torque
  • No-load current = mA(Max), Load current = upto 9.5 A(Max)

Description :

The Johnson Geared Motor gives very good torque at an affordable price hence they are widely applicable in Pan/Tilt camera, auto shutter, welding machines, water meter IC card, grill, oven, cleaning machine garbage disposers, household appliances, slot machines, money detector, automatic actuator, coffee machine, towel disposal, lighting coin refund devices, the peristaltic pump and so on.

Also, they are best suitable for highly developing capable robots or robotic platform, various automation purposes.

Features:

  • 10RPM 12V DC motors with Metal Gearbox
  • 18000 RPM base motor
  • 6mm shaft diameter
  • Gearbox diameter 37 mm.
  • Motor Diameter 28.5 mm
  • Length 63 mm without shaft
  • Shaft length 15mm
  • 300gm weight
  • 10kgcm torque
  • No-load current = mA(Max), Load current = upto 9.5 A(Max)

Specification :

Base Motor RPM

18000
Gear Material

Metal
Rated RPM

30
Operating Voltage(VDC)

6 to 18
Nominal Voltage (V)

12
Rated Torque(kg-cm)

11.7
Stall Torque(Kg-Cm)

46
No-Load Current

300 mA
Load Current(A)

900 mA
Shaft Diameter (mm)

6
Shaft Length (mm)

25
Gearbox Diameter (mm)

37
Motor Diameter(mm)

27
Motor Length(mm)

68
Weight (gm)

180

Dimensions :
