Description:
ESP32 has already integrated an antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area. This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications.
Specification:
- Operating Voltage: 2.3 ~ 3.6V
- Operating Current: 80mA
- Clock Frequency: 80 ~ 240MHz
- Flash Memory: 4MB
- Data Rate: 54MBPS
- SRAM Memory: 512KB
Features:
- High performance-price ratio
- Small volume, easily embeded to other products
- Strong function with support LWIP protocol, Freertos
- Supporting three modes: AP, STA, and AP+STA
- Supporting Lua program, easily to develop

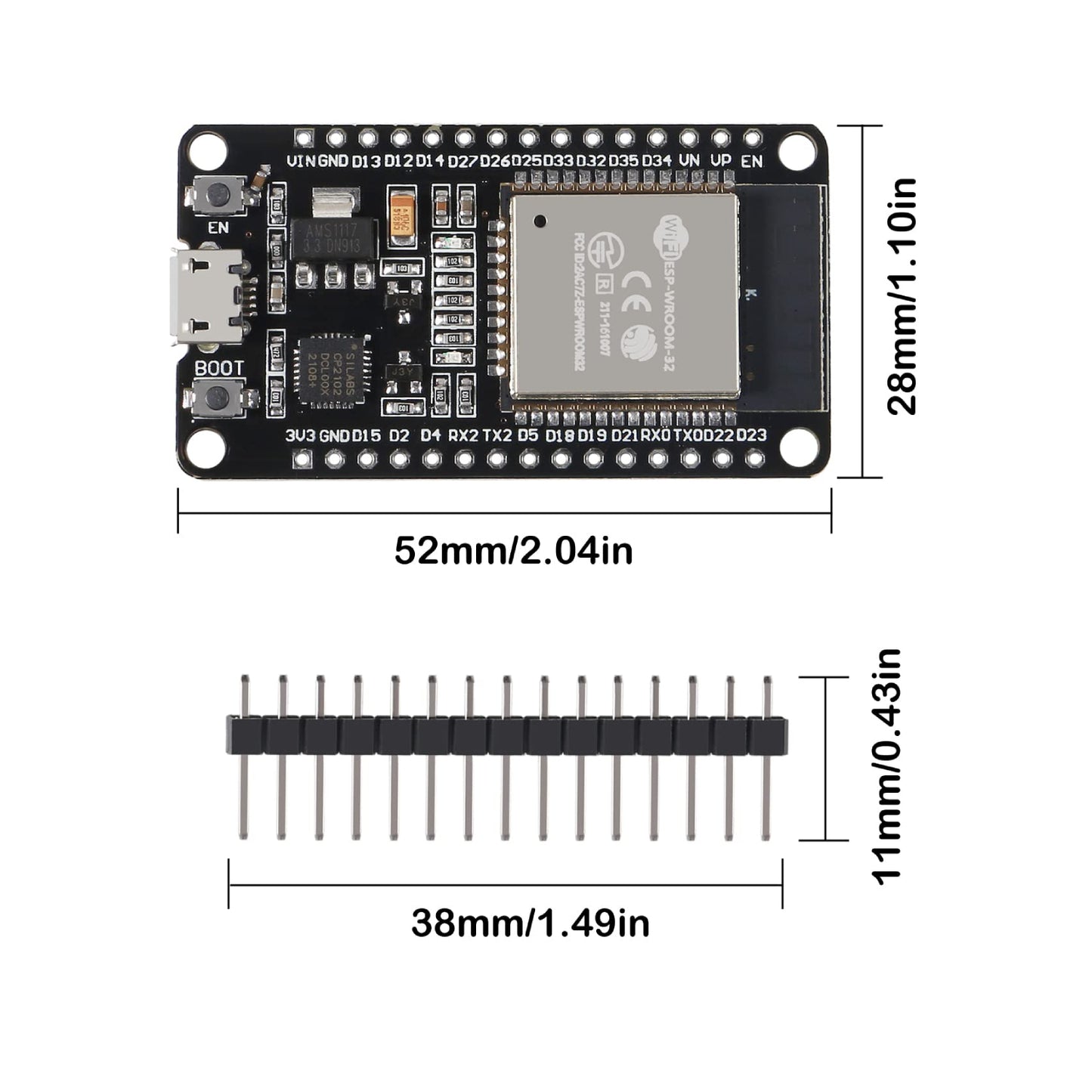

Pin Description:
Application:
- Universal low power IoT sensor hub
- Home automation
- Universal low power IoT recorder
- Mesh network
- Video streaming of the camera
- Industrial wireless control
- OTT TV box / set-top box device
- Baby monitor
- Smart Socket
- Sensor networks
- Wi-Fi toys: Counters, toys, Anti-lost device
- Wearable electronic products
- Wi-Fi speech recognition device
- Wi-Fi location-aware devices
Package Included:

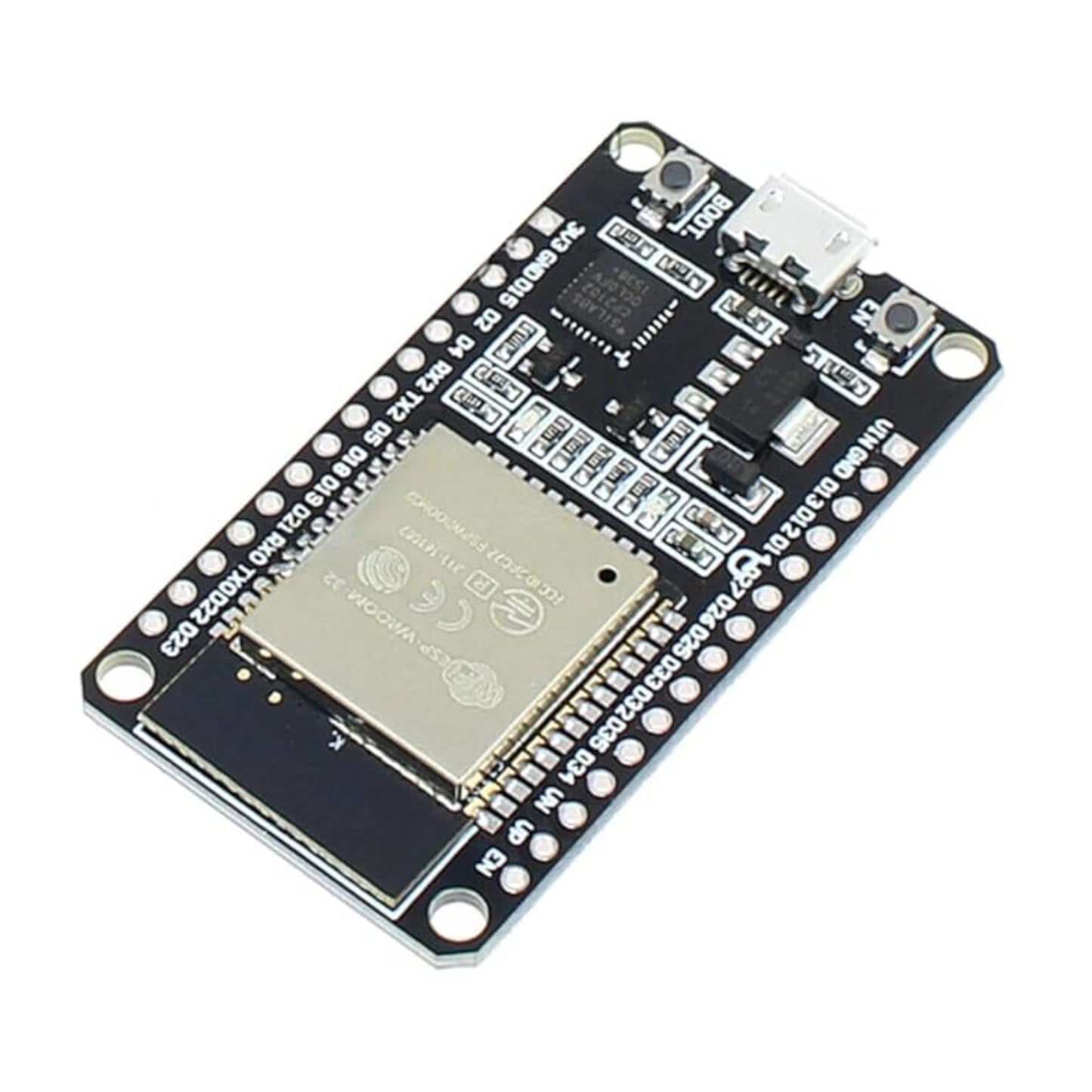

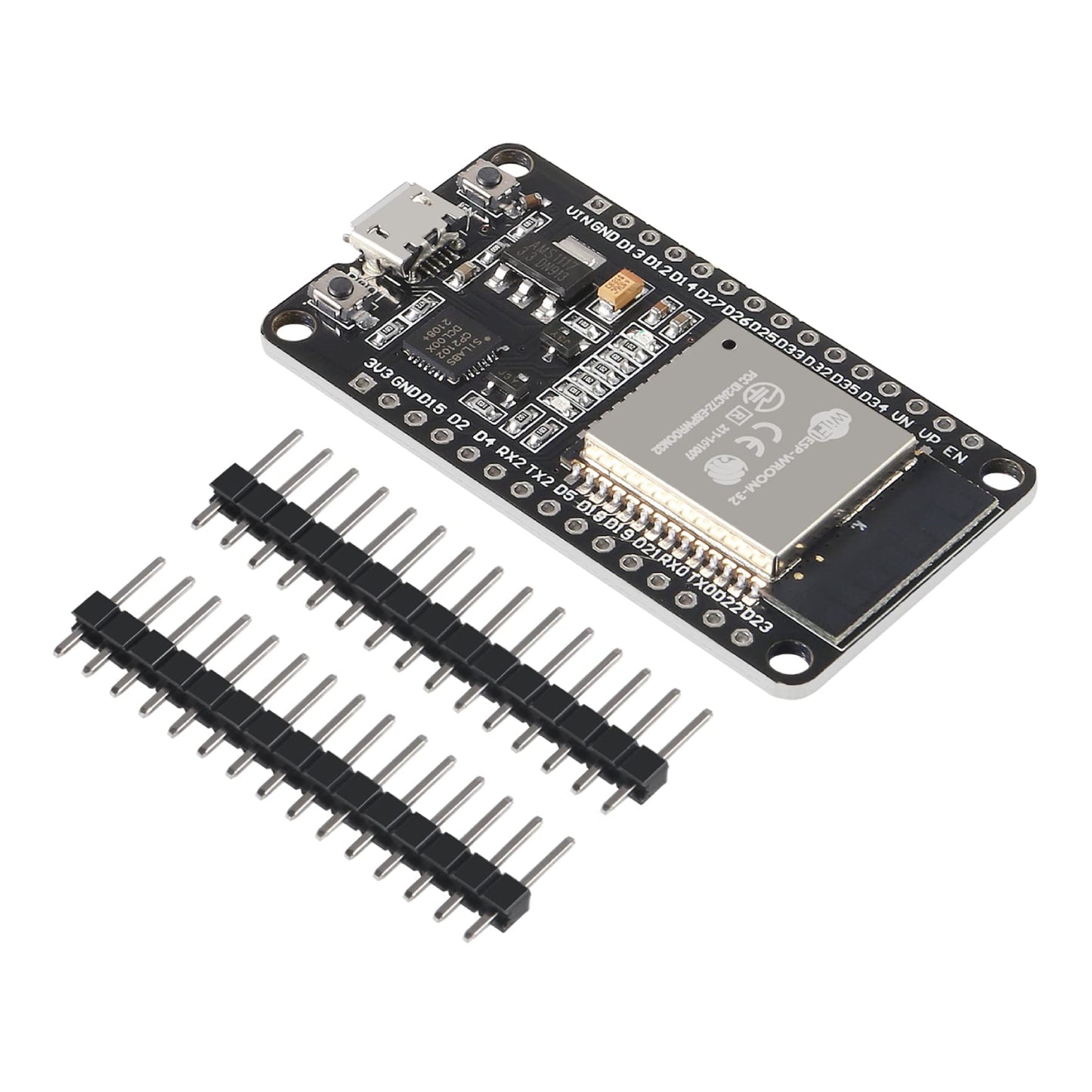

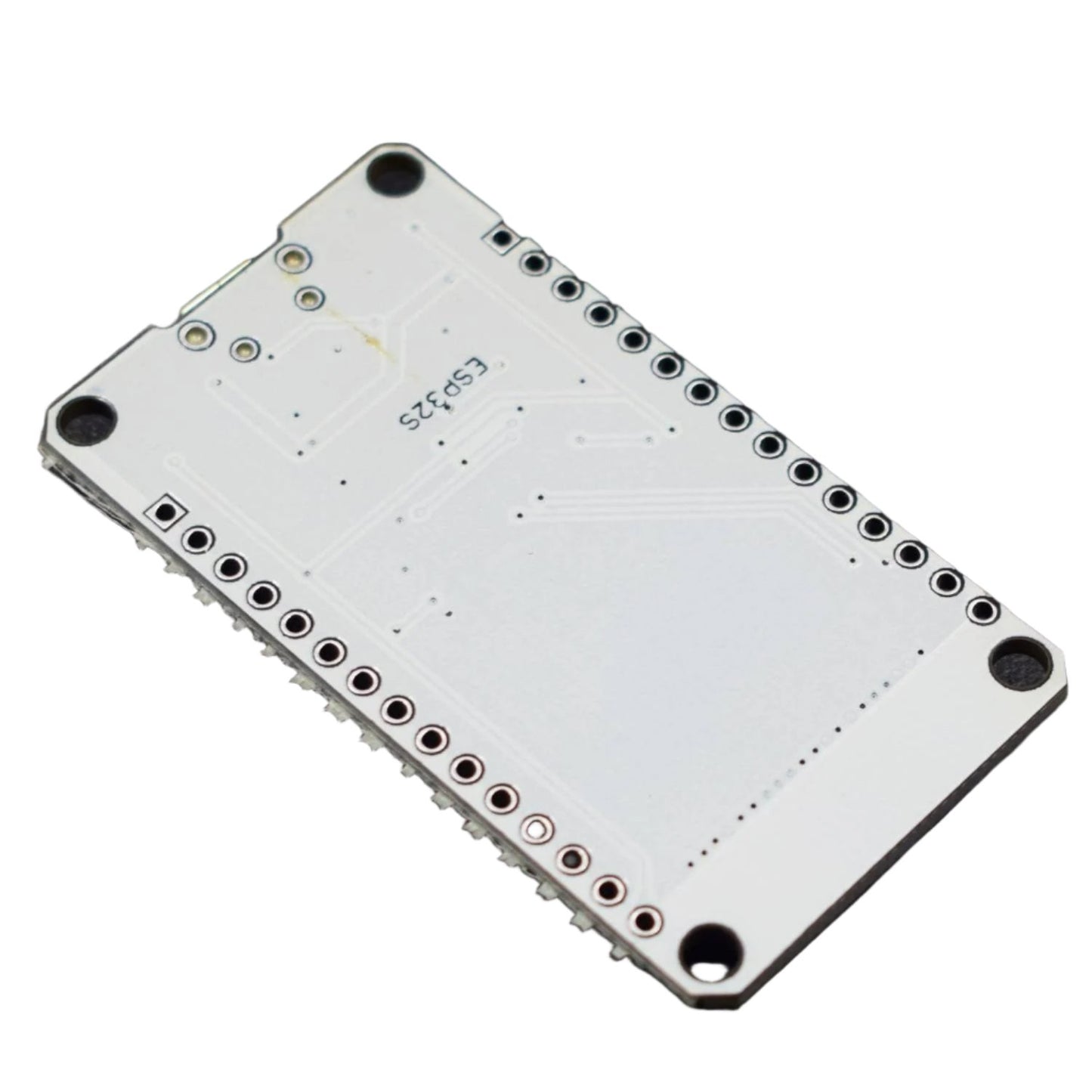

1 x 30 Pin ESP32 Development Board WiFi+Bluetooth Ultra Low Power Consumption Dual Cores ESP-32 ESP-32S Board - WITHOUT SOLDER
