Geared DC motors can be defined as an extension of DC motors which already had its Insight details demystified here. a geared DC Motor has a gear assembly attached to the motor. The speed of the motor is counted in terms of rotations of the shaft per minute and is termed RPM.
The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to any desirable figure. This concept where gears reduce the speed of the vehicle but increase its torque is known as gear reduction. This Insight will explore all the minor and major details that make the gear head and hence the working of geared DC motor.
Specifications:
Speed: 3.5RPM
Colour: Black
Voltage: 12 Volts
Material: Metal
Number of Memory Sticks: 2
Gear Material: 3.5 RPM
Load Current Max: 300 mA
No-Load Current: 60 mA
Features:
It comes with Quality Gear.

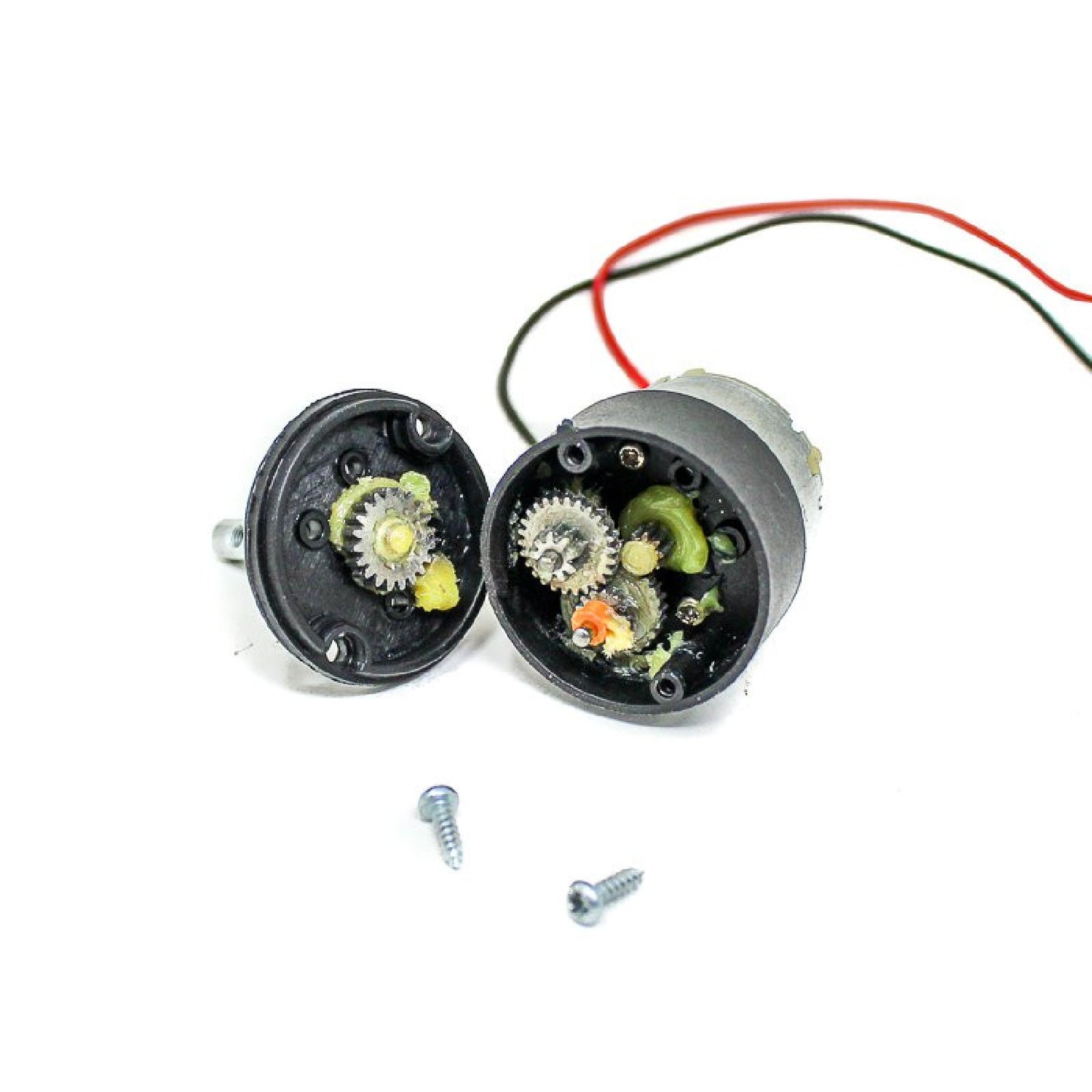

The gearbox is sealed and lubricated with lithium grease and requires no maintenance.
The metal gears have better wear and tear properties.
Package Included:

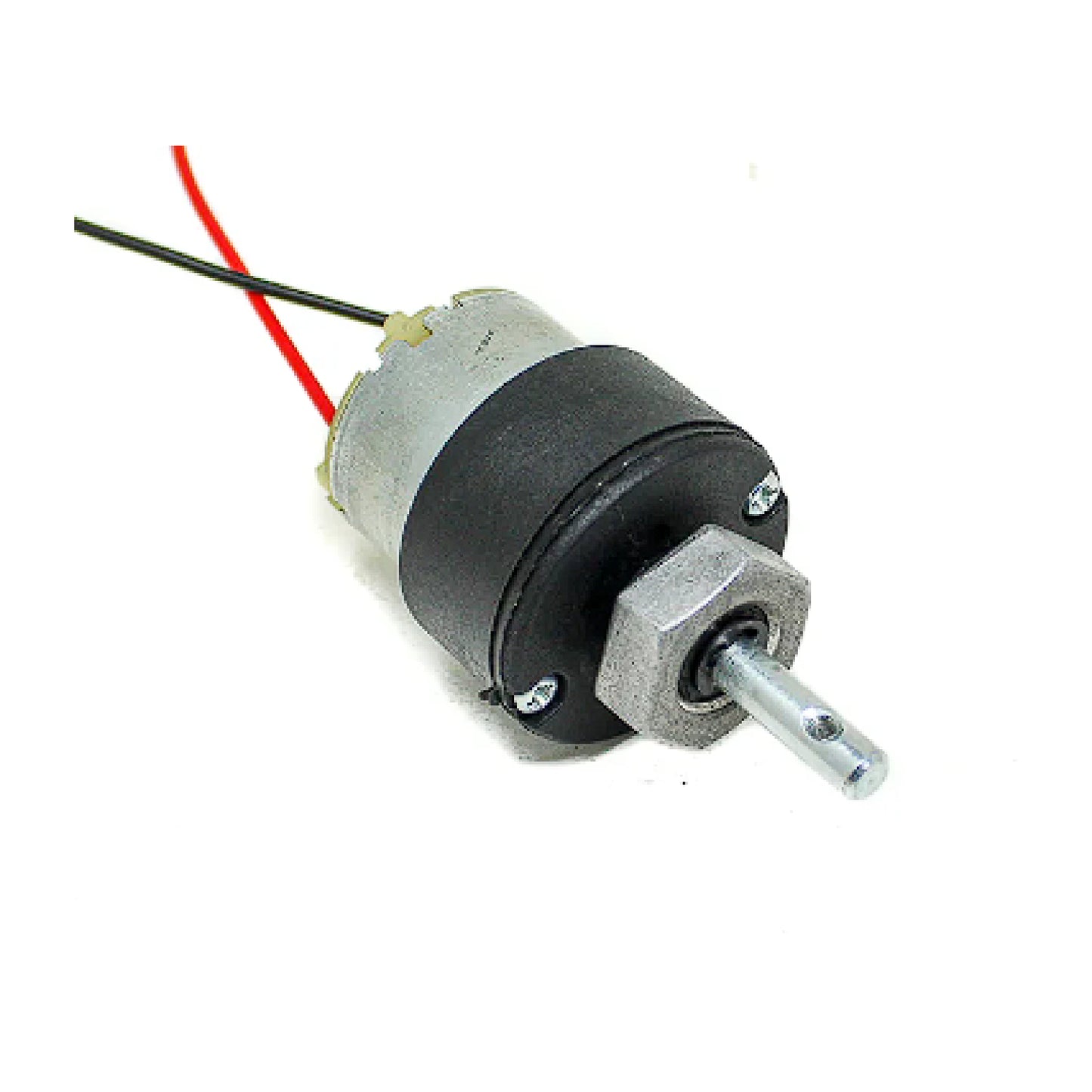

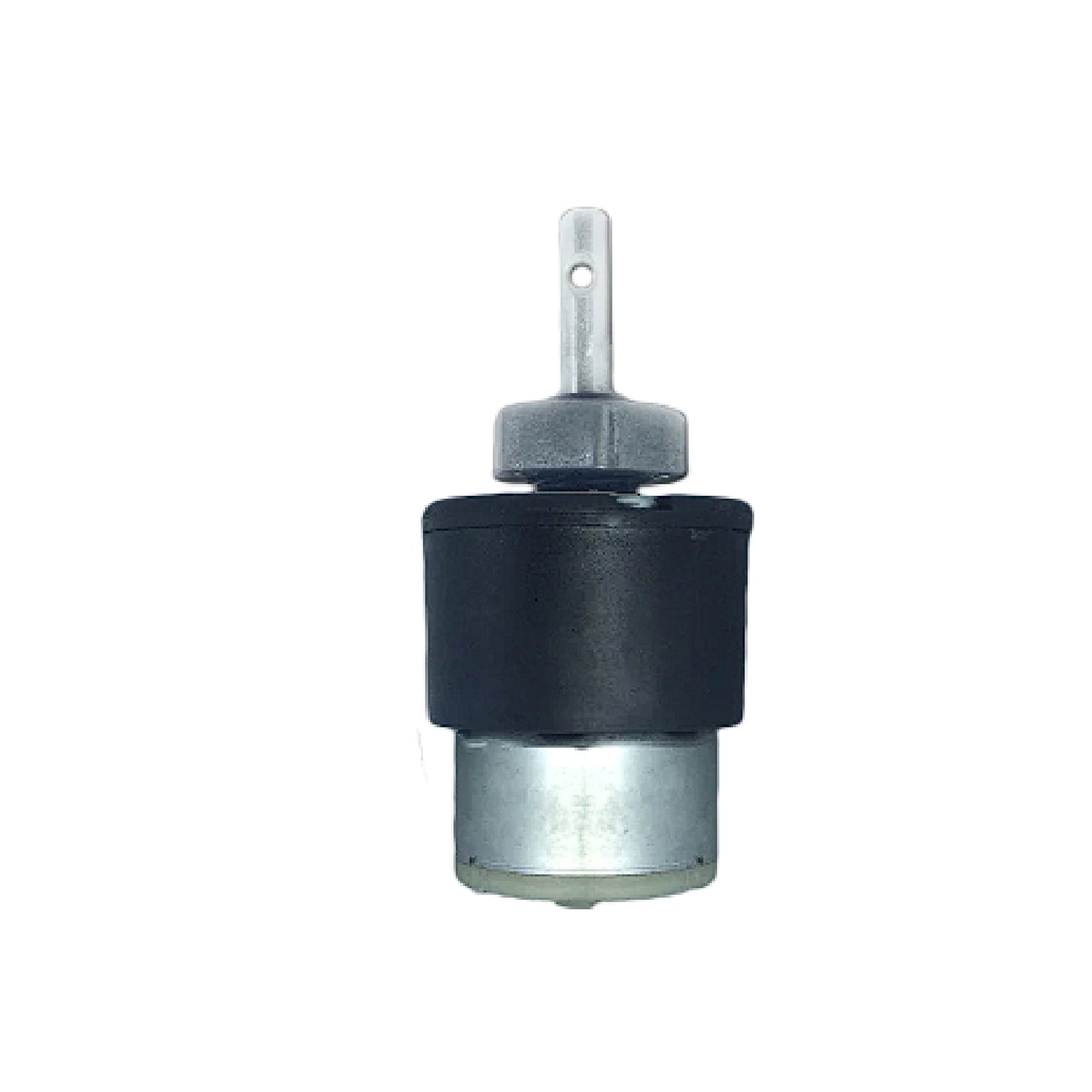

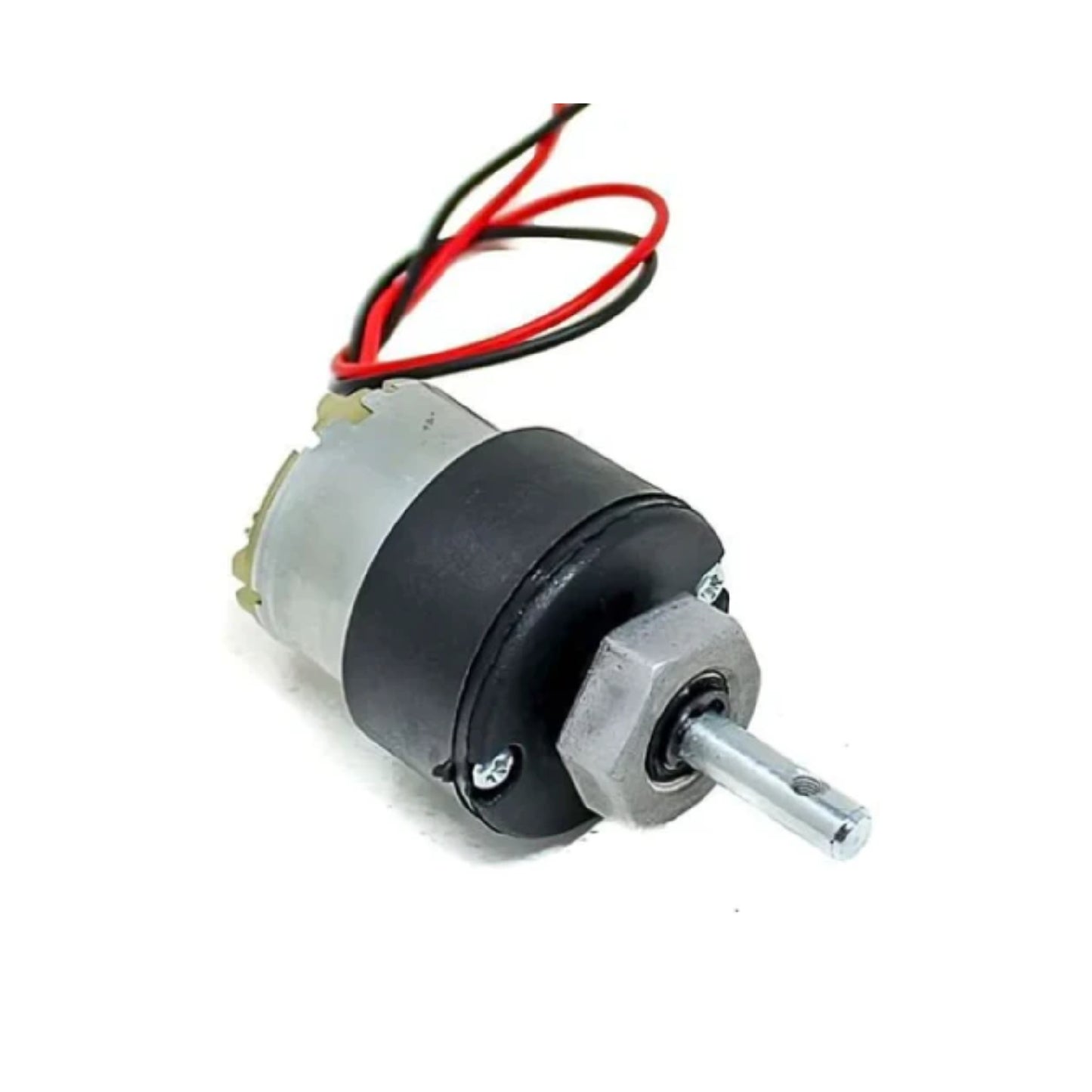

1 x 3.5RPM 12V DC Motor Low Noise Metal Gear DC Motor With Metal Gears Precision Durable Quiet And Reliable 12V DC Motor Grade-A
