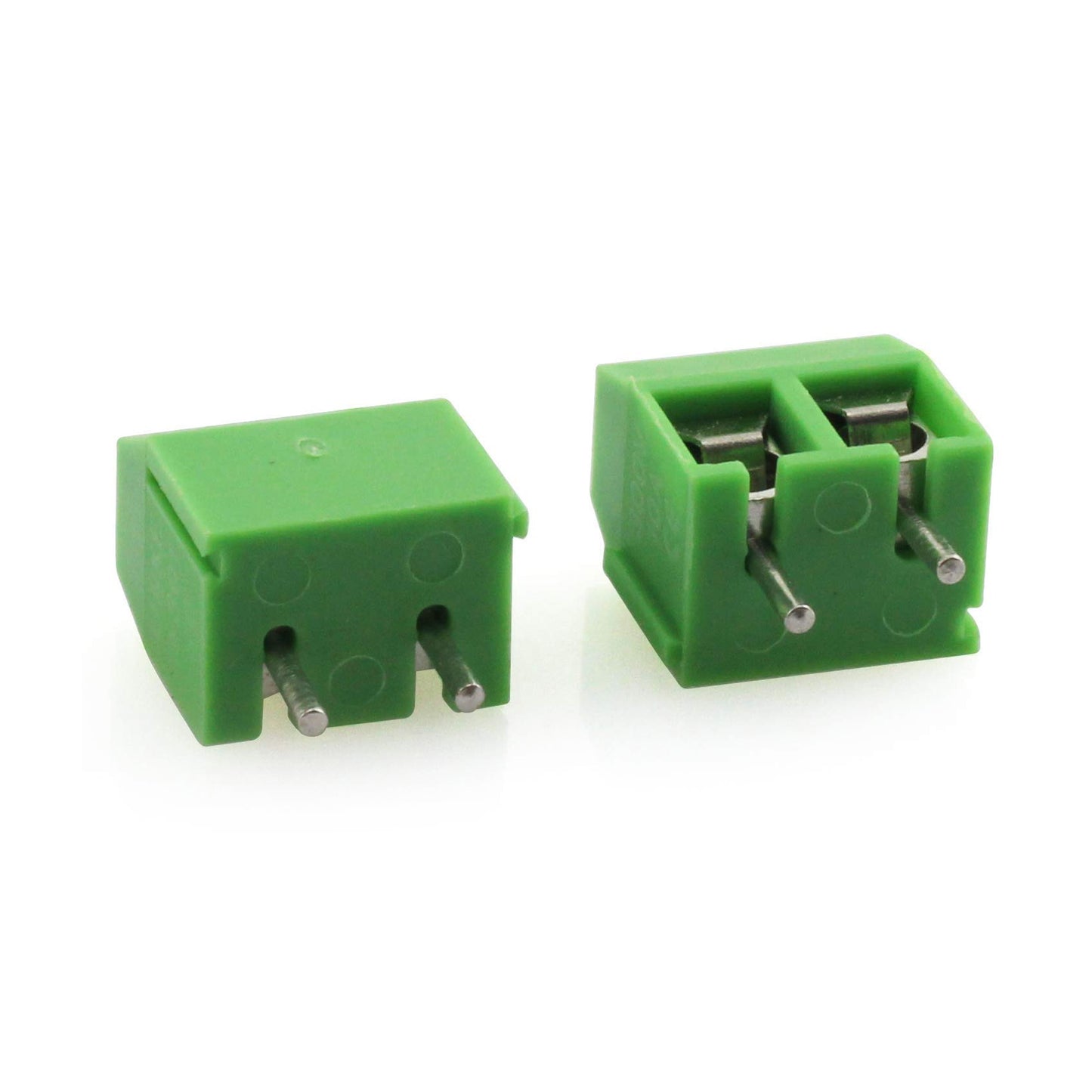

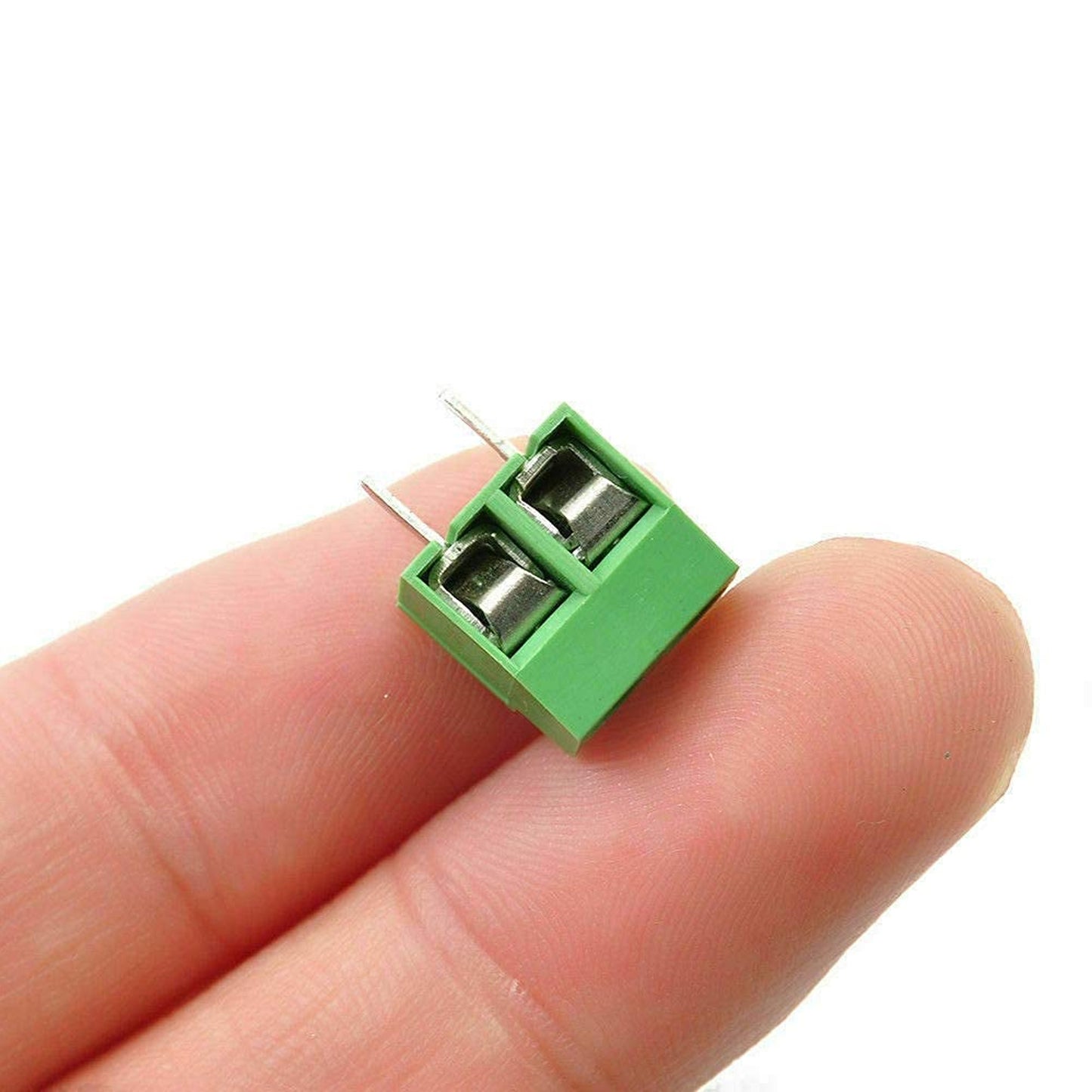

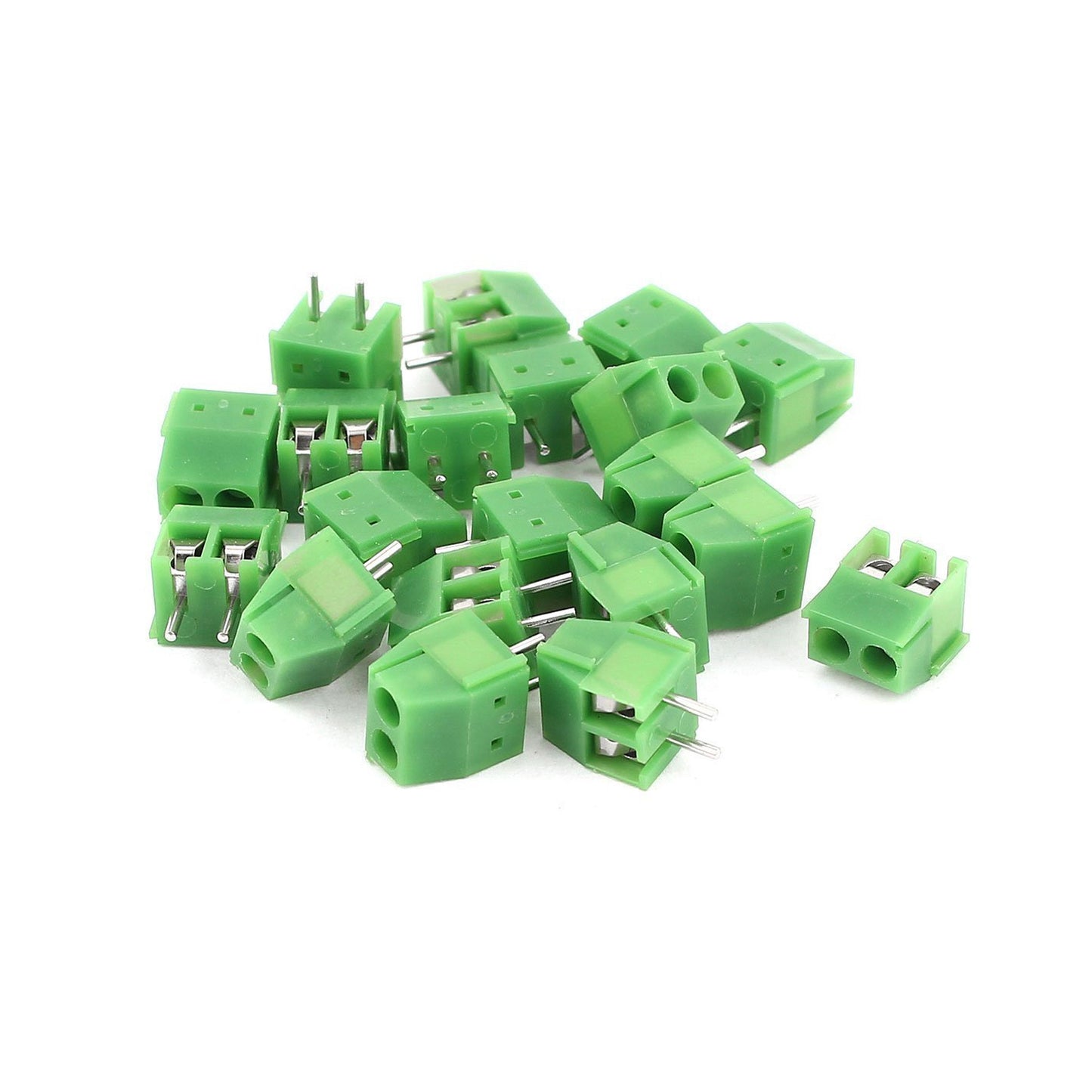

3.5mm Terminal Connector 3.5mm Pitch 2 pin 2 way Straight Pin PCB Screw Terminal Block Connector - RS042

3.5mm Terminal Connector 3.5mm Pitch 2 pin 2 way Straight Pin PCB Screw Terminal Block Connector - RS042

SKU:RS042

5552 in stock

Regular price Rs. 5.00
Regular price Sale price Rs. 5.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This is a 3.5mm Pitch 2 pin 2 way Straight Pin PCB Screw Terminal Block Connector. Moulded in green UL94-V0 flame retardant PA. It has a double interlocking mechanism for increased strength. It has also guided pin alignment.

Specifications:

  • Pitch: 3.5 mm
  • Poles: 2 Pin
  • Rated voltage: 300 V
  • Rated current: 10 A
  • Contact Resistance: 20mΩ MAX
  • Withstanding voltage: AC 1500V/1Min
  • Wire range: 24-18A WG
  • Temperature range: -40 °C ~ +105 °C
  • MAX soldering: +250°C for 5sec
  • Torque: 0.2Nm(1.8lb.in)
  • Withstand length: 4.5~5 mm

Features:

  • Captive screws
  • Guided pin alignment
  • Double interlock mechanism for increased strength

Package Included:

1 x 3.5mm Terminal Connector 3.5mm Pitch 2 pin 2 way Straight Pin PCB Screw Terminal Block Connector
