- Operating voltage: 5V
- Resolution: 480x320 pixels
- Display color: 65K colorful
- Communication interface: SPI
- Display panel: IPS
- Display size: 73.44 x 48.96 mm
- Pixel size: 0.153 x 0.153 mm
- Controller: ILI9488
- Size: 86.00 x 57.20 mm
Description:

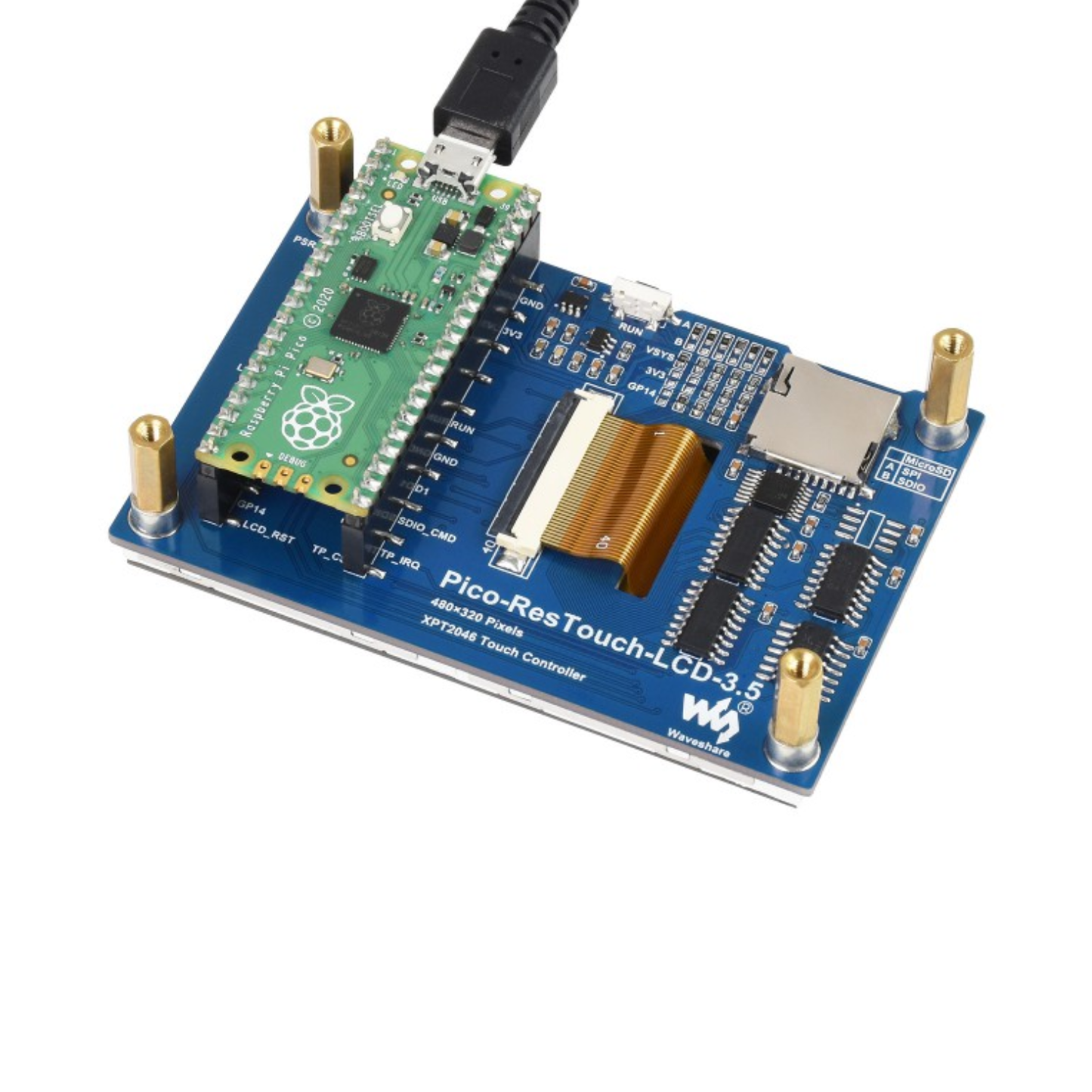

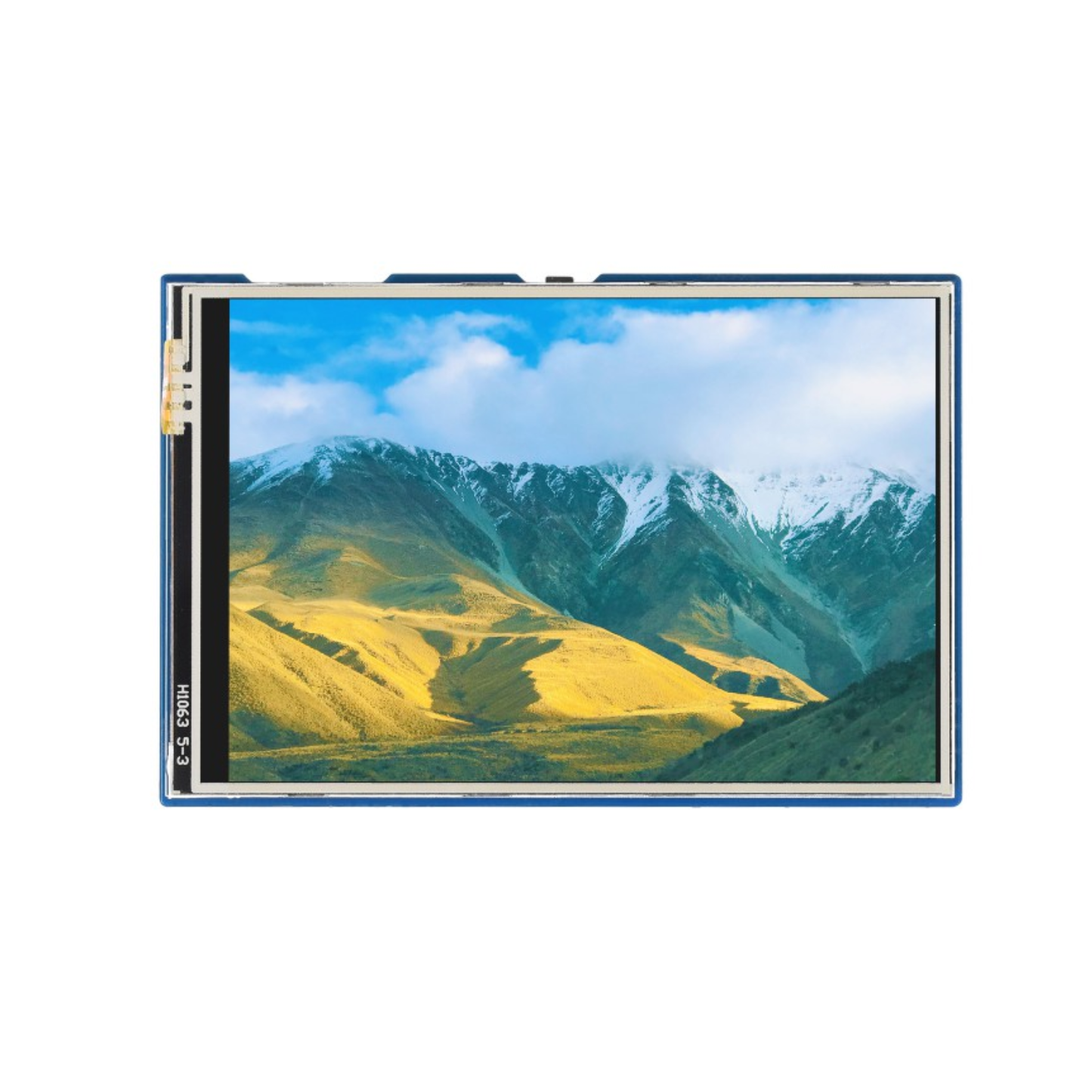

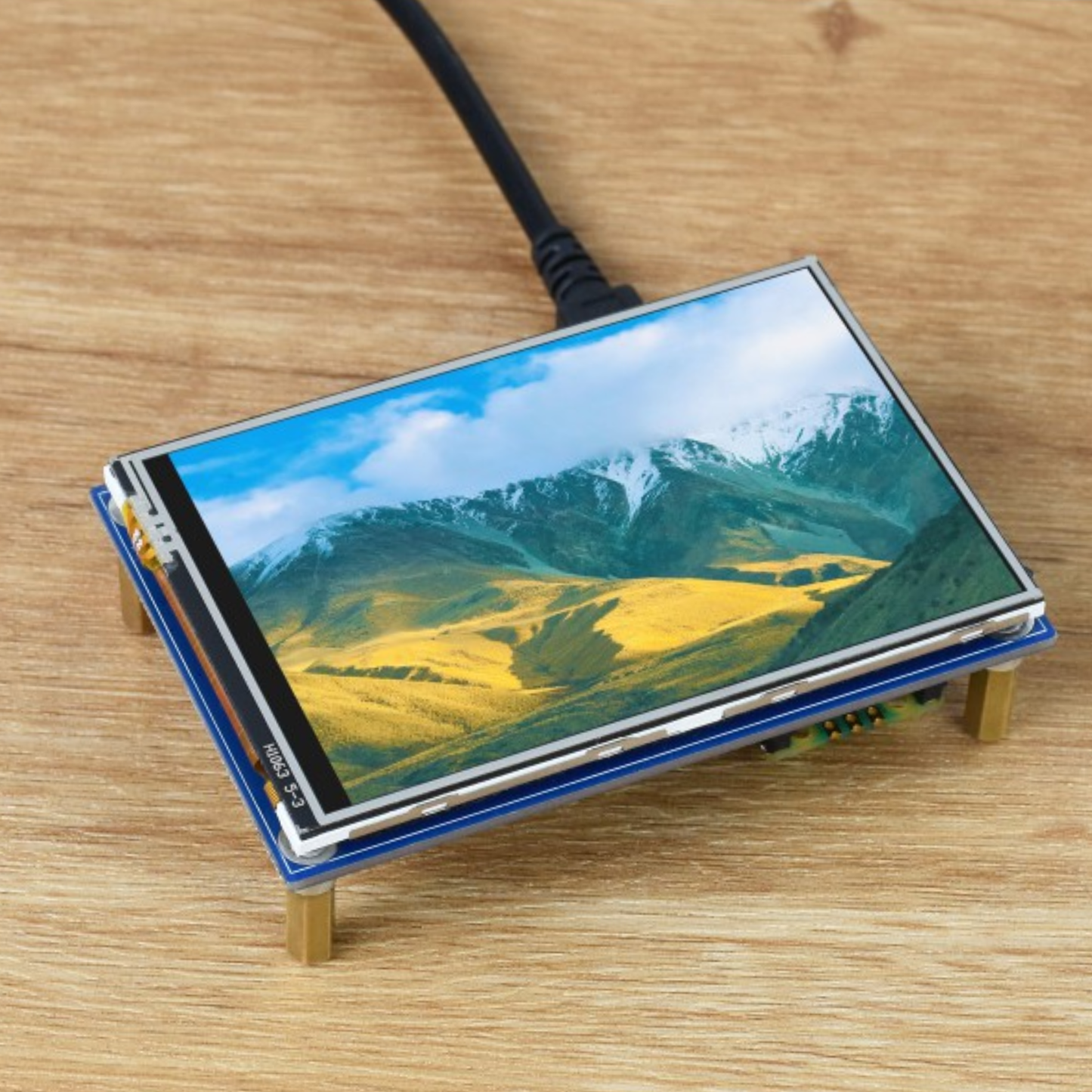

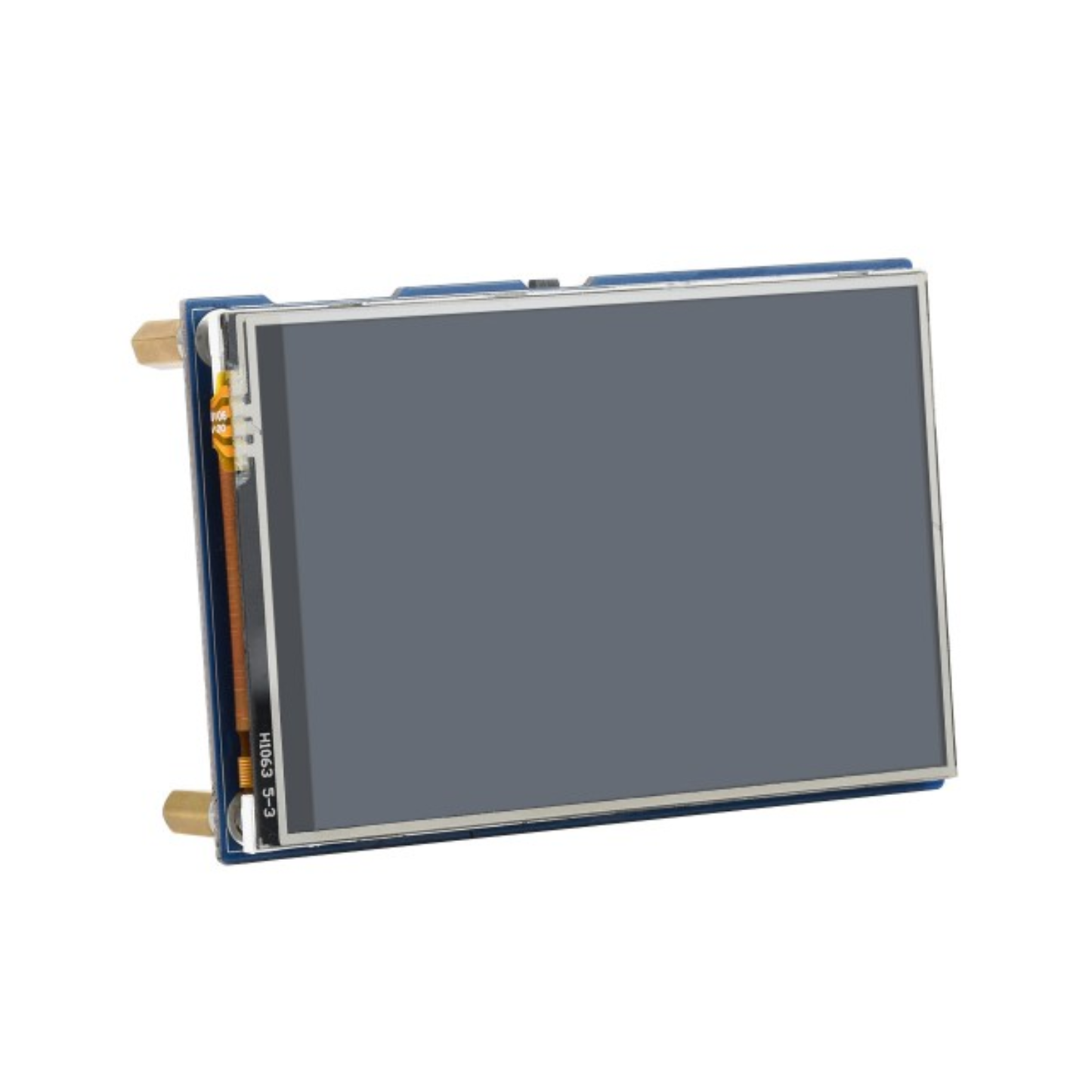

3.5inch Touch Display Module For Raspberry Pi Pico, 65K Colors, 480 x 320 Pixels, Resistive Touch Controller XPT2046, ILI9488 Driver, Using SPI Bus.
Features:
- 480 x 320 resolution, IPS screen, 65K colours, clear and colourful displaying effect
- Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
- MicroSD card slot for storing images and direct displaying them easily
- Programmable backlight control, power saving
- Come with development resources and a manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
- Operating voltage: 5V
- Resolution: 480x320 pixels
- Display colour: 65K colourful
- Communication interface: SPI
- Display panel: IPS
- Display size: 73.44 x 48.96 mm
- Pixel size: 0.153 x 0.153 mm
- Controller: ILI9488
- Size: 86.00 x 57.20 mm
Hardware Connection:
Please take care of the direction when you connect Pico, an USB port is printed to indicate. You can also check the pin of Pico and the LCD board when connecting.
You can connect the display according to the table.

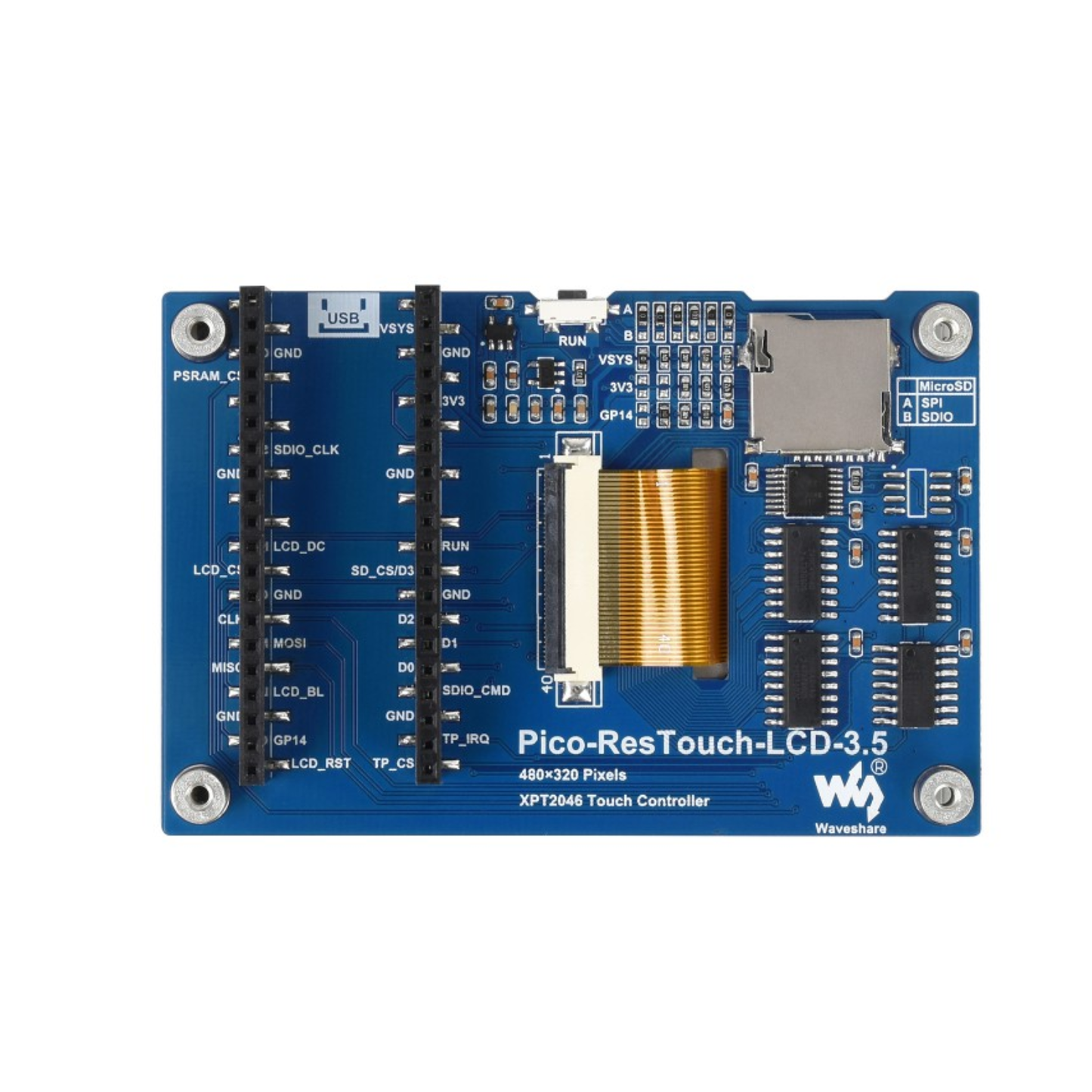

| LCD | Pico | Description |
| VCC | VSYS | Power input |
| GND | GND | GND |
| SDIO_CLK | GP5 | SCK pin of SDIO interface clock input for the slave device. |
| LCD_DC | GP8 | Data/Command pin (High: data; Low: command) |
| LCD_CS | GP9 | Chip select pin of LCD (Low active) |
| LCD_CLK | GP10 | CLK pin of LCD communication, clock input for the slave device |
| MOSI | GP11 | SPI MOSI pin |
| MISO | GP12 | SPI MISO pin |
| LCD_BL | GP13 | LCD backlight control |
| LCD_RST | GP15 | LCD reset pin (Low active) |
| TP_CS | GP16 | Touch controller chip select (Low active) |
| TP_IRQ | GP17 | Touch controller interrupt pin (Low active) |
| SDIO_CMD | GP18 | SDIO CMD pin |
| D0 | GP19 | SDIO D0 pin |
| D1 | GP20 | SDIO D1 pin |
| D2 | GP21 | SDIO D2 pin |
| SD_CS/D3 | GP22 | SDIO CS/D3 pin |
Package Included:
- 1 x Pico-ResTouch-LCD-3.5
- 1 x Standoffs pack
