Description:

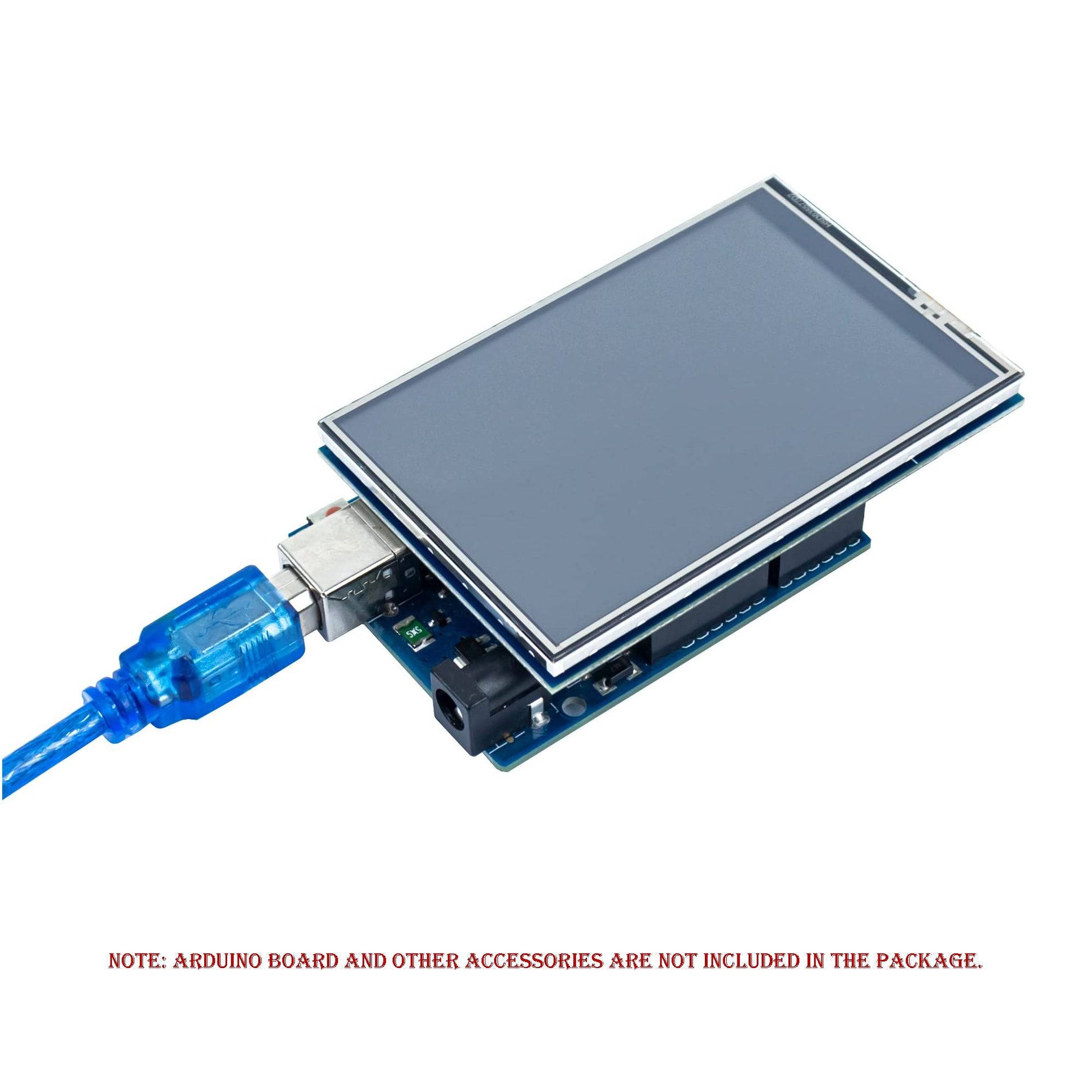

The 3.5inch LCD Shield for Arduino Uno is fully assembled, tested and ready to go. Simply plug it in and load up a library – you’ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board. So spice up your Arduino UNO project with a beautiful large display shield with a built-in microSD card connection. This TFT 3.5inch LCD is big (3.5″ diagonal) bright (4 white-LED backlights) and colourful (18-bit 262,000 different shades). The 3.5inch LCD comes with 480×320 pixels with individual pixel control. 3.5inch LCD has way more resolution than a black and white 128×64 display.
Specifications:
- Screen Size: 3.5 inches
- Resolution: 480x320 pixels
- Type of LCD: TFT
- LCD Driver IC: ILI9486
- Interface: 16-bit parallel interface
- Voltage: 4.5-5.5V DC
- IO voltage: 3.3-5V (with level converter converted to 3.3V for the display)
- Power consumption: approx. 150mA
Features:
- Standard Arduino interface, compatible with development boards like Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
- It comes with STM32 and Arduino examples, convenient for porting
- Controlled via SPI, only a few Arduino pins are used
- 3.5inch LCD can control the backlight to connect the transistor to a digital pin
- 8-bit digital interface, plus 4 control lines
Package Included:

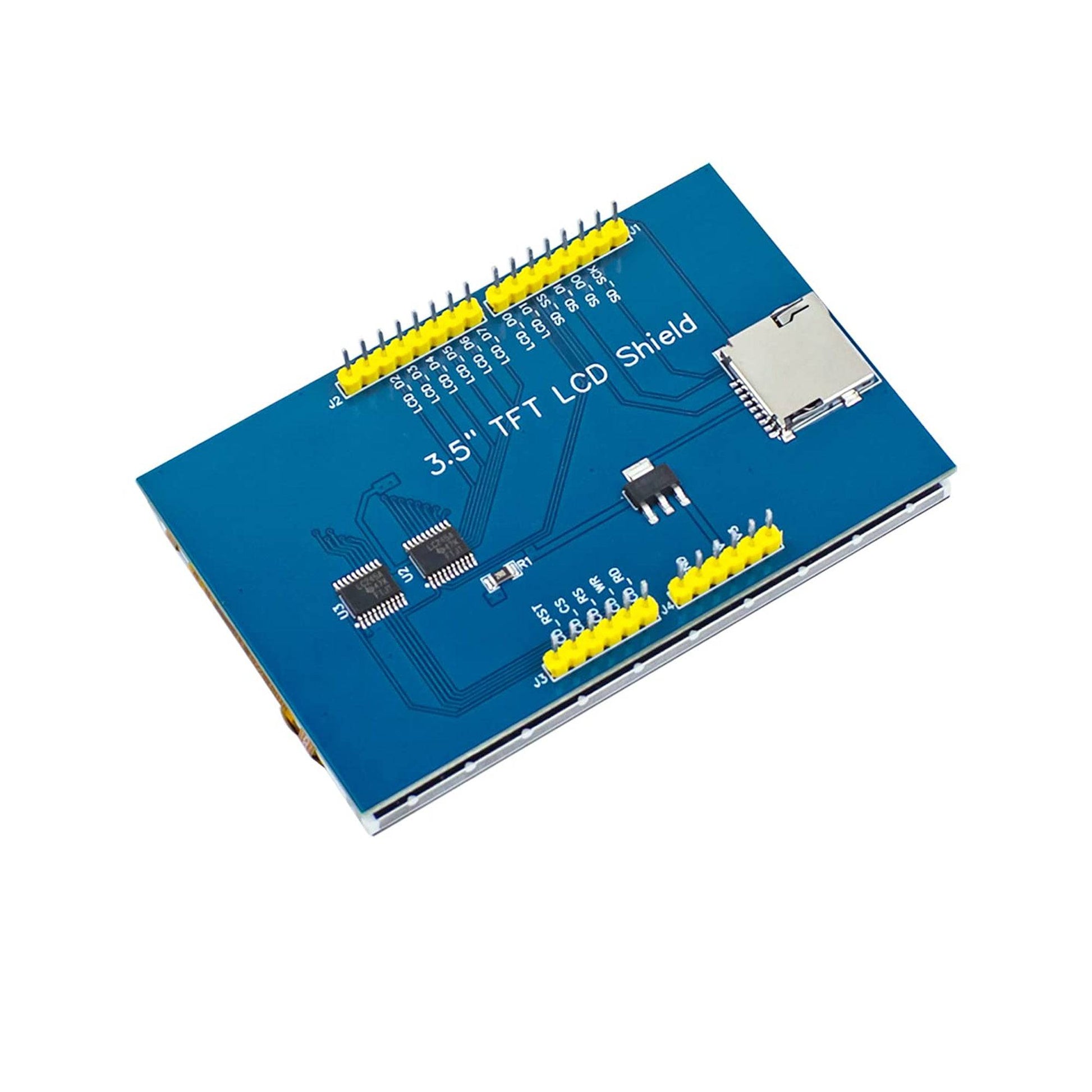

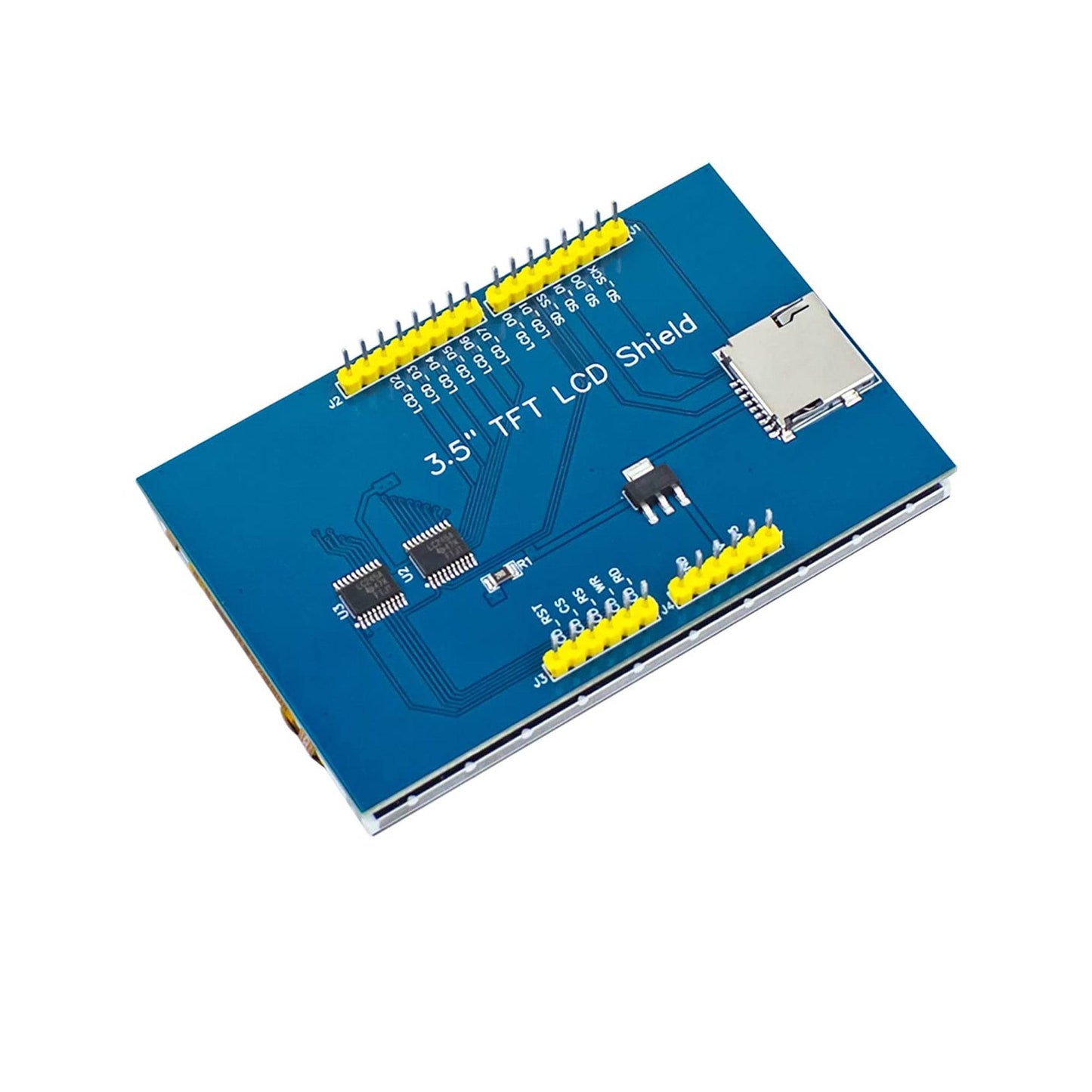

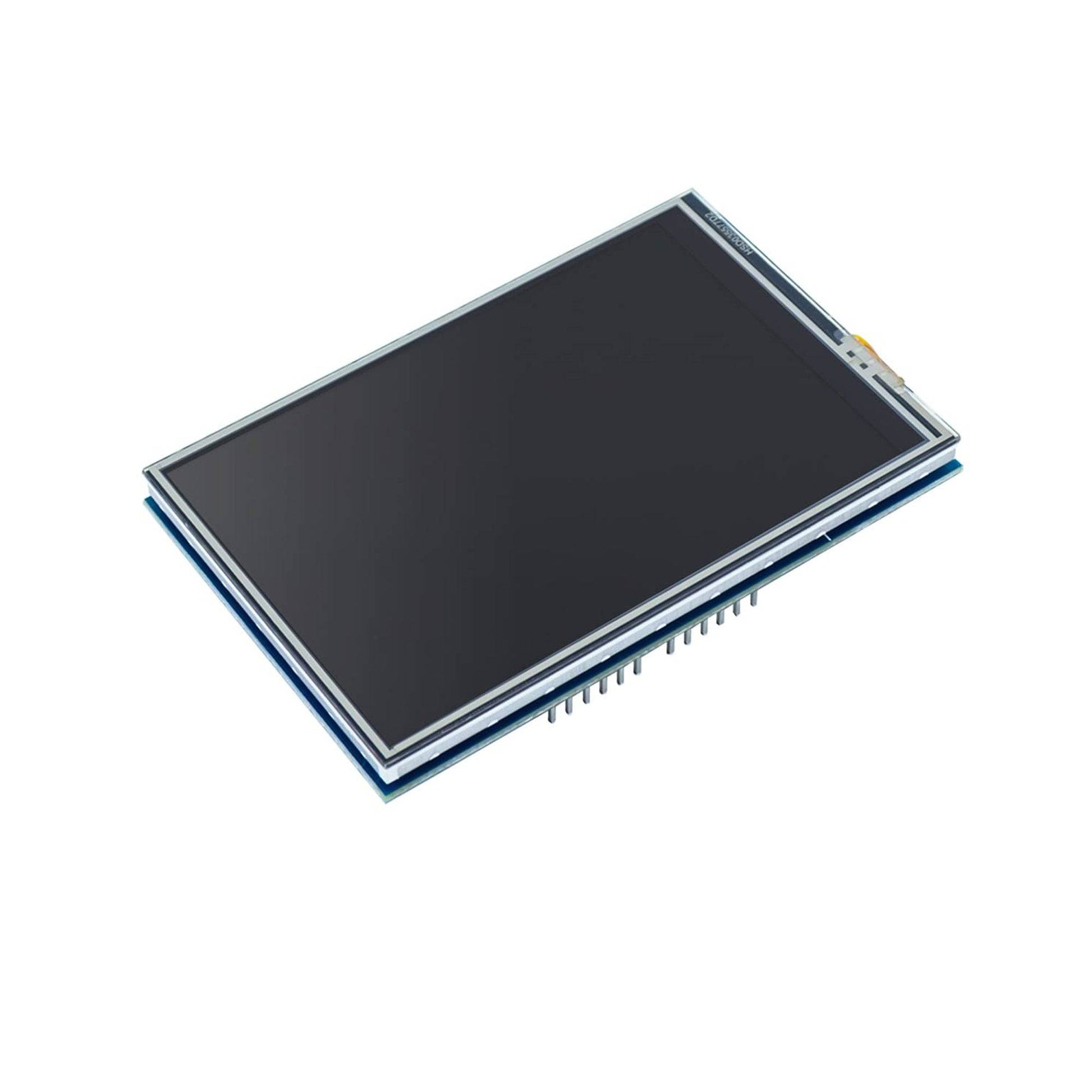

1 x 3.5inch LCD 3.5" Inch Ili9486 TFT Shield LCD Module 480X320 For Arduino Uno (Without touch)
