Description:

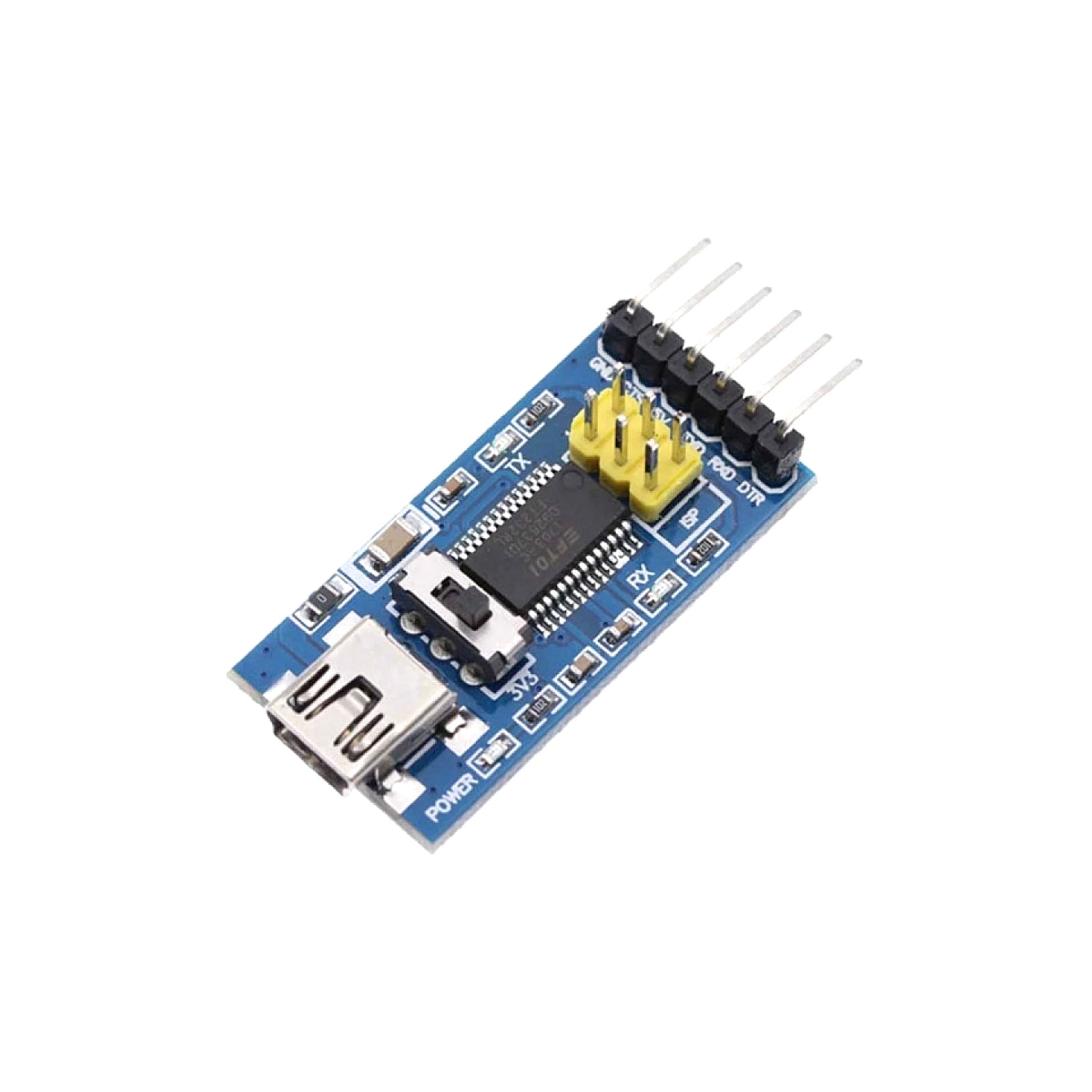

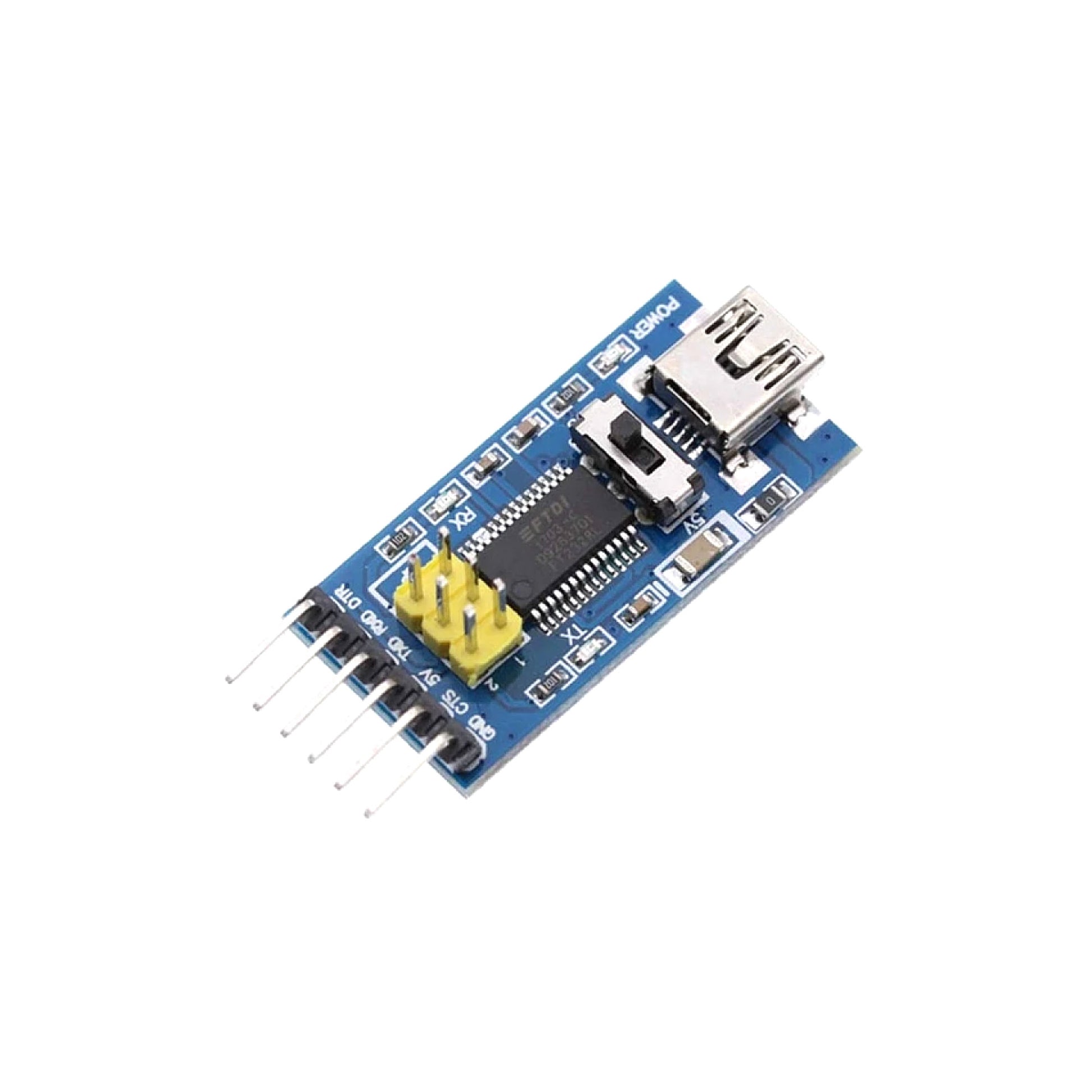

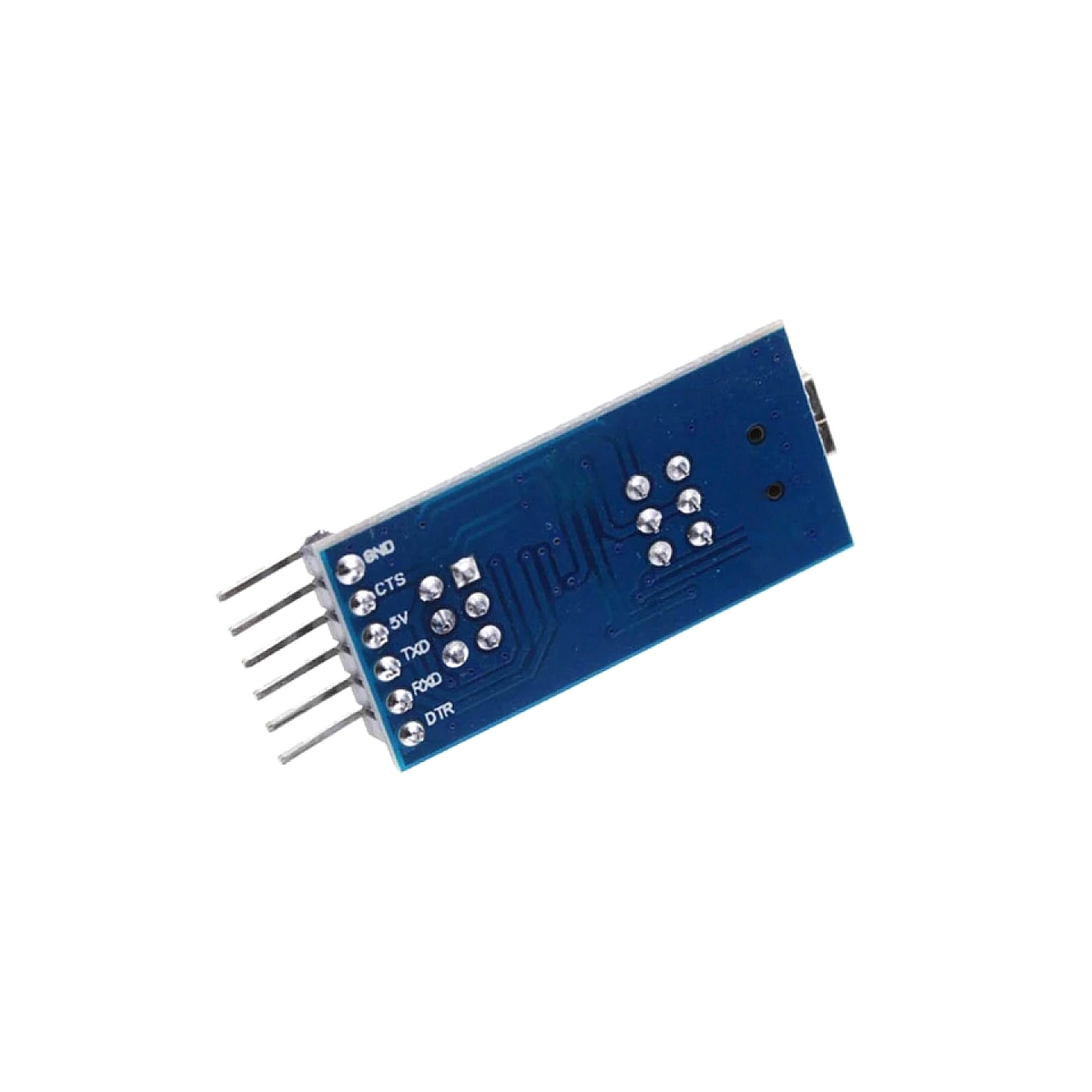

This is a USB to TTL 3.3V 5.5V Serial Adapter Module based on FT232RL IC, It is mainly used for Arduino applications. This module works perfectly with the Arduino Pro mini boards and ESP8266 boards. This USB to TTL serial adapter is ideal for many uses.
Specifications:
- Chip: FT232
- Working Voltage: 3.3V / 5V
- Main Color: Blue
Features of FT232RL IC:
- Single chip USB to asynchronous serial data transfer interface.
- The entire USB protocol is handled on the chip. No USB-specific firmware programming is required.
- Fully integrated 1024-bit EEPROM storing device descriptors and CBUS I/O configuration.
- Fully integrated USB termination resistors.
- Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
- Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels.
- 128-byte receive buffer and 256-byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Package Included:
1 x 3.3-5V FT232RL FTDI USB to TTL Serial Adapter Module for Arduino Mini Port
