Description:

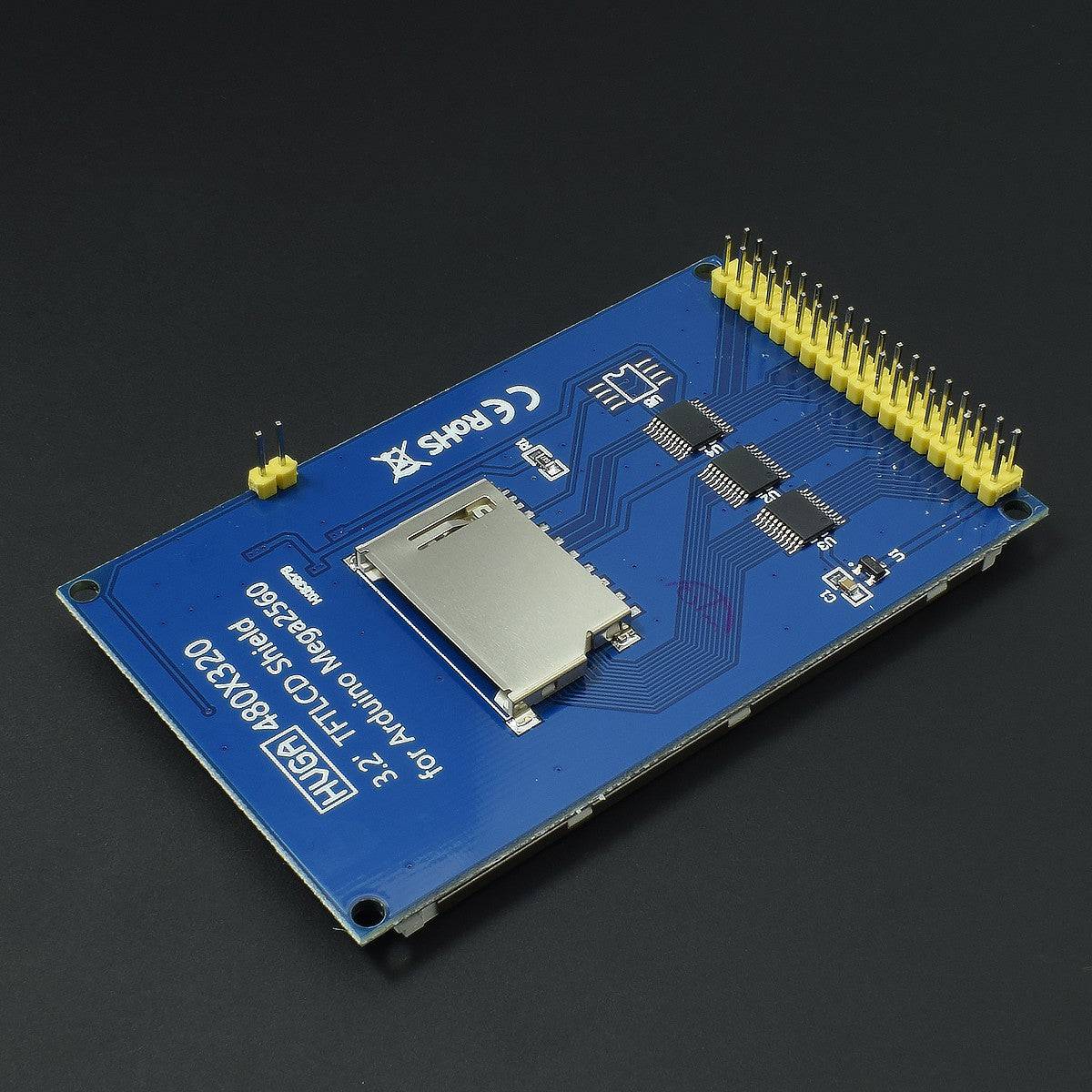

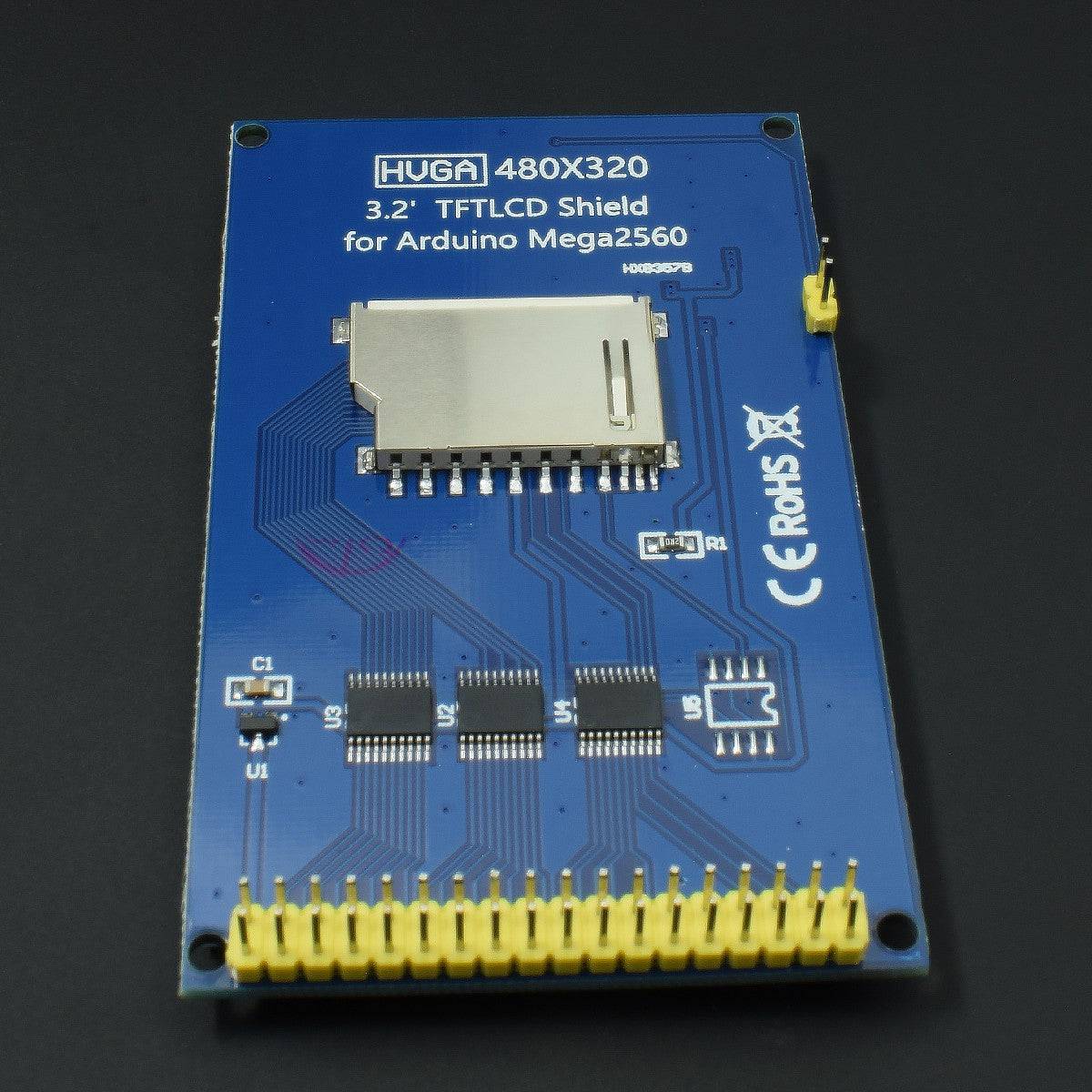

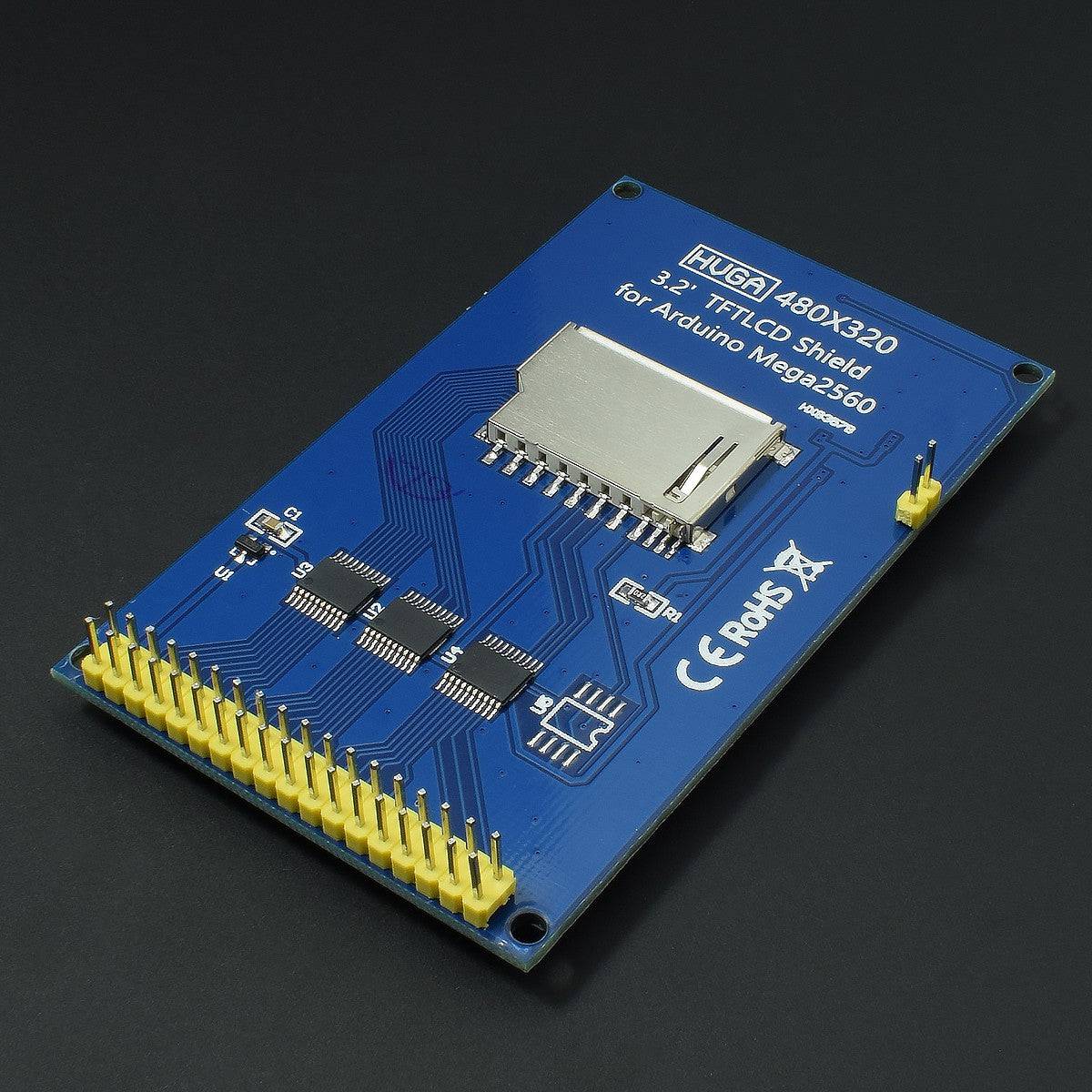

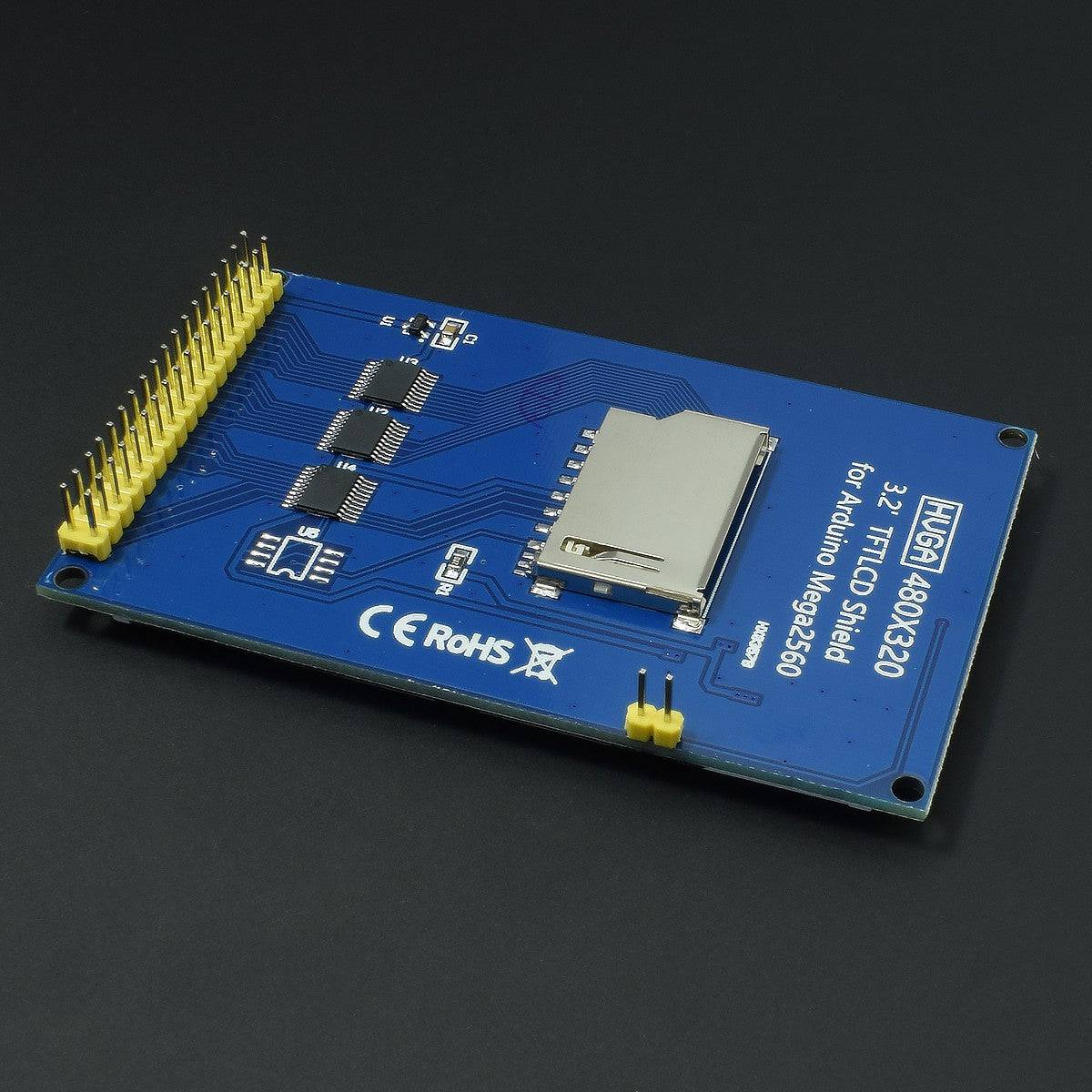

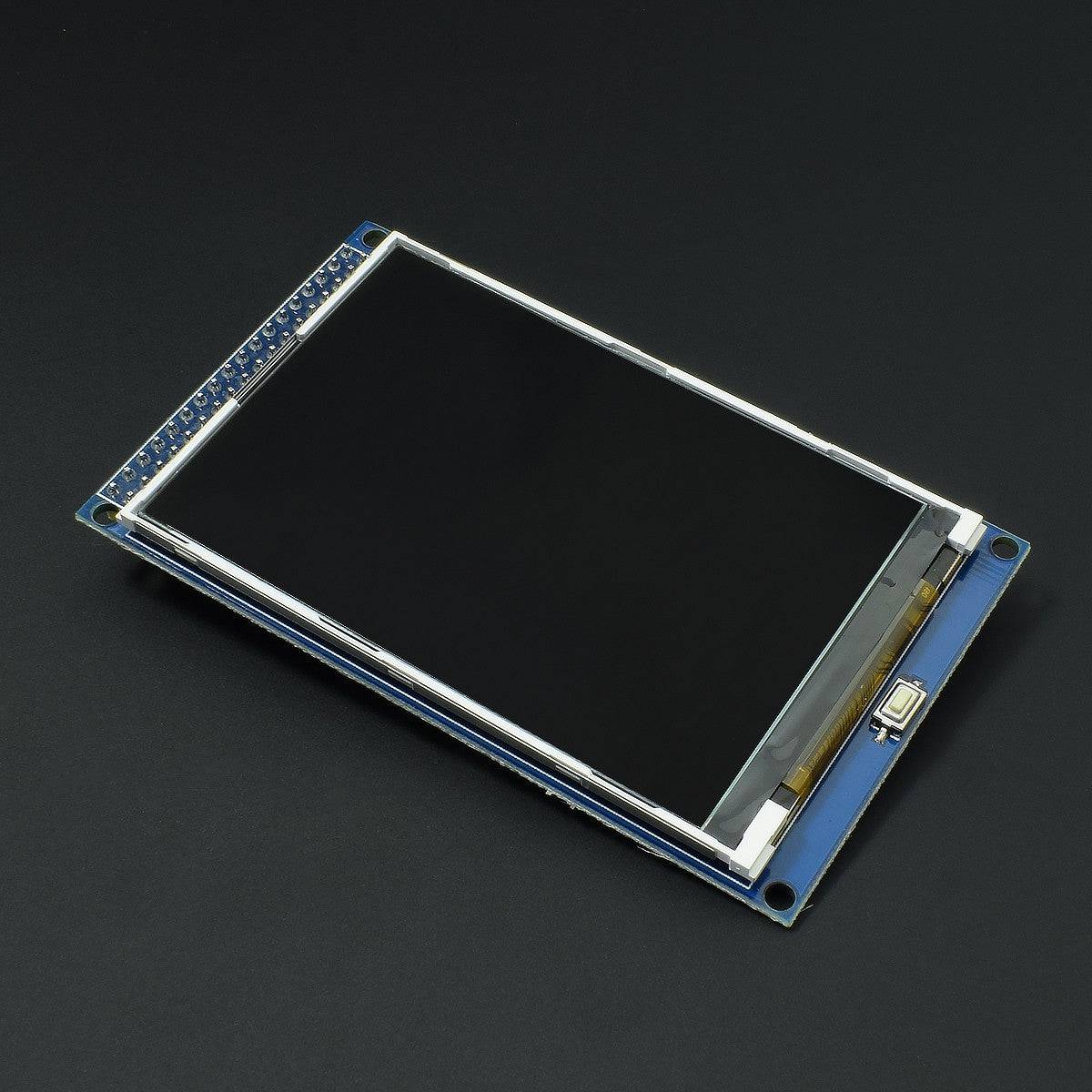

This is 3.2 Inch TFT LCD with 262K color 480x 320 resolutions.The controller of this LCD module is HX8357B, it supports a 16-wires DataBus interface. Moreover, this module includes the 5V-3.3V power conversion circuit and Level conversion circuit, This Module can be directly inserted into the Arduino Mega2560 Board, it also includes the SD card socket and SPI FLASH circuit.

Specifications:

  • Screen size: 3.2 inches
  • Screen resolution: 480 x 320(pixel)
  • Screen type: TFT
  • Touching function: No
  • Module size: 89.92 x 54.25mm
  • Active display size: 67.68 x 45.12mm
  • Backlight: highlighting white light 6LED
  • Power dissipation: 80-110MA
  • Module power supply: 5v/3.3v
  • Drive IC:ILI9481
  • Date bus: 16-bit parallel bus

Features:

  • Support Arduino Mega2560 Directly inserted
  • With Full-angle IPS TFT panel
  • OnBorad level conversion chip for 5V/3.3V MCU
  • Compatible with 3.3/5V operation voltage level
  • Compatible with Arduino-Series development Board.
  • Provided 12-examples with Arduino,3-examples with STM32
  • With SD Card Socket
  • With SPI FLASH circuit

Package Included:

1 x 3.2 inch TFT LCD Screen Module 3.2 inch No Touch Panel HD 480x320 For Arduino MEGA2560 R3
