Description:

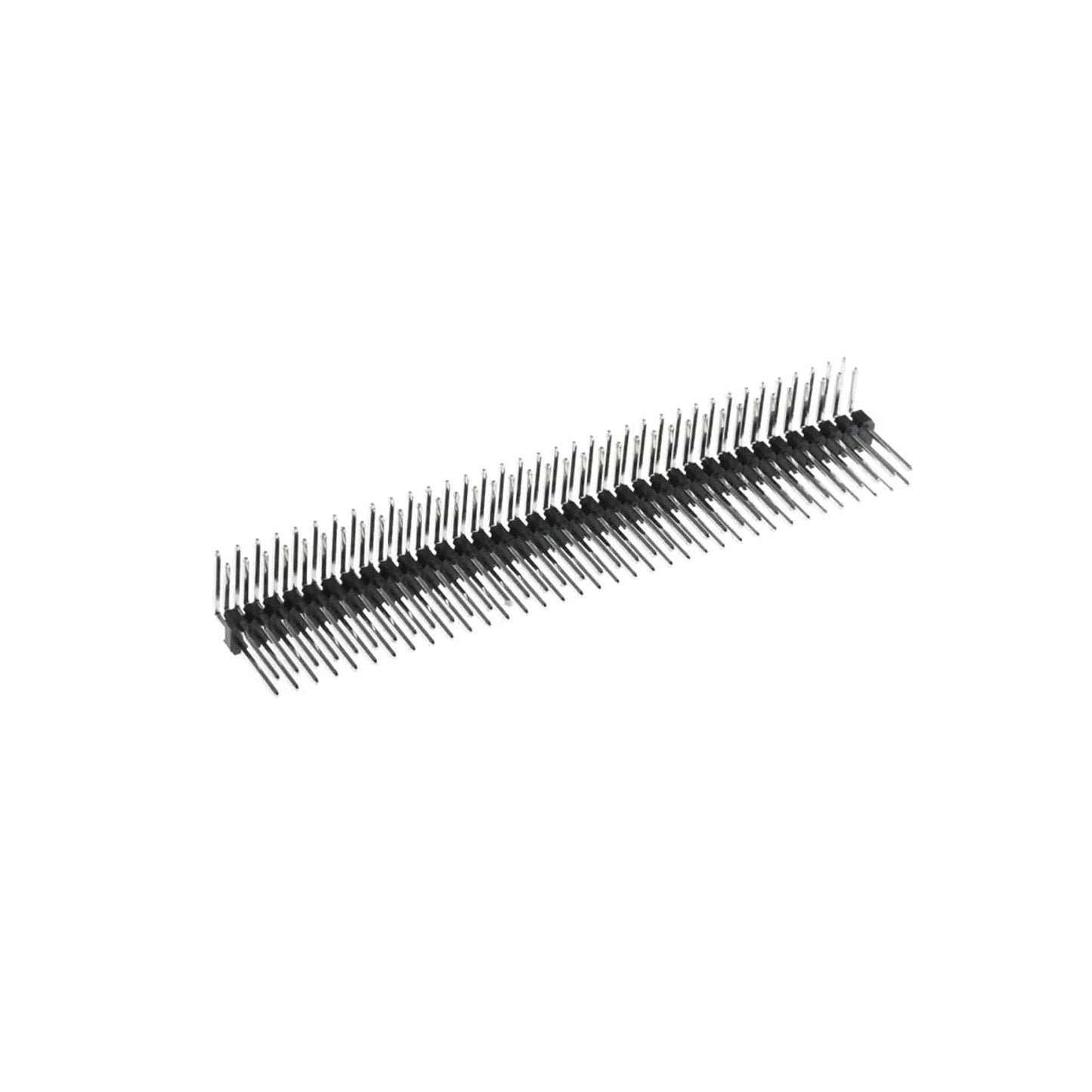

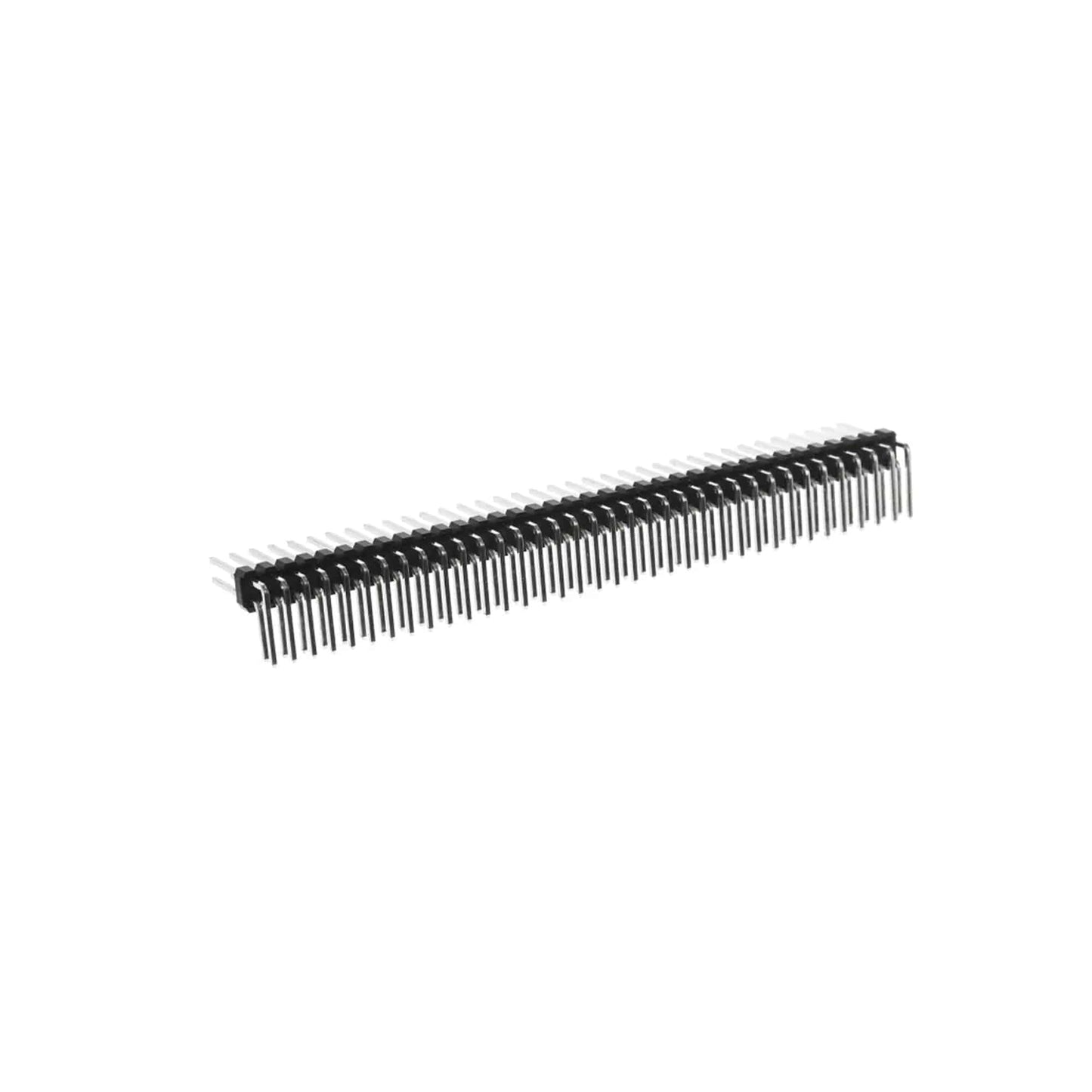

This 2x40 Pins Male Header has the industry standard spacing of 2.54mm and is designed for soldering directly into printed circuit boards (PCB). They are supplied Best for extension of pins of Microcontrollers and ICs. This 2x40 Pins Male Header is bent at a 90 angle, which is suitable for many applications where the connectors are many times like prototyping. Also, custom PCBs or general custom headers use these types of connectors.
Specifications:
- Connector: Header Strip
- Gender: Male
- Mounting Type: Through Hole
- Pin Spacing: 2.54mm
- Contact Material: Phosphor Bronze
- Contact Resistance: 20m
- Insulation Material: PBT UL 94V-0
- Insulation Resistance: 1000Mohm
Package Included:
1 x 2x40 Pins Male Header 2x40 Pin 2.54mm Pitch Male Berg Strip-Right Angle - Break Away Header
