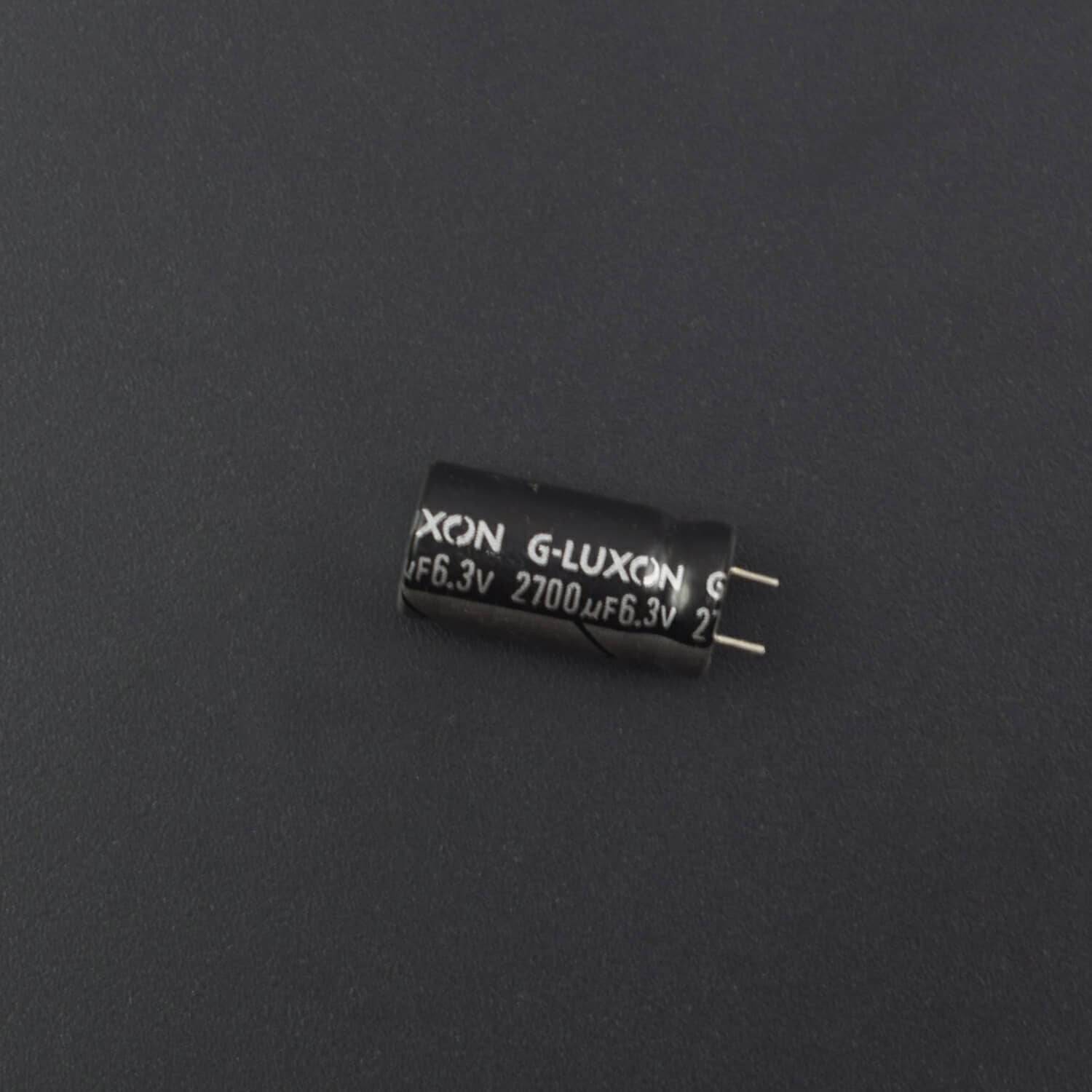

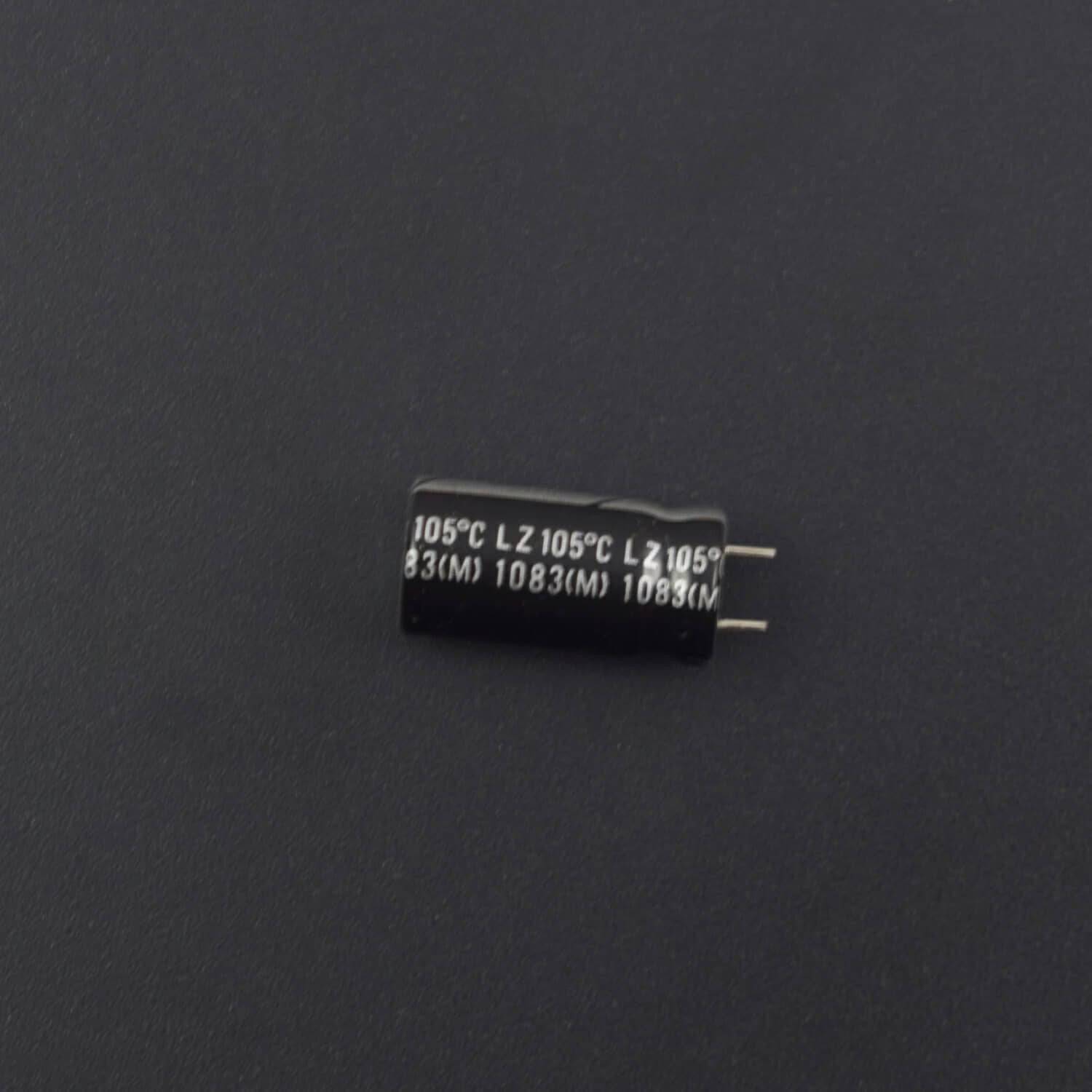

2700 µF 6.3 V Aluminum Electrolytic Capacitor (Radial, High-Temp, Low ESR) - RS2011
2700 µF 6.3 V Aluminum Electrolytic Capacitor (Radial, High-Temp, Low ESR) - RS2011
SKU:RS2011
16000 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
Power your circuits with rock-solid stability!
This 2700 µF, 6.3 V aluminum electrolytic capacitor in a radial, high-temperature design is your go-to choice for power filtering, smoothing, decoupling, and energy storage tasks. Built to endure demanding environments, it ensures performance where many others fail.
Whether you're designing audio amplifiers, power supplies, embedded systems, or industrial electronics, this capacitor offers dependable capacitance, low ESR, and thermal resilience — all packaged in a compact footprint.
Don’t compromise on reliability — add it to your cart now and give your design the boost it needs!
Specification:
| Capacitance | 2700 µF |
| Rated Voltage | 6.3 V DC |
| Tolerance | ±20 % |
| Operating Temperature | –40 °C to +105 °C (or as per datasheet) |
| Lifetime / Endurance | Typically 5,000 or 10,000 hours @ 105 °C (depending on manufacturer) |
| Equivalent Series Resistance (ESR) | ~28 mΩ (example spec) |
| Ripple Current | ~1.7 A (manufacturer dependent) |
| Lead Spacing | 5.0 mm (approx) |
| Diameter & Height | e.g. 10 mm dia × 22 mm height (varies by series) |
| Mounting Type | Radial (through-hole) |
| Series / Type | General purpose, high temp aluminum electrolytic |
| Polarity | Polarized (observe correct orientation) |
| Brand / Part Example | Rubycon 6.3ZLJ2700M10X20 |
Features:
- High capacitance in compact form – 2700 µF gives strong smoothing and energy reserve in small size.
- Low ESR & high ripple rating – reduces heating and internal losses under ripple load.
- Wide temperature tolerance – down to –40 °C and up to +105 °C, suitable for harsh environments.
- Long life under stress – rated for thousands of hours at max temp.
- Radial through-hole format – easy to mount in standard PCB layouts.
- Reliable brand-quality – specs confirmed via Rubycon / Nichicon datasheets
Use Cases / Applications:
- Power supply smoothing and decoupling
- DC–DC converter output filtering
- Audio amplifier coupling and smoothing
- Embedded systems where stable voltage rails are critical
- Industrial controllers, instrumentation, test equipment
How to Use / Care Tips:
- Always observe correct polarity (positive and negative leads).
- Pre-charge or limit inrush if applying voltage suddenly to avoid stress.
- Place with sufficient spacing and cooling airflow in high-ripple environments.
- Store in dry, controlled conditions; avoid high humidity over long storage.
- Ensure voltage derating (use lower than max voltage in hot ambient conditions).
Package Included:

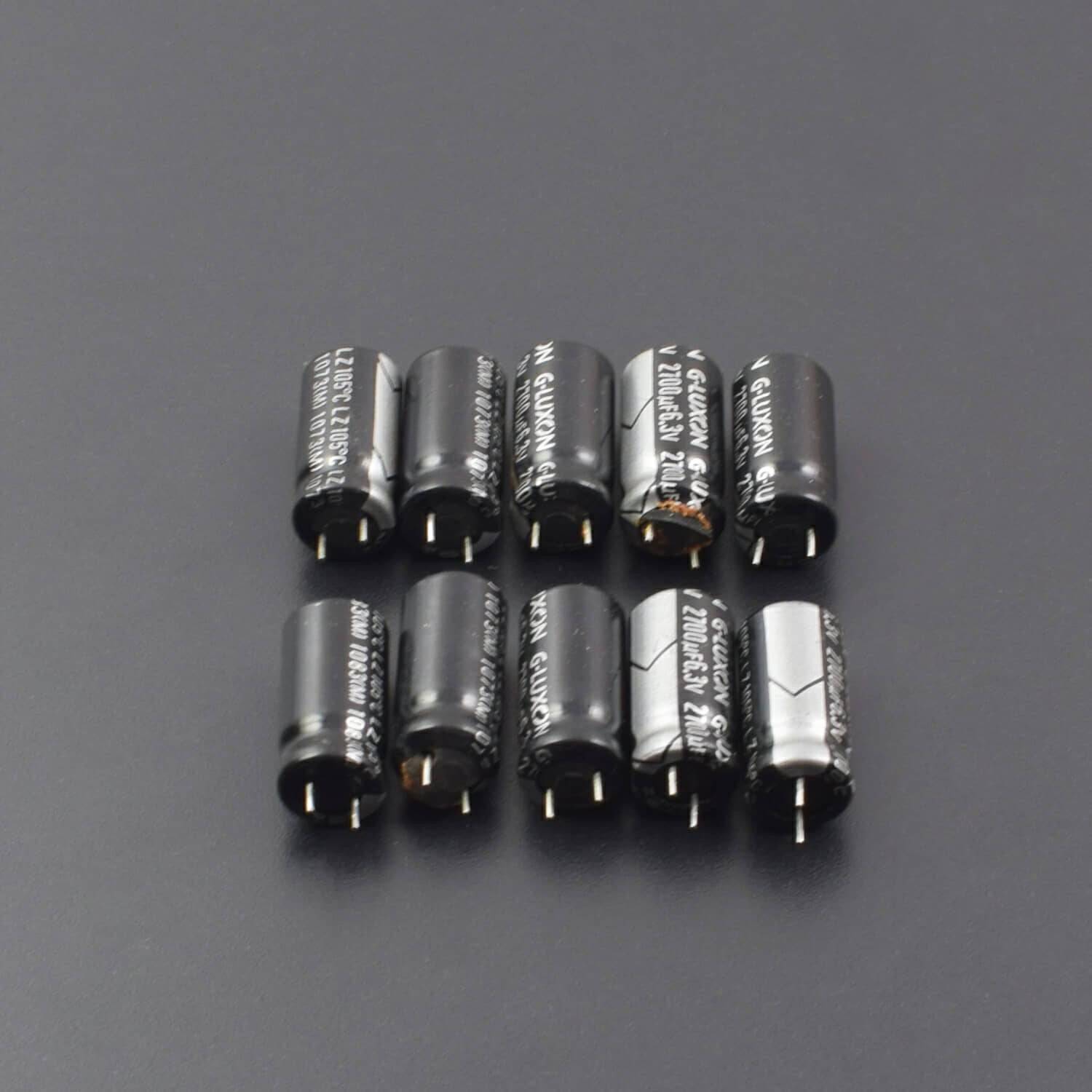

5 x 2700UF 6.3V ALUMINUM ELECTROLYTIC CAPACITOR RADIAL HIGH TEMP
