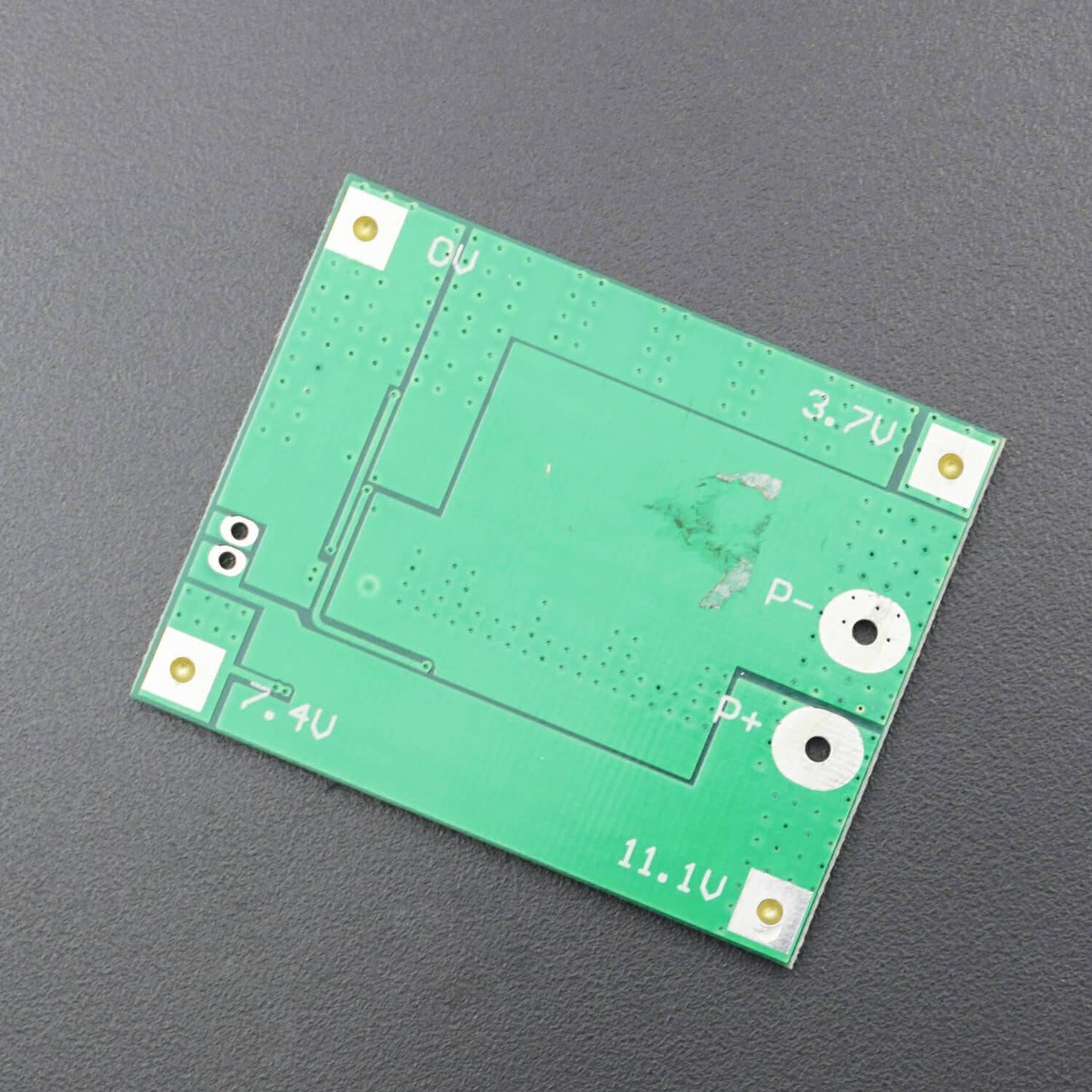

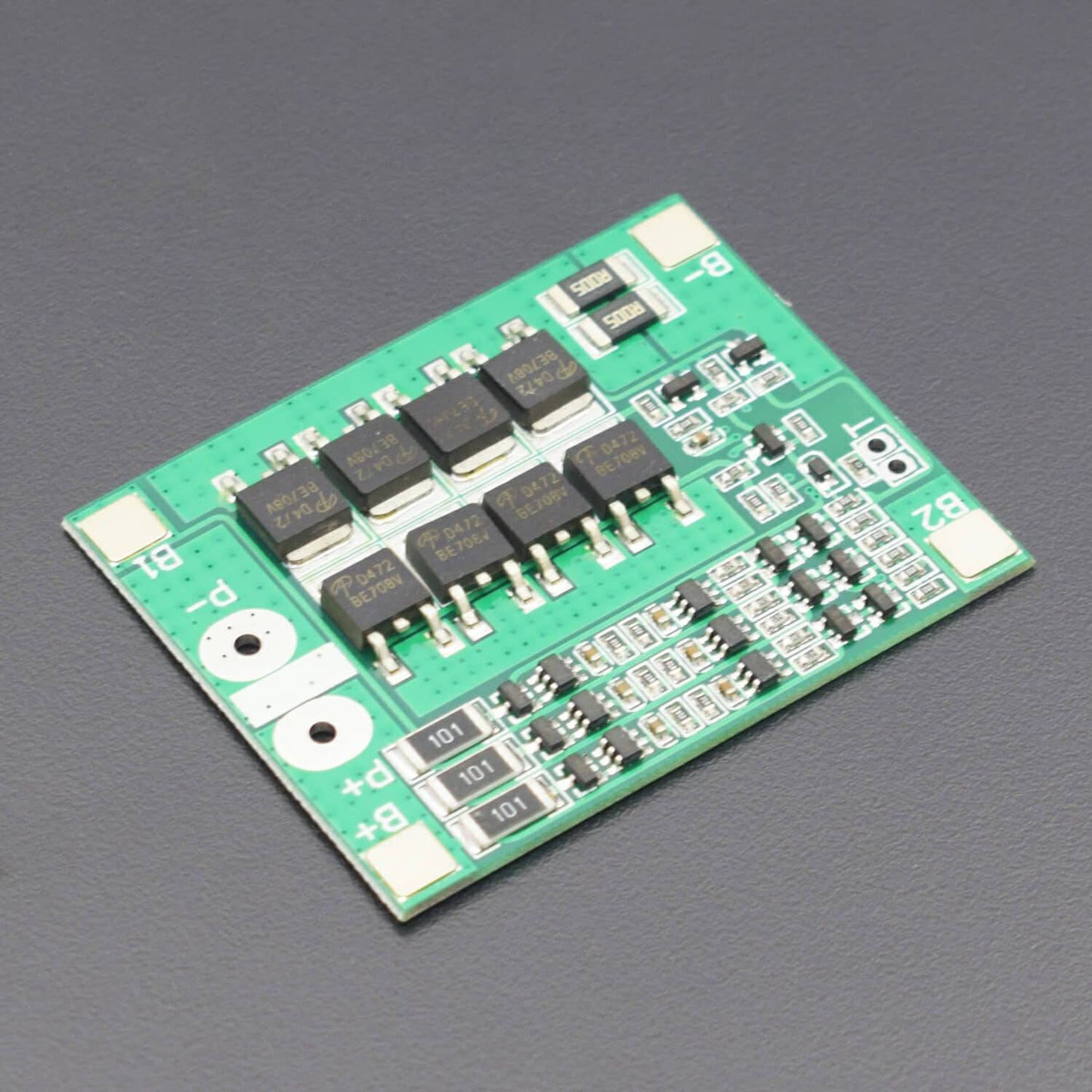

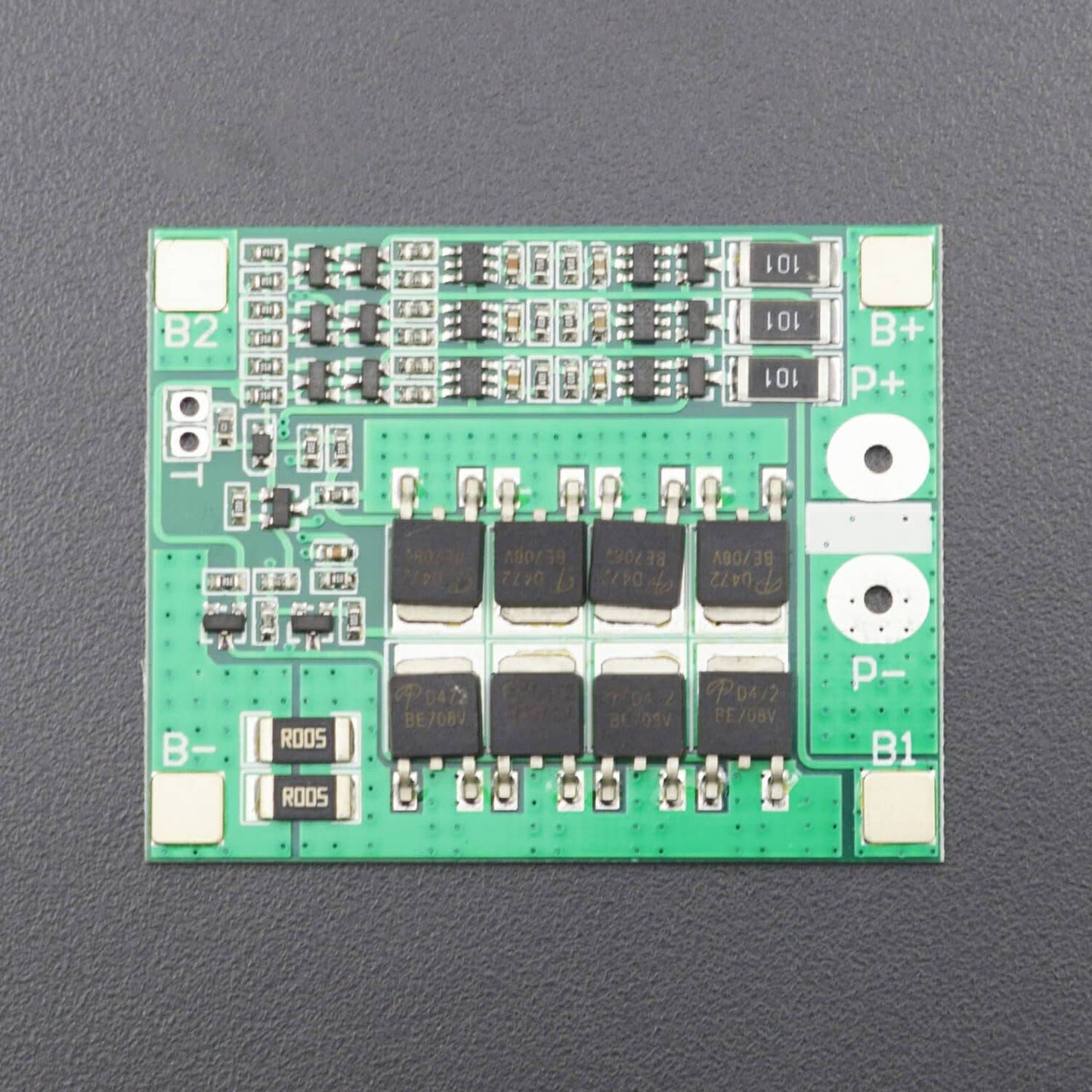

25A 3S 18650 Lithium Battery Protection Board 12V 11.1V 12.6V With Balanced Over-current, Charge, Discharge Protection- RS1866

25A 3S 18650 Lithium Battery Protection Board 12V 11.1V 12.6V With Balanced Over-current, Charge, Discharge Protection- RS1866

SKU:RS1866

210 in stock

Regular price Rs. 230.00
Regular price Sale price Rs. 230.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Maximum Operating Current: 20-25A (Note heat dissipation)
  • Maximum Instantaneous Current: 35-40A
  • Over Charge Voltage Range: 4.25-4.35V±0.05V
  • Over Discharge Voltage Range: 2.3-3.0V±0.05V

Description:

This is 3S 12V 25A 18650 Lithium Battery Protection Board 11.1V 12.6V High Current With Balanced Circuit Over Charge Over-Discharge Over Current And Short Circuit Protection Function. Board charging and discharging are the same port, the board includes the balanced circuit. When the charge balance, the board will be a bit warm, even after disconnecting the charger, some are still in the balance, will continue to warm for a while until below the equilibrium break threshold. The protection board cannot be used for iron lithium polymer battery (for other batteries, no matter what material, as long as the overvoltage and put voltage can be used for cutting), electric finish machinery, electric bicycle batteries, car, and motorcycle starter battery protection.

Specification:

  • Maximum Operating Current: 20-25A (Note heat dissipation)
  • Maximum Instantaneous Current: 35-40A
  • Over Charge Voltage Range: 4.25-4.35V±0.05V
  • Over Discharge Voltage Range: 2.3-3.0V±0.05V
  • Quiescent Current: less than 30uA
  • Internal Resistance: less than 100mΩ
  • Balance Current: 45 mA
  • Charging Voltage: 12.6V-13V
  • Working Temperature: -40 - +50°C
  • Storage Conditions: -40 - +80°C
  • Short-circuit Protection: protection, delay self-recovery

Application:

Electric drill, 775 motors (6A-10A), small power inverter, small power vacuum massager battery, LED lamp, 12V standby power electronic products, 12V120W car washing pump, battery, solar street lamp monitoring standby power supply, and other products.

Package Included:

1 x 25A 3S 18650 Lithium Battery Protection Board 12V 11.1V 12.6V With Balanced Over-current, Charge, Discharge Protection
