Description:

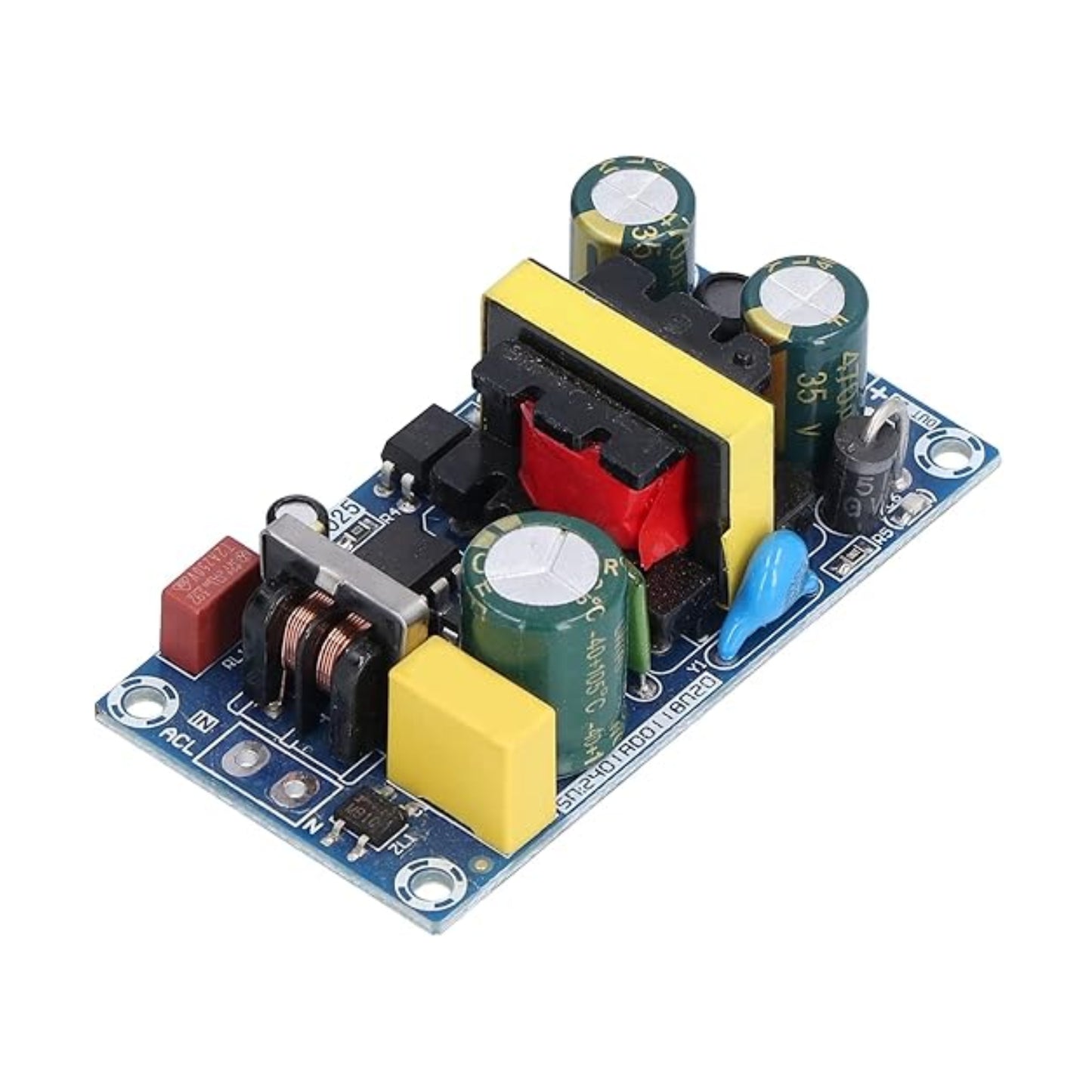

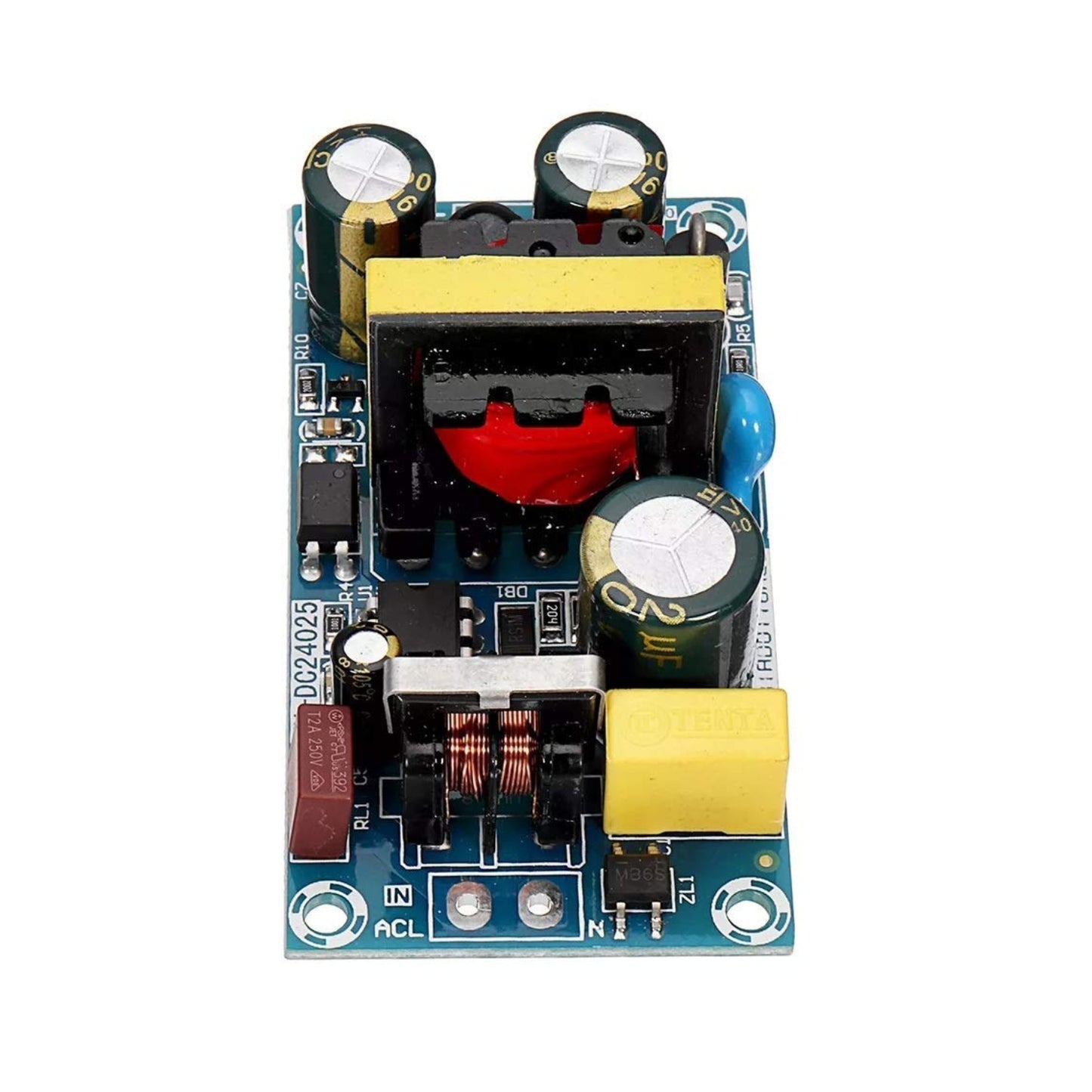

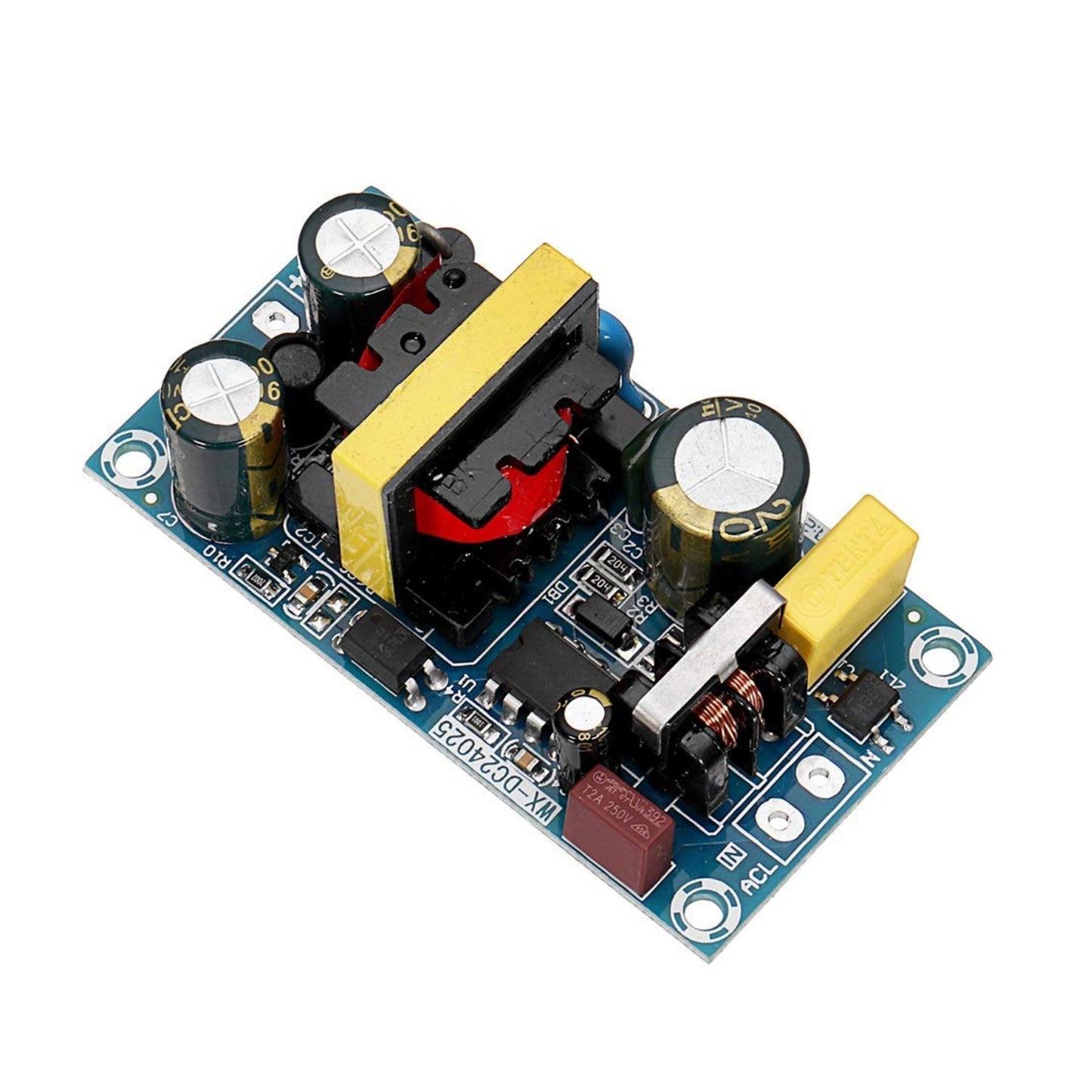

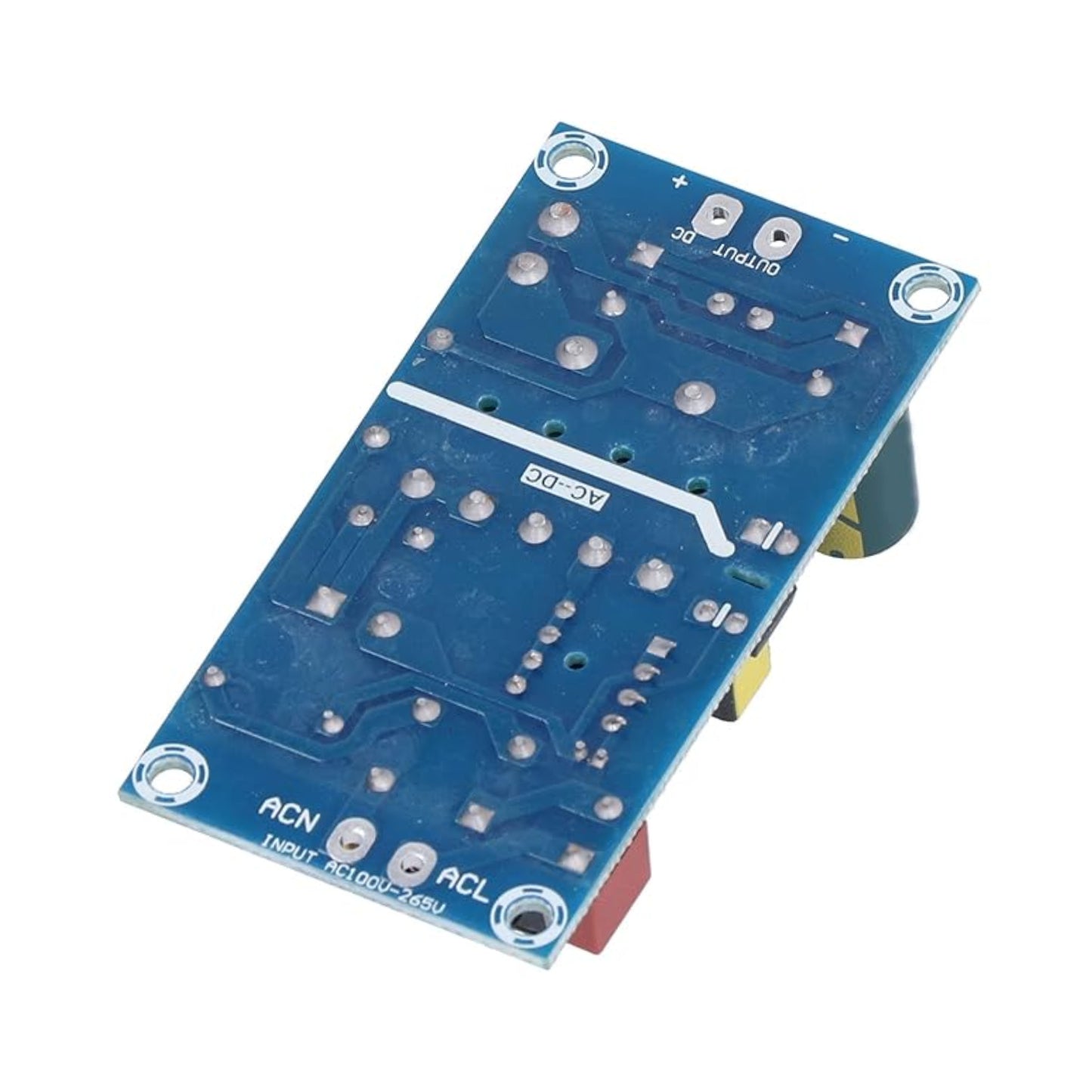

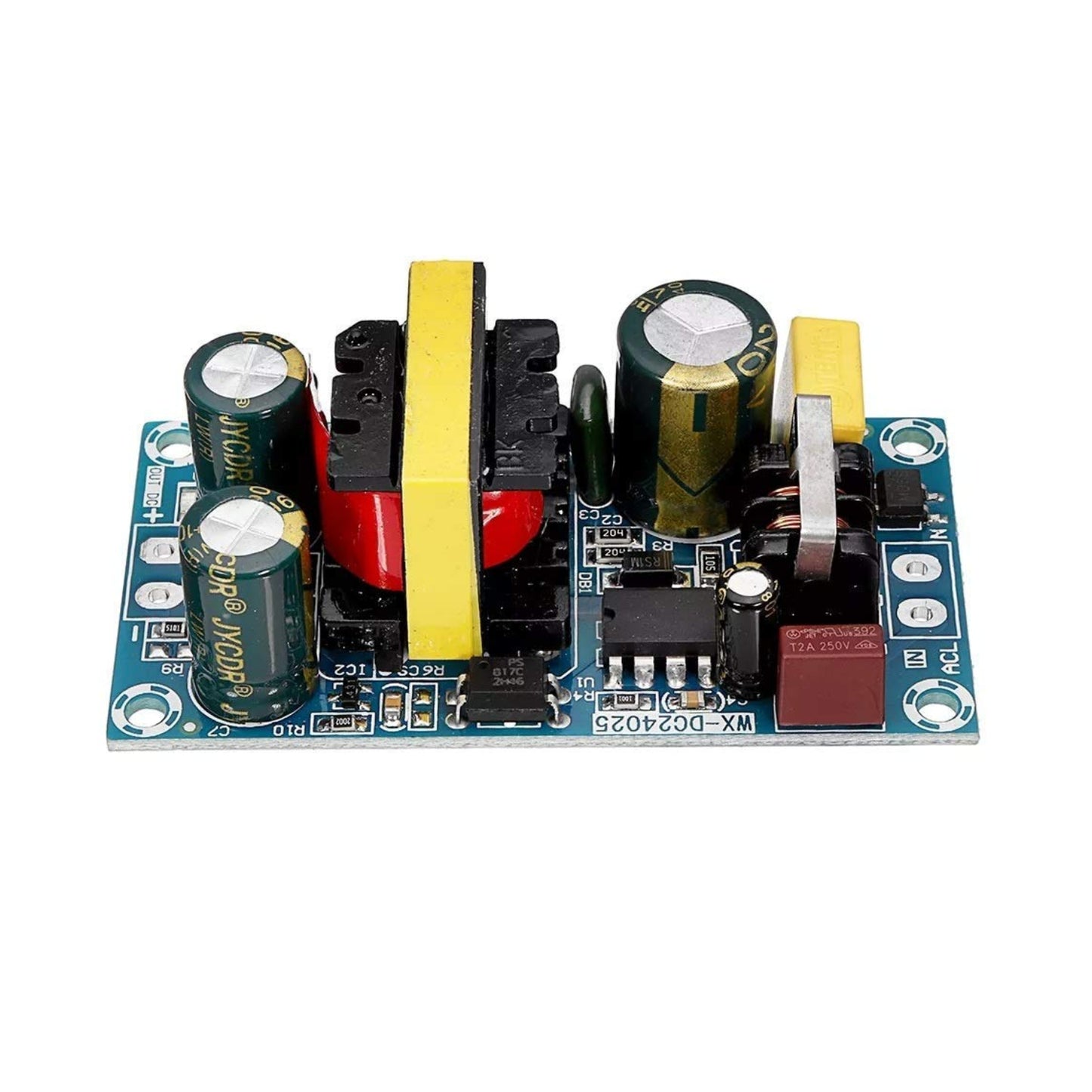

This 24W, 25W AC-DC Power Supply is designed and manufactured in industrial grade, adopts a double-sided PCB design, and the performance is more stable and more reliable. AC-DC Switching Power Board is suitable for the power supply of civil or industrial control systems. 100-265V to 12V converter is easy to install, and the output and input can be welded with 5.8 terminals or pins. There are fixed mounting holes in the four corners which are fixed with screws to prevent movement or vibration.
Specification:
- Type: Switching Power Supply Board
- Material: PCB
- Input Voltage: 100 to 265VAC
- Output Voltage: 12VDC
- Output Current: 2A
- Output Power: 24W 25W
- Colour: Blue
Features:
-
The 24W 25W AC-DC switching power board is easy to install and the input and output can be welded with 5.08 terminals or pins.
-
Onboard M3 fixing holes can be fixed with screws to prevent movement or Vibration.
- 24W switching power supply has high efficiency and strong design density is small size convenient for your installation.
- AC-DC converter has high isolation between input and output, low output ripple.
- 100-265V to 12V converter is Overload short circuit and over temperature protection.
Package Included:
1 x 24W, 25W AC-DC Power Supply 100-265V to 12V 2A Switching Power Board Compact Power Adapter For Multiple Devices Safe And Reliable Universal Input Power Supply
