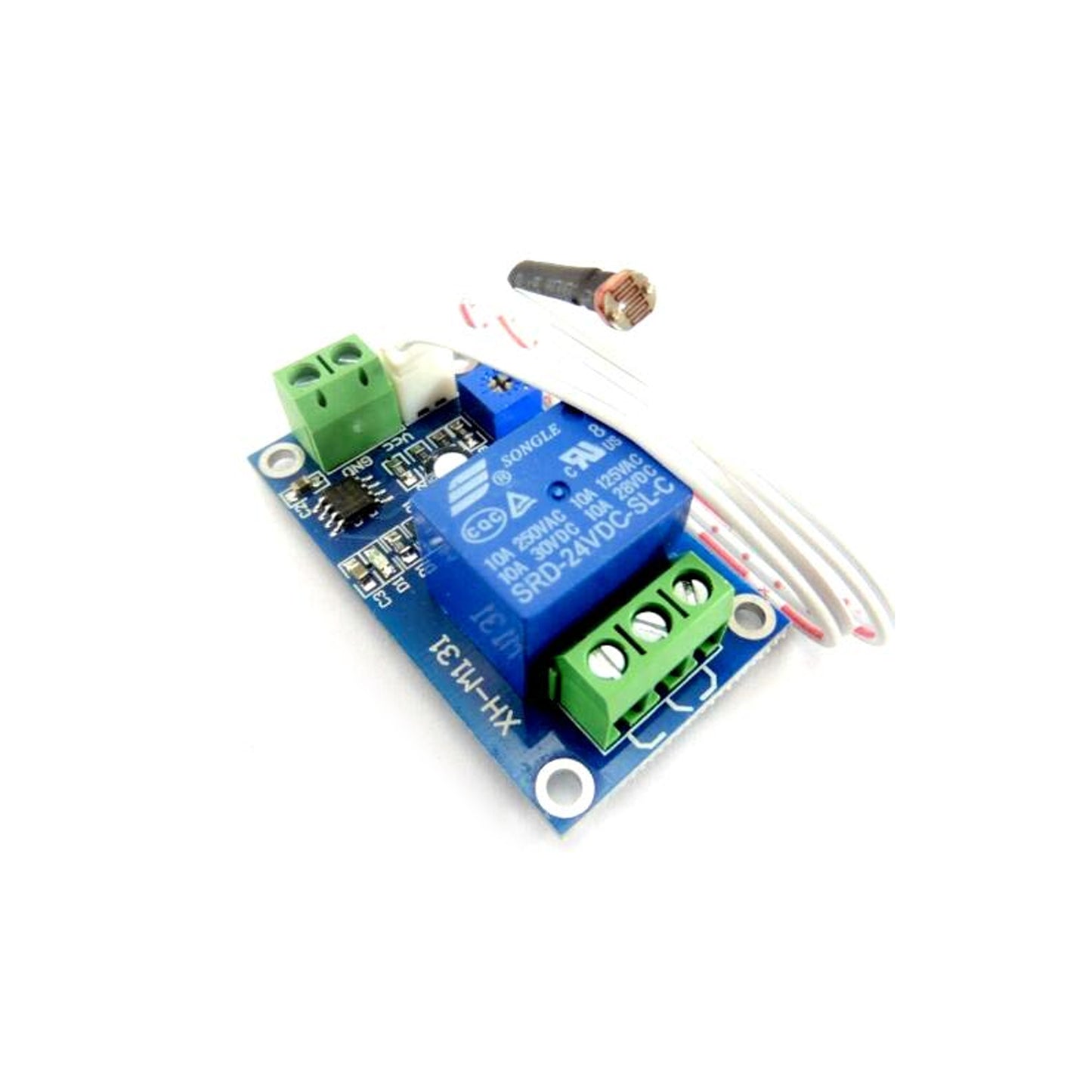

24V Photoresistor Relay Module XH-M131 DC 24V Light Control Switch Photoresistor Relay Module - RS4837

24V Photoresistor Relay Module XH-M131 DC 24V Light Control Switch Photoresistor Relay Module - RS4837

SKU:RS4837

14 in stock

Regular price Rs. 100.00
Regular price Sale price Rs. 100.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This is 24V Photoresistor Relay Module XH-M131 DC 24V Light Control Switch Photoresistor Relay Module. The Light Detection and brightness detection, detection can be adjusted via potentiometer brightness valve point comes relays, and do all kinds of brightness detection switch, you can control all kinds of street lights automatically turn on at night, during the day and automatically turn off and car supplies control and automation equipment.

Using the photoresistor induction light intensity comes with the relay and direct control load. It has a Distribution bit sensitivity adjustment. The start relay threshold is set by adjusting the potentiometer. 24V power input is designed for relay board regulator transistors to provide sensors and is Used to make the product more stable and reliable. It has four fixed bolt holes for easy installation.

Specifications:

  • Trigger Voltage (VDC): 24
  • Switching Voltage (VAC): 250@10A
  • Switching Voltage (VDC): 30@10A
  • Relay Working Mode: NO(normally open) or NC(normally closed)

Features:

  • With an anti-reverse function, reverse the power supply will not damage the module
  • The light threshold can be adjusted by the Potentiometer to set the relay start
  • Module output terminal has three ports
  • RED LED ON: Indicate the Power ON
  • BLUE LED ON: Relay is working

Pin Description:

  • Normally open ( NO )
  • Common terminal ( COM )
  • Normally closed ( NC )

Package Included:

1 x 24V Photoresistor Relay Module XH-M131 DC 24V Light Control Switch Photoresistor Relay Module
