Description:

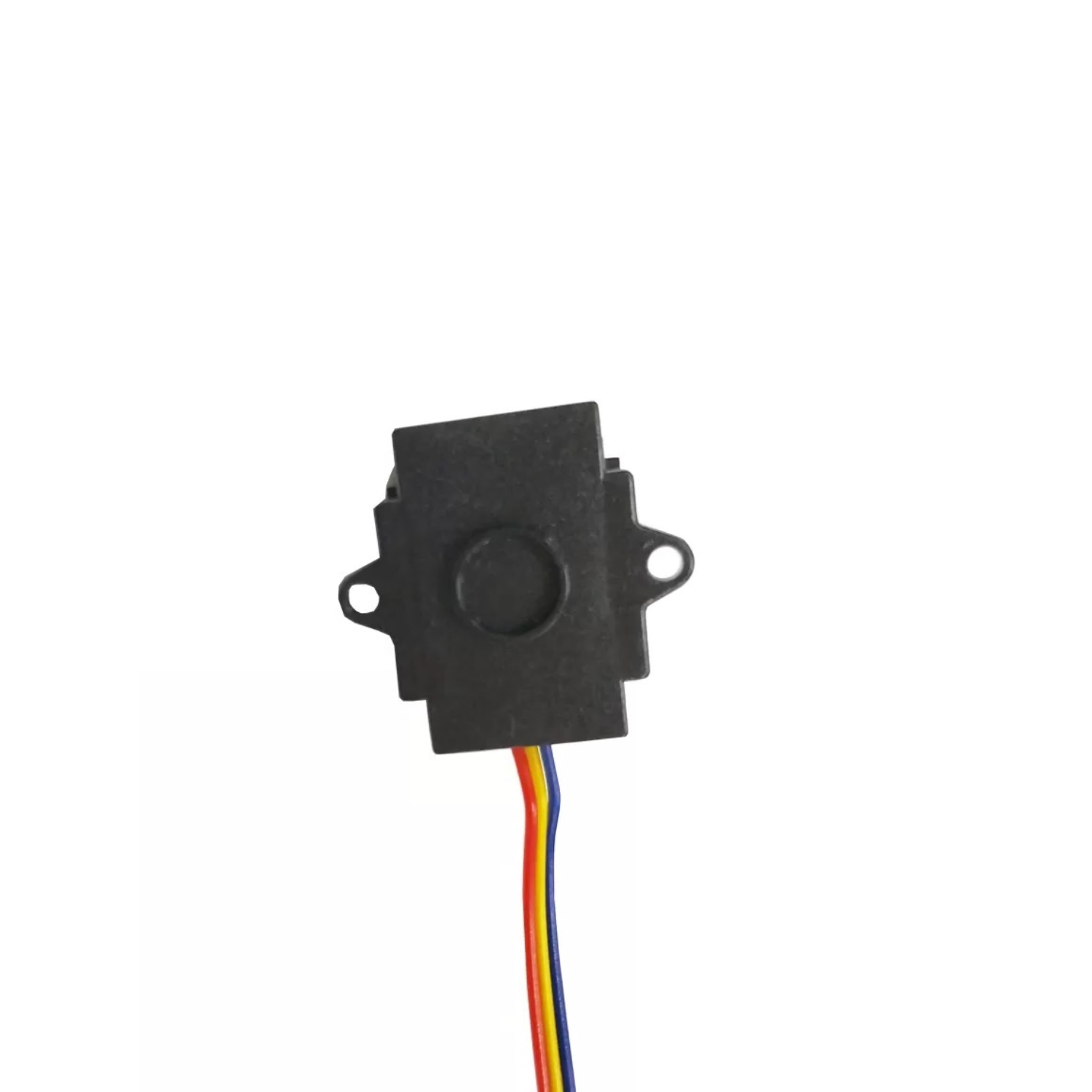

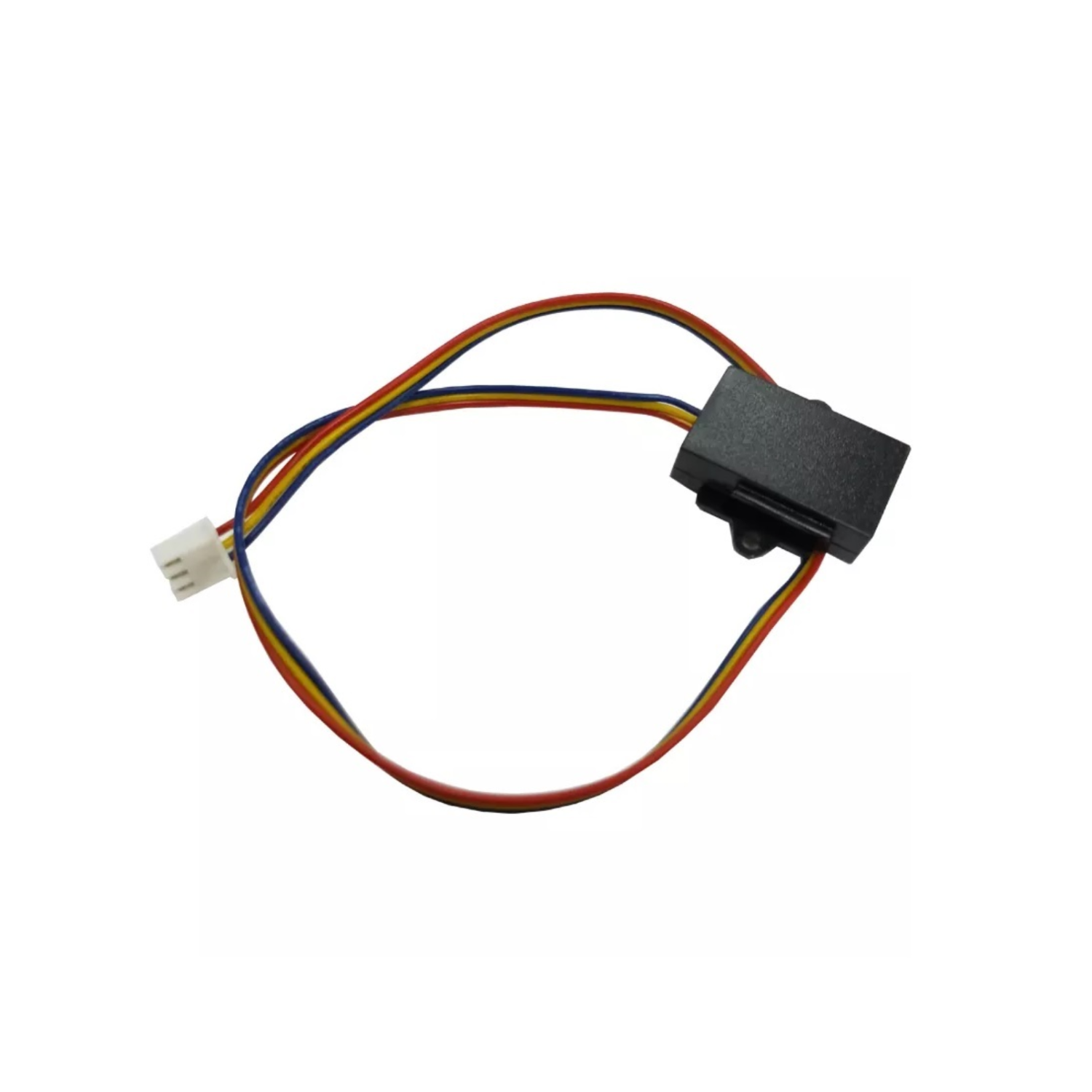

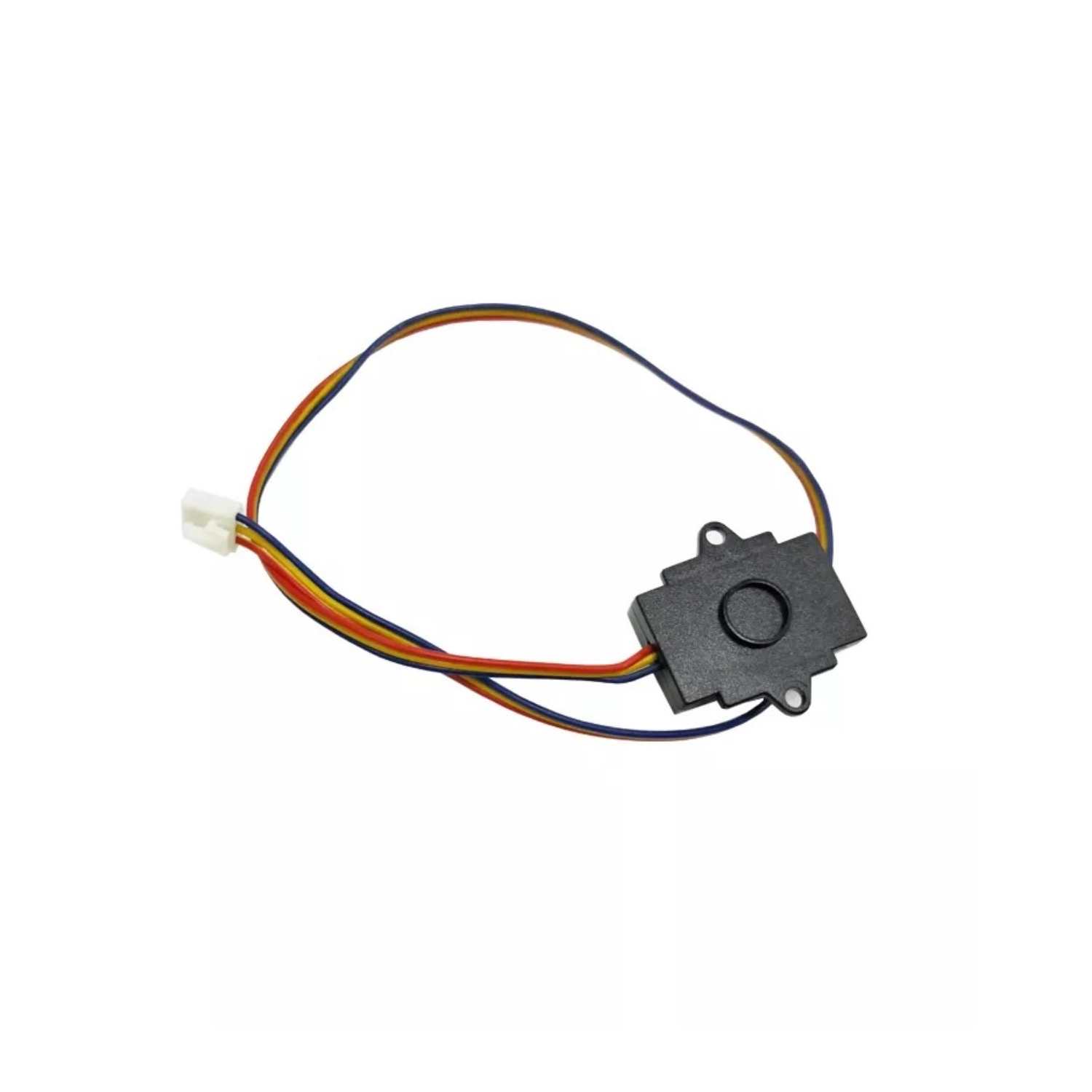

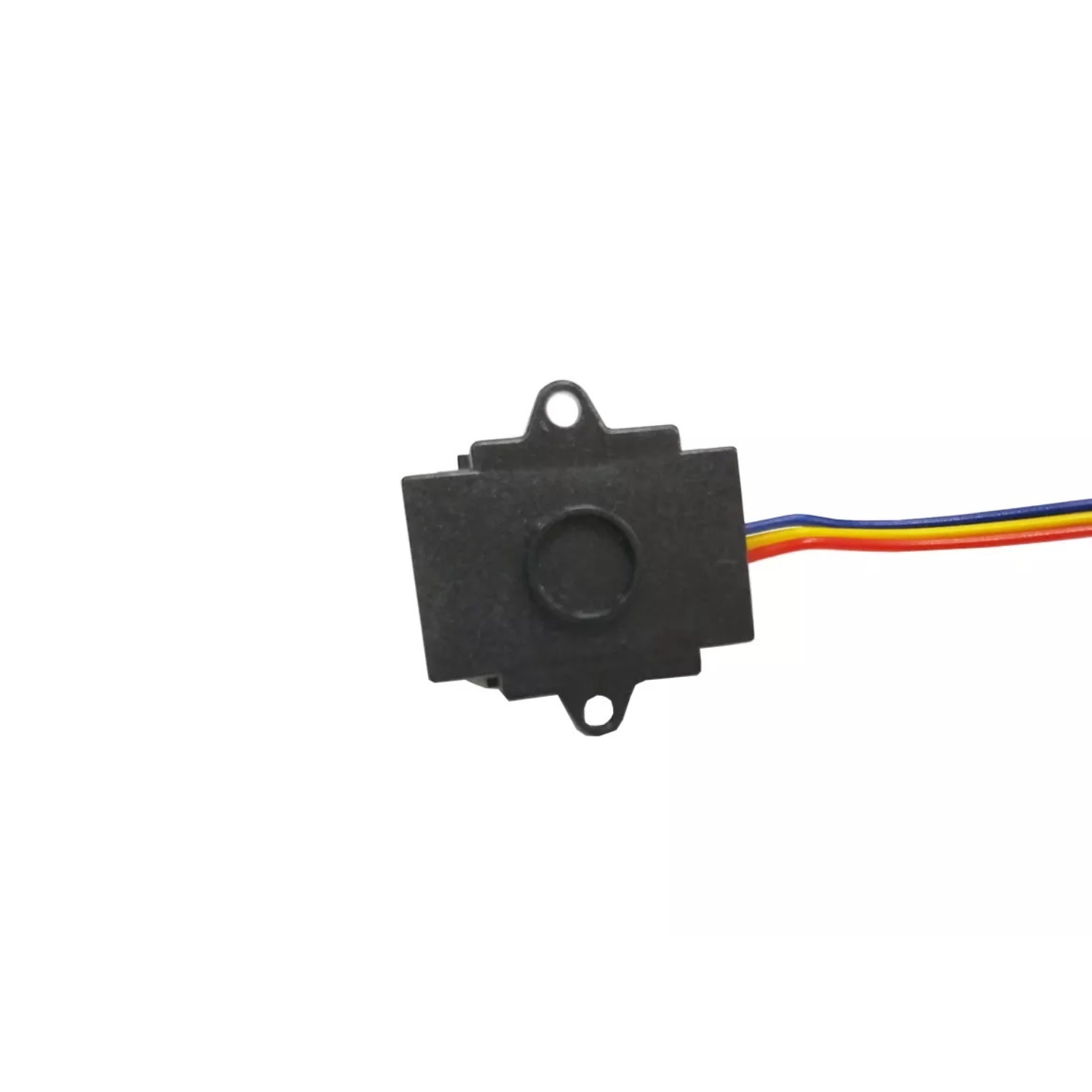

This 24V Capacitive Liquid Level Sensor innovative external contactless capacitive liquid level sensor that offers a revolutionary way to monitor liquid levels without ever needing to touch or immerse the liquid itself. Simply adhere the sensor to the exterior of your tank at the desired alert point, and it will accurately detect the liquid level, providing unparalleled convenience and hygiene.
Specifications:
- Model Type: Water Level Sensor
- Operating Voltage: 24VDC
- Color: Black
Features:
- Miniature design for limited spaces.
- Solid state for high reliability (no moving parts).
- Cost-effective.
- Wide range of power output for direct switching.
- Easy installation saves time.
- Robust for various fluids.
- Customizable housings, cabling, and connectors.
Compared to the Reed switch
- Small size and small installation space.
- It can be used after being installed on the outer wall of the container. The tank does not need to undergo any changes, which is convenient for installation. The use of a float-type liquid level sensor requires openings in the container, and the container cannot be moved.
- The float-type liquid level sensor needs to contact with the liquid to detect the liquid level. The internal magnet will absorb impurities in the water to form scale. The scale will cause the weight of the float to affect the accuracy of the liquid level detection.
- The capacitive level sensor is a non-contact type.
- The float-type liquid level sensor uses the rise and fall of the liquid level to drive the float ball with a magnet, so that The internal reed switch is turned on/off, so the float-type liquid level sensor will be affected by the water level, and the float ball is easy to get stuck, has low reliability.
- The capacitive type has no mechanical moving part and has high reliability.
Applications:
Water fountain, water dispenser, water cooler, air cooler, dehumidifier, coffee machine, coffee maker, water heater, water boiler, hydroponic system, air conditioner, humidifier, bathroom equipment, vending machine, oil tank, chemical liquid level control. It will be widely applied in motor vehicles, industrial equipment, agricultural equipment, and household appliances in the future.
Package Included:
1 x 24V Contactless External Tank Liquid Level Sensor
