24V 6S 40A 18650 Li-Ion Lithium Battery Protect Solar BMS PCB Lighting Board with Balance for Ebike Scooter- RS2530

24V 6S 40A 18650 Li-Ion Lithium Battery Protect Solar BMS PCB Lighting Board with Balance for Ebike Scooter- RS2530

RS2530

Low stock: 5 left

Rs. 339.00
Rs. 339.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

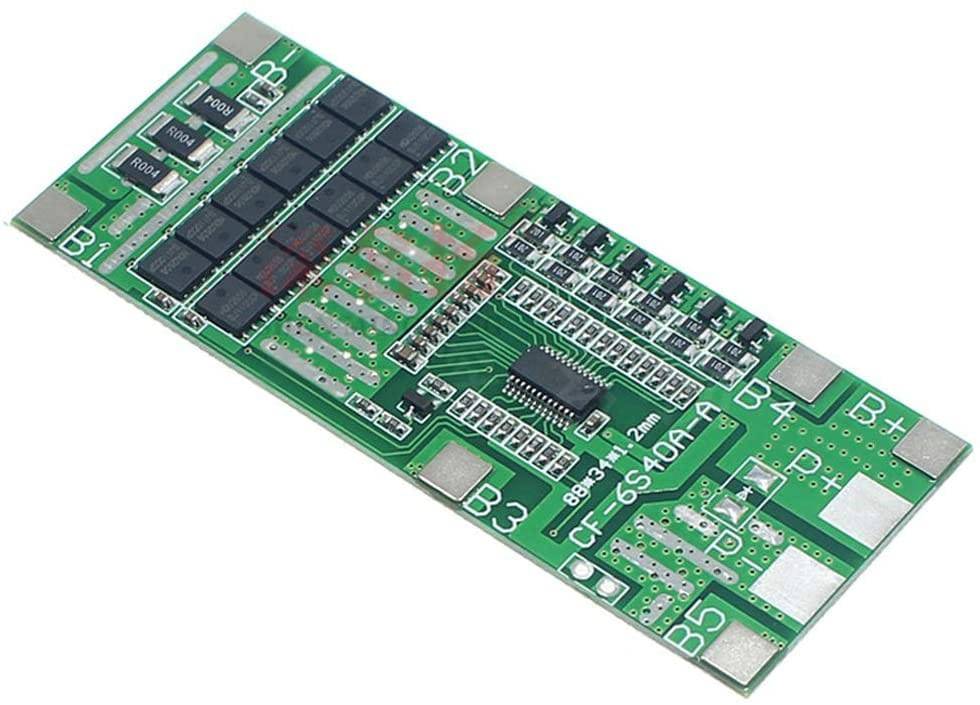

This is 6 string 24V 6-cell lithium battery power protection board. With split-mouth 40A discharge current and balance circuit. This protection board has overcharge protection, over-discharge protection, over-current protection, and short circuit protection.

Specification:

  • Maximum Discharge Current: 40A
  • Instantaneous Discharge Current: 70A
  • Charging Voltage: 25.5V
  • Maximum Charging Current: 40A Overcharge
  • Detection Voltage: 4.25 ± 0.025V
  • Overcharge Protection Delay: 1.0 ± 0.5S
  • Overcharge Voltage: 4.15 ± 0.05 in the voltage detection of the battery balance: 4.125 ± 0.025 in the battery voltage balance: 4.125 ± 0.05 in the battery balance current: 41 mA ± 5
  • Over-discharge Detection Voltage: 2.7 ± 0.1 V
  • Over-discharge Detection Delay: 1.0 ± 0.5S
  • Discharge Voltage: 3.0 ± 0.1 V
  • Over-current Detection Voltage: 100 mV
  • Over-current Detection Delay: 1 ± 0 , 3s/li
  • Over-current Protection Current: 75 ± 5A
  • Over-current Protection State: Load disconnect
  • Short-circuit Protection State: external short circuit load
  • Short-circuit Detection Delay: 250US
  • Short-circuit Protection State: Load disconnect
  • Internal Conduction Resistance of the Main Circuit: ≤20MΩ
  • Operating Current: ≤ 40uA Temperature range: -30 / + 80°C

Features:

  • It has a 40A split-mouth discharge current.
  • With overcharge protection.
  • With over-discharge protection.
  • With over current protection.
  • With over current protection shorts.

Package Included:

1 x 24V 6S 40A 18650 Li-Ion Lithium Battery Protect Solar BMS PCB Lighting Board with Balance for Ebike Scooter
