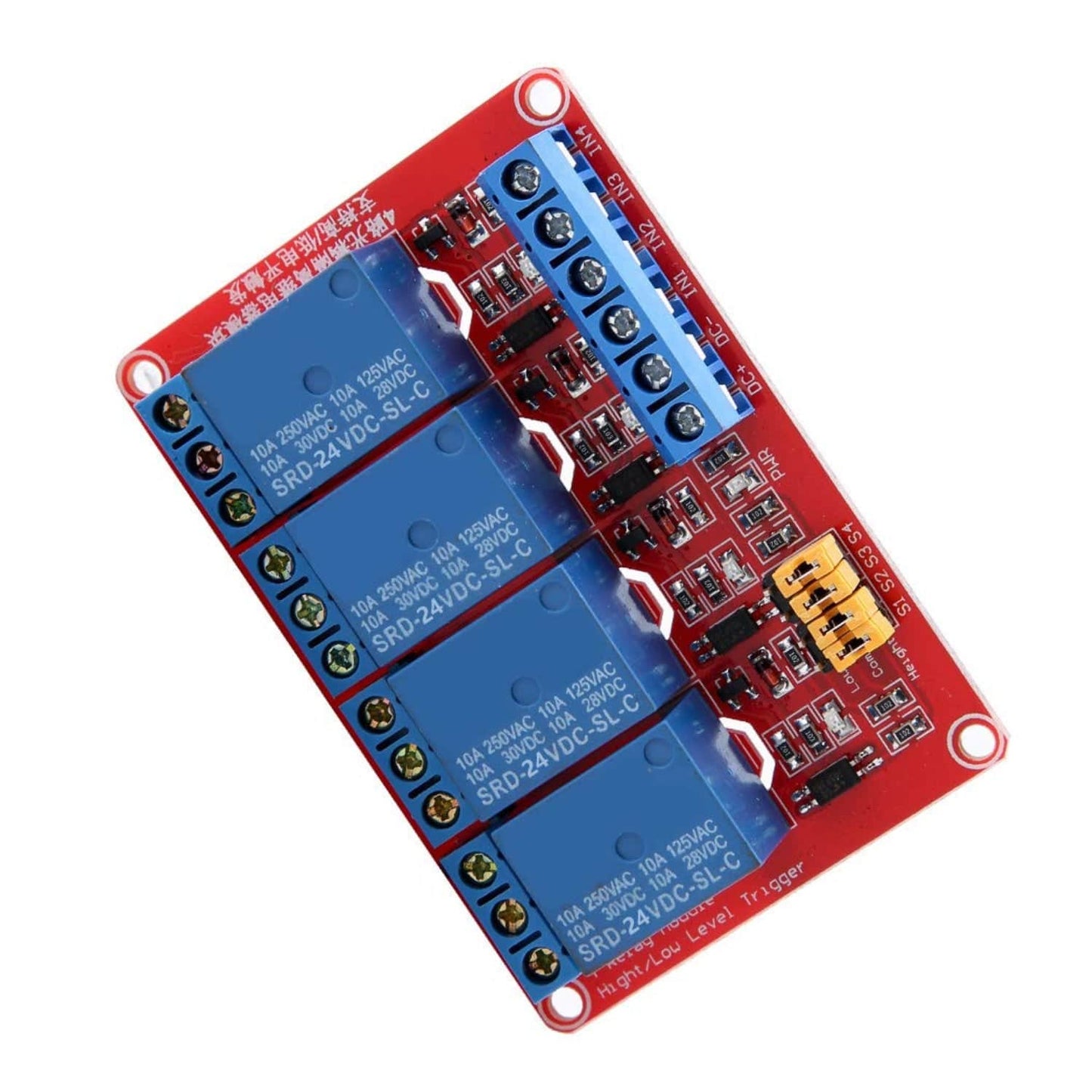

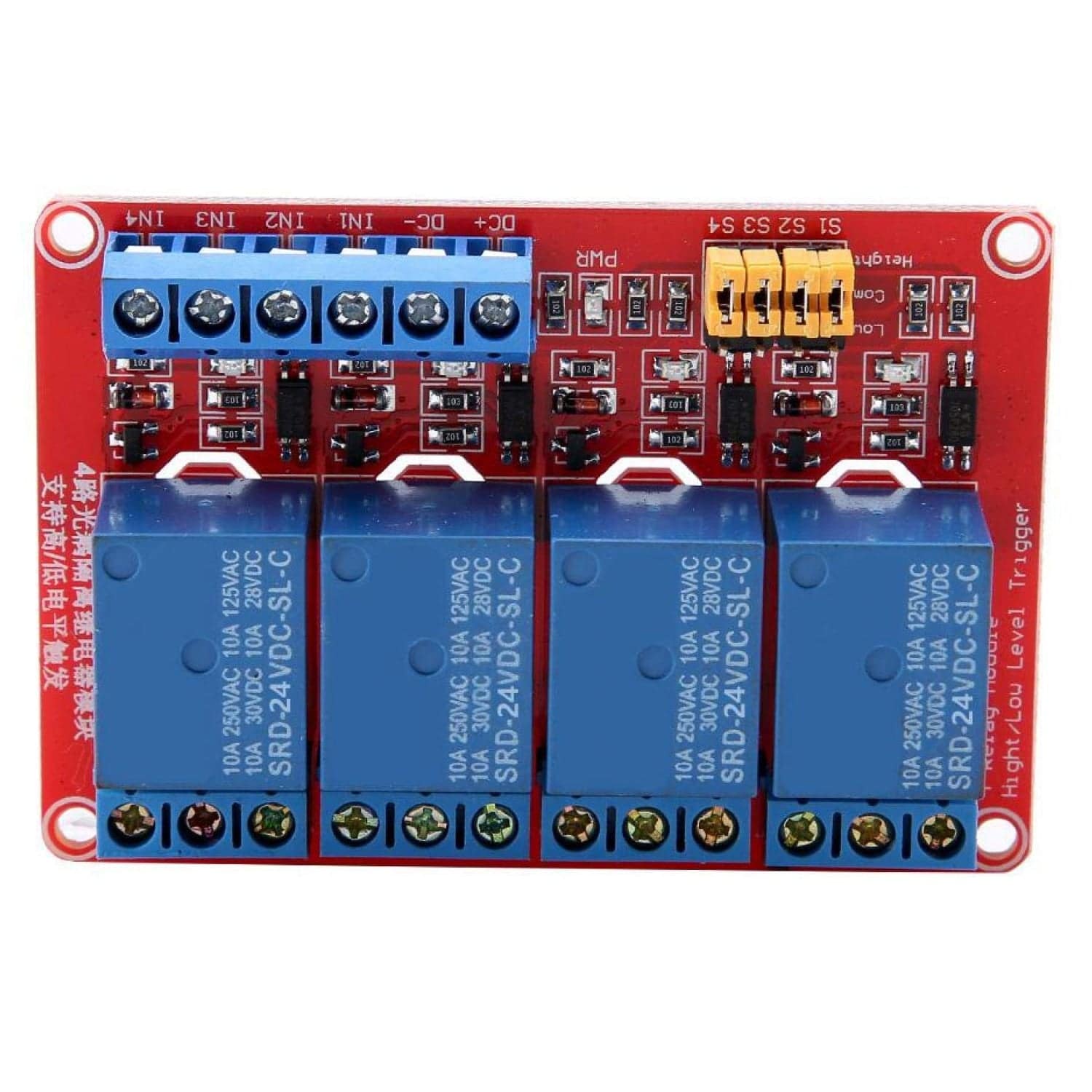

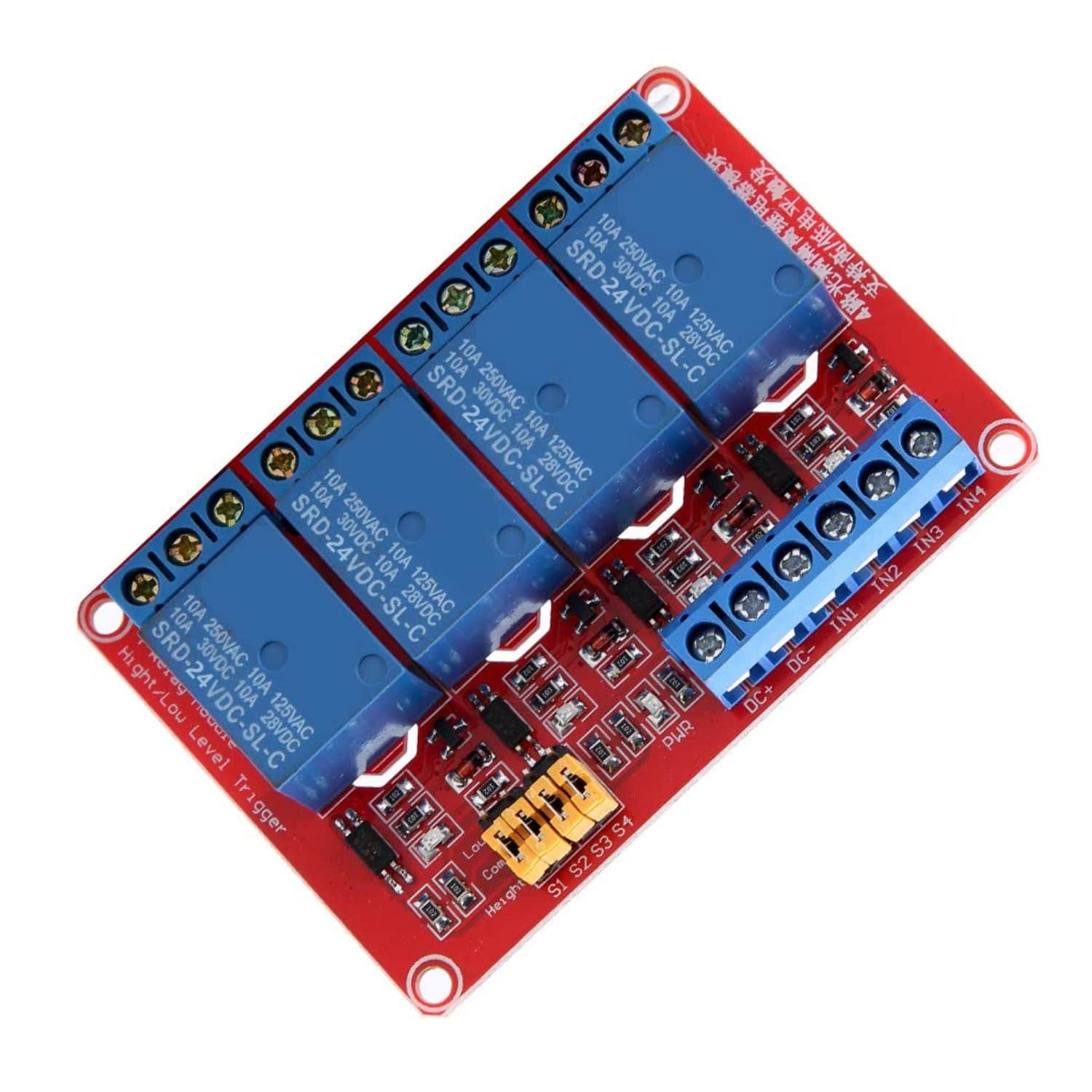

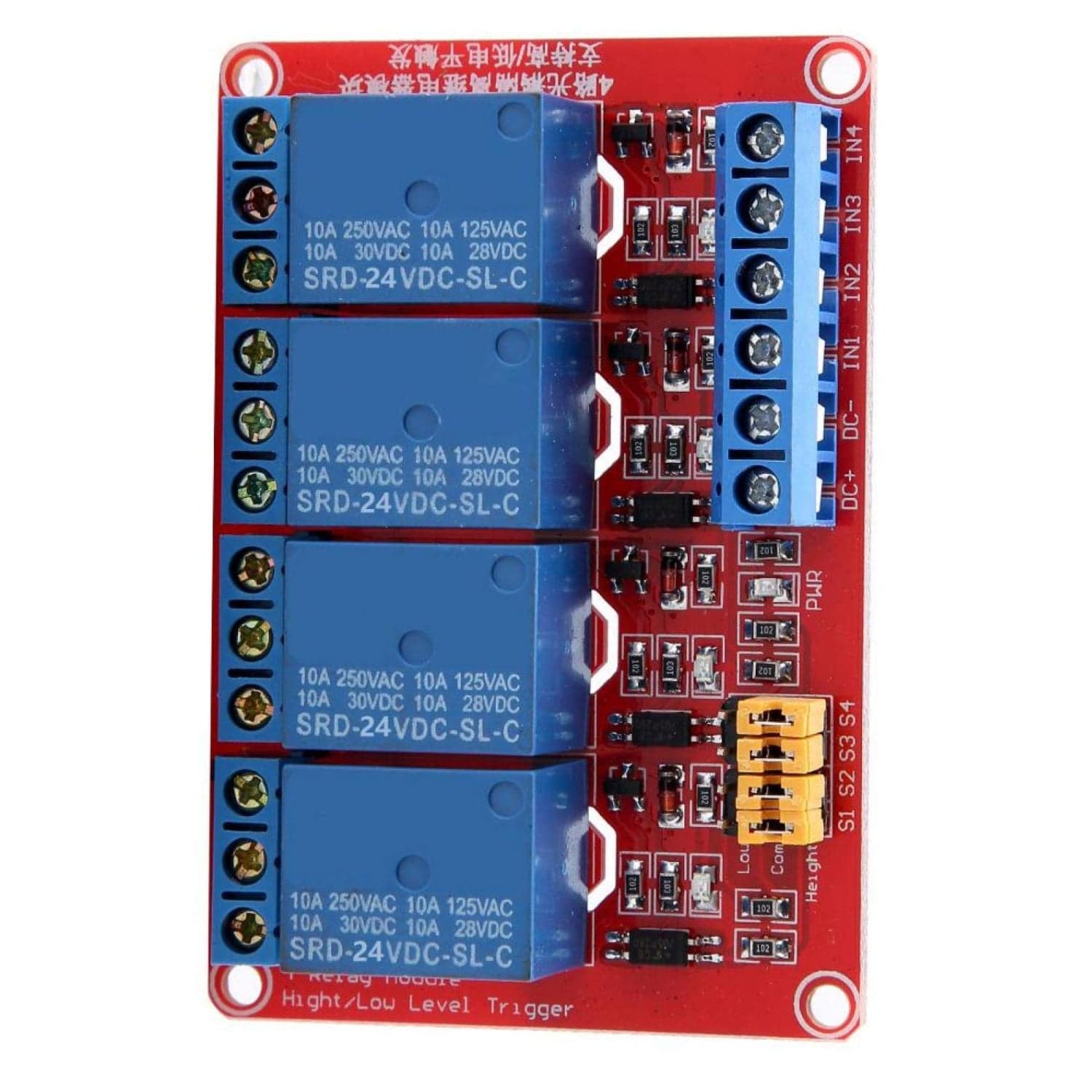

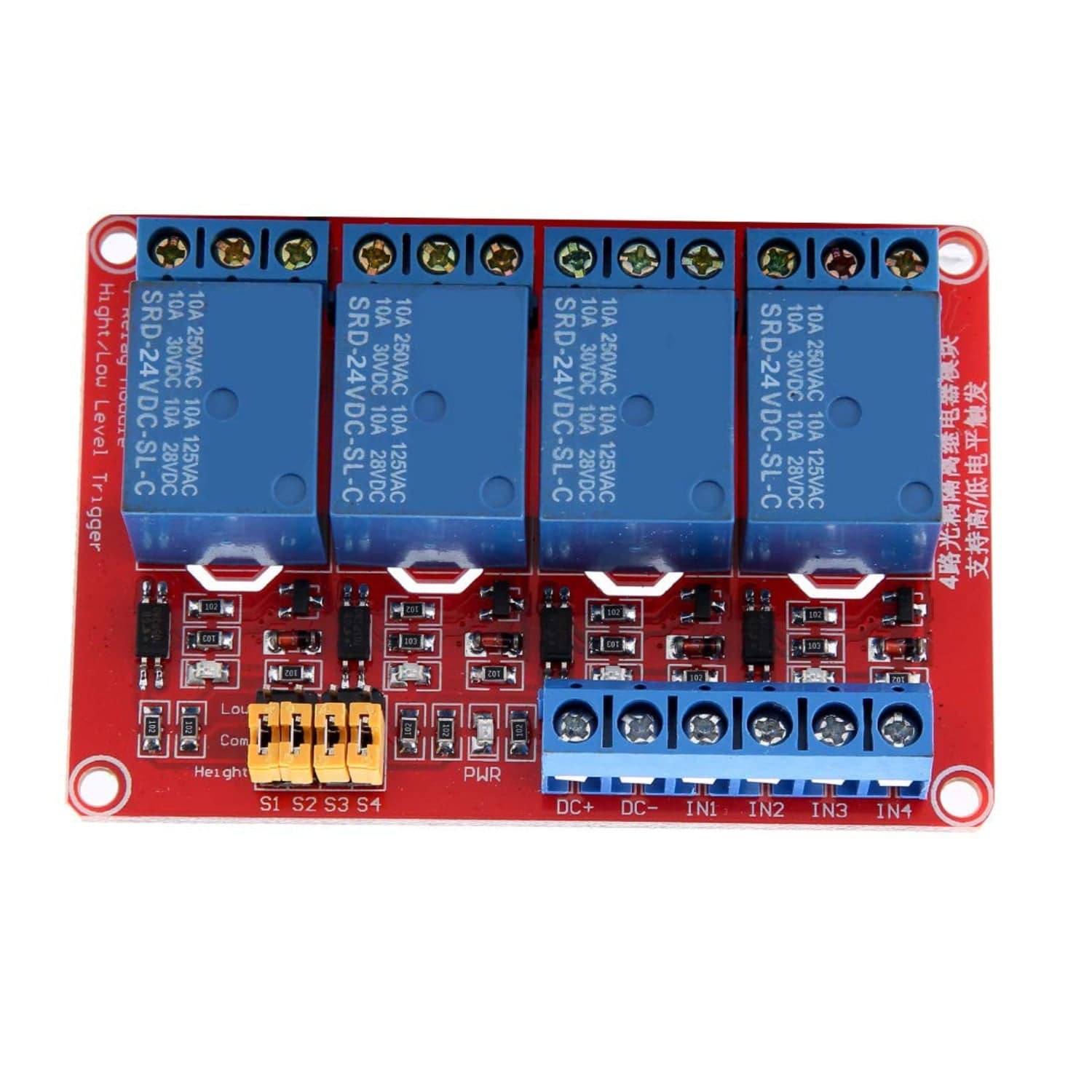

24V 4 Channel Relay Module Trigger With Isolated Support High and Low Level Trigger - RS6661

24V 4 Channel Relay Module Trigger With Isolated Support High and Low Level Trigger - RS6661

RS6661

In stock

Rs. 177.00
Rs. 177.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

24V 4 Channel Relay Module uses genuine quality relay normally open interfaces Maximum load: AC 250V/10A DC 30V/10A. Using SMD OPTOCOUPLER isolation driving ability stable performance, trigger current 5mA. The 24V 4 Channel Relay Module has 24V working voltage options Each way module can be set high or low and triggered by a jumper Fault-tolerant design even if the control line is broken the relay will not operate  The power indicator is green  4 relay status indicator is red Interface design is humane all interfaces can be connected directly via terminal wiring leads very convenient.

Specifications:

  • Operating Voltage: 24VDC
  • No. of Channels: 4

High and low trigger selection:

  • S1-S4, to relay a way -4 road high and low trigger selection Com with low short circuit triggering the corresponding relay, is low while the high end of the short com high trigger 0.

Interface:

  • DC +: positive power supply ( voltage required by the relay has 24V option).
  • DC-: negative power connection.
  • . IN1-IN4: each way based on the settings can be high or low to control the corresponding relay
    Outputs

Outputs:

  • NO1 - NO4: normally open relay interfaces relay before the vacant after the pull shorted with COM.
  • COM1 - COM4 Common Interface Relays.
  • NC1 - NC4: normally closed relay interface relay shorted with COM ago after the pull- vacant
    High and low trigger selection.

Package Included:

1 x 24V 4 Channel Relay Module Trigger With Isolated Support High and Low Level Trigger
