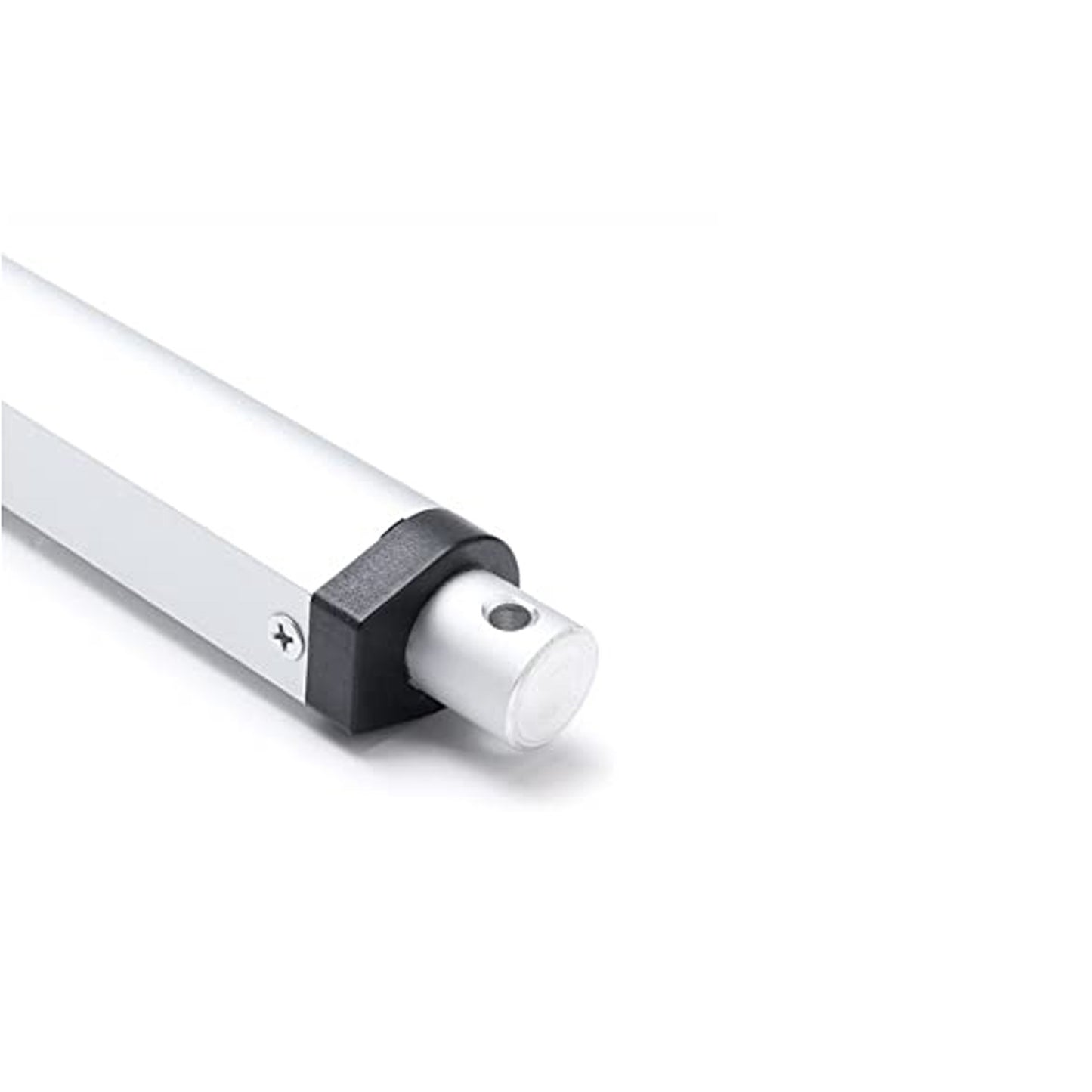

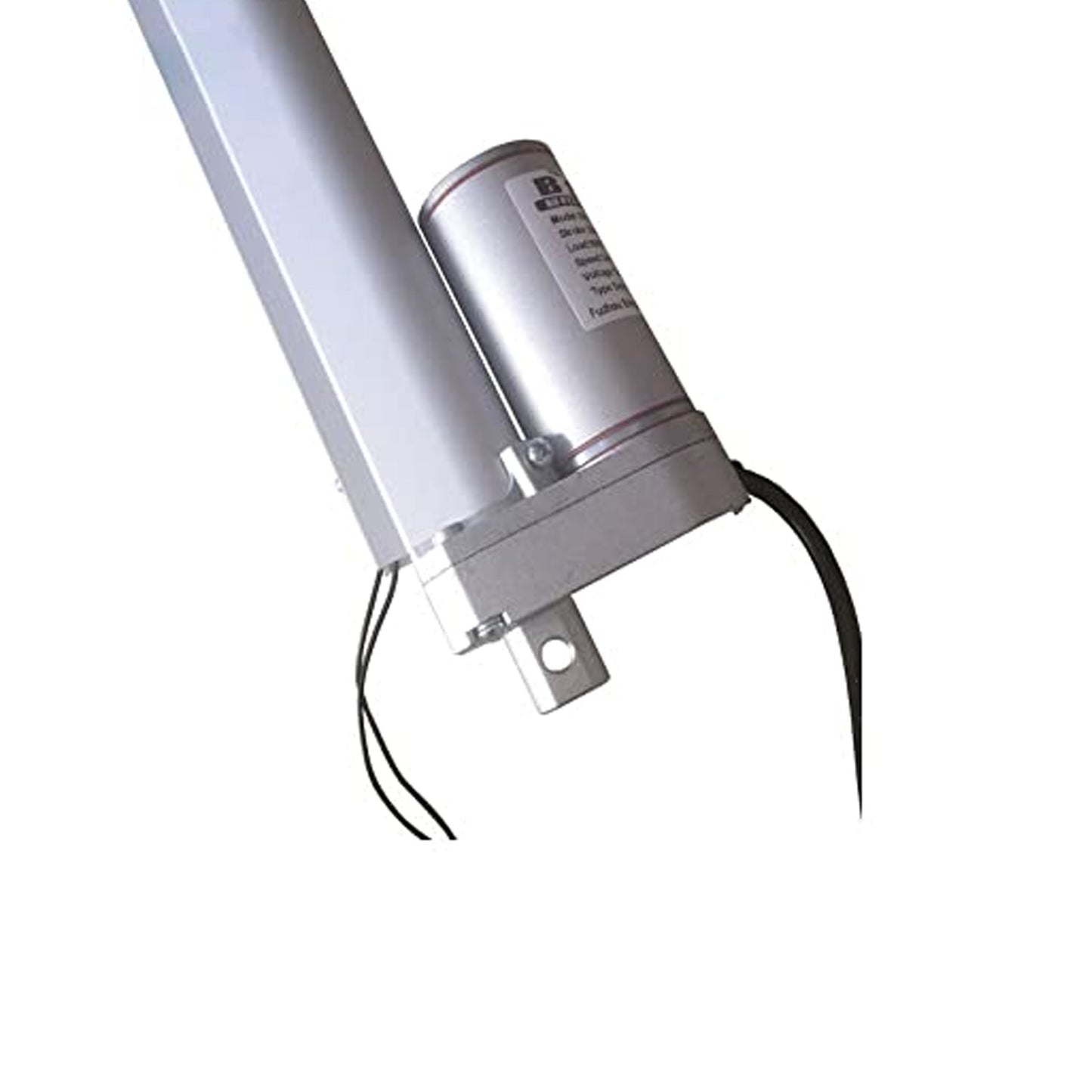

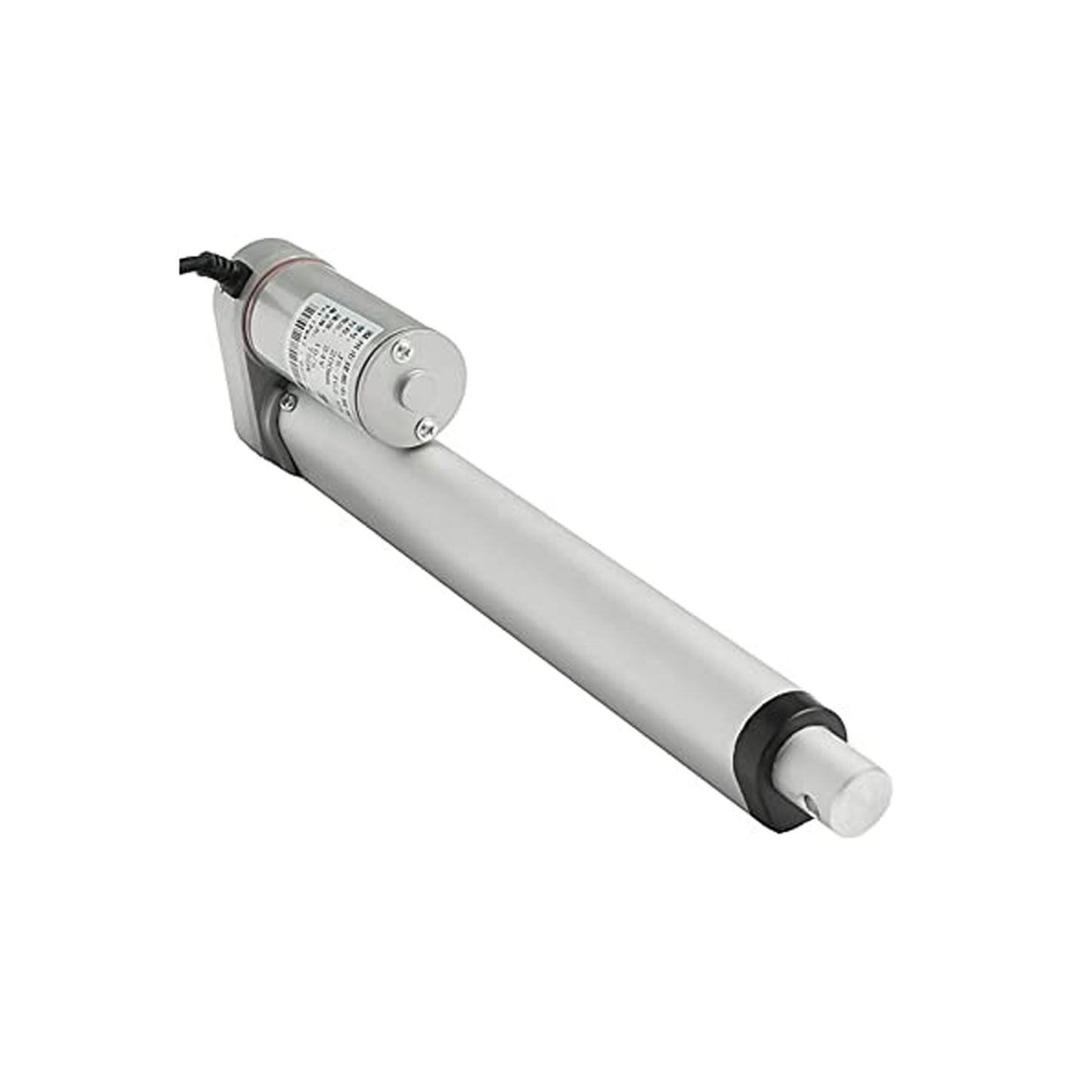

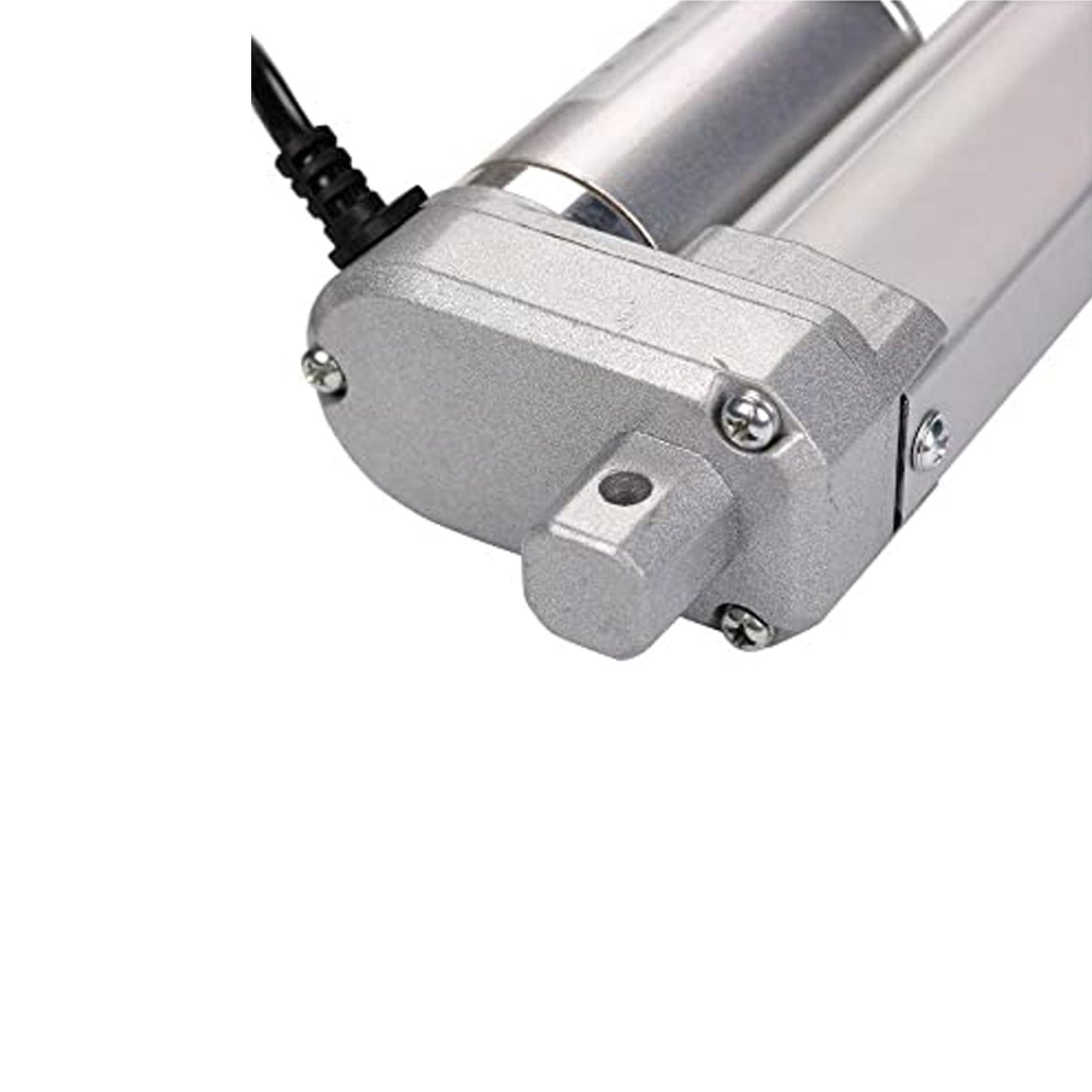

24V 200MM Linear Actuator Stroke Length Linear Actuator 7mm/S 1500N - RS4436

24V 200MM Linear Actuator Stroke Length Linear Actuator 7mm/S 1500N - RS4436

SKU:RS4436

Low stock: 7 left

Regular price Rs. 5,054.00
Regular price Sale price Rs. 5,054.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

This 24V 200MM  Linear Actuator Stroke Length 200MM,7mm/S,1500N,24V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod. It can be used in a various simple or complex process. This electric push rod is a kind of electric driving device as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.

Specifications:

  • Operating Voltage (VDC) : 24
  • Maximum current draw : 2A
  • Stroke Length : 200mm (apprx. 8inches)
  • Operating temperature : -20C to +63C
  • Maximum static load : 337.2 lbs. ( 1500 Newtons )
  • Protection Level : IP55
  • Mounting hole diameter (both ends) : 1/4 (6.4mm)
  • Self Locking Force : 1500N
  • Motor Diameter : 36 mm
  • Speed at no load : 0.28in/sec (7 mm /sec)
  • Speed at full load : 0.22in/sec (5.5 mm/sec)
  • Noise level : 45 dB

Features:

  • Aluminium frame and extension tube
  • Compact Design
  • Built-in Limit Switch
  • Low Noise
  • Moisture-proof Surface
  • Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
  • Permanent magnet DC motor drive: Voltage : 24VDC
  • Self Locking Force: 1500N

Applications:

  • Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
  • The medical electric bed, surgical bed, traction bed
  • Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
  • Chair for medical use: Electric wheelchair, massage chair, dental chair.
  • Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Package Included:

1 x 24V 200MM Linear Actuator Stroke Length Linear Actuator 7mm/S 1500N
