Generic

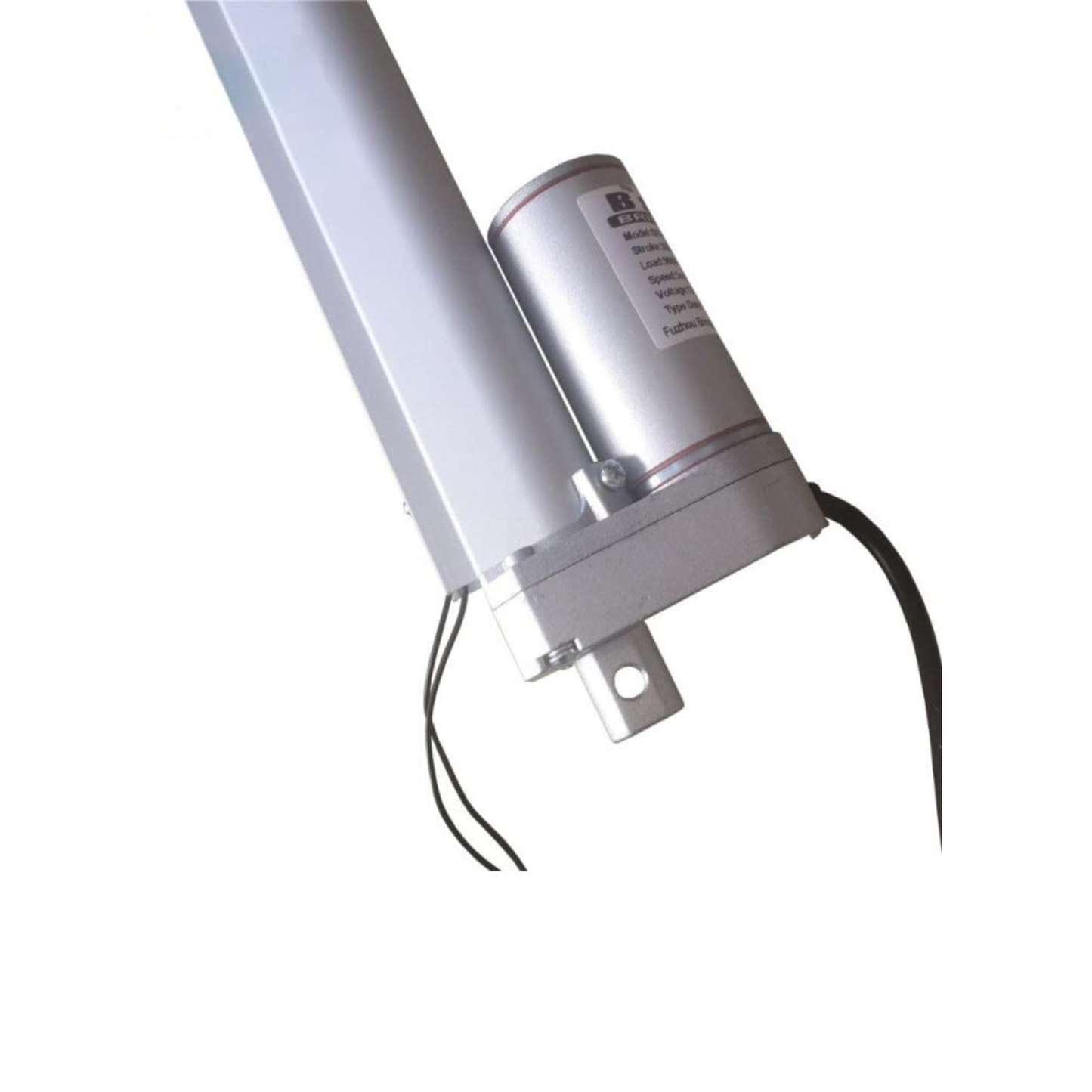

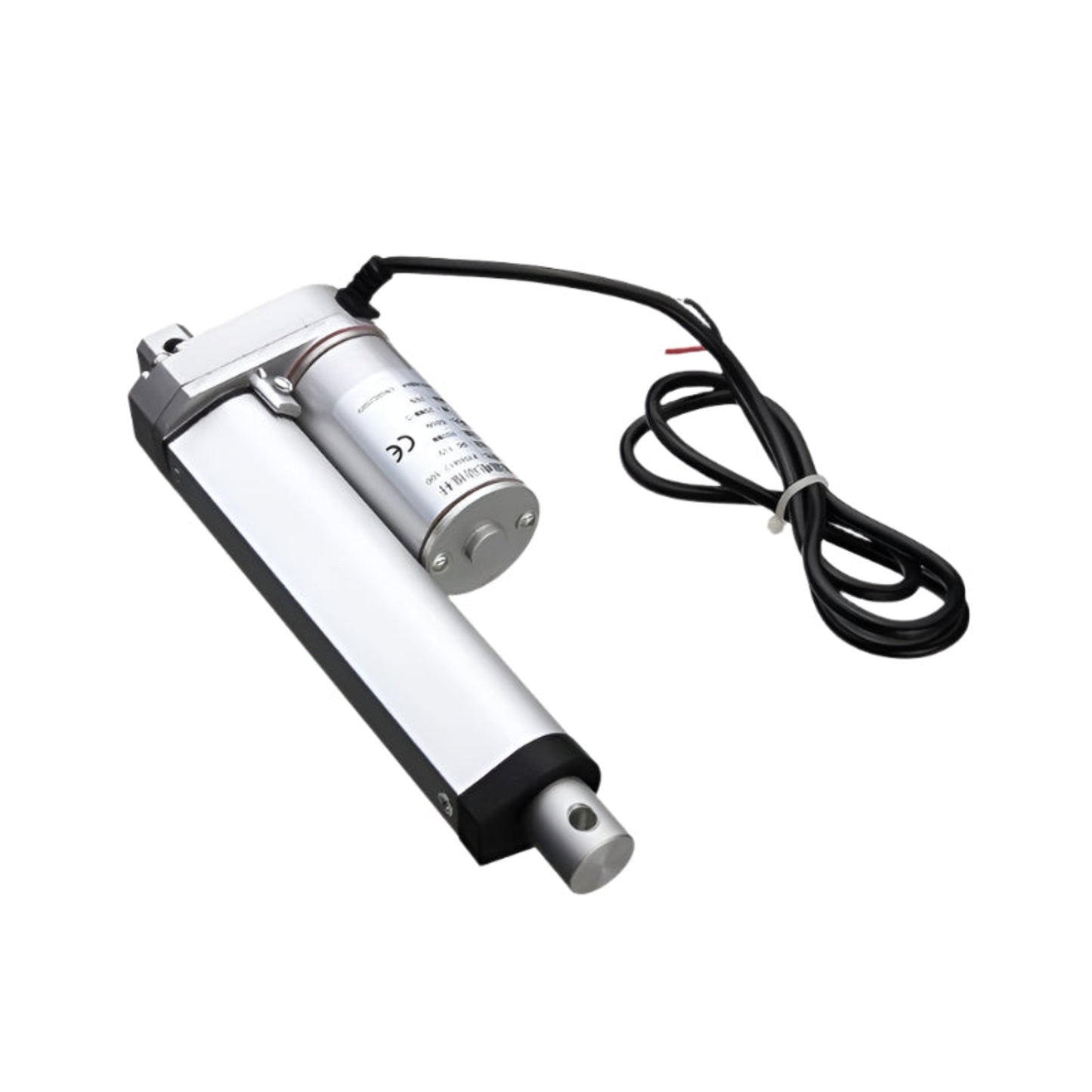

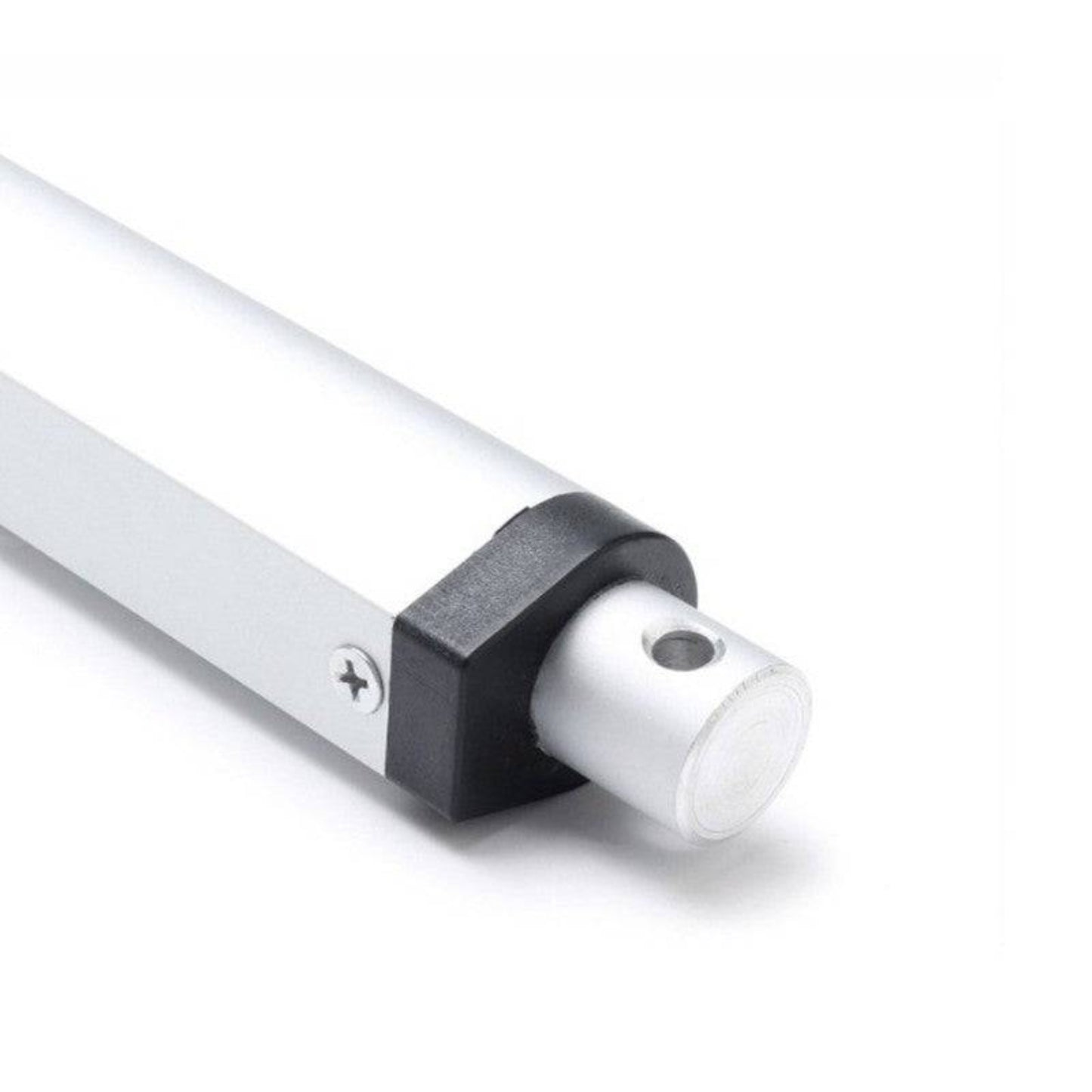

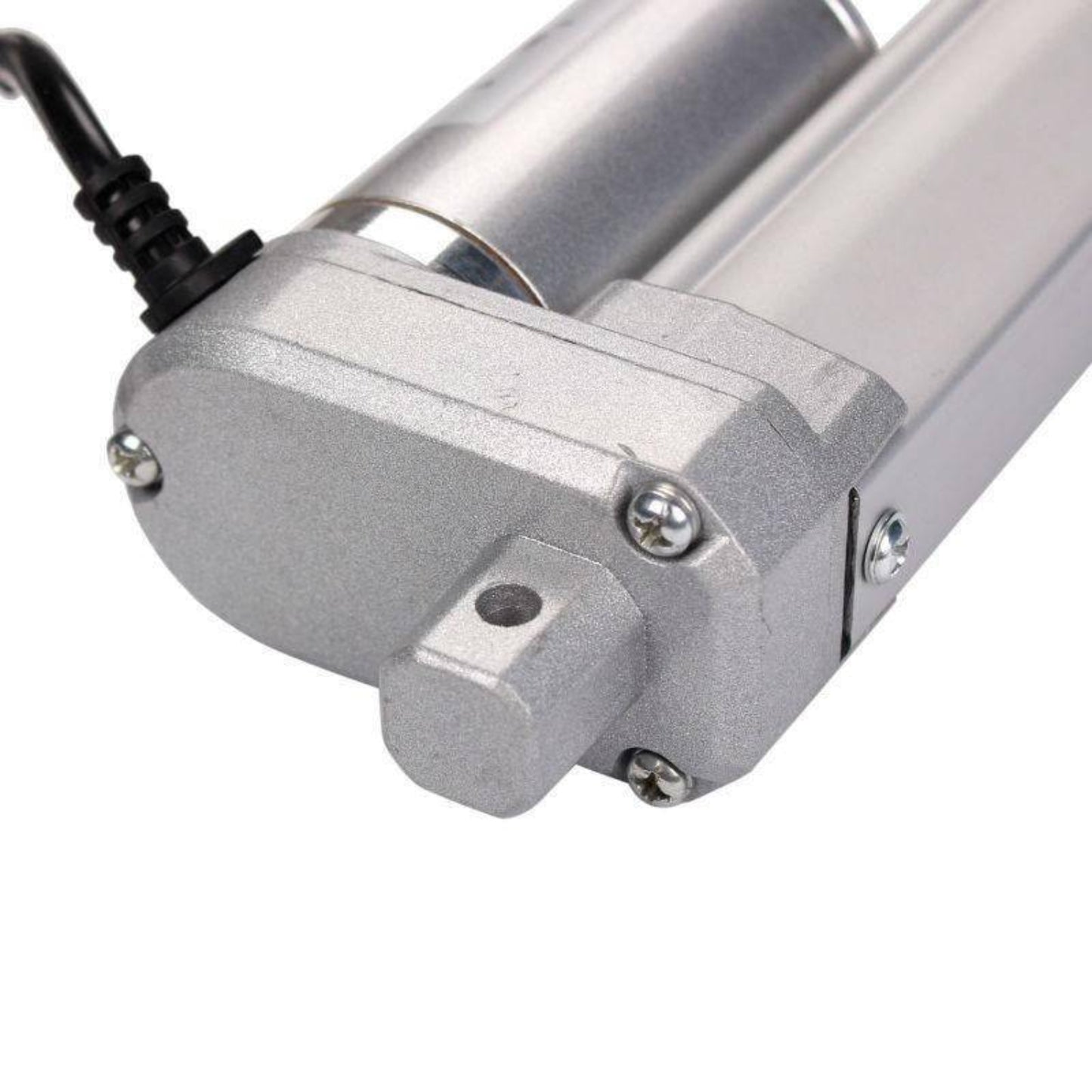

24V 100MM Linear Actuator 100MM Stroke Linear Actuator With 7mm/S 1500N For Automatic Door Operators Windows and Doors - RS3970

24V 100MM Linear Actuator 100MM Stroke Linear Actuator With 7mm/S 1500N For Automatic Door Operators Windows and Doors - RS3970

RS3970

Low stock: 9 left

Rs. 3,657.00
Rs. 3,657.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This 24V Miniature Linear Actuator with a 100mm stroke length, 7mm/s speed, and 1500N force is an electric push rod ideal for diverse applications including industrial and agricultural machinery, construction, cleaning vehicles, marine vessels, and cargo handling. Converting rotary motion to linear movement, this actuator enables remote, centralized, or automatic control in various processes. Its construction includes a motor, gearbox, screw, nut, guide sleeve, pushrod, and protective shell.

Specifications:

  • Operating Voltage: 24VDC
  • Stroke Length: 100mm
  • Force: 1500N
  • Speed: 7mm/s
  • Operating Temperature: -20 to +63°C
  • Mounting Hole Diameter: 1/4” (6.4mm)
  • Protection level: IP55
  • Max. Static Load: 337.2 lbs. ( 1500 Newtons )
  • Max. Current Draw: ≤2A
  • Motor diameter: 36 mm
  • Speed at No Load: 0.28in/sec (7 mm /sec)
  • Speed at Full Load: 0.22in/sec (5.5 mm /sec)
  • Self Locking Force: 1500N
  • Noise Level: 45 dB

Features:

  • Aluminum Frame Tube
  • Compact Design
  • Built-in Limit Switch
  • Low Noise Operation
  • Moisture-Proof
  • Long Lifespan
  • 24VDC Motor
  • 1500N Self-Locking

Applications:

  • Autos, solar tracking system, agricultural machinery, the wedding system, and industrial electric lifting system
  • The medical electric bed, surgical bed, and traction bed
  • Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc.
  • Chair for medical use: Electric wheelchair, massage chair, dental chair.
  • TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras, and more.

Package Included:

1 x 24V 100MM Linear Actuator
