- Type: 24Key Remote Controller one or two output (as you select )
- Connection mode: Common Anode()
- Supply voltage: 12V
- Output: Three CMDS drain-open output
- Max load current: 2A each color
- Output: three CMOS drain-open output
- Working Temperature: -20°C-60°C
Description:

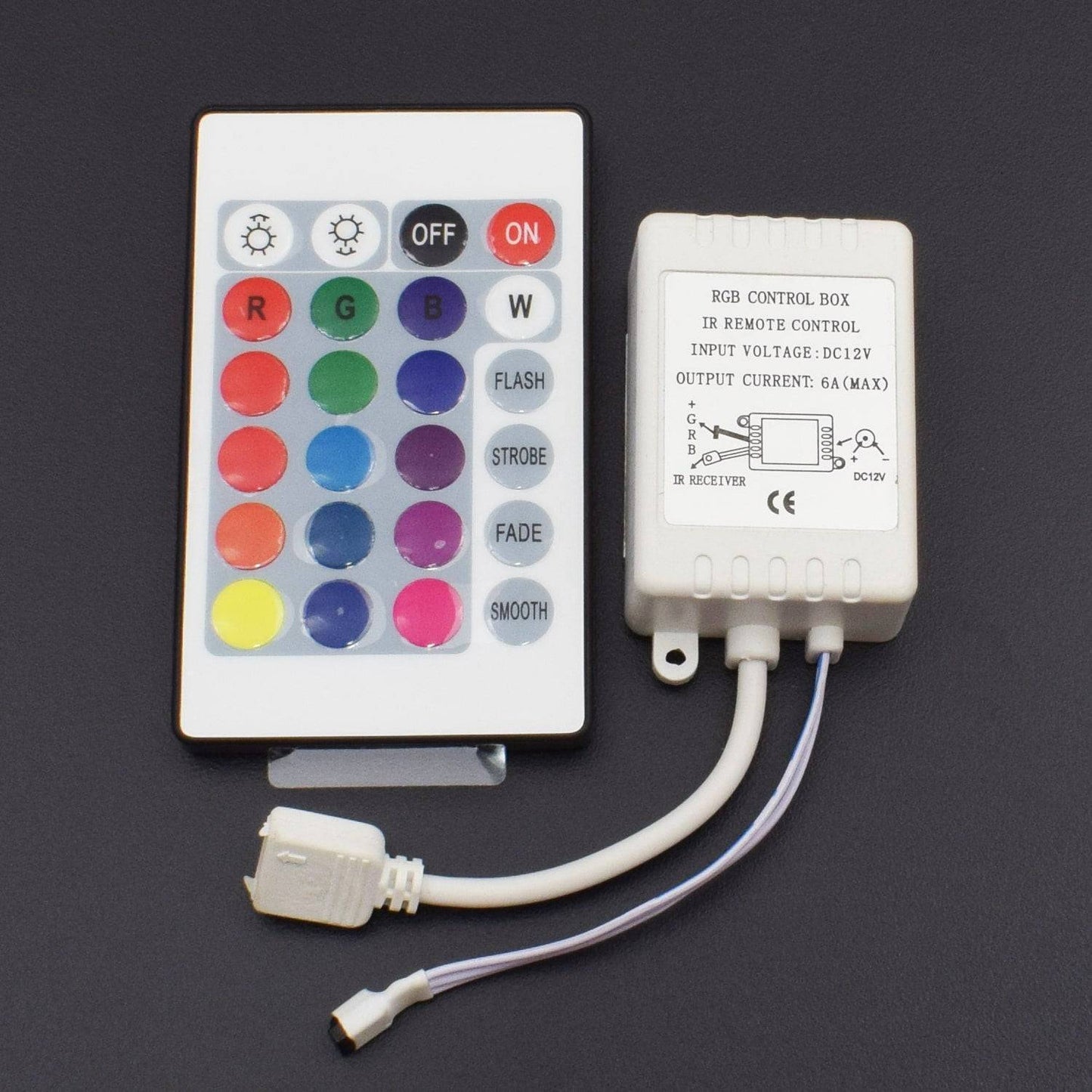

This LED light controller uses 12V input power and has a 4 contact plug for a RGB strip. When installing just line up the marked arrows. You can choose between many different solid colors, solid white, flashing, strobing, adjust brightness, and on/off all from the wireless remote. This simple to used a 24-key IR RGB controller to control our RGB flexible LED strips. It has 16 Static colors and 4 color changing modes. It also could adjust the brightness of the static color and change the speed of the color changing.
Specification:
- Type: 24Key Remote Controller one or two output (as you select )
- Connection mode: Common Anode(+)
- Supply voltage: 12V
- Output: Three CMDS drain-open output
- Max load current: 2A each color
- Output: three CMOS drain-open output
- Working Temperature: -20°C-60°C
Features:
- This simple to used a 24-key IR RGB controller to control our RGB flexible LED strips.
- It has 16 Static colors and 4 color changing modes.
- It also could adjust the brightness of the static color and change the speed of the color changing.
Mode & Pattern:
- 16 colors, 5 light pattern: Static / Flash / Strobe / Fade-change / RGB Smooth-change
- 16-classes Static Mode Dim Control
- 16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change
- Remote controller battery: 1 x CR2025 (Included)
- Control range: 10 - 1000cm RGB LED Strips
- Support 10 meters SMD 5050 30LEDs / M LED Strips or 5 meters SMD 5050 60LEDs / M LED Strips
Caution:
- Supply voltage of this product is DC12V never connect to DC24V or AC220V
- Never connect two wires directly in case of the short circuit
- Lead wire should be connected correctly according to colors that connecting diagram offers
Package Included:
1 x 24 Key RGB 24-Key LED Strip IR Remote Controller with Controller Box for 3528 5050 SMD RGB LED Strip Lights
