Description:

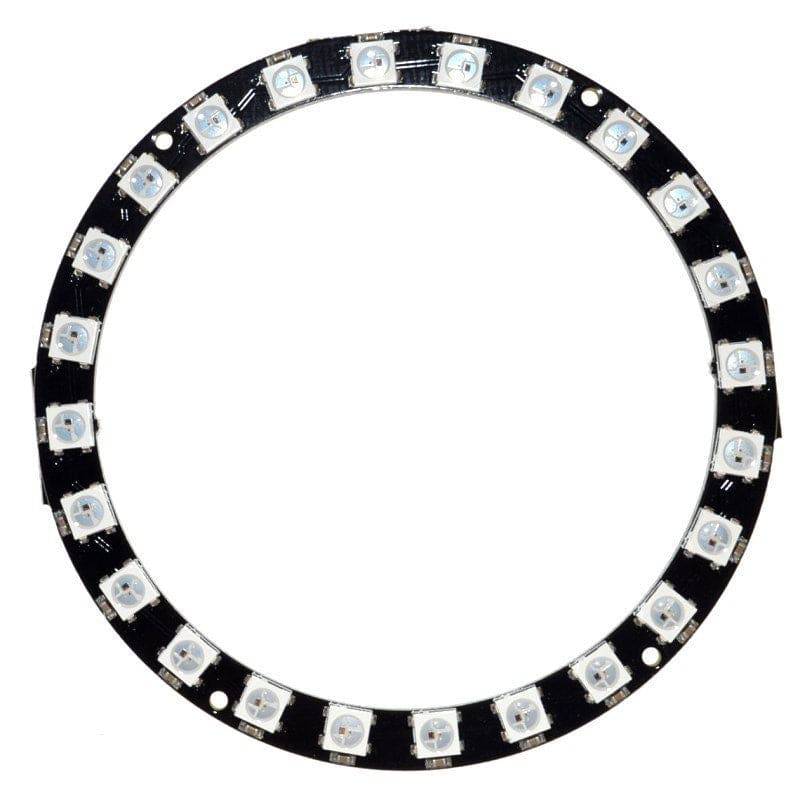

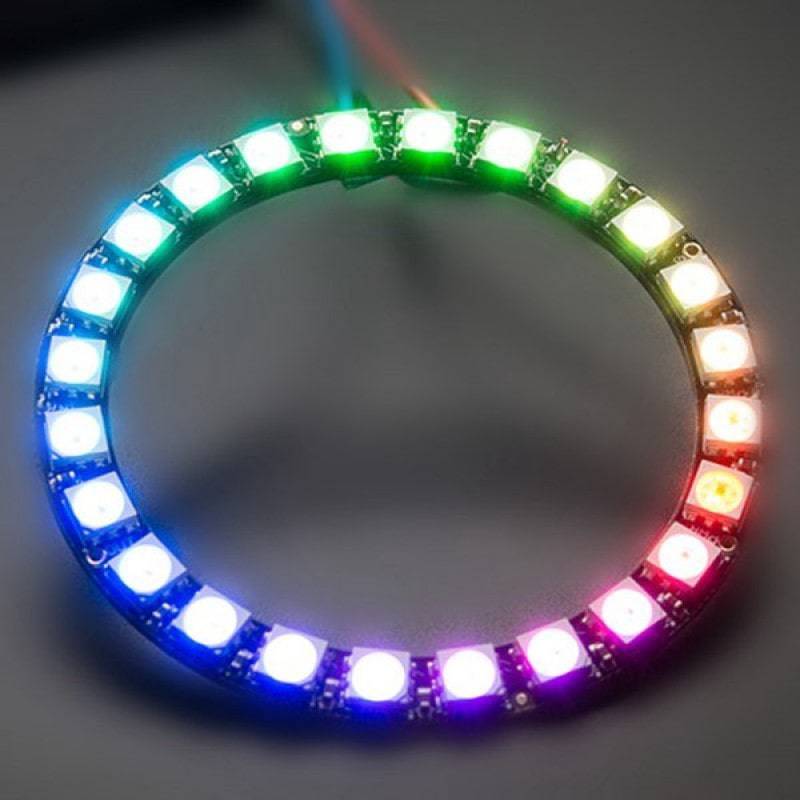

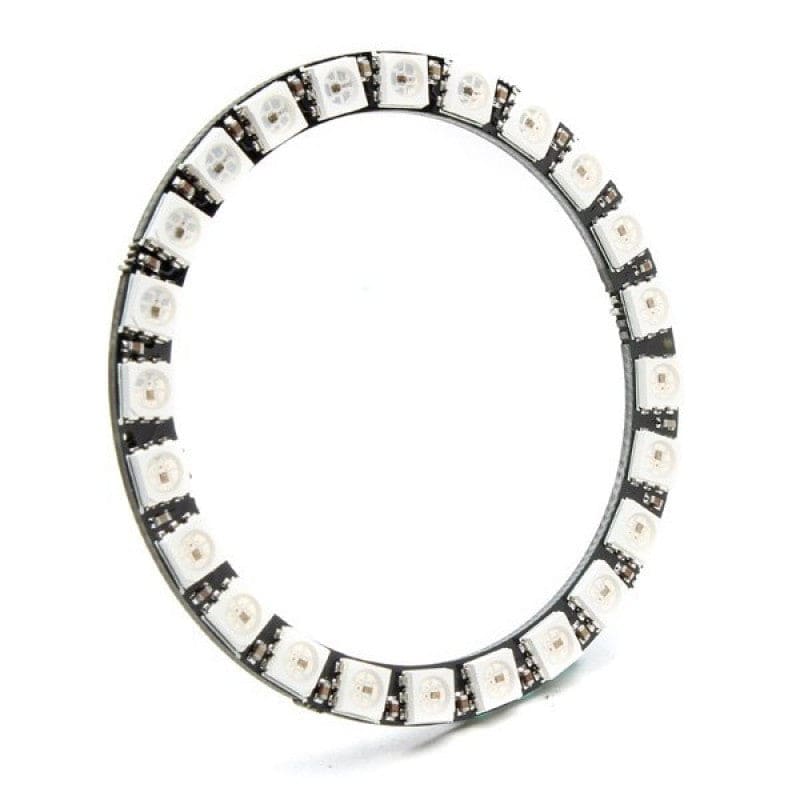

The 24 Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board has a round black shape, let us be clear at a glance! 24 super bright smart Neo Pixels LED arranged in an 86mm outside diameter circular PCB.
These ring RGB lamps can be simply connected via the output pin cascade one to the other input pin (DI-DO). In this way, by using only one single chip you will be able to control as many LED lights as possible, each LED lamp is integrated with a driver chip in it so that our LED becomes intelligent and addressable.
Each has a -18mA constant current drive, so the LED colour will be very uniform, even if the voltage change is the same, do not need an external resistor current limiting resistor to make the overall design of the RGB lamp ring slim, as you see so simple and easy to use. With a 5V power supply to drive the RGB lamp ring.
Specifications:
- IC Chip: WS2812B
- Input Supply Voltage (VDC): 4 ~ 7
- Outer Diameter (OD)(mm): 86
- Inner Diameter (ID) (mm): 70
- Height (mm): 3
Features:
- The control circuit and the LED share the only power source.
- The control circuit and RGB chip are integrated into a package of 5050 components, forming a complete control of pixel points.
- Built-in signal reshaping circuit, after wave reshaping to the next driver, ensures wave-form distortion does not accumulate.
- Built-in electric reset circuit and power lost reset circuit.
- Each pixel of the three primary colours can achieve 256 brightness levels, or 16M colours full-colour display, and a scan frequency not less than 400Hz/s.
- Cascading port transmission signal by a single line.
- Any two points the distance of more than 5m transmission signal without any increase circuit.
- When the refresh rate is 30fps, the cascade number is not less than 1024 points.
- Send data at speeds of 800Kbps.
- The colour of the light was highly consistent
- Full-color module, Full-color soft lights a lamp strip.
- LED decorative lighting, Indoor/outdoor LED video irregular screen.
Characteristic:
Single wire communication, to maximize the reduction of I/O port pressure, and the use of the RGB WS2812B driver chip, so that the peripheral circuit requires only a single capacitor can meet the needs of the circuit, give people the enjoyment of beauty, in addition, this RGB ring, but also through a simple Dout input port, and the other using the same chip RGB lamp cascade, without need considering the shape of the limit.
Package Included:
1 x 24 Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board
