Description:
These high-temperature product series feature an operating temperature of -40ºC to +125ºC for UR < 250V or -25º to +125ºC for UR ≥ 250V and a 1000-2000h load life at +125ºC.
Specification:
| Capacitance | 22µF |
| Voltage Rating | 25V |
| Capacitance Tolerance | ± 20% |
| Diameter | 5mm |
| Lead Spacing | 2mm |
| Height | 7mm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
Pin Configuration:

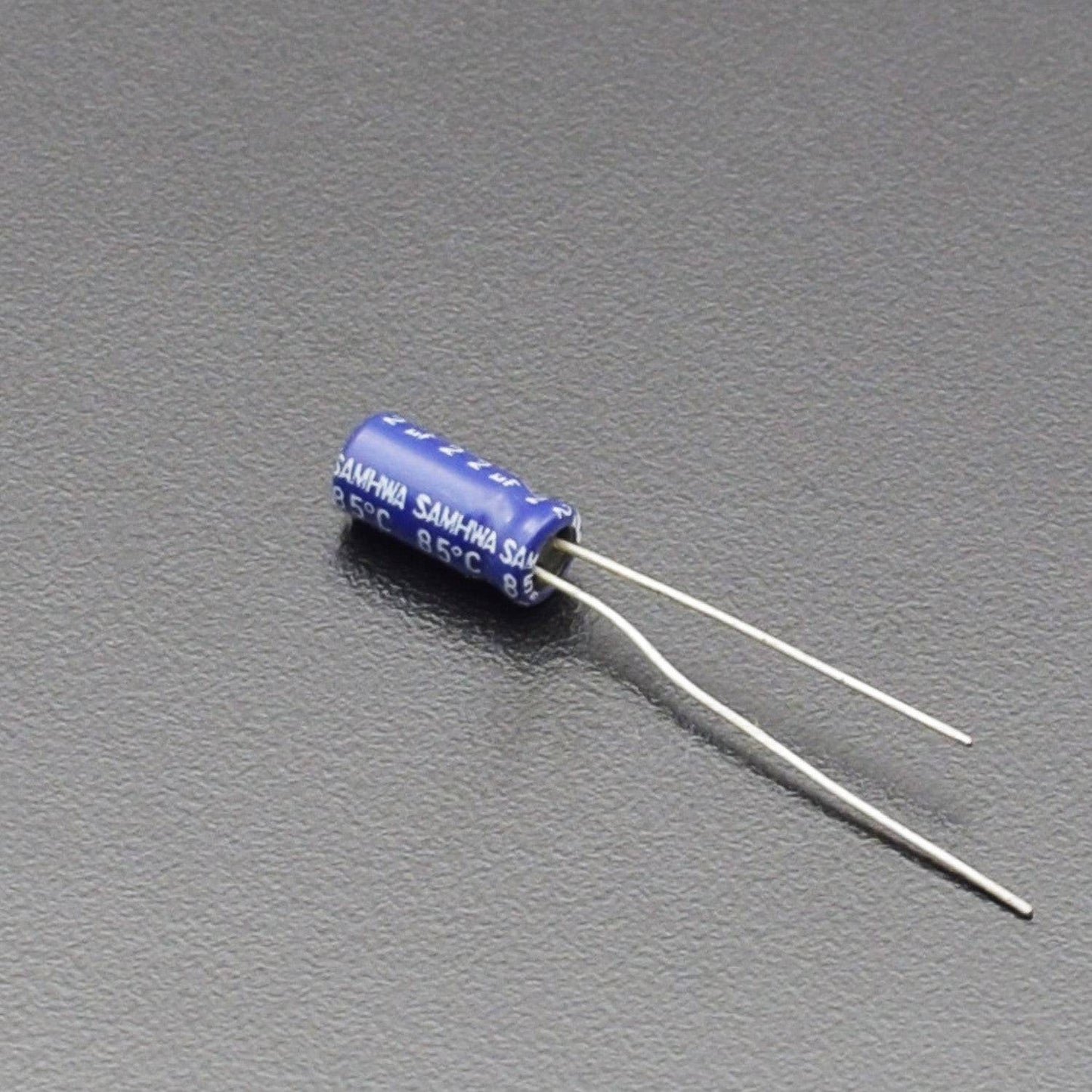

The Electrolytic Capacitors have polarity. Meaning they have a positive and negative pin. The pin which is long is the positive pin and the pin which is short is the negative pin. You can also identify the polarity using the negative strip on the capacitor label. As shown in the picture above the negative pin will be directly under the negative symbol.
Applications:
- Filter circuits like High/Low pass filter etc.
- Remove noise from a circuit
- Smoothing ripples in converters
- Fading LED circuits
- Resonant circuits.
