Description:

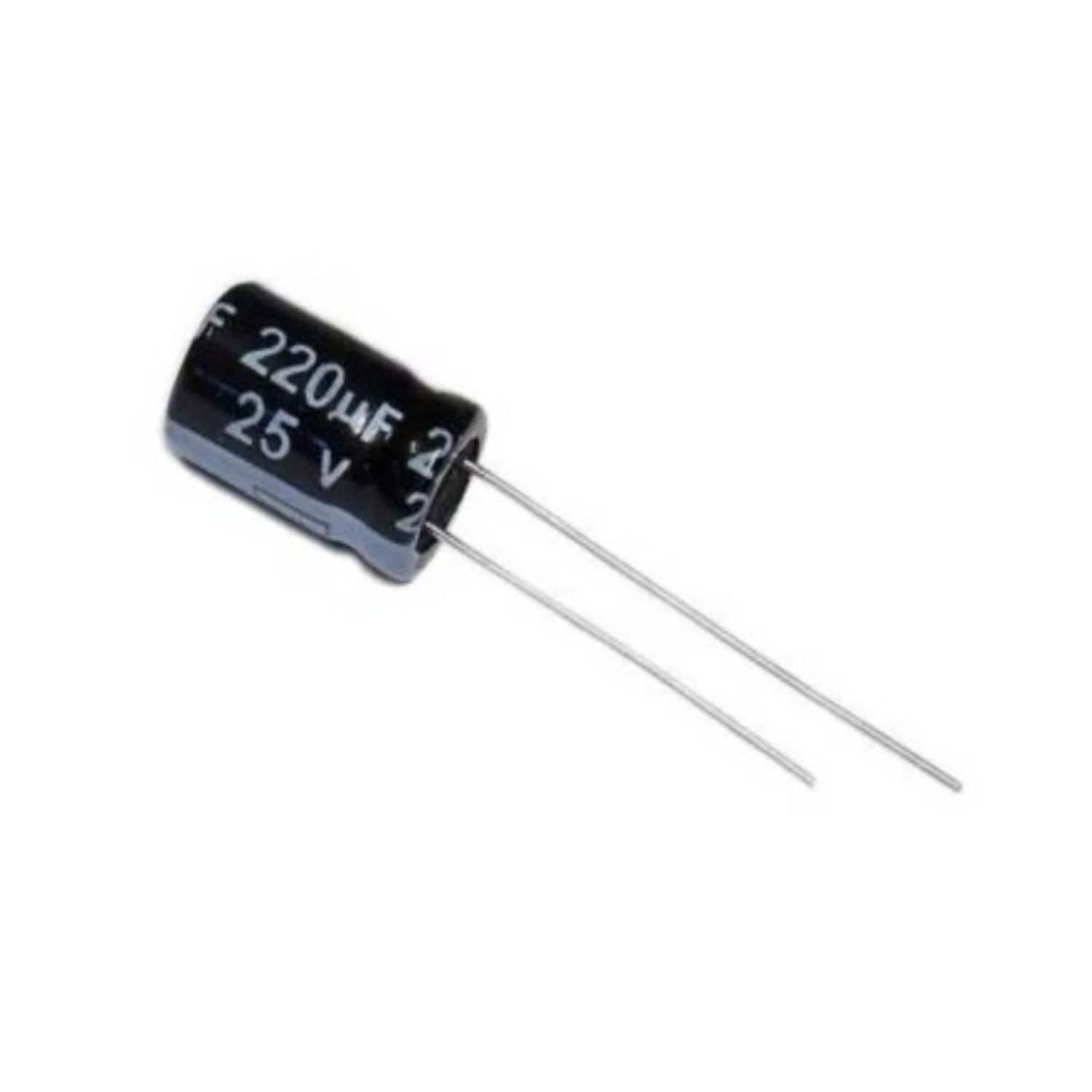

220µF, 25V radial aluminum electrolytic capacitor designed for PCB through-hole mounting. It features a high ripple current of 0.95A and a low ESR of 0.056 Ohms, ensuring efficient performance. With a 3000-hour lifespan and an operating temperature range of -40°C to 105°C, this FM series capacitor offers reliable performance within a -20/+20% tolerance.
Specifications:
- Capacitance: 220 μF
- Configuration: Radial, Can
- Current, Ripple: 0.95 A
- Diameter, Lead: 0.6 mm
- ESR: 0.056 Ohm
- Lead Spacing: 0.138 In. (3.50 mm) mm
- Life: 3000 Hours
- Material, Element: Aluminum Electrolytic
- Mounting Type: PCB
- Series: FM Series
- Temperature, Operating, Maximum: 105 Deg. C
- Temperature, Operating, Minimum: -40 Deg. C
- Termination: Through-hole
- Tolerance: -20, +20 %
- Voltage Rating: 25V DC
Features:
- Fixed Capacitor
- Aluminum Electrolytic Capacitor radial type
- Wide temperature range -40'C~+105'C
- Voltage range from 6.3V~450V
- Stable and reliable performances
- Suit for use in electronic circuits for coupling, decoupling bypass, and filtering
Package Included:
1 x 220uF 25V Radial Aluminum Electrolytic Capacitor
