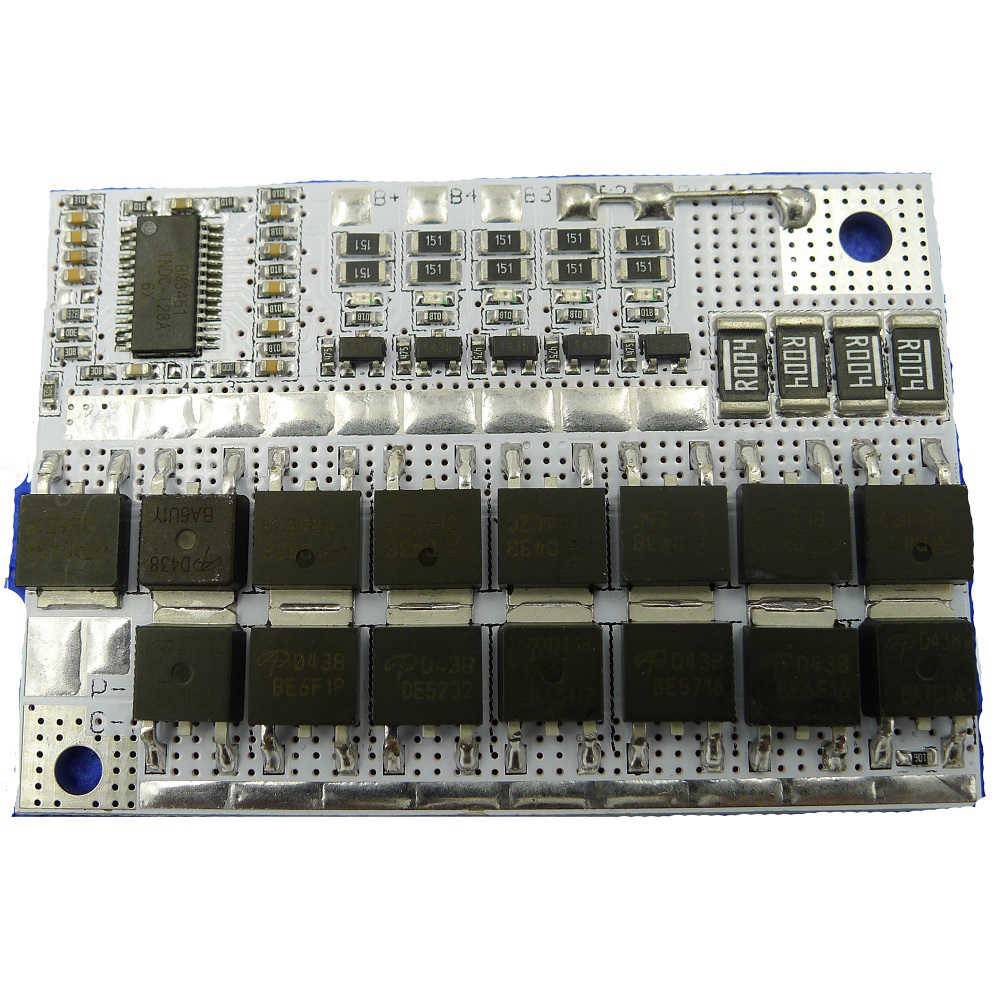

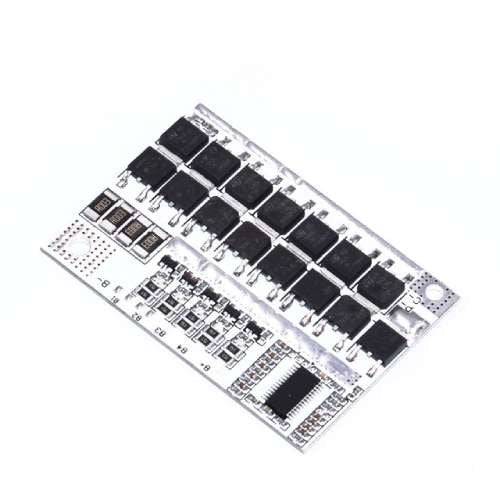

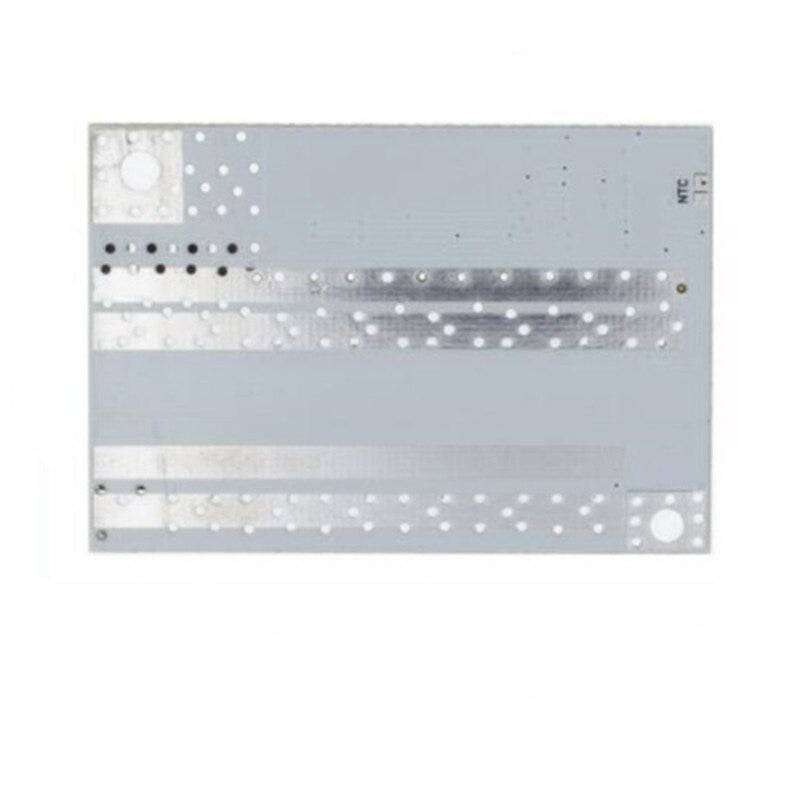

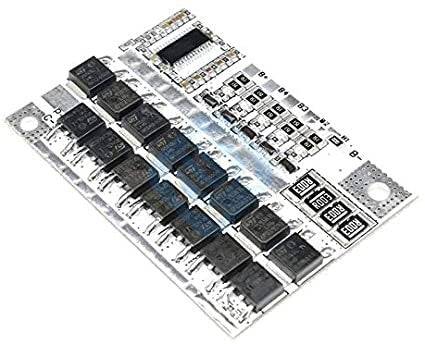

21V 100A BMS 5S Polymer Li-ion Battery Pack Protection Circuit Module PCM 18650 Li-Polymer Lithium Charging Board - RS2602

21V 100A BMS 5S Polymer Li-ion Battery Pack Protection Circuit Module PCM 18650 Li-Polymer Lithium Charging Board - RS2602

RS2602

In stock

Rs. 680.00
Rs. 680.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Supply Voltage:21V
  • Dissipation Power:w
  • Operating Temperature:-40 to 80℃
  • Model Number:18650
  • Battery:Lithium POLYMER Pack
  • Charging Current: 100A
  • Charging Voltage:21V (4.2V*5=21V)
  • Overcharge Protect Delay:1.5-2.5S

Description:

This protection board is 3s 4s 5s in common use lithium battery protection board (you can adjust for how many strings to be used), the default delivery is 5S ternary lithium. It has specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc. Common use for same port and different port, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A, different port mode discharge current 80A, charging current 60A. It can use for LMO. Ternary lithium battery, LCO(3.7V)battery packs etc.

Features:

  • Supply Voltage:21V
  • Dissipation Power:w
  • Operating Temperature:-40 to 80℃
  • Model Number:18650
  • Battery:Lithium POLYMER Pack
  • Charging Current:100A
  • Charging Voltage:21V (4.2V*5=21V)
  • Overcharge Protect Delay:1.5-2.5S
  • Overcharge Protect Current:100A
  • Over-discharge protect Current:100A
  • Temperature protect:Yes
  • Shortage Delay: 100-600 uS:100-600 uS
  • Single cell Battery Overcharge Protect Voltage : 4.21-4.29 V
  • Single cell Battery Overcharge Protect Recover Voltage : 4.14-4.24 V
  • Single cell Battery Over-discharge Protect voltage : 2.72-2.88 V
  • Single cell Battery Over-discharge Protect Recover Voltage : 2.9-3.1 V

Package Included:

1 x 21V 100A BMS 5S Polymer Li-ion Battery Pack Protection Circuit Module PCM 18650 Li-Polymer Lithium Charging Board
