Description:

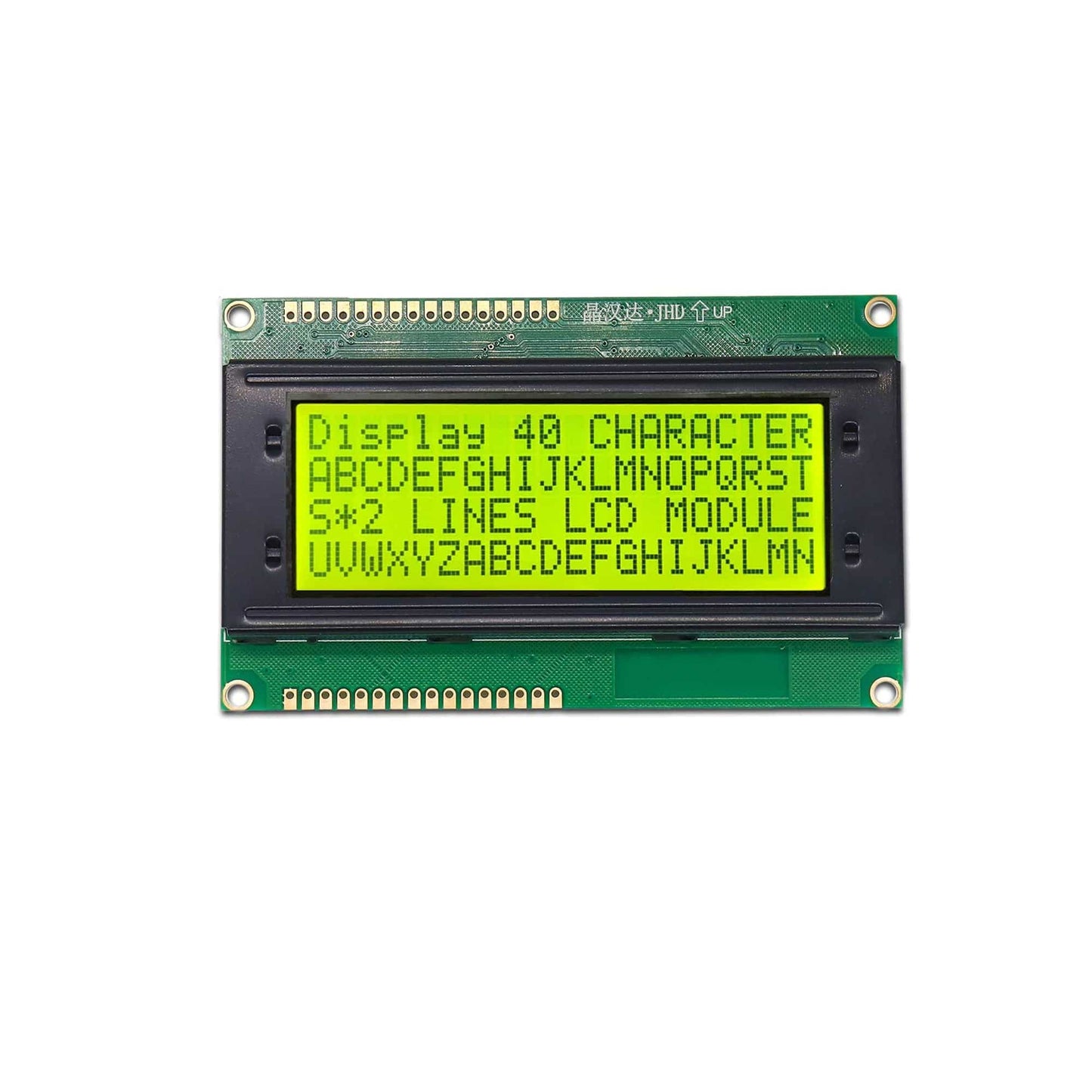

The 20×4 LCD Display provides a simple and cost-effective solution for adding a 20×4 black on RGB liquid crystal display to your project. The 20 characters by 4-line display have a very clear and high contrast black text upon a yellow background/backlight. The 20×4 LCD Display can be easily interfaced with an MCU. The 20×4 LCD Display is a low-power consumption character LCD Module with a built-in controller.
Specifications:
- Display Format: 20 Characters x 4 lines
- Supply Voltage: 5V
- Backlight Color: Yellow
- LCD Type: STN, Positive, Reflective
- Viewing Direction: 6 O'Clock
- Size: Approx 9.8cm x 6cm x 1.2cm
Features:
- LCD 20x4 character LCD module has a yellow and green backlight
- The module can be easily interfaced with an MCU
- Single LED backlight included can be dimmed easily with a resistor or PWM
- Can be fully controlled with only 6 digital lines. (Any analogue/digital pins can be used)
Package Included:
1 x 20×4 LCD Display 20×4 Character LCD Display with Yellow Backlight - Alphanumeric
