- Cable Length: 20 cm.
- Connector Type: JST PH-Style connector.
- Three pin JST connector with red, black, and yellow colors.
- Quick and easy, this cable will save your time over making your own wiring harness.
Description:

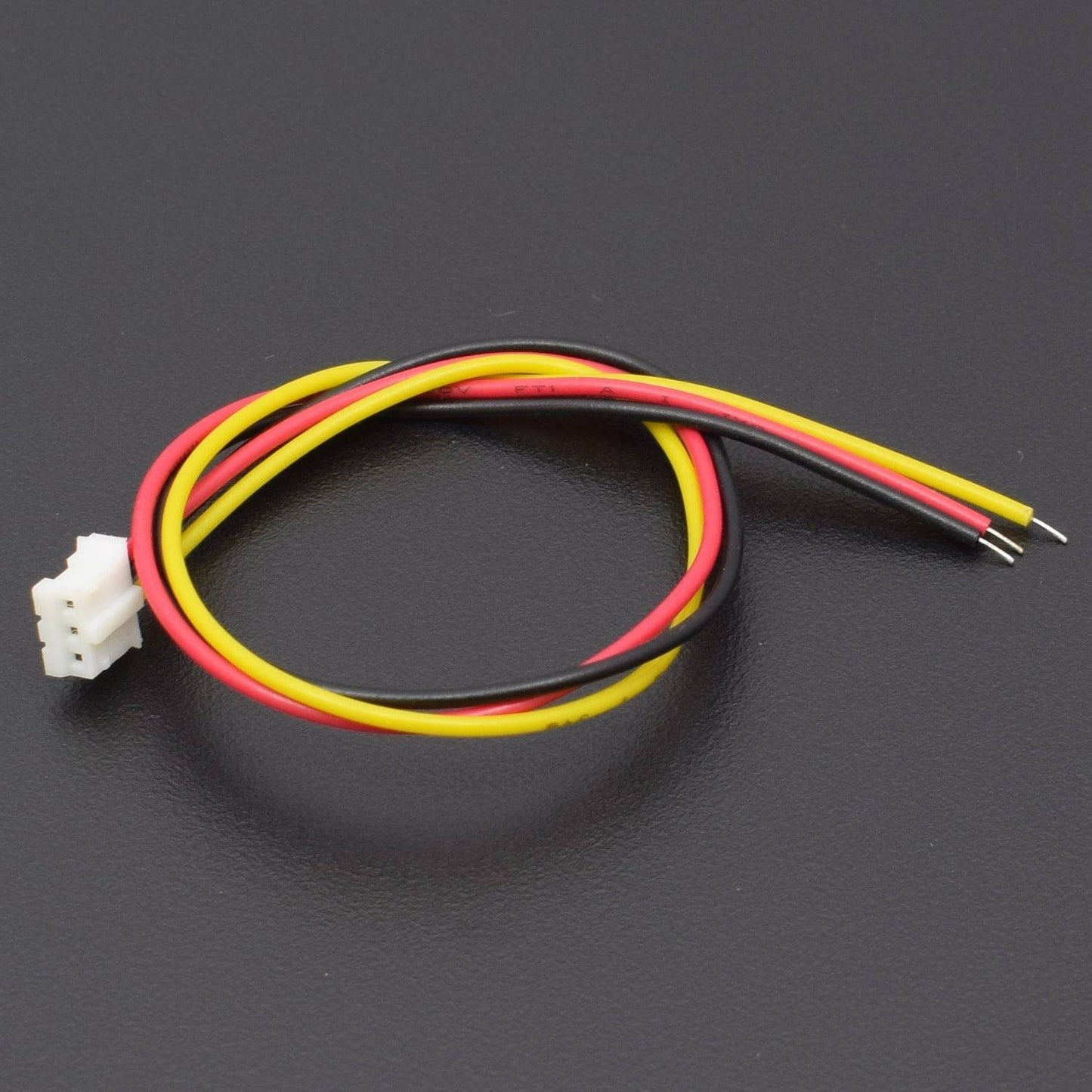

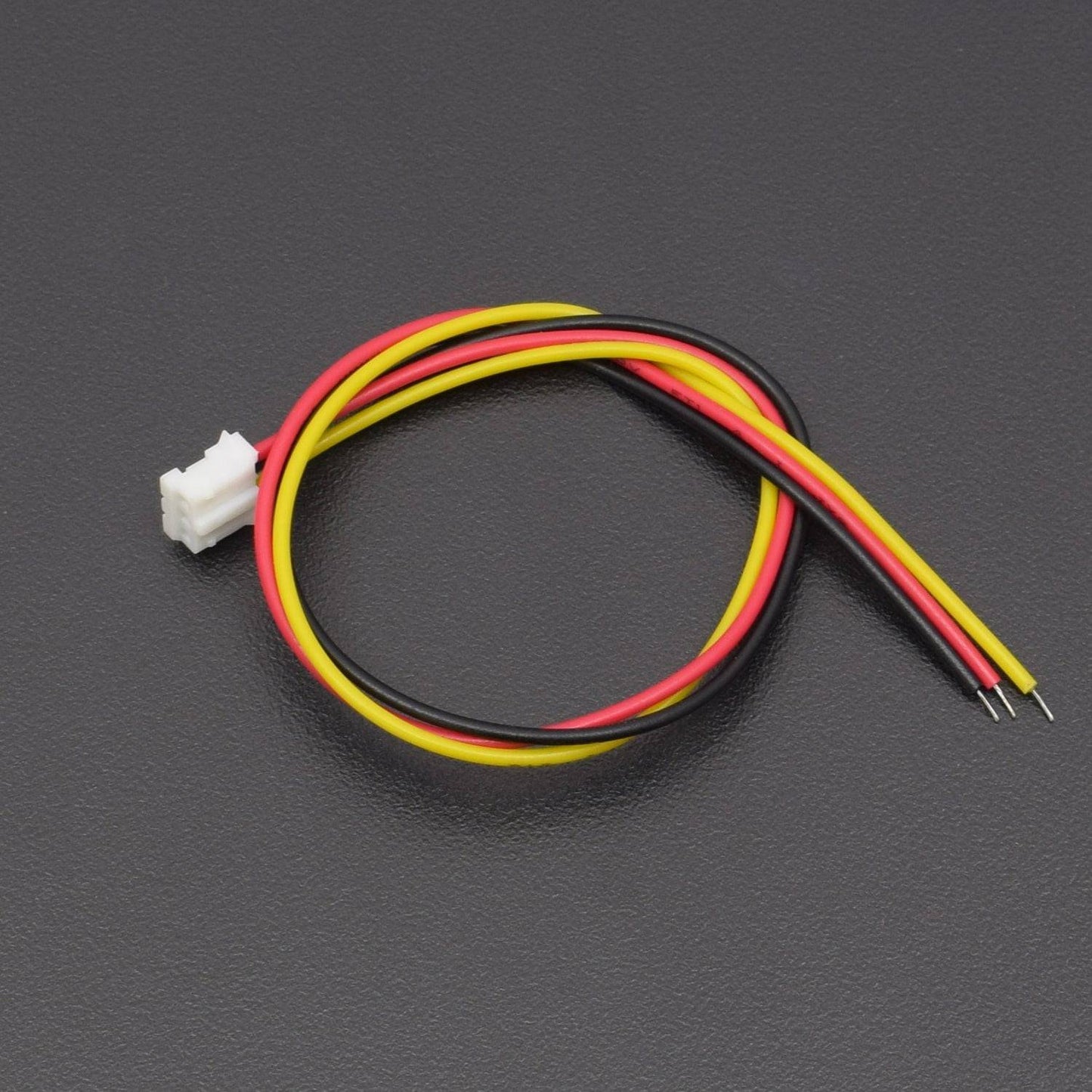

This 20 cm cable has 26 AWG wires and a 3-pin female JST PH-style connector that works with Sharp analog distance sensors that have mating PH connectors, such as the 4-30 cm GP2Y0A41, the 10-80 cm GP2Y0A21, and the 20-150 cm GP2Y0A02. The other ends of the wires are unterminated; they can be cut to length to match your application.
Specification:
- Cable Length: 20 cm.
- Connector Type: JST PH-Style connector.
Features:
- Three pin JST connector with red, black, and yellow colors.
- 20 CM wire outs.
- This cable comes fully assembled as shown and connects directly to many different Sharp sensors.
- Quick and easy, this cable will save your time over making your own wiring harness.
Pin Description:
- Red: For power
- Black: For ground
- Yellow: For a signal
Package Included:
1 x 20cm Cable for 0A21 0A02 0A41 Sharp IR Sensor
