20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)- RS2667

• Driver Model: 20A PWM DC Motor Speed Regulator
• Operating Voltage: 9 ~ 60V DC
• Peak Current: 20A
• Continuous Current: 18A
• Continuous Power: 1200W

Description:

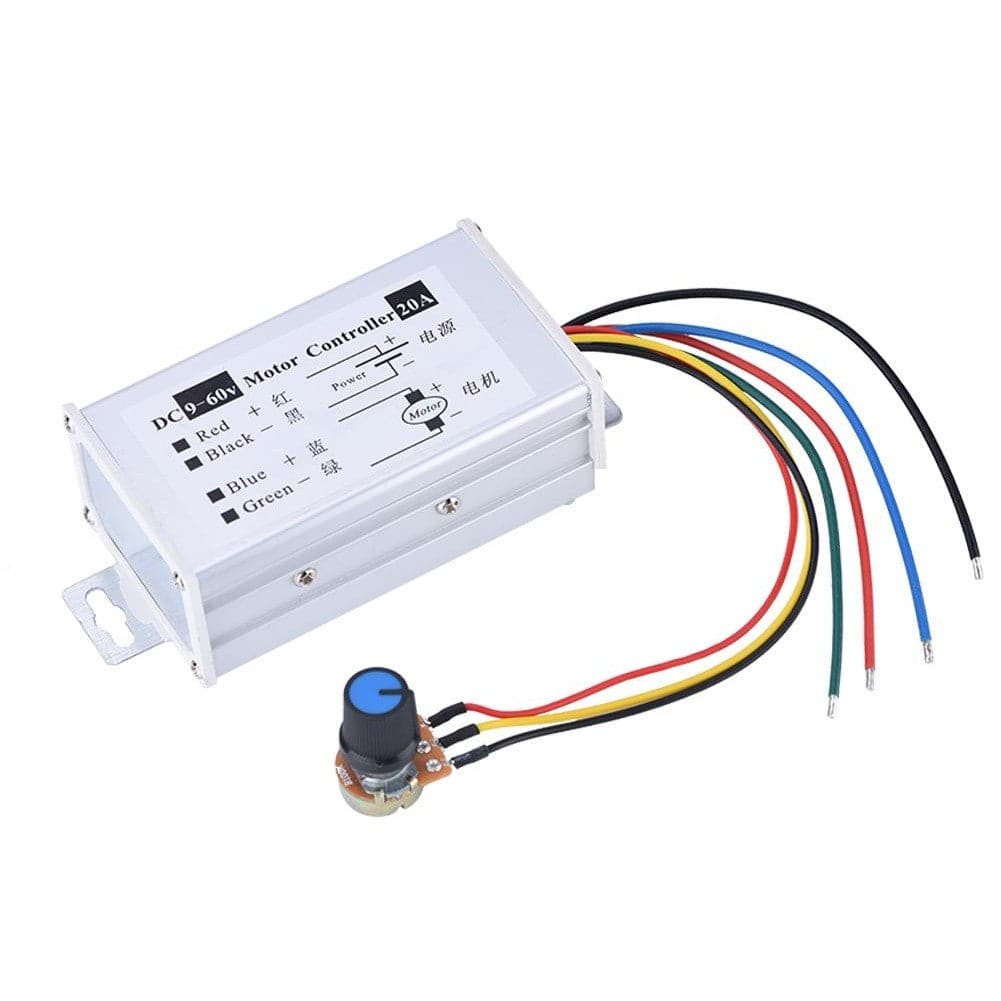

The 20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V) is suitable for the DC brushed motor (or DC load) within 20A. It comes with a metal shell and connective label, which makes it very easy to install and use.

It has a potentiometer with an adjusted speed switch function and a button switch function.

Specification:

• Driver Model: 20A PWM DC Motor Speed Regulator
• Operating Voltage: 9 ~ 60V DC
• Peak Current: 20A
• Continuous Current: 18A
• Continuous Power: 1200W
• PWM Frequency: 25KHz
• No. of Channels: 1
• Battery Protection Mode: No
• Thermal Protection: Yes
• LED Indicator: Yes
• Speed Control: Yes
• Polarity Protection: Yes

Features:

• Output voltage: Linear under load
• Speed control type: Basins
• Output voltage: Load Linear
• Type: Adjusting flow
• The motor running condition adjustment: Forward / Stop / Reverse
• Reverse polarity protection: Yes
• Suitable Motor: DC brush motors

Connection Mode:

• Red Line: Power +
• Blue Line: Motor+
• Black Line: Power –
• Green Line: Motor –

Warning:

• DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS. THIS WILL DAMAGE THE CONTROLLER.
• TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF THE MOTOR.

1. Connect wires refer to the “wiring diagram”.
2. Turn on the power.
3. Adjust the potentiometer.

Package Included:

1 x 20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V)
