Description:

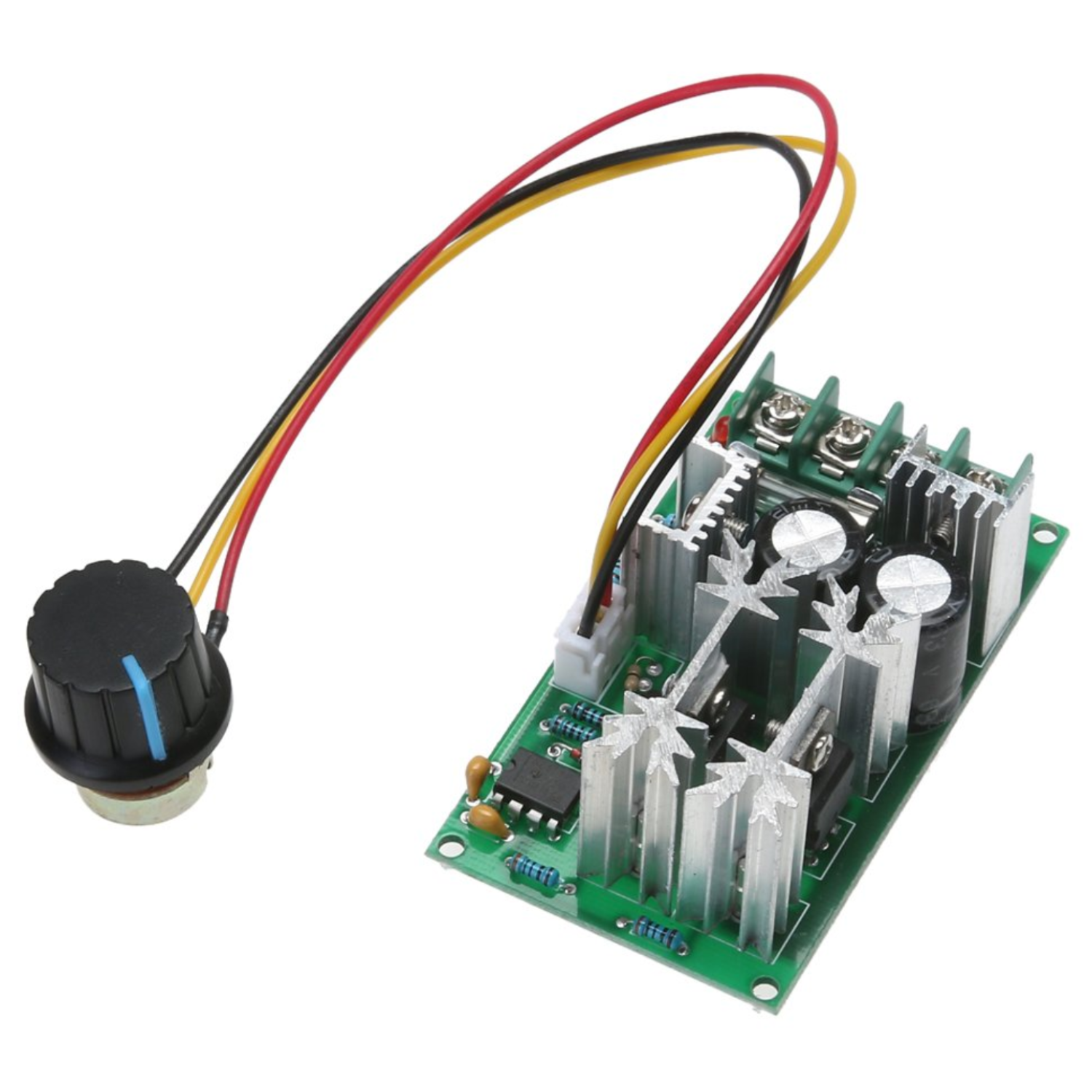

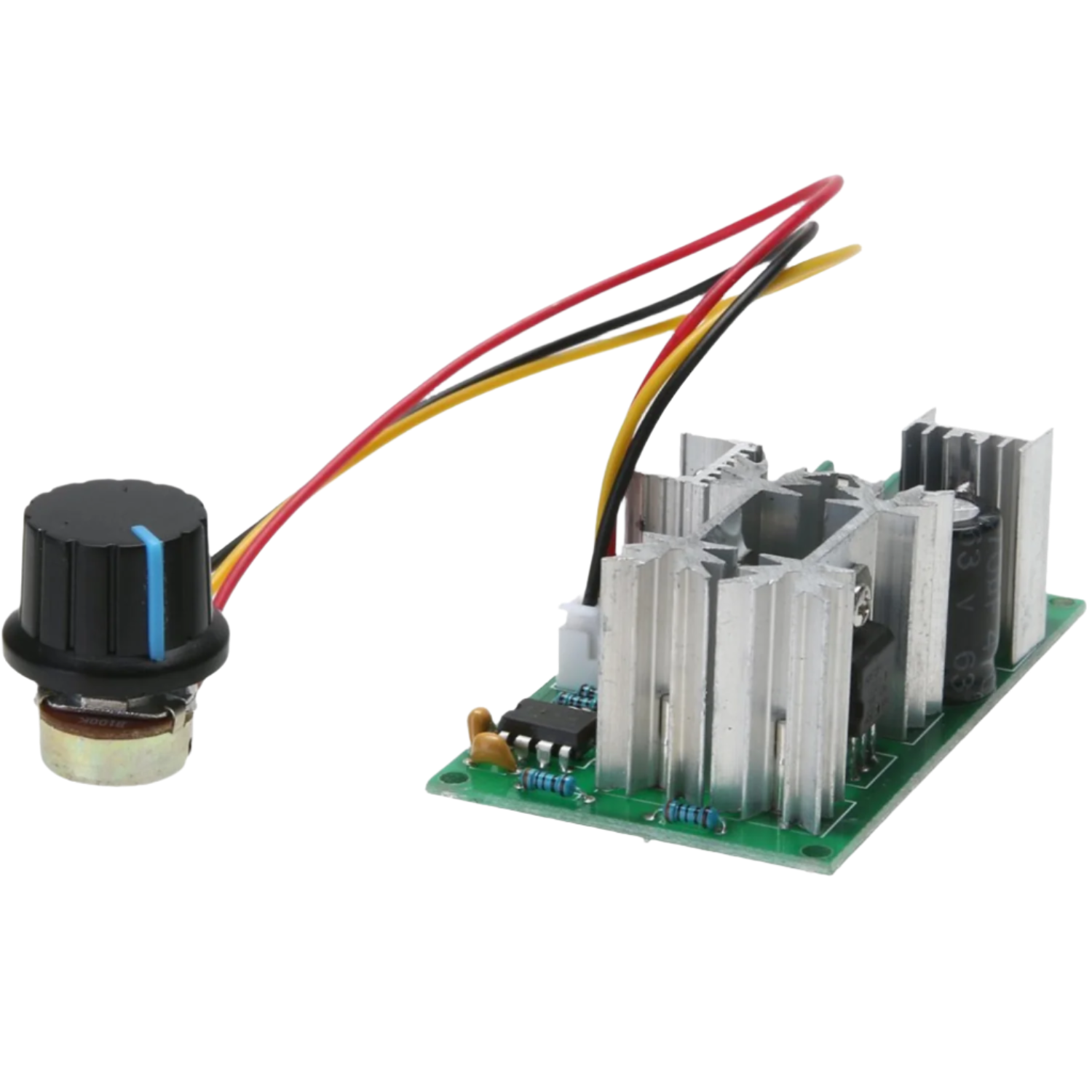

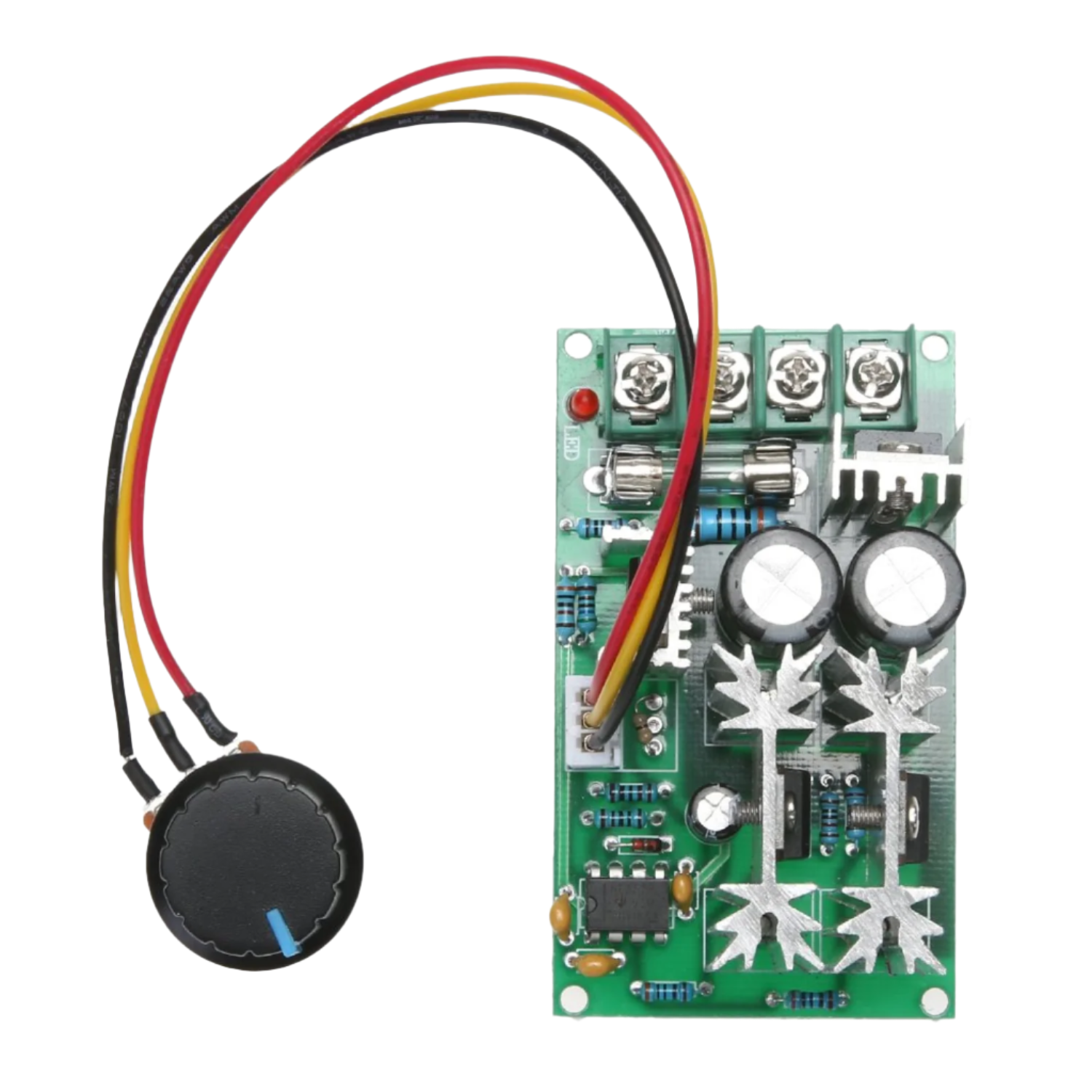

Experience precise and versatile control over your DC motors with our 20A PWM Motor Speed Controller Engineered to deliver smooth and adjustable speed regulation, this module utilizes Pulse-Width Modulation (PWM) technology, allowing you to fine-tune motor performance across a broad operational range.

At its core lies a high-power DC motor driver module, designed to handle demanding applications. This controller accepts a wide input voltage range, from DC 10V to 60V, providing compatibility with various power sources. It delivers a maximum output current of 20A, enabling you to drive powerful motors. However, for continuous, long-term operation, it is recommended to limit the current to 10A and the power to 450W to ensure optimal performance and longevity. Proper heat dissipation is crucial under sustained high-load conditions.

 Specifications:

  • Input voltage: DC 10- 60V
  • Output voltage type: Load Linear
  • Output Current: 20A
  • Continuous power: 1200W
  • Speed Type: adjusting flow

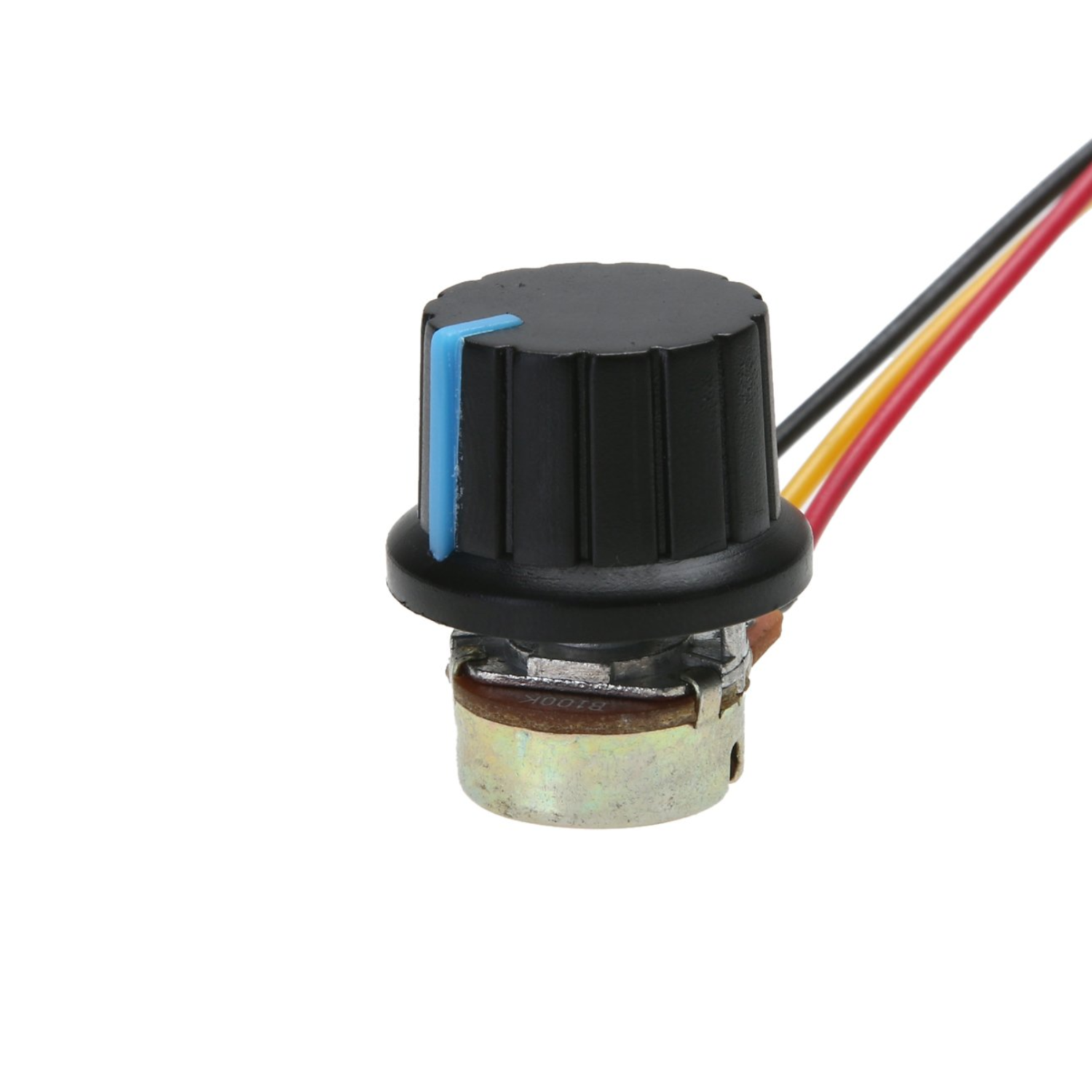

  • Speed mode: potentiometer (linear)
  • Speed range: 0 - 100%
  • Control frequency: 25 KHz
  • Connection Type: Barrier Terminal Block
  • colour: black+green
  • Material: ABS+PC+ metal

Features:

  • 3.5mm audio connector
  • 5 gold fingers
  • Built-in buzzer (switch switching)
  • Yellow and black differentiated 3PIN interface
  • 5V 1A self-recovery fuse

Package Included:

1 x 20A PWM DC Motor Speed Controller
