200W Boost Converter Module DC-DC 6-35V to 6-55V Step-Up Adjustable Power Supply Voltage Boost Power Supply Module,High Efficiency, Good Heat Dissipation For Electric - RS2944

200W Boost Converter Module DC-DC 6-35V to 6-55V Step-Up Adjustable Power Supply Voltage Boost Power Supply Module,High Efficiency, Good Heat Dissipation For Electric - RS2944

SKU:RS2944

102 in stock

Regular price Rs. 329.00
Regular price Sale price Rs. 329.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

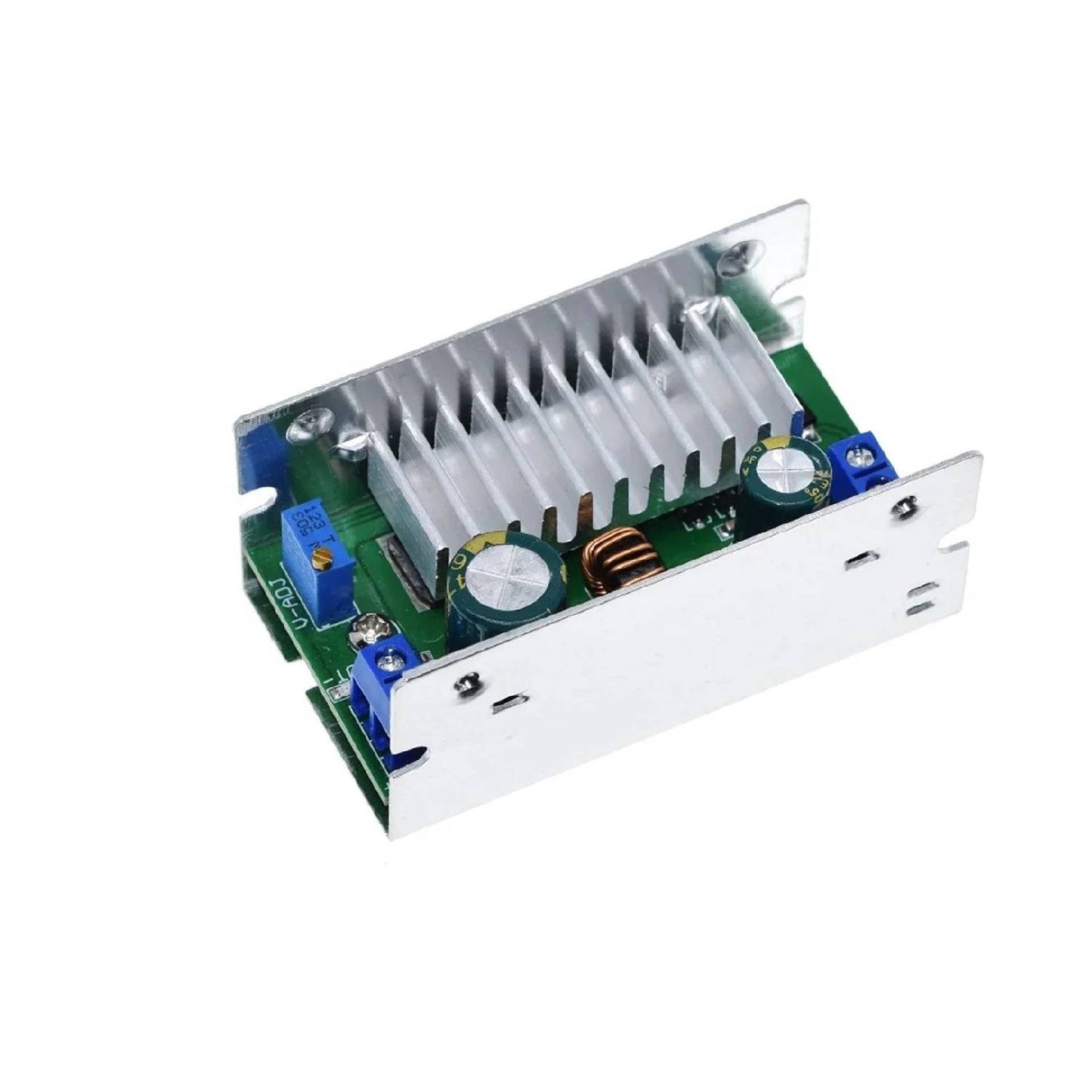

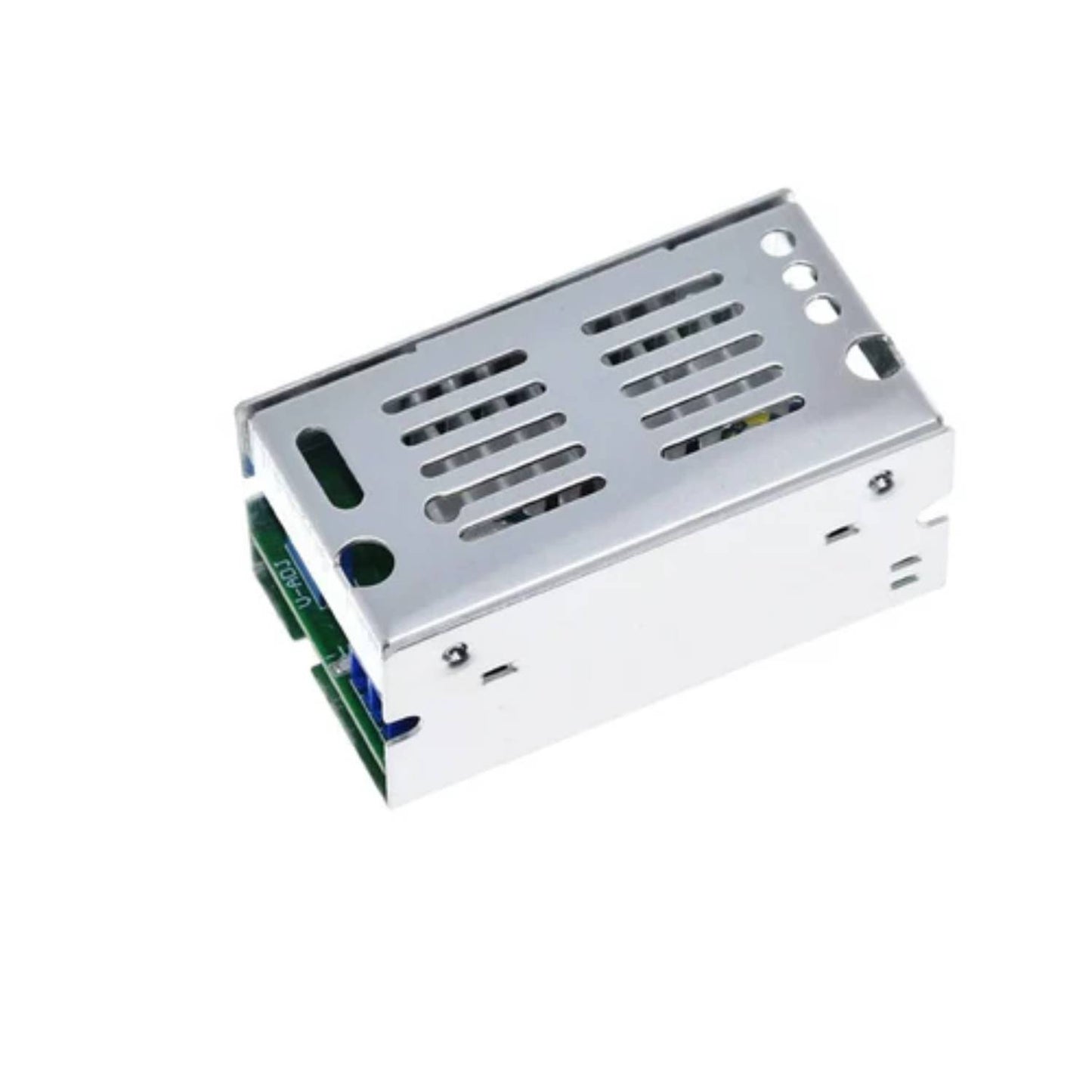

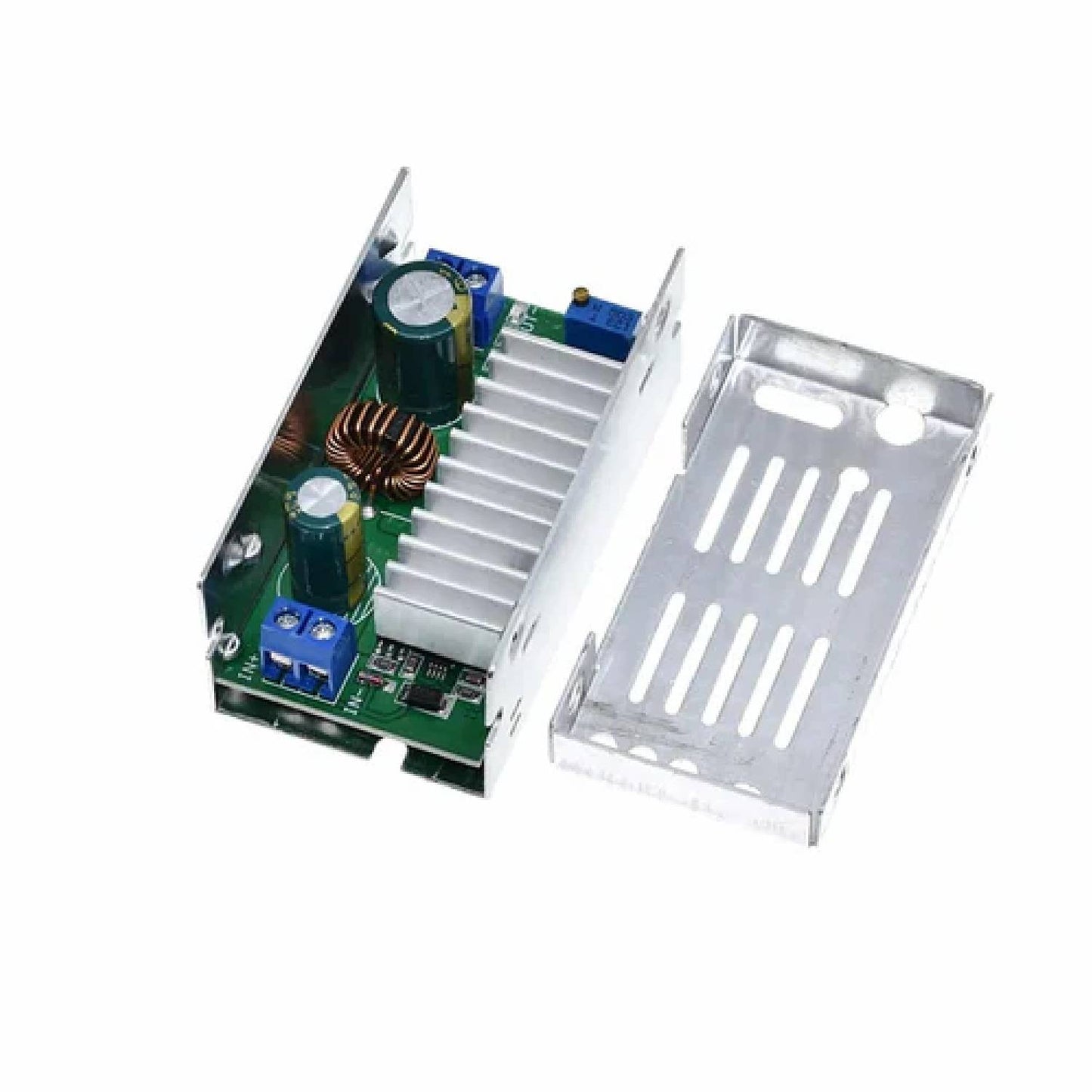

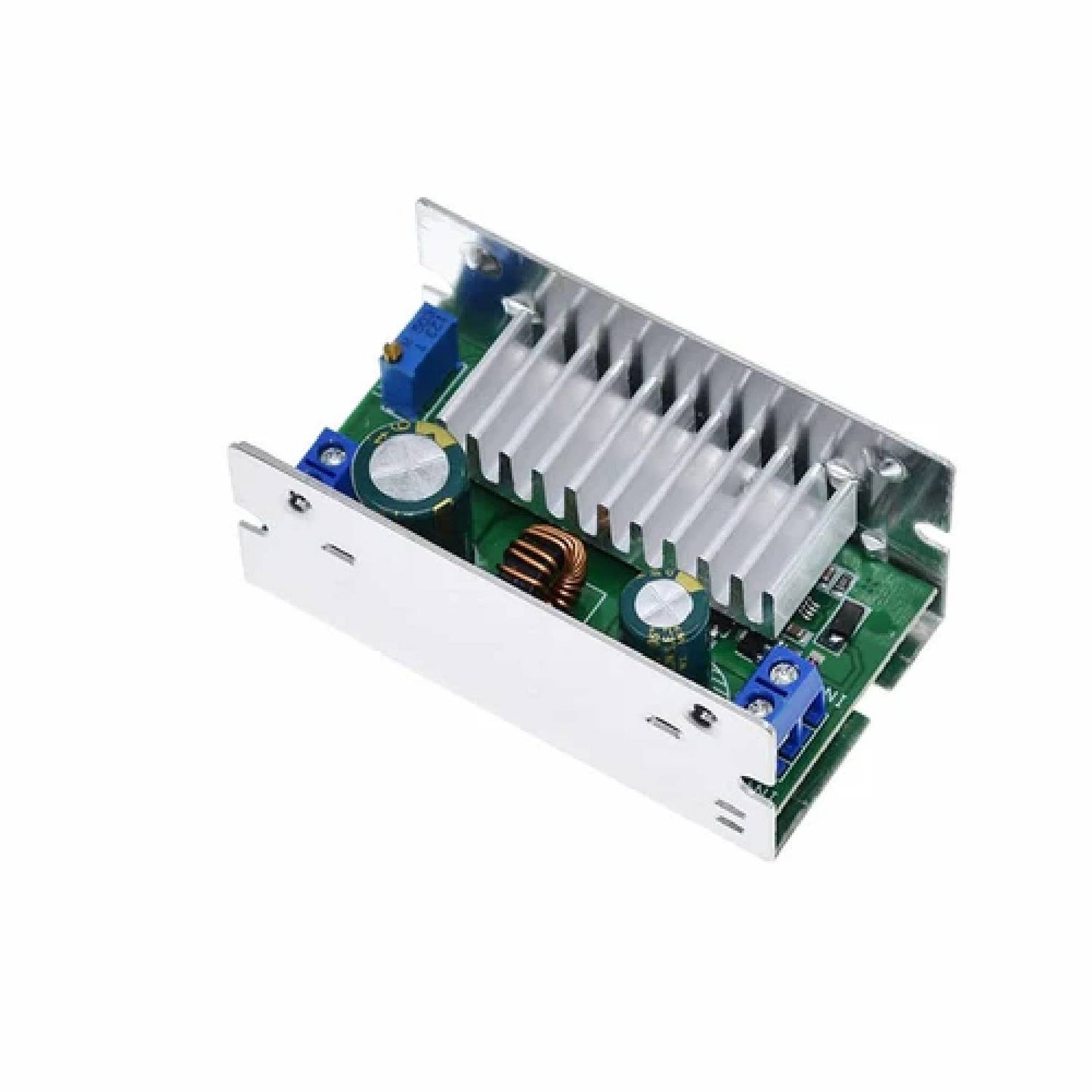

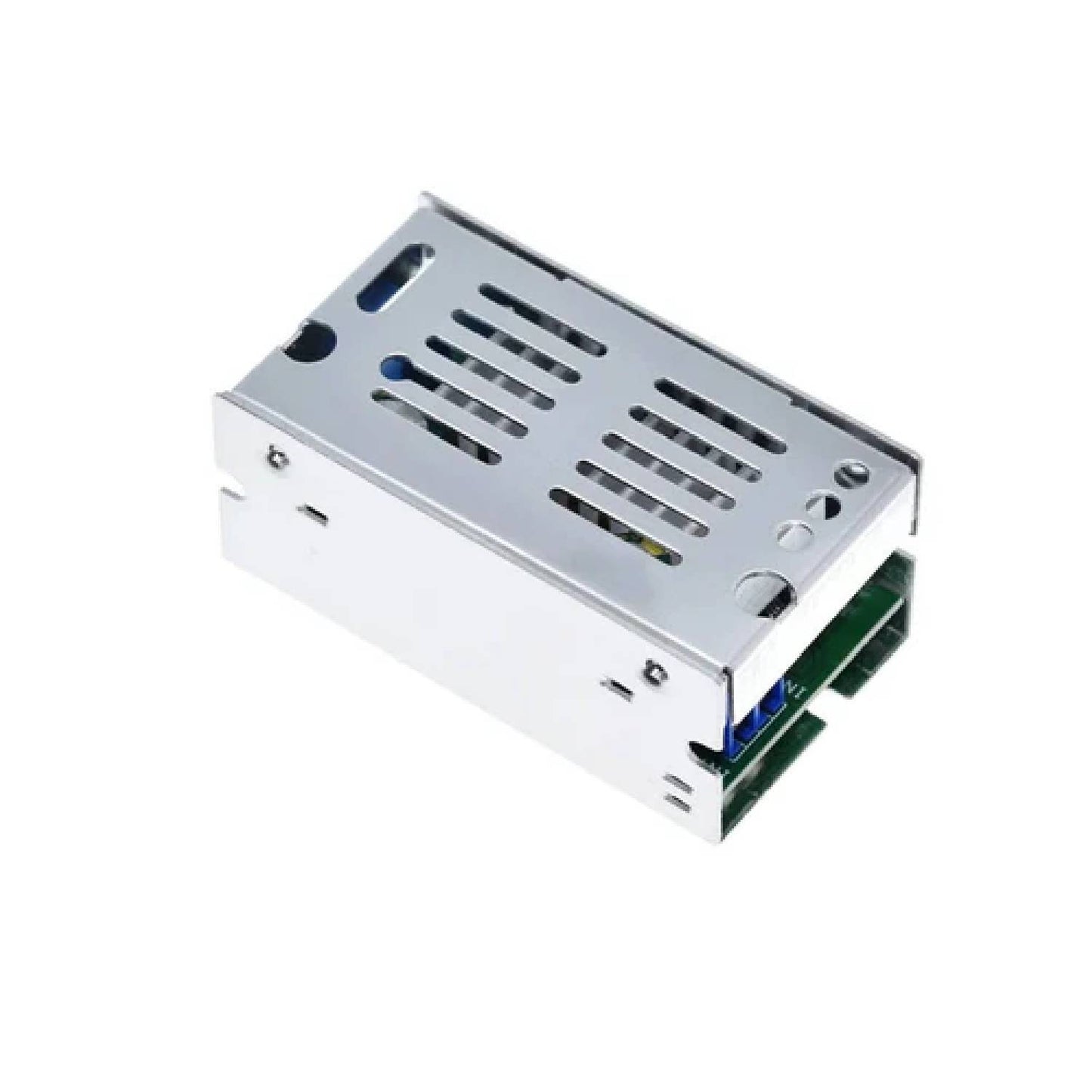

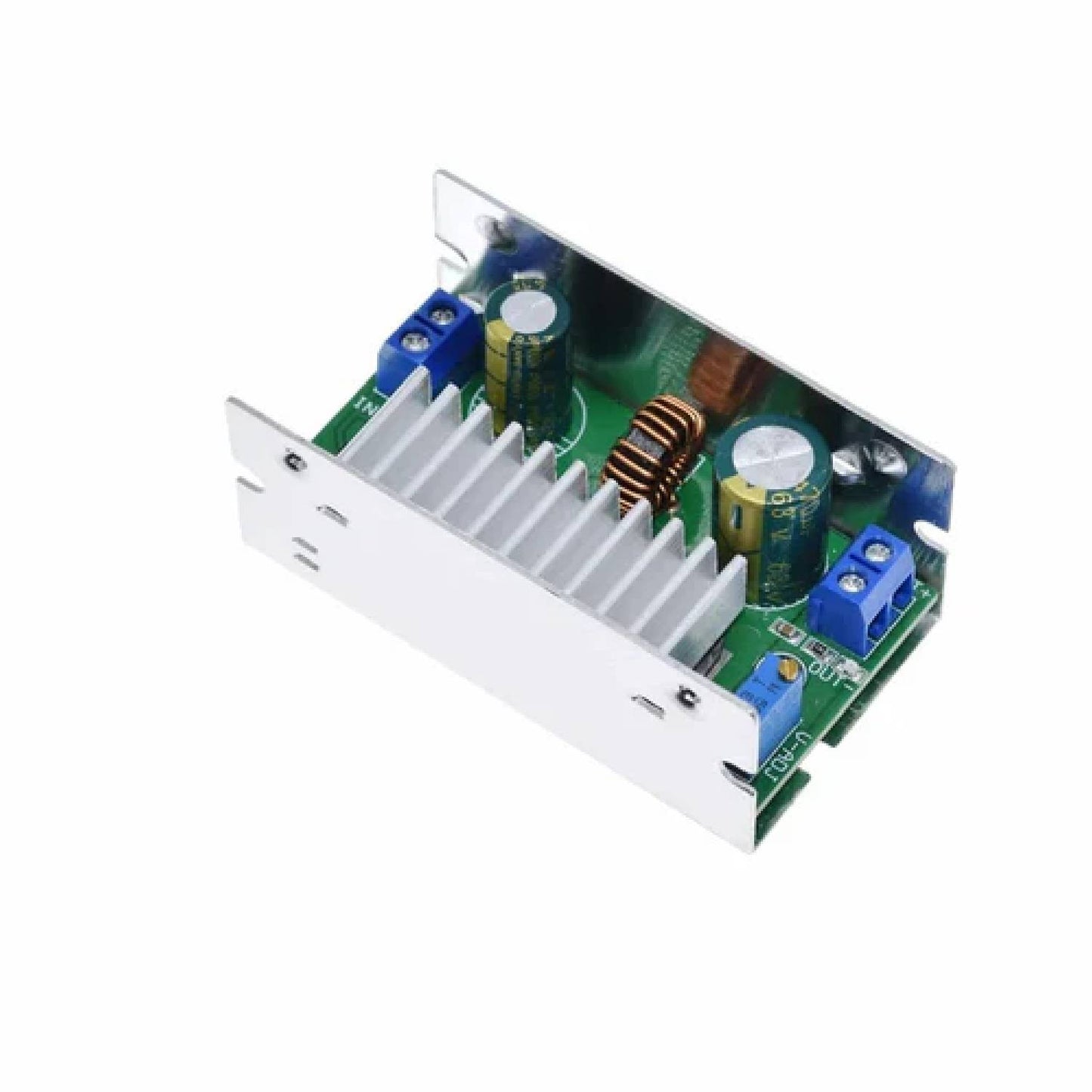

This adjustable 200W Boost Converter Module is a 200W DC to DC step-up power supply module for electric equipment, digital products, laptops, etc. The aluminium outer case of this DC-DC Boost Converter Module will protect the step-up module and is also good for heat dissipation.

This 200W Boost Converter Module charger module has high efficiency, the maximum conversion efficiency can be 97.6% and efficiency is related to input/output voltage and current. 200W Boost Converter Module is designed with a big heat sink that would ensure better heat dissipation. Input and output are designed with screw terminals for convenient wire connection and disconnection.

Specifications:

  • Input voltage :6-35V
  • Output voltage: 6-55V (adjustable)
  • Output Current: 10A (MAX)
  • Input Current: 7A (MAX)
  • Output Power: 200W

Features:

  • The non-isolated step-up power conversion module
  • Onboard LED illuminates when the voltage is applied to the module
  • Equips Multi-turn Potentiometer.
  • The output voltage is continuously adjustable on OUT+ and OUT- screw terminals (Output voltage must be greater than input voltage.

Applications:

  • Industrial automation
  • Scientific research equipment
  • Air purification
  • Civil equipment

Package Included:

1 x 200W Boost Converter Module DC-DC 6-35V to 6-55V Adjustable Step Up Converter Module 200W Voltage Boost Converter Charger Module
