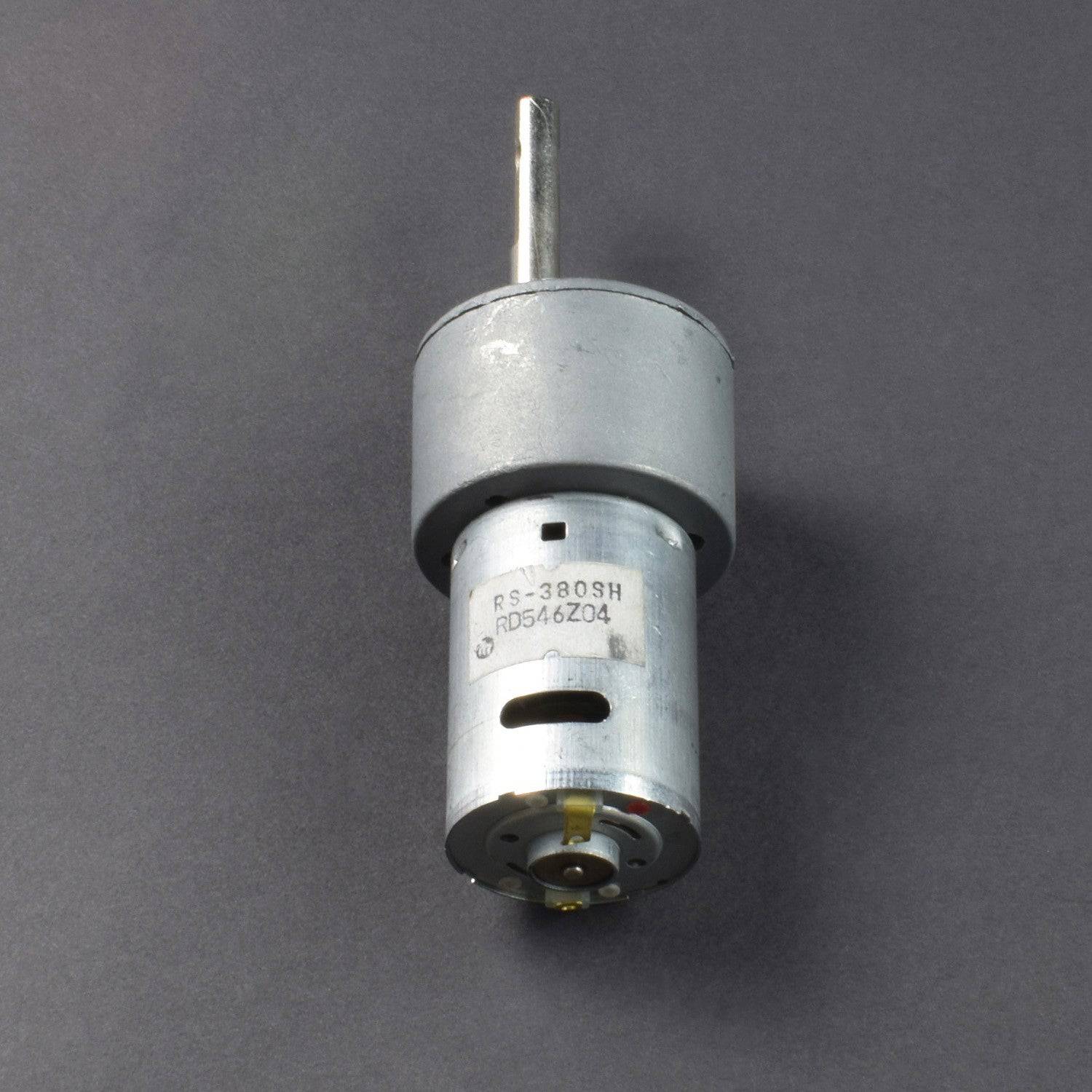

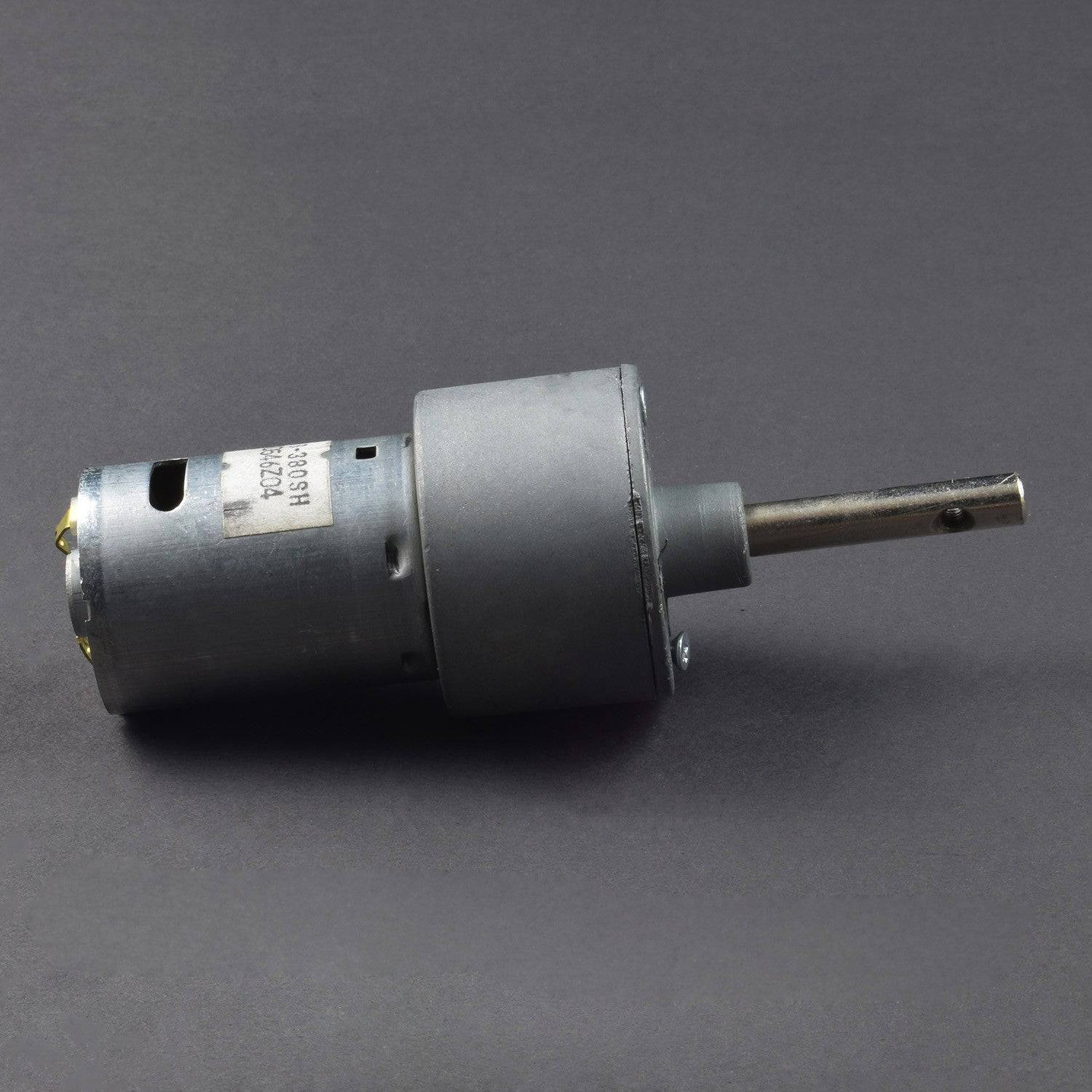

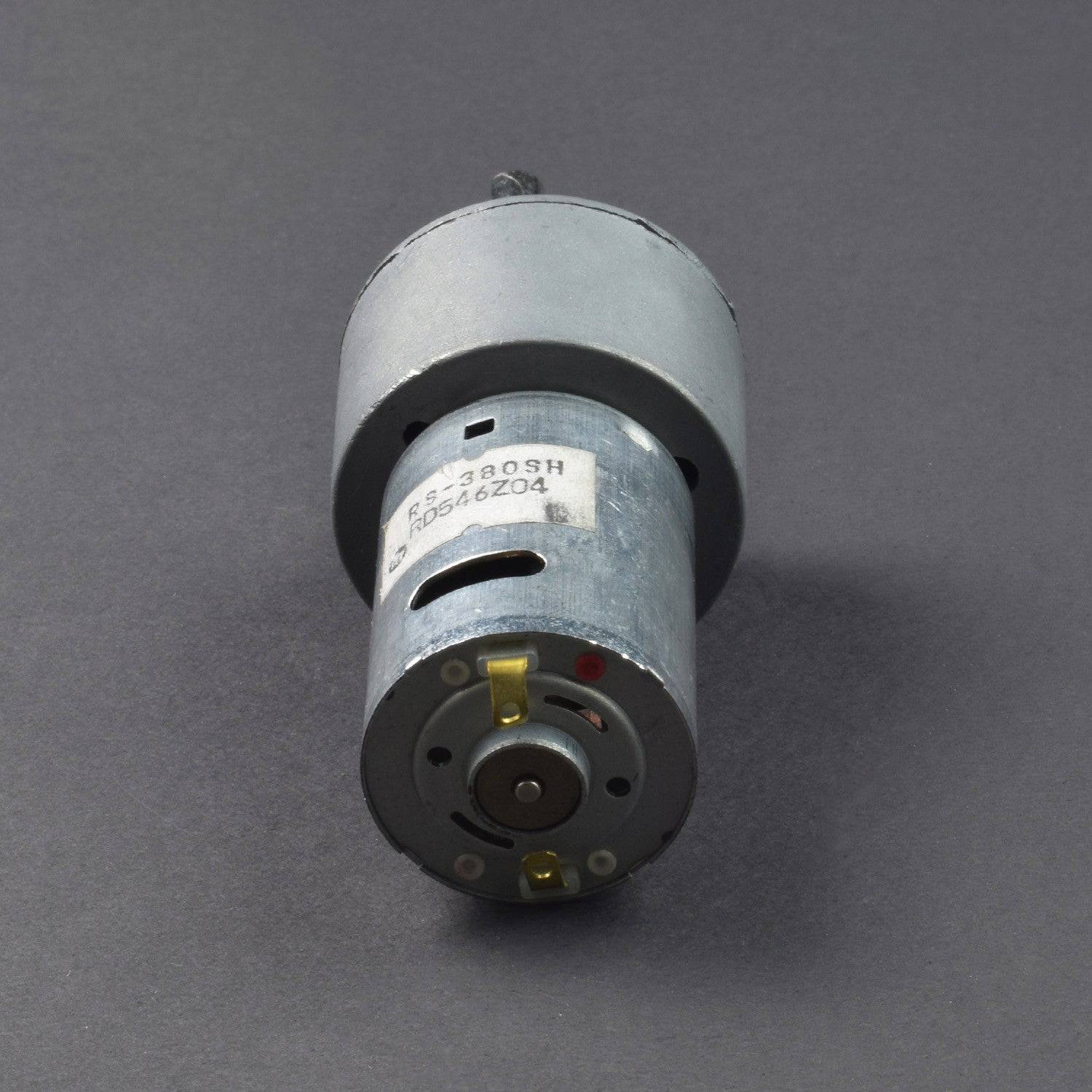

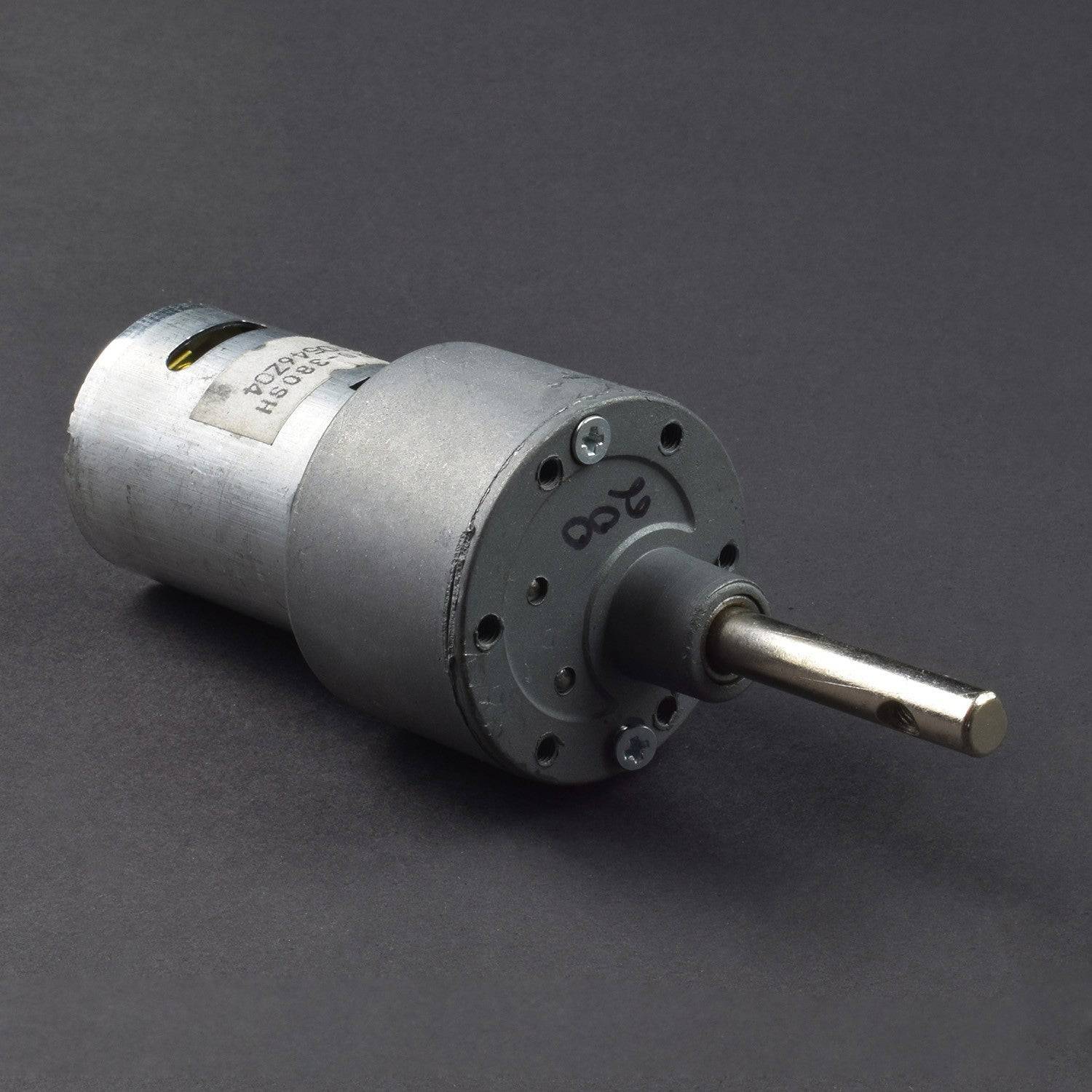

200 RPM Johnson 12V DC Geared Motor High Torque - RS233
200 RPM Johnson 12V DC Geared Motor High Torque - RS233
SKU:RS233
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- RPM: 200 rpm @12V
- Voltage: 6V to 12V
- Stall Torque: 32 kg-cm @ 12V
- Gear: Metal (spur)
- Shaft size: 6mm dia
Description:
The Johnson geared side-shaft motor can be used for high torque application and other automation purposes. The motor comes with a 6mm off-centered shaft and M3 holes for mounting. It is different from the regular Johnson motor for its very high reliability. It is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply. The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling.
Specification:
| Rated Base Motor RPM | 200 |
| Gear Material | Metal |
| Rated RPM | 200 |
| Operating Voltage(VDC) | 6 to 12 |
| Nominal Voltage (V) | 12 |
| Rated Torque(kg-cm) | 4.7 |
| Stall Torque(Kg-Cm) | 18.8 |
| No-Load Current | 350 mA |
| Load Current(A) | 1.1 A |
Package Included:
1 x 200 RPM Johnson 12V DC Geared Motor
