200 ohm VARIABLE RESISTOR - RS563
200 ohm VARIABLE RESISTOR - RS563
SKU:RS563
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Track Resistance: 200ohm
- No. of Turns: 1
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 200ohm
- Resistor Element Material: Variable Rotary Cermet

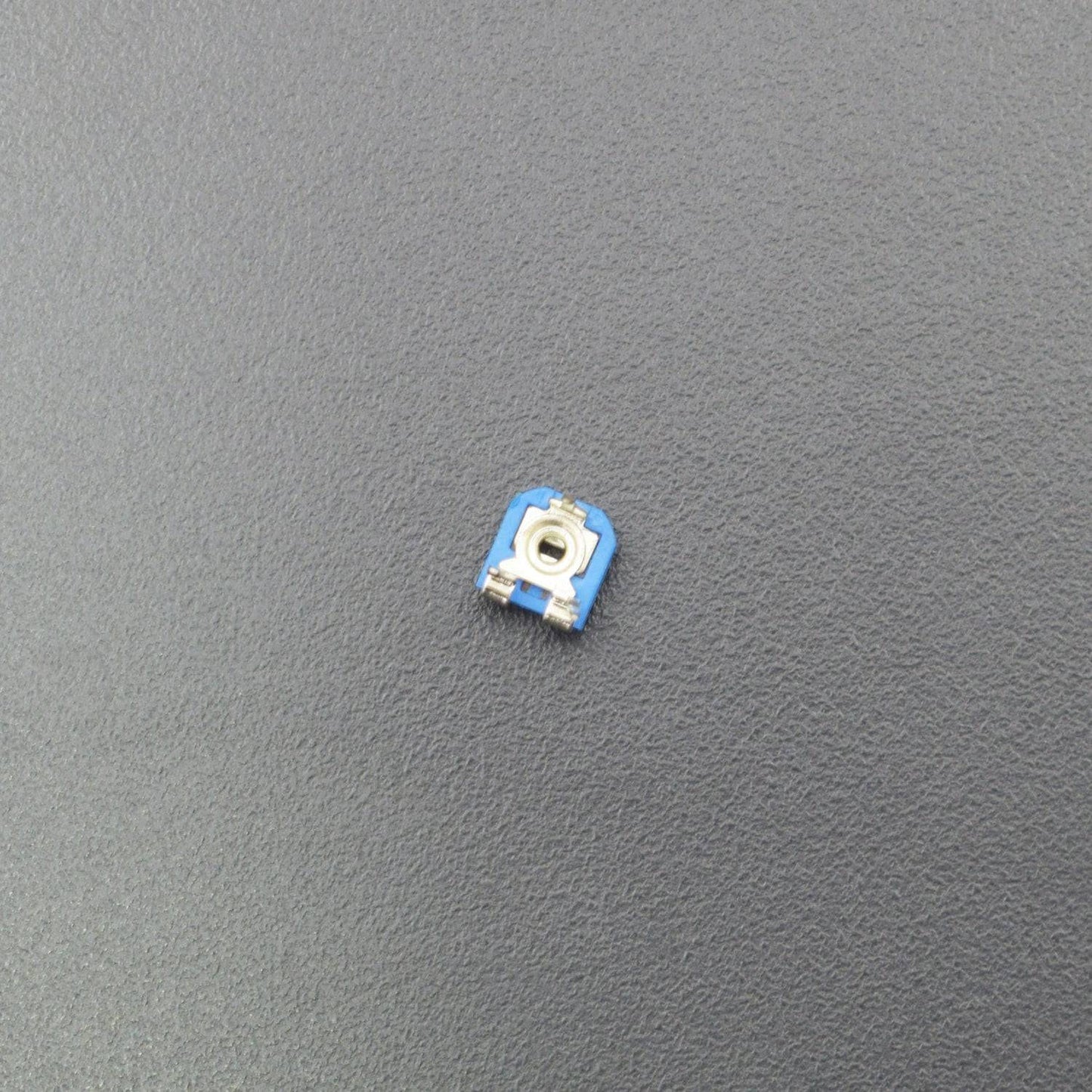

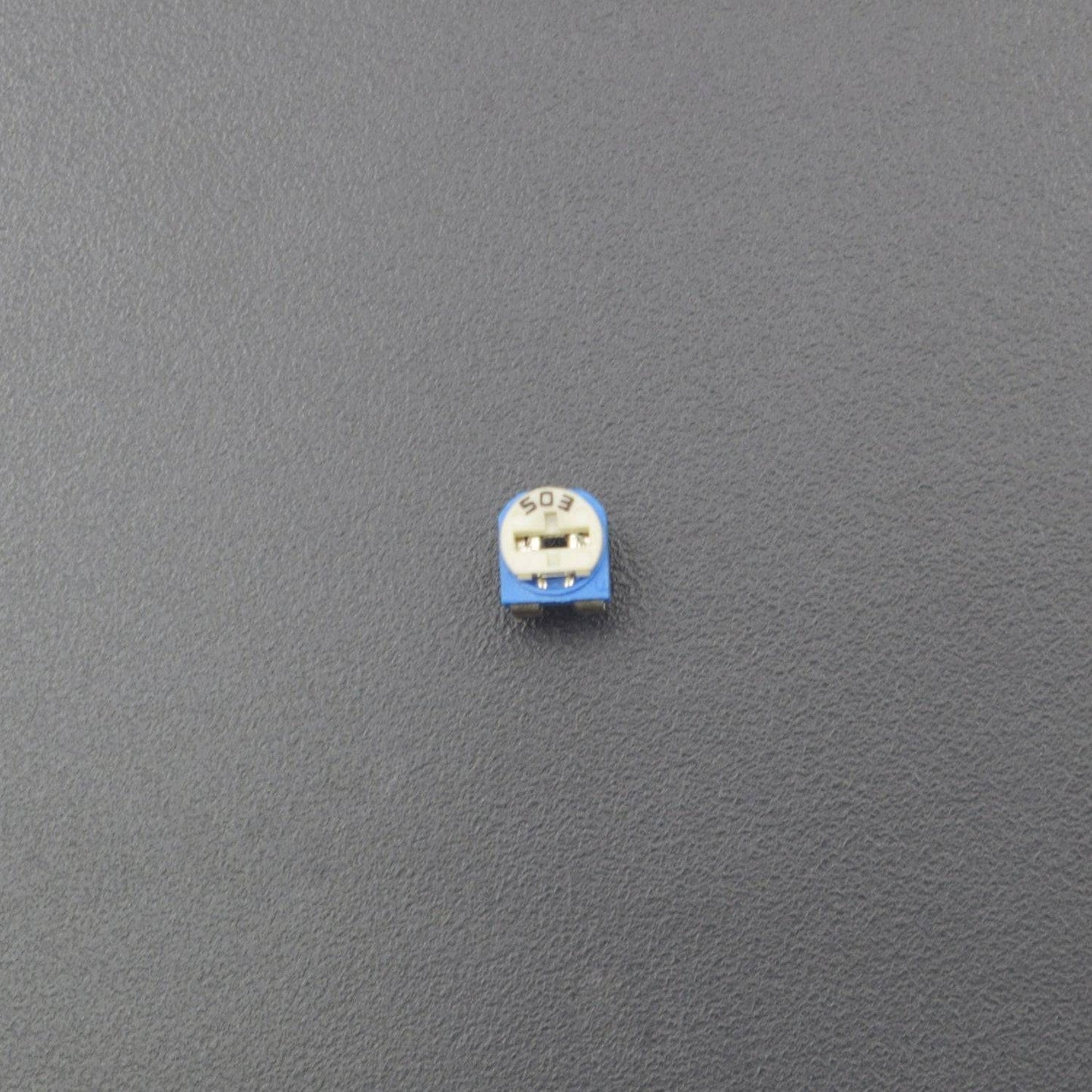

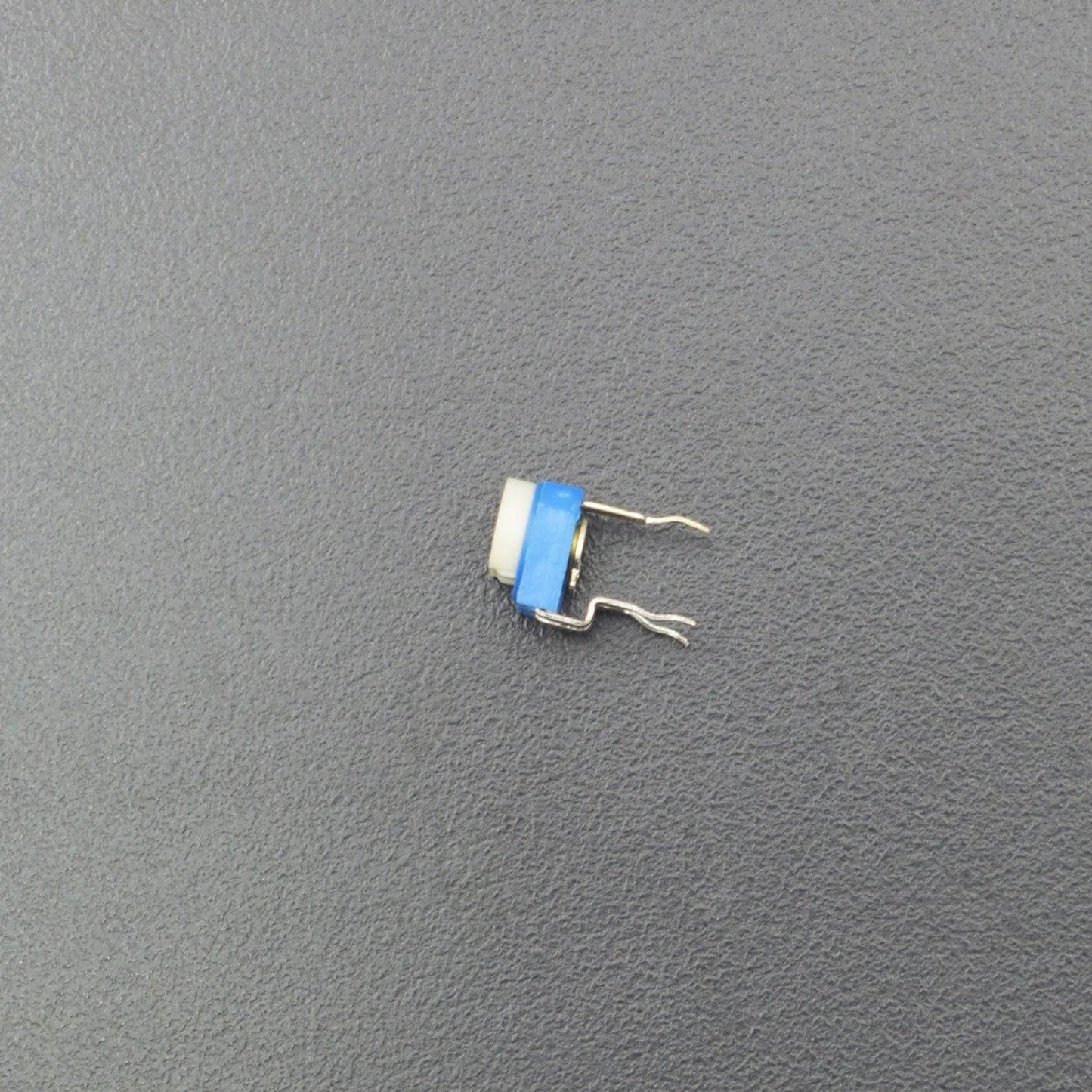

A trimpot or trimmer potentiometer is a small potentiometer which is used for adjustment, tuning and calibration in circuits.
pcb mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated.
A trimpot or trimmer potentiometer is a small potentiometer which is used for adjustment, tuning, and calibration in circuits. When they are used as a variable resistance (wired as a rheostat) they are called preset resistors. Trimpots or presets are normally mounted on printed circuit boards and adjusted by using a screwdriver.
- Track Resistance: 200ohm
- No. of Turns: 1
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Potentiometer Mounting: Through Hole
- Adjustment Type: Top
- Contact Resistance Variation +: 1%
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Range: -55°C to +125°C
- Resistance: 200ohm
- Resistor Element Material: Variable Rotary Cermet
| Product Name | 200-ohm Variable Resistor 201 Potentiometer For Breadboard |
| Usage | Breadboarding and Prototyping |
| Resistor Value | 0-200 ohms |
| Feature | Adjustable |
| Color | white/blue |
| Certificate | RoHs |
