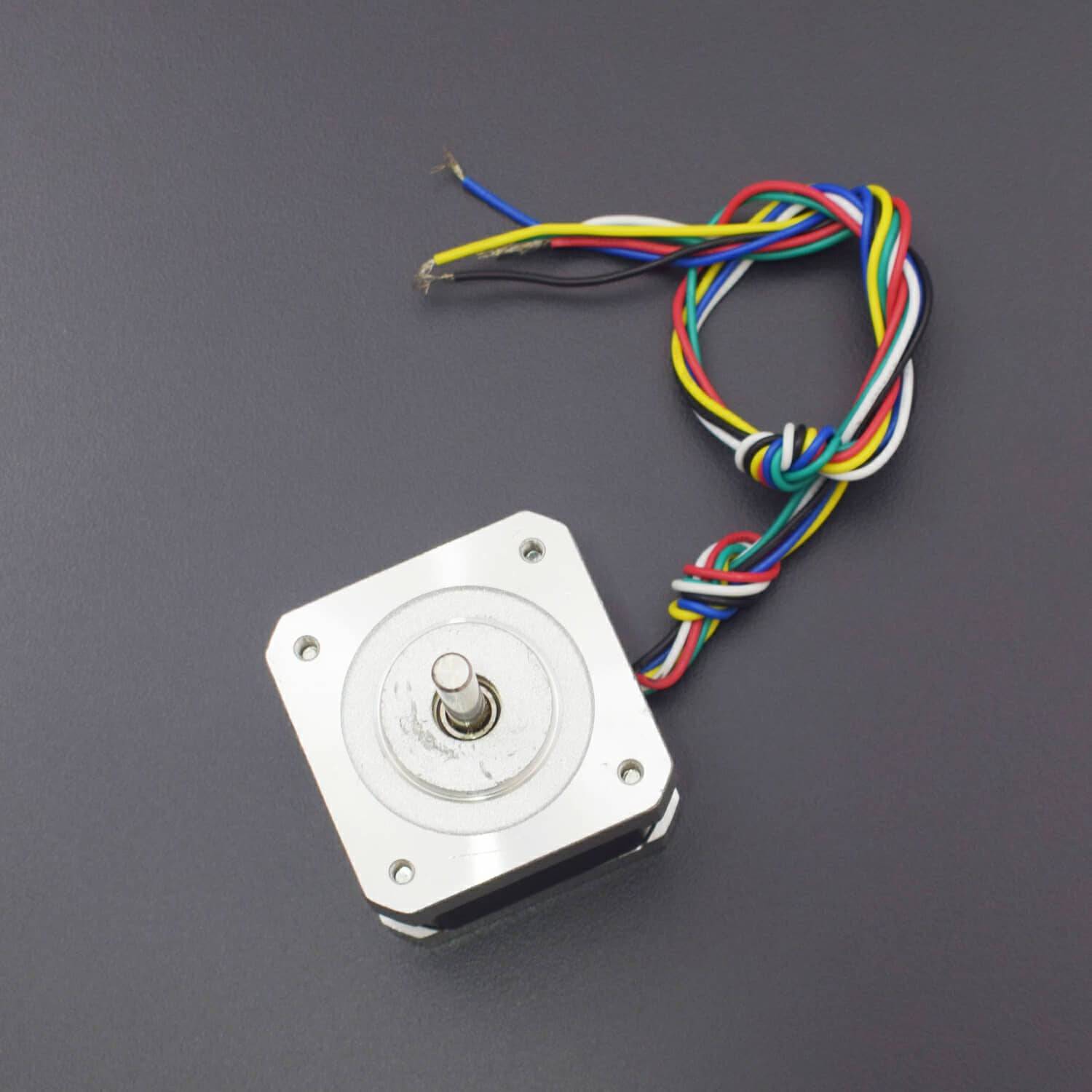

2 Phase 5mm Diameter 1000RPM Drive Shaft JQF39F34-01 Model Stepper Stepping Motor 0.6A - RS006

2 Phase 5mm Diameter 1000RPM Drive Shaft JQF39F34-01 Model Stepper Stepping Motor 0.6A - RS006

RS006

In stock

Rs. 800.00
Rs. 800.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Motor Resistant : 7Ohm
  • Motor Inductance : 6mH
  • Rated Speed : 1000RPM
  • Rated Torque : 1.2Kg.cm
  • Shaft Diameter : 5mm/ 0.22"
  • Motor Part Size (Approx.) : 3.8 x 3.8 x 3.5cm/1.5" x 1.5" x 1.4"(L*W*H)

Description:

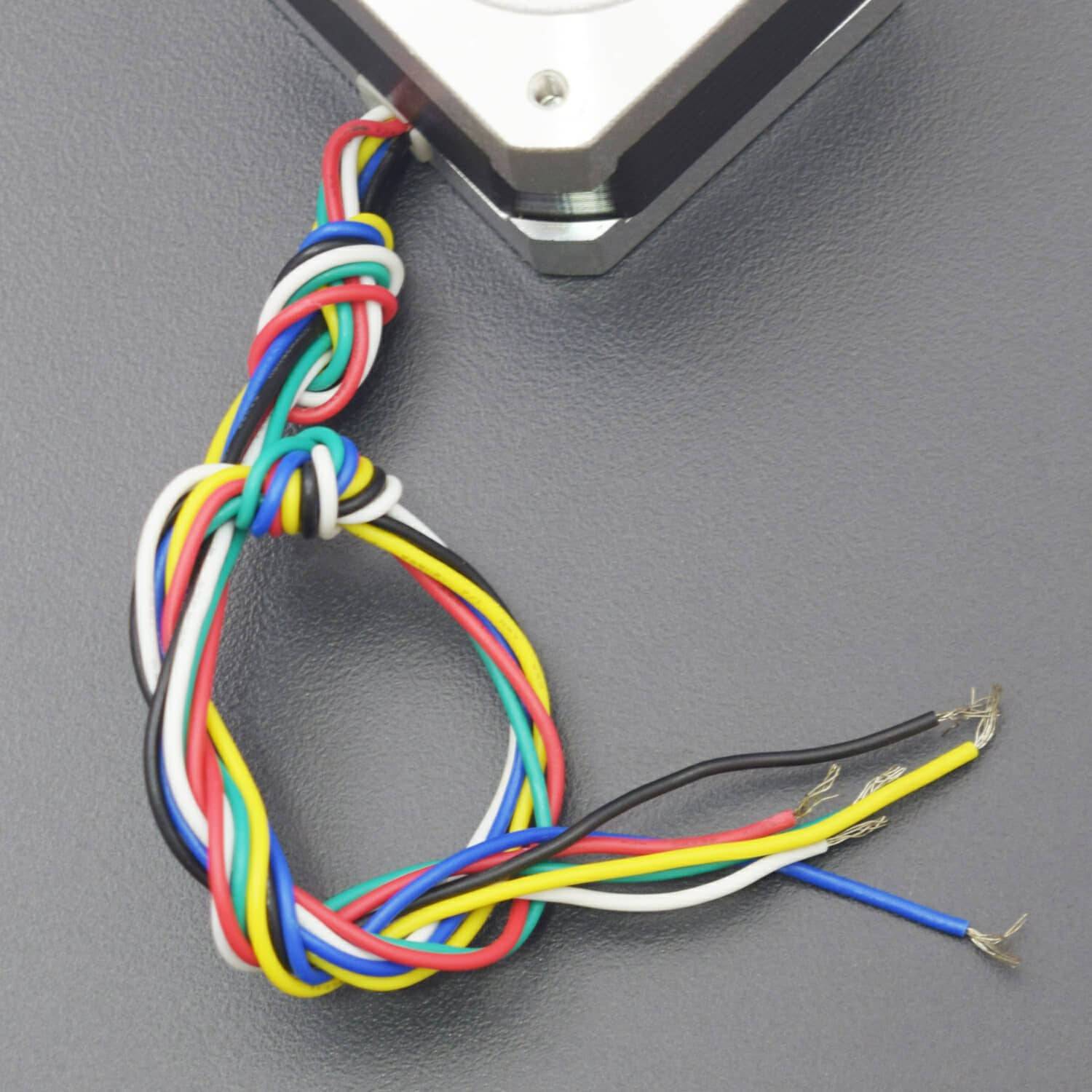

A stepping motor has no brushes or contacts. It is basically a synchronous motor with the magnetic field electronically switched to rotate the armature magnet around. This Stepping Motor features six wires, high torque-to-inertia for faster start and stop.

Specification:

  • Motor Resistant : 7Ohm
  • Motor Inductance : 6mH
  • Rated Speed : 1000RPM
  • Rated Torque : 1.2Kg-cm
  • Shaft Diameter : 5mm/ 0.22"
  • Motor Part Size (Approx.) : 3.8 x 3.8 x 3.5cm/1.5" x 1.5" x 1.4"(L*W*H)
  • Cable Length : 49cm / 19.3"
  • Mouting Hole Dia : 2.5mm/0.1"
  • Material : Metal, Plastic, Electronic Parts
  • Color : Black, Silver Tone

Package Included:

1 x 2 Phase 5mm Diameter Drive Shaft JQF39F34-01 Model Stepper Stepping Motor 0.6A
