Description :

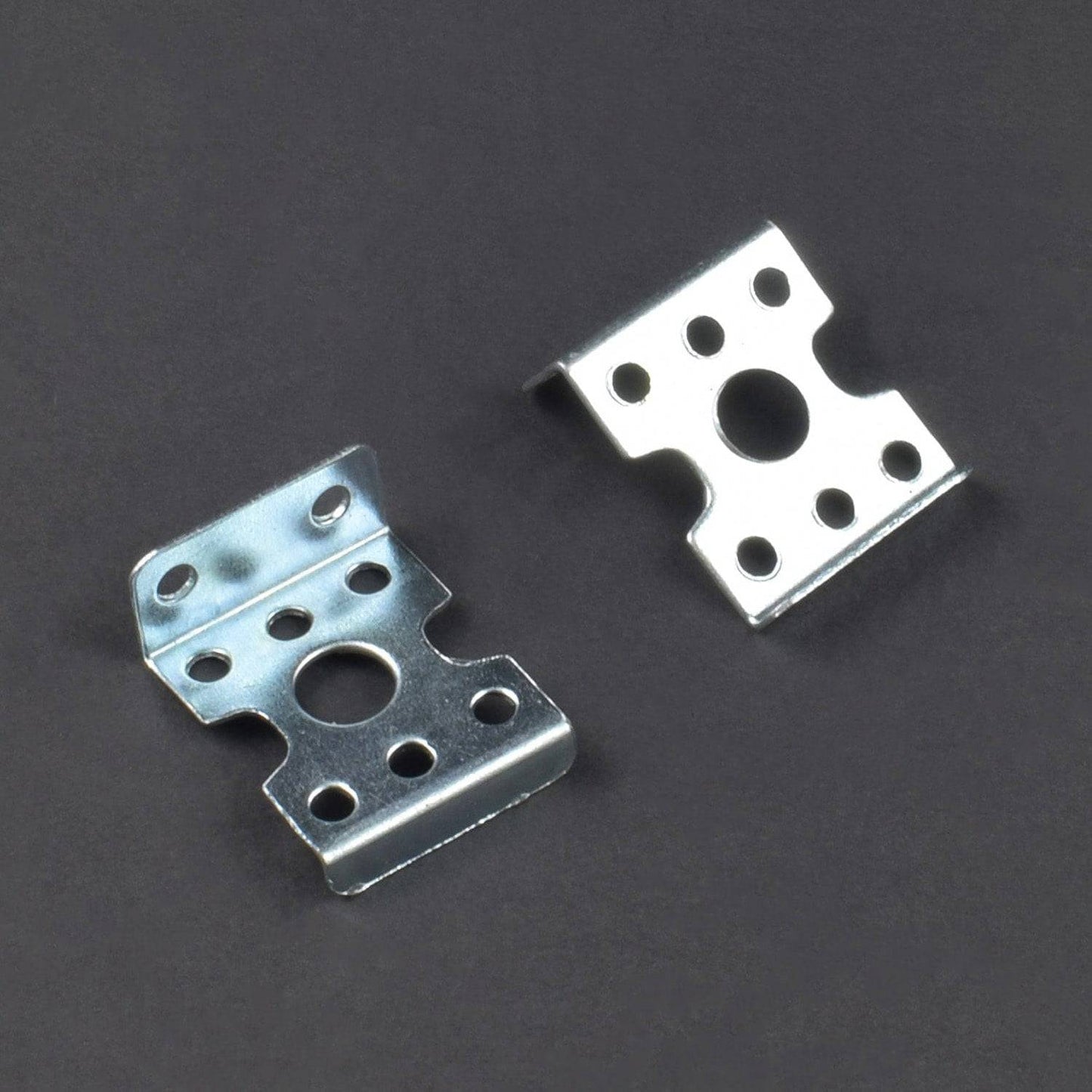

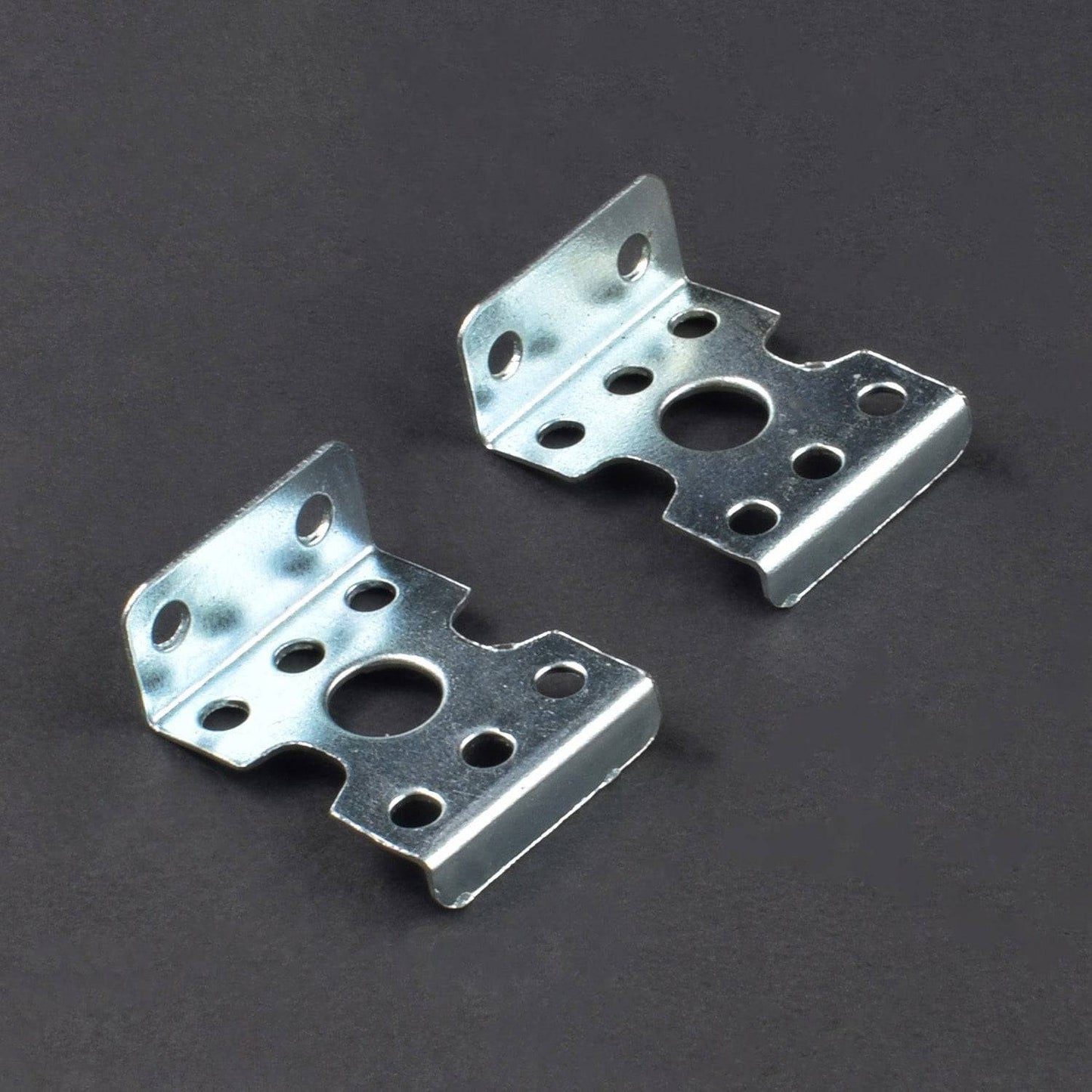

BO motor clamp or a bracket is used to mount the motor tightly on any solid surface. Thus it increases the usability of the motor & makes motor mounting very convenient. This clamp or mount bracket is designed for BO Motors. A DC motor clamp or a bracket is used to mount the motor tightly on any solid surface. Thus it increases the usability of the motor & makes motor mounting very convenient. Clamp for mounting BO Series Motors, Uses these clamps to mount our BO Motors. It comes with holes which align onto the motor holes and holes for mounting the clamp onto a chassis.
Specifications:
- Material: MS steel
- Thickness: 2mm thick
- Motor mounting side - Height 23 mm, width 22 mm
- Bracket mounting side - Height 10 mm, width 22 mm
- The hole for Motor mounting: 1- 7mm diameter
- Holes for chassis mounting: 6 - 3mm diameter each
- 2 standard size mounting holes for Chassis give enough strength to the joint
Package Included:
2 x Bo Motor Clamp
