Description:

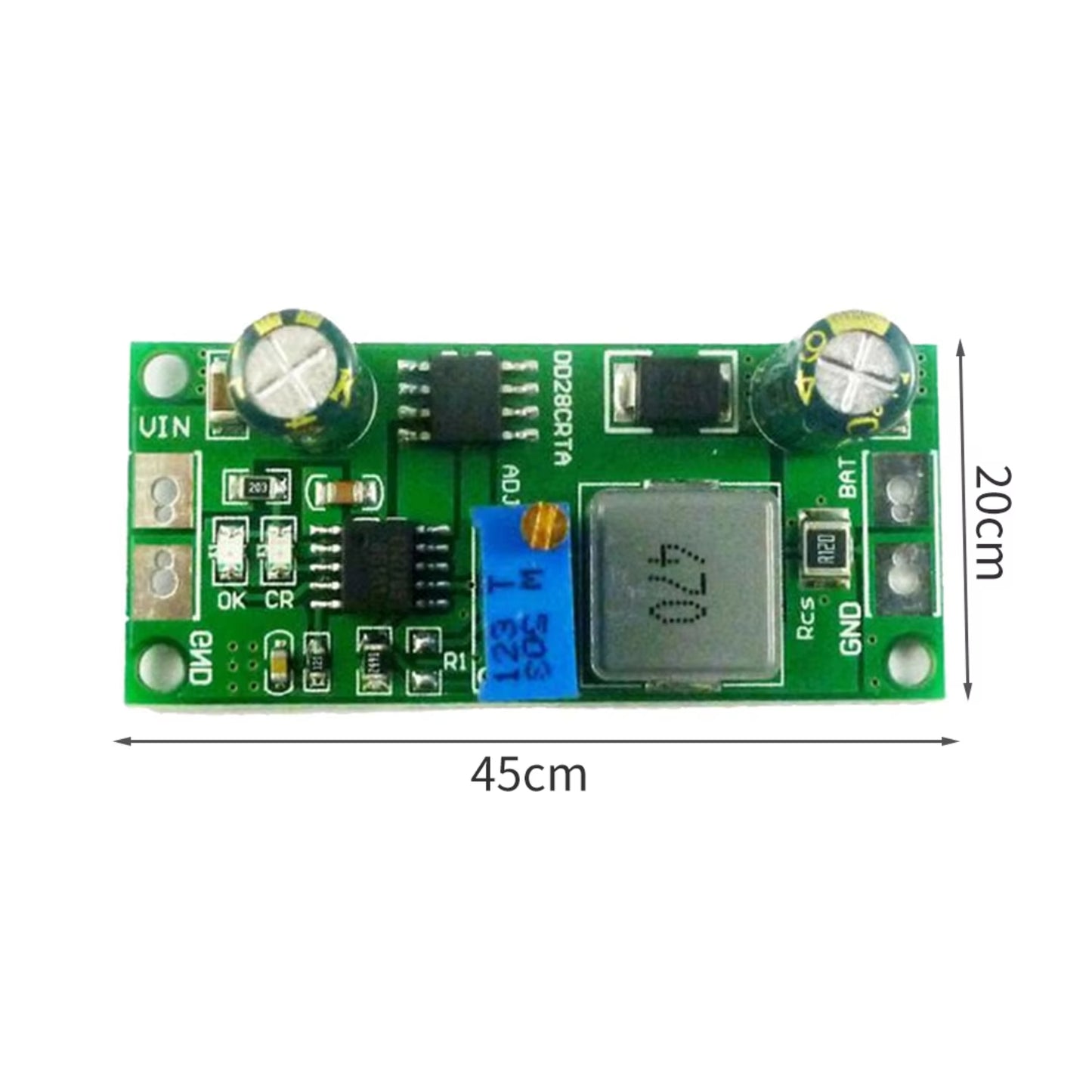

The DD28CRTA is a high-performance 2-in-1 module designed for charging and regulating power for a wide range of lithium-ion battery chemistries, including LiFePO4 and Titanate. This 1A charging board features an integrated DC-DC buck converter, enabling efficient voltage conversion and precise current regulation. It operates within a broad input voltage range and supports output voltages from 1.2V to 23V, making it suitable for various applications.
Specifications:
- Model: DD28CRTA
- Supply Voltage: DC 6.6-25V
- Dissipation Power: 1A
- Operating Temperature: -40℃ - +85℃
Features:

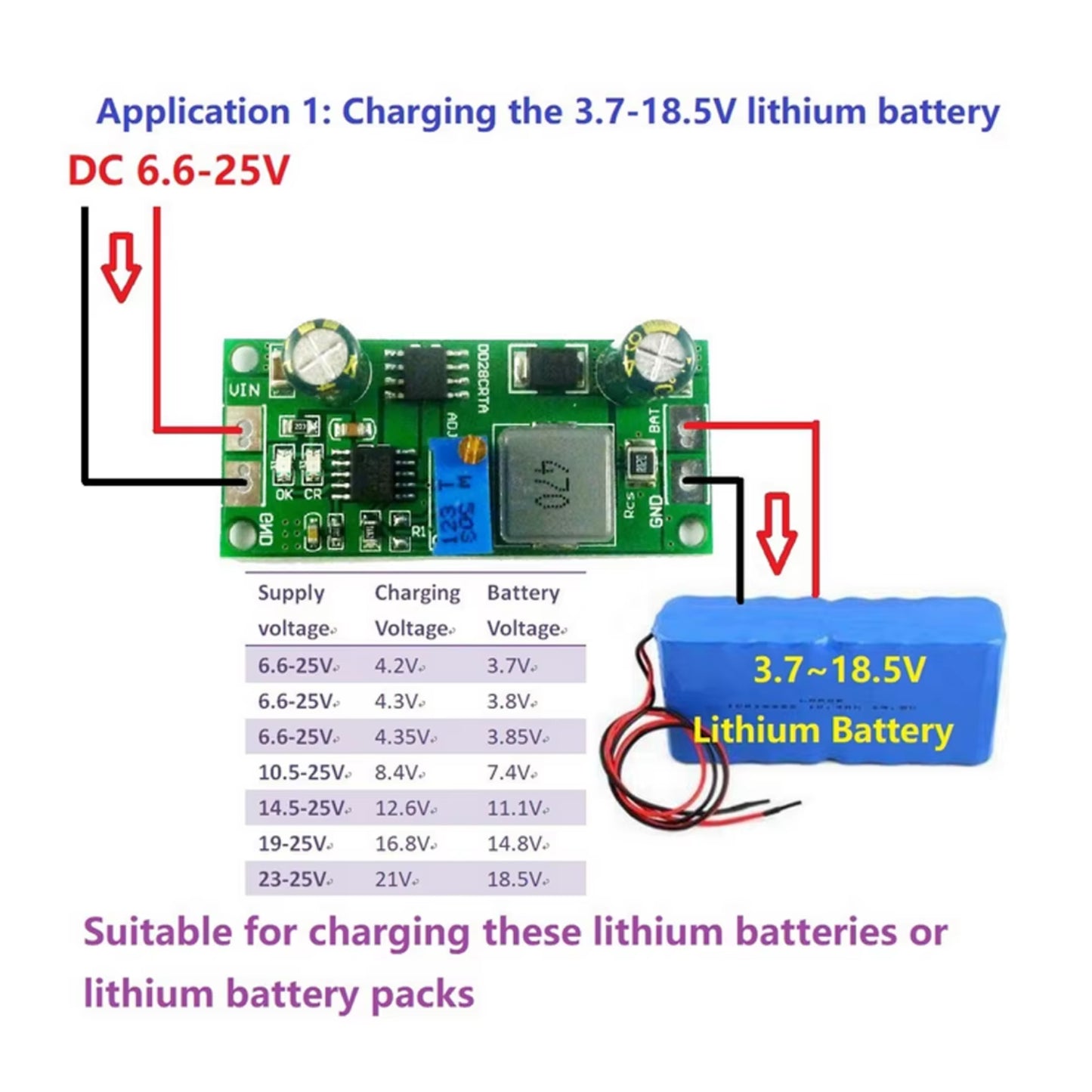

- Charges a wide range of lithium-ion battery chemistries (Li-ion, LiFePO4, Titanate) with single or multiple cells.
- Accepts a wide range of input voltages (6.6V - 25V), making it compatible with various power sources.
- Ensures minimal power loss during charging and conversion, maximizing energy utilization.

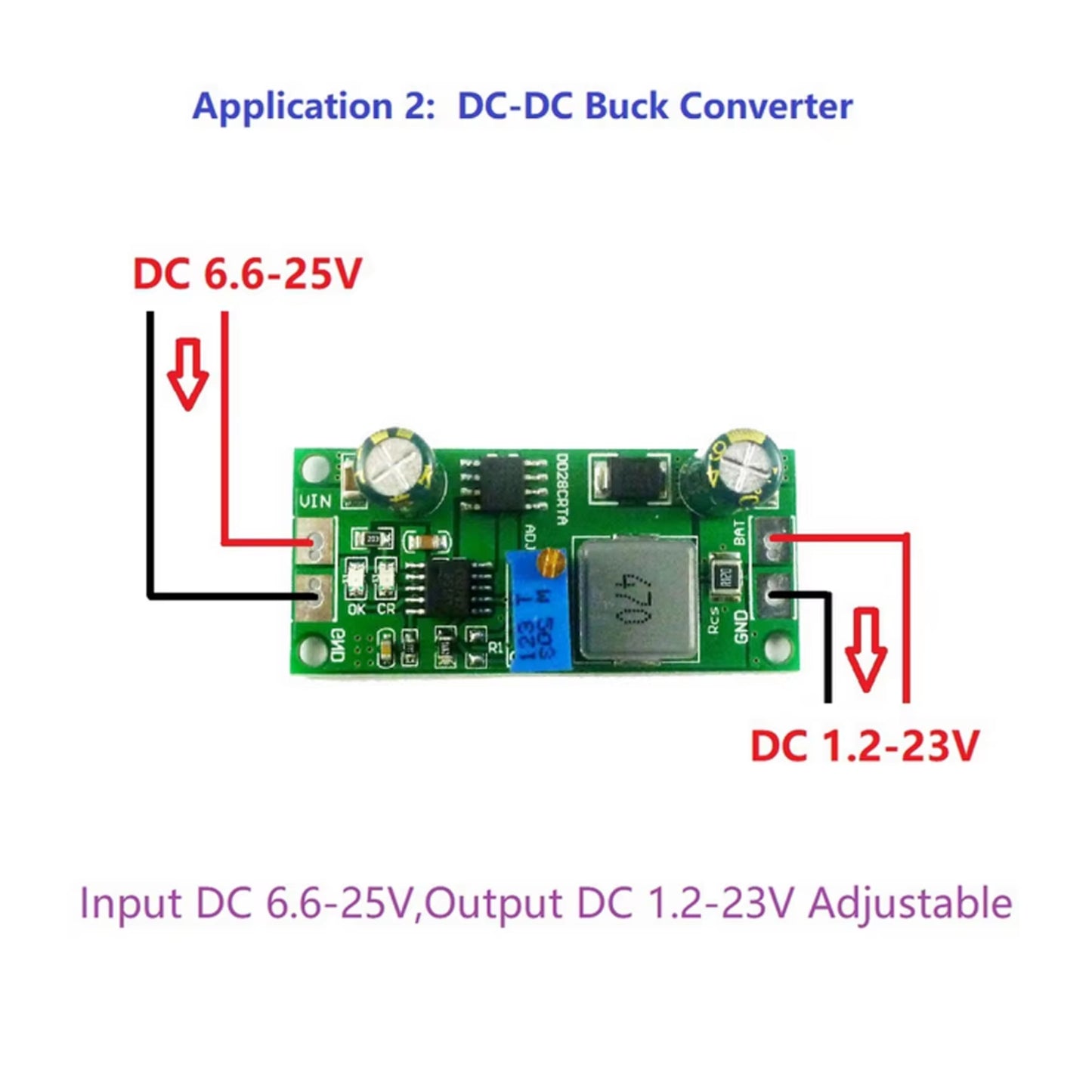

- Provides a stable, adjustable DC voltage output for various applications.
Package Included:

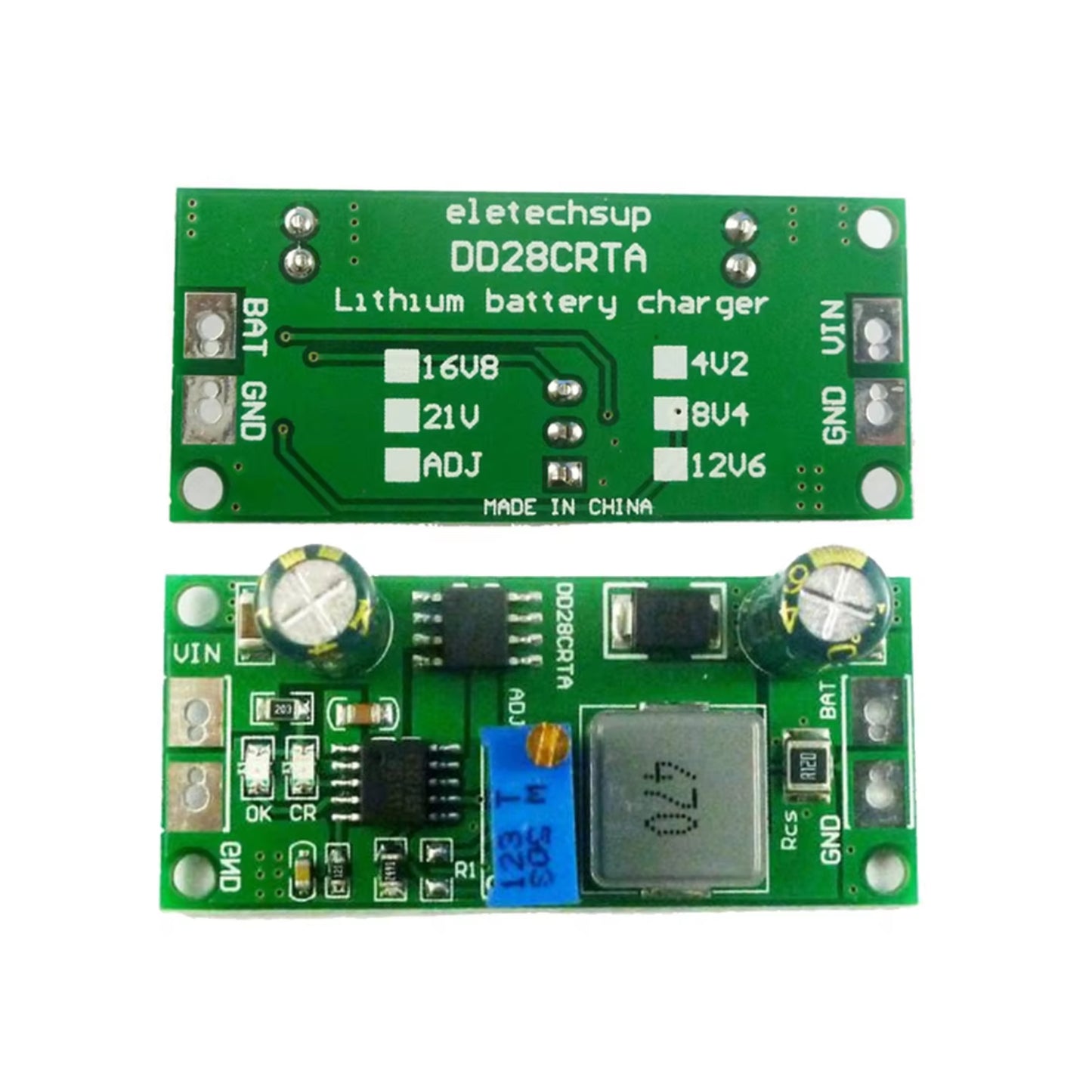

1 x DD28CRTA Lithium Battery Charger Module
