Description:

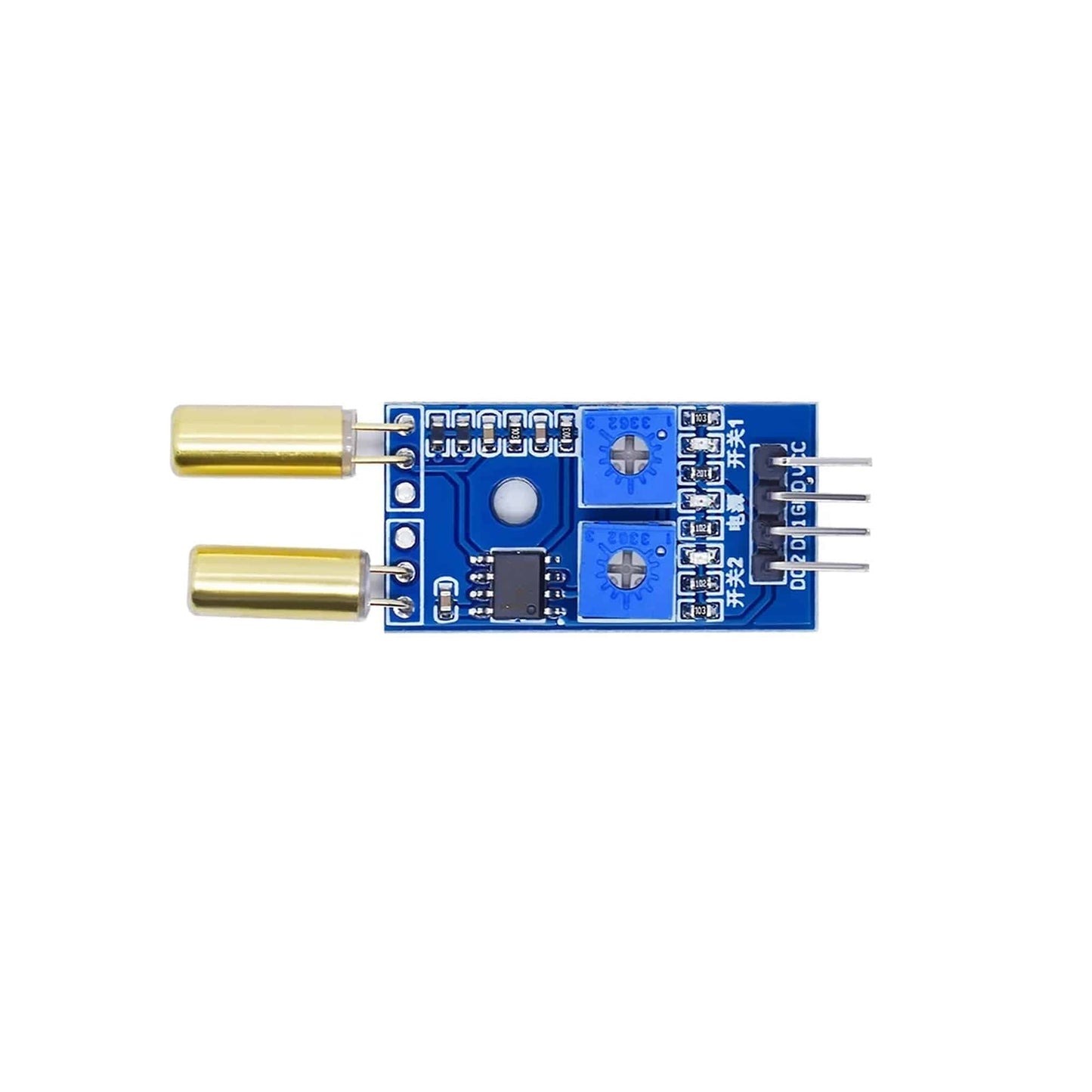

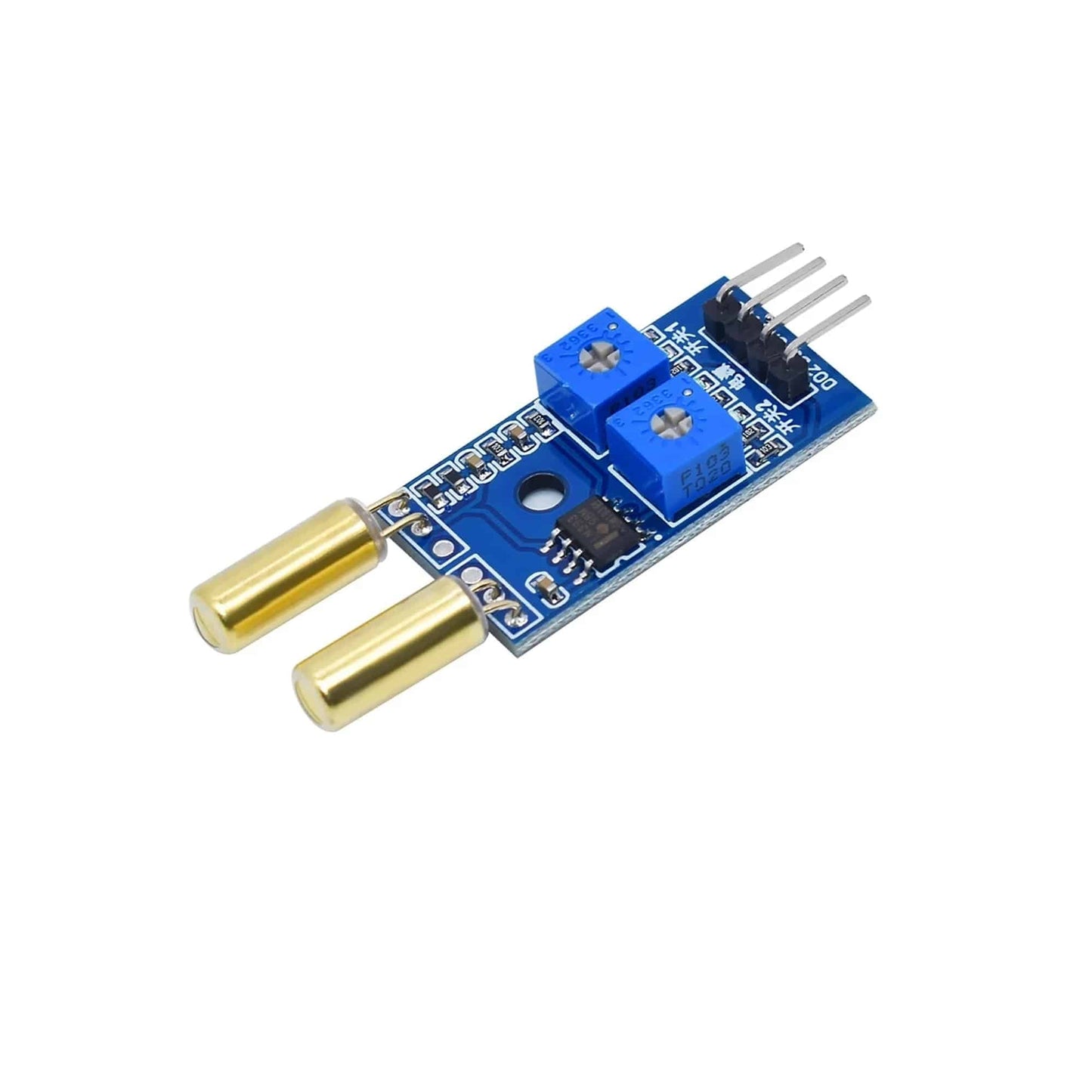

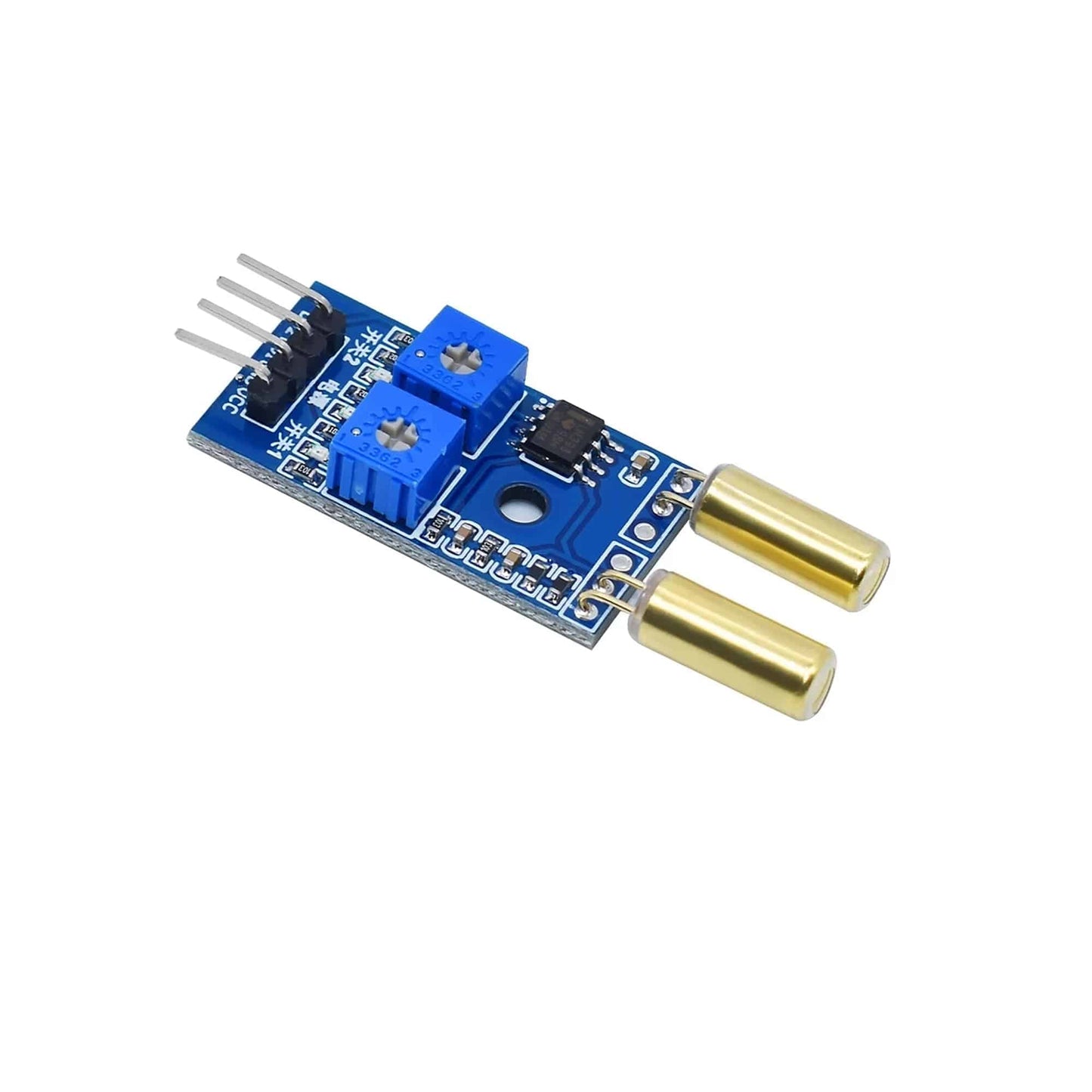

The 2 Channel Tilt Switch Sensor Module comes with the basic components for operation. Supplying power and it is good to be used. Attach it to an object and it will detect whether the object is tilted. Simple usage as it is a digital output, so you will know whether the object is tilted or not by reading the output. It uses a SW-460D or SW-520D tilt sensor. The tilt sensor is a ball-rolling type.
The 2 Channel Tilt Switch Sensor Module will output logic LOW when the module is not tilted until the threshold angle; it will output logic HIGH when it is tilted over the threshold angle. We have tested it, and the tilt angle is quite big, from 45 degrees to 130 degrees. However, it depends on the angular velocity too. It can be used as a vibration sensor too.
The output can be directly connected with the MCU, through the microcontroller to detect the level, thereby detecting the environment change of angle. 2 Channel Tilt Switch Sensor can be interfaced with any microcontroller with digital input such as PIC, or Arduino series for tilt detection capability.
Specifications:
- Operating Voltage: 3.3V~12V
- Maximum Output Current: 15mA
- Operating Temperature: 0°C ~+80°C
Features:
- 2 Channel Tilt Switch Sensor has an easy interface.
- 2 Channel Tilt Switch Sensor has a wide voltage LM393 comparator.
- 2 Channel Tilt Switch Sensor has a fixed bolt-hole for easy installation.
Package Included:
1 x 2 Channel Tilt Switch Sensor 2 Channel Output Tilt Slant Angle Sensor Module Golden SW520D Ball Switch Tilt Sensor Module for Arduino - Gold
