- Supply Voltage: DC 5V / 12V / 24V
- Quiescent Current: 5mA
- Maximum Operating Current: 190mA
- Trigger Mode: high and low level trigger
- Load Voltage: DC 30V / AC250
Description:

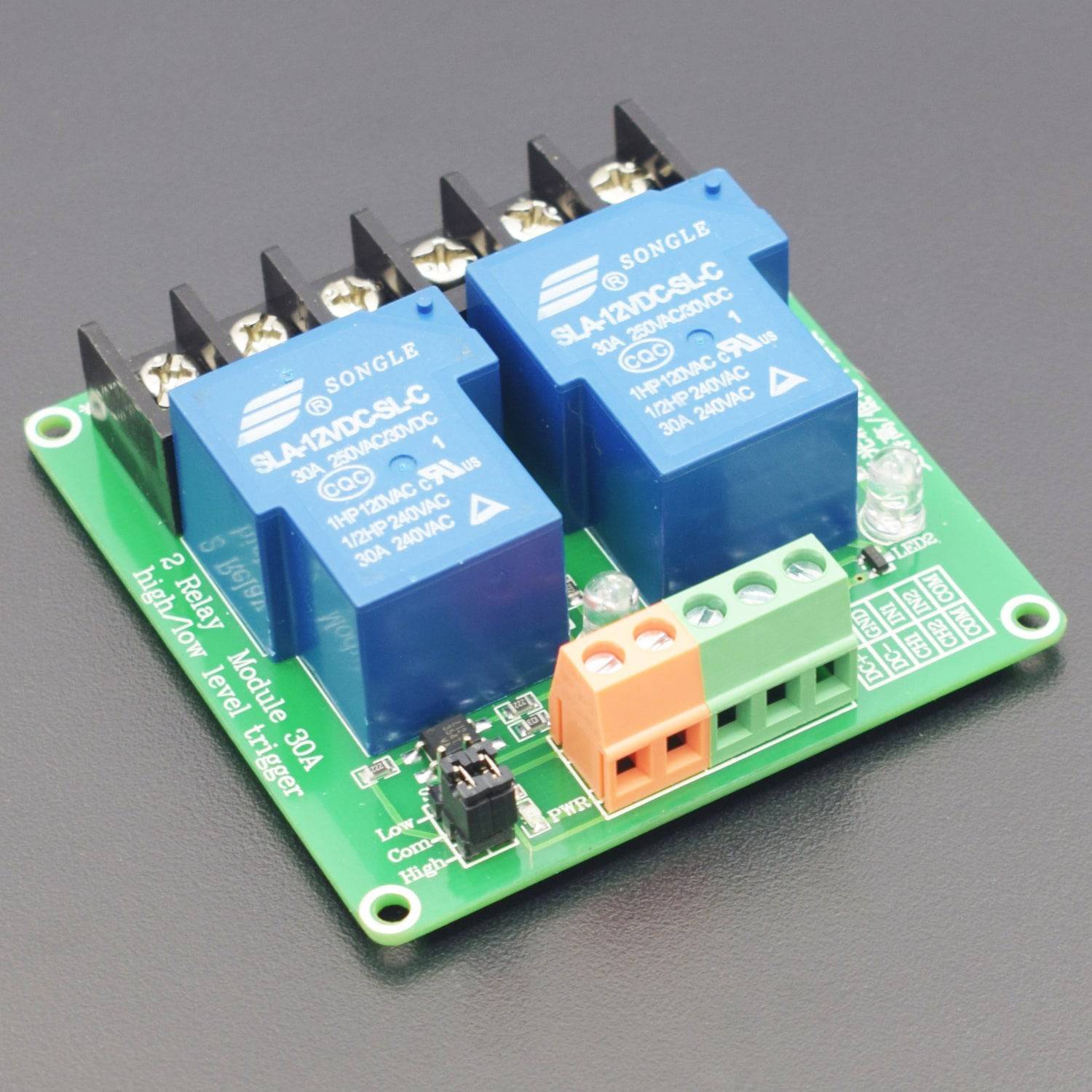

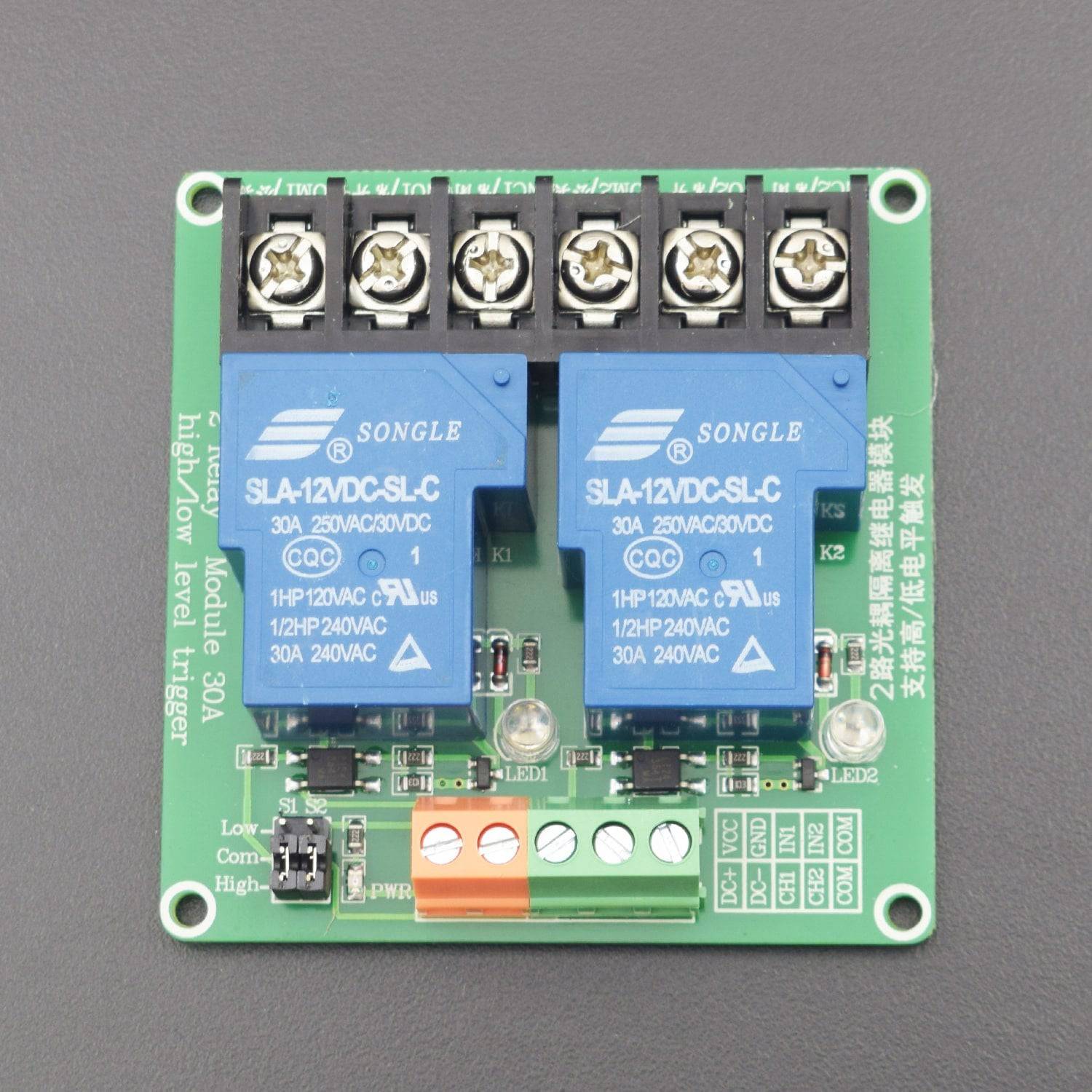

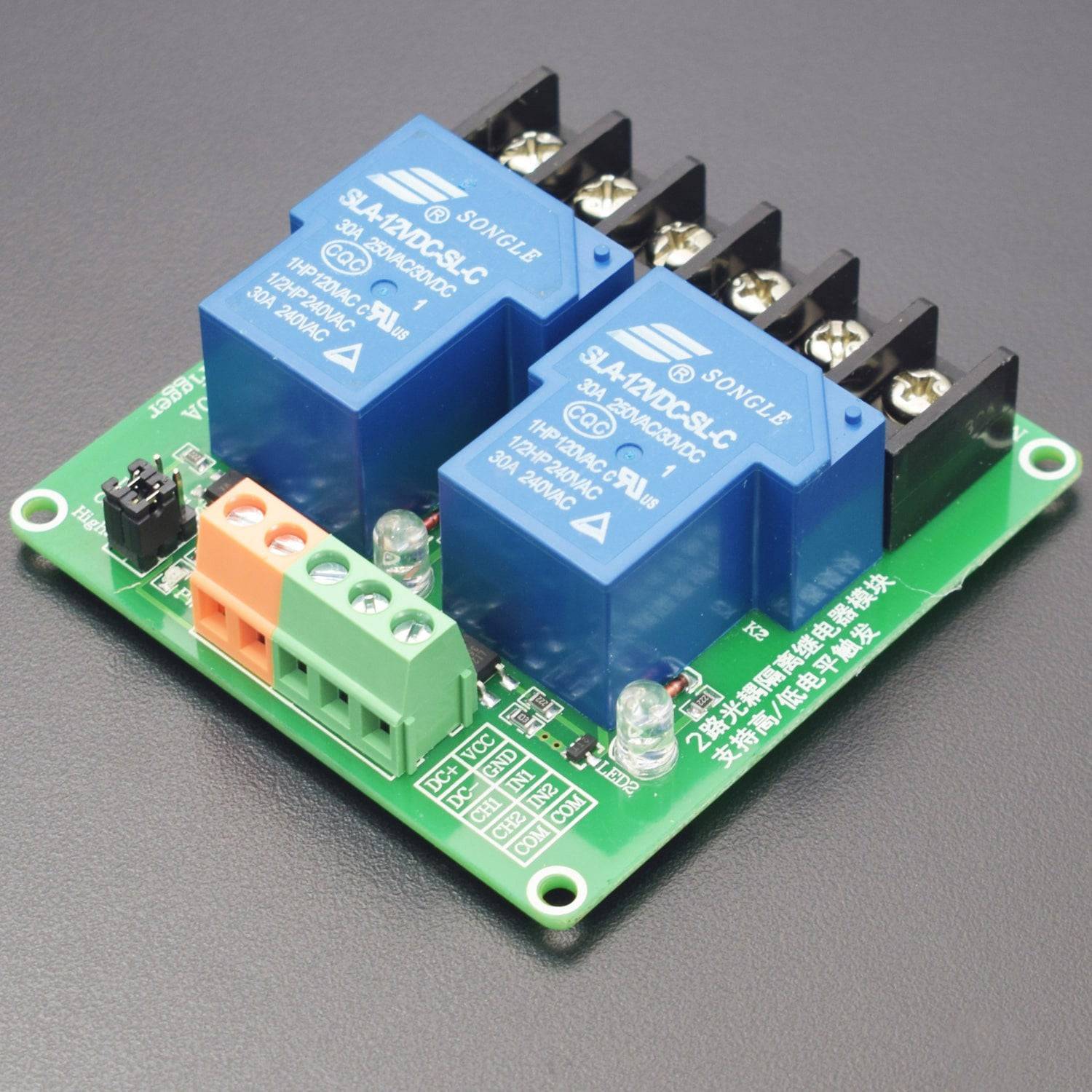

This is a 2-Channel Relay Module High/Low Level Triggering Optocoupler Isolation Load 30A DC 30V / AC 250V for PLC Automation. It uses high-power relay, the maximum control load DC 30V 30A / AC 250V 30A. In line with international safety standards, the control area and the load area with isolation slot. It comes with each optocoupler isolation, anti-interference ability.
Specification:
- Supply Voltage: DC 5V / 12V / 24V
- Quiescent Current: 5mA
- Maximum Operating Current: 190mA
- Trigger Mode: high and low level trigger
- Load Voltage: DC 30V / AC250
- Load Current: 30A
- Relay Life: more than 100,000 times
Features:
- Using high-power relay, the maximum control load DC 30V 30A / AC 250V 30A;
- With each optocoupler isolation, anti-interference ability.
- In line with international safety standards, the control area and the load area with isolation slot.
- Each channel has a relay on LED indication.
- Product Applications: PLC automation equipment control, industrial system control, logistics network control, home intelligent product control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
Package Included:
1 x 2-Channel Relay Module High/Low Level Triggering Optocoupler Isolation Load 30A DC 30V / AC 250V for PLC Automation
